Tool Diagram    (Click image to Zoom in) View larger Image

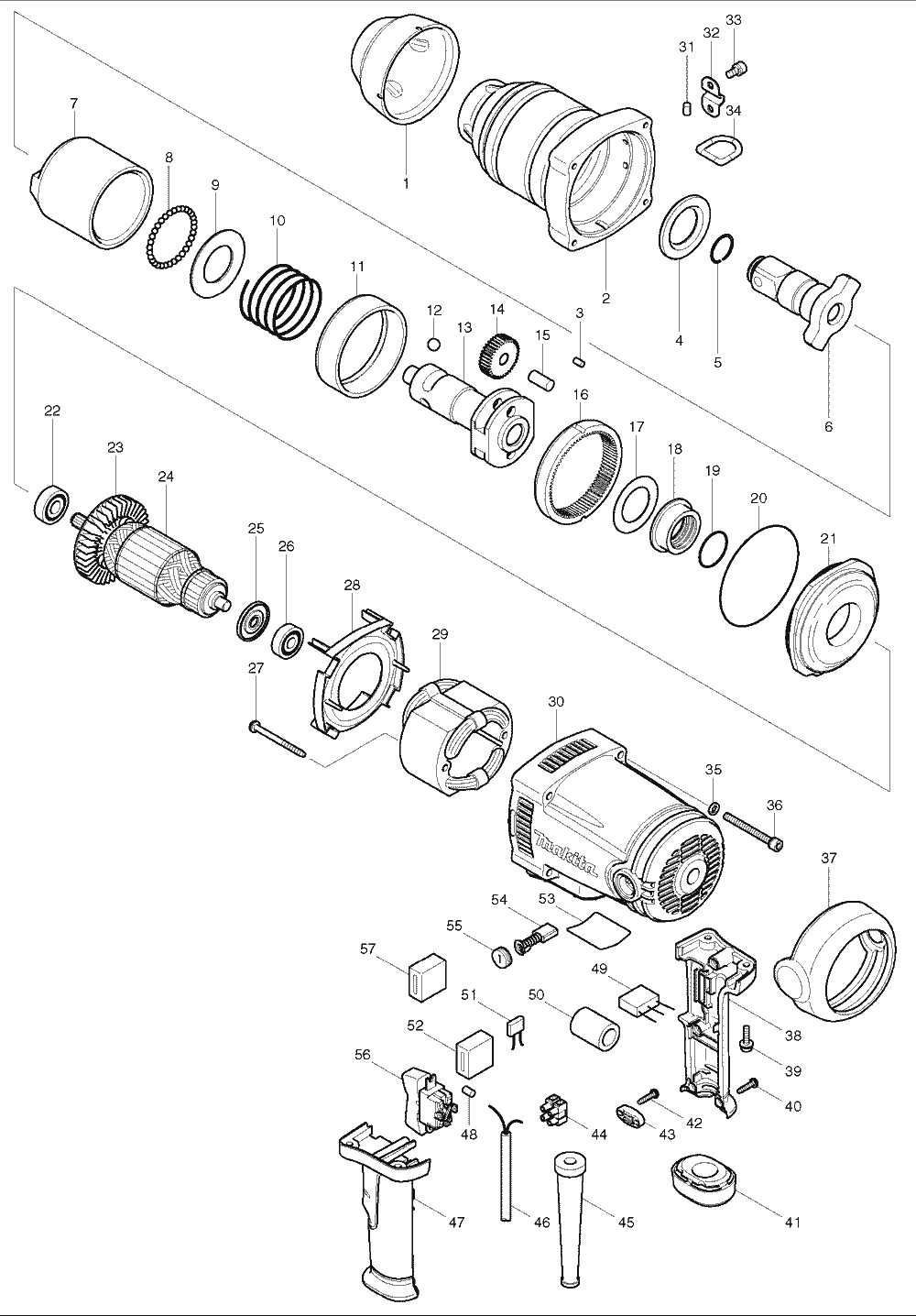

Makita TW1000 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421895-2 FRONT BUMPER, TW1000 $10.65
2 154555-8 HAMMER CASE CPL., TW1000 $98.27
3 256253-1 PIN 5, 6908DWA $1.19
4 253909-7 F. WASHER 35, 6910 $12.19
5 231921-7 RING SPRING 22, TW1000 $2.07
6 325587-4 ANVIL,TW1000 $130.08
7 325415-3 HAMMER, TW1000 $167.72
8 216002-8 STEEL BALL 4.8, NHP1310 $0.53
9 253712-6 F. WASHER 36, 6910 $5.92
10 231211-8 COMP. SPRING 36, 6910 $19.12

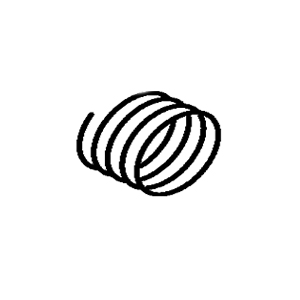

10 233428-9 COMP.SPRING 45,TW1000 $30.60
11 333112-7 RING, 6910 $33.55
12 216010-9 STEEL BALL 10.3, 6910 $1.19

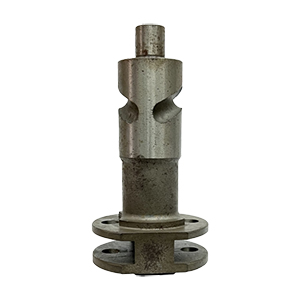

13 324501-7 SPINDLE, TW1000 $77.50

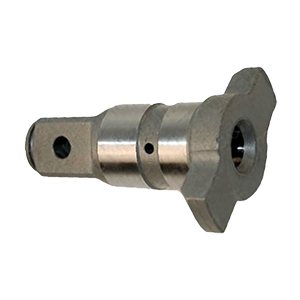

13 324666-5 SPINDLE, TW1000 $81.10
14 227149-3 GEAR 37, TW1000 $16.59
15 256051-3 PIN 10, 6910 $3.61
16 221815-4 S. GEAR, 6910 $116.99
17 267170-0 FLAT WASHER 34, 2702 $2.18
18 310154-8 BEARING BOX, TW1000 $25.06
19 213459-4 O RING 32, HK1810 $1.19
20 213855-6 O RING 95, TW1000 $3.28

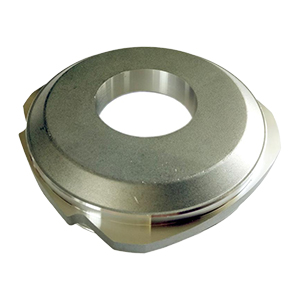

21 317841-0 HAMMER CASE COVER, TW1000 $26.27
22 211137-0 BALL BEARING 6201LLU,4140 $9.99
23 240003-4 FAN 80, 5007NK $4.16
24 516916-4 ARMATURE ASS'Y 115V, TW1000 $103.12
25 681665-3 INSULATION WASHER, TW1000 $1.34
26 211066-7 B. BEARING 6200LLB, BO4552 $10.98
27 265345-5 HEX. BOLT M5X60, HM0810B $3.61
28 418814-7 BAFFLE PLATE, TW1000 $5.48
29 526146-9 FIELD ASS'Y 115V, TW1000 $73.50
30 154556-6 MOTOR HOUSING CPL.,TW1000 $51.40
31 263005-3 RUBBER PIN 6, BHP452 $0.86
32 345517-9 PLATE, TW1000 $4.16
33 266157-9 H.S.H.BOLT M6X12, TW1000 $1.48
34 282018-5 D-RING, TW1000 $5.48
35 941151-9 F. WASHER 6, 5007NB $0.75
36 265538-4 H.S.H. BOLT M6X60, TW1000 $3.28
37 421896-0 REAR BUMPER, TW1000 $8.01
38 183935-1 HANDLE SET, TW1000 $30.49
39 911233-1 P.H. SCREW M5X20, TW1000 $0.86
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 421897-8 BUMPER, TW1000 $5.48
42 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
43 687063-9 STRAIN RELIEF, 4323K $1.26
44 654531-7 TERMINAL BLOCK 2P, 5007MG $4.49
45 682564-2 CORD GUARD, 5007NK $4.16
45 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
47 183935-1 HANDLE SET, TW1000 $30.49
48 263005-3 RUBBER PIN 6, BHP452 $0.86
53 861265-7 NAME PLATE, TW1000 $1.21
54 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
55 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
56 651572-4 SWITCH, BTW450 $26.52
58 231212-6 COMP. SPRING 49, 6910 $26.05
59 253713-4 F. WASHER 35, 6910 $7.57
5001 810134-9 CAUTION LABEL, 3709 $0.93
