Makita TW0350 Impact Wrench & Driver Parts

Makita TW0350 Impact Wrench & Driver Parts Image

Makita TW0350 Parts
1/2 Inch Square Drive Impact Wrench

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita TW0350
1/2 Inch Square Driv...
$213.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

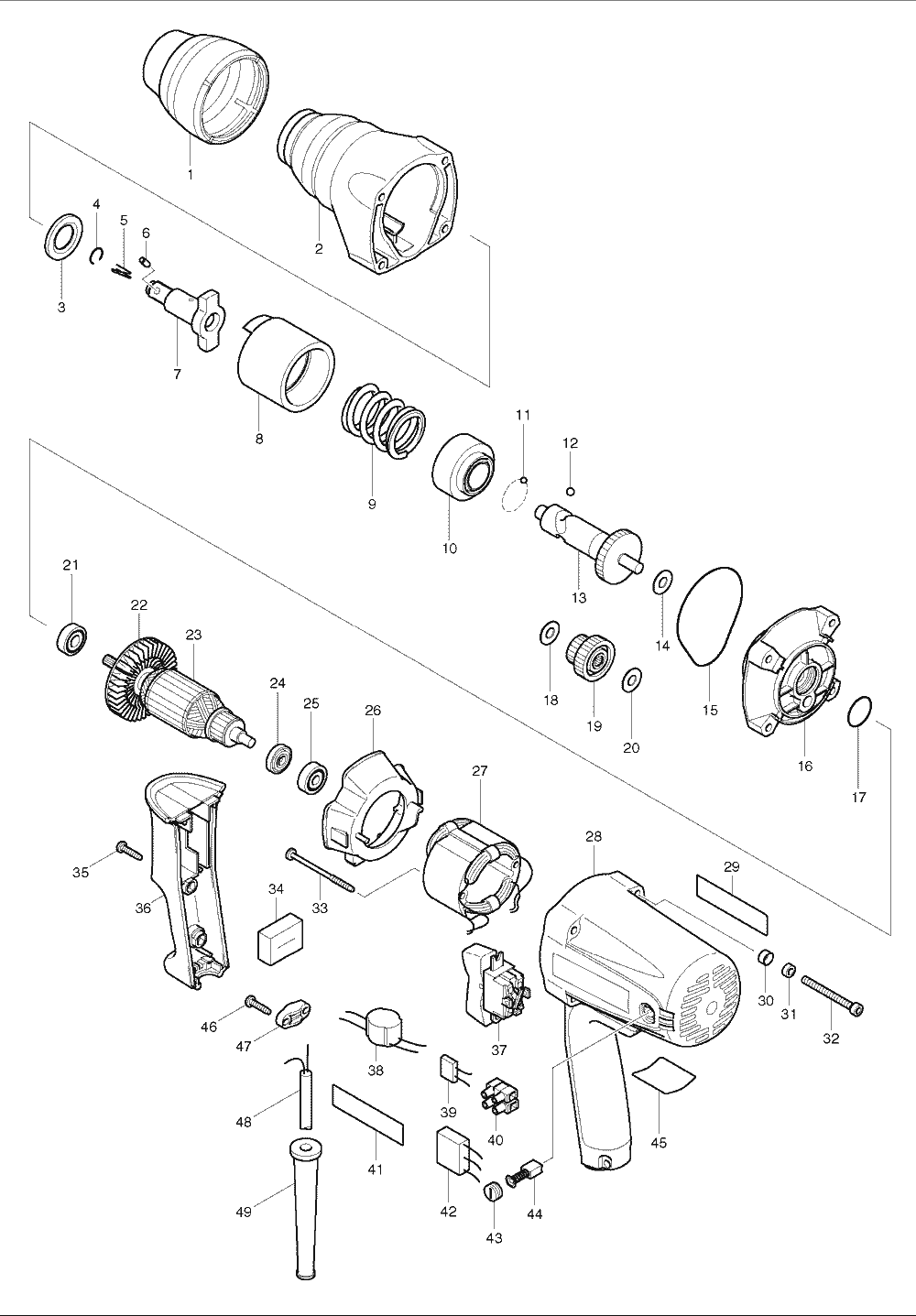

Makita TW0350 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421837-6 BUMPER, TW0350 $2.84
00 643455-2 BRUSH HOLDER 6X9, TW0350 $1.52
2 153623-4 HAMMER CASE CPL., TW0350 $42.63
3 267268-3 FLAT WASHER 19, TW0200 $2.18
5 322045-1 CLIP, 6905B $3.61
6 323675-1 "RETAINING PIN FOR 1/2"" IMPACT WRENCH, 6905B" $3.06
7 324405-3 ANVIL, TW0350 $34.17
8 324336-6 HAMMER, TW0350 $26.92
9 233383-5 COMPRESSION SPRING 28, TW0350 $4.93
10 313115-7 SPRING HOLDER, TW0350 $9.22
11 216008-6 STEEL BALL 4.0, 5007NK $0.53
12 216007-8 STEEL BALL 6.4, 6905B $0.86
13 324338-2 SPINDLE, TW0350 $29.37
14 253139-0 F. WASHER 8, 6510LVR $1.34
15 421838-4 SEAL RING, TW0350 $1.26
16 153624-2 HAMMER CASE COVER CPL., TW0350 $19.78
17 213373-4 O RING 22, GEO600 $1.19
18 253139-0 F. WASHER 8, 6510LVR $1.34
19 153626-8 SPUR GEAR 19-41 CPL., TW0350 $20.77
20 253139-0 F. WASHER 8, 6510LVR $1.34
21 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
22 241884-9 FAN 60, TW0350 $4.16
23 515261-4 ARMATURE ASS'Y 115V, TW0350 $77.00
26 418180-2 BAFFLE PLATE, TW0350 $2.84
27 625161-1 FIELD 115V, TW0350 $36.72
28 183604-4 MOTOR HOUSING,TW0350 $26.92
29 819064-1 MAKITA MARK, 5402NA $1.26
30 253929-1 CUP WASHER 5, 6906 $1.63
31 262001-8 RING 5, 6906 $3.61
32 266331-9 H.S.H. BOLT M5X50, TW0350 $1.96
33 266091-3 TAPPING SCREW 4X50, 6812 $1.19
35 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
36 418179-7 HANDLE COVER, TW0350 $5.48
37 651572-4 SWITCH, BTW450 $26.52
40 654531-7 TERMINAL BLOCK 2P, 5007MG $4.49
41 819064-1 MAKITA MARK, 5402NA $1.26
43 643550-8 BRUSH CAP , 9031 $1.63
44 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
45 850644-4 NAME PLATE, TW0350 $1.21
46 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
47 687063-9 STRAIN RELIEF, 4323K $1.26
48 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
48 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
49 682559-5 CORD GUARD 8, 6824 $2.51
49 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
5001 810134-9 CAUTION LABEL, 3709 $0.93
