Makita TW0200 Impact Wrench & Driver Parts

Makita TW0200 Impact Wrench & Driver Parts Image

Makita TW0200 Parts
1/2 Inch Square Drive Impact Wrench

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita TW0200
1/2 Inch Square Driv...
$191.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

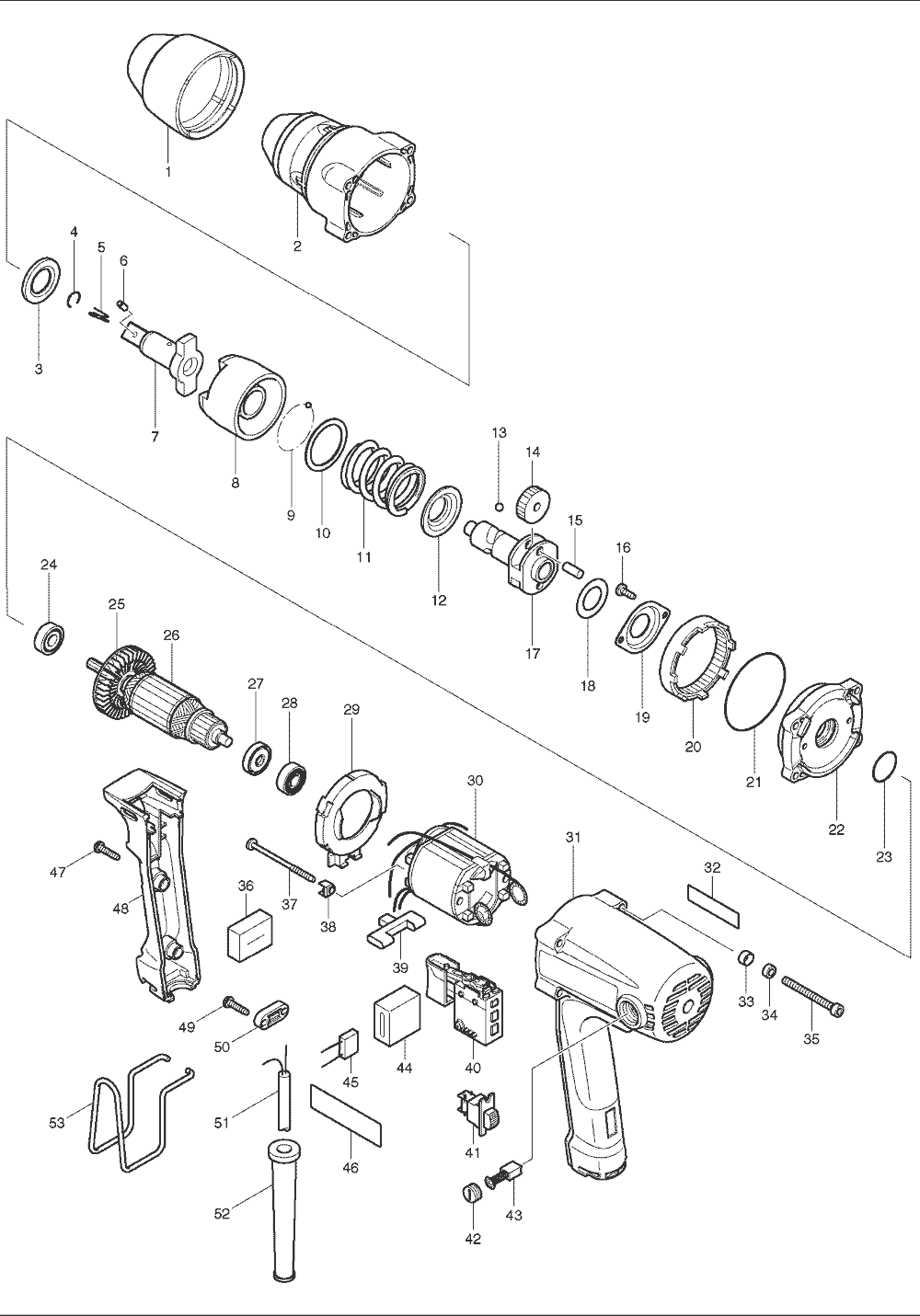

Makita TW0200 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421839-2 BUMPER, TW0200 $2.84
00 892672-3 CAUTION LABEL, TW0200 $2.40
2 153581-4 HAMMER CASE CPL., TW0200 $29.37
3 267268-3 FLAT WASHER 19, TW0200 $2.18
5 322045-1 CLIP, 6905B $3.61
6 323675-1 "RETAINING PIN FOR 1/2"" IMPACT WRENCH, 6905B" $3.06
7 324343-9 ANVIL, TW0200 $26.92
8 324341-3 HAMMER, TW0200 $23.74
9 216001-0 STEEL BALL 3.5, 6800DBV $0.53
10 267269-1 FLAT WASHER 32, TW0200 $2.18
11 233377-0 COMPRESSION SPRING 30, TW0200 $4.93
12 267777-2 CUP WASHER 19, TW0200 $1.63
13 216007-8 STEEL BALL 6.4, 6905B $0.86
14 227092-6 SPUR GEAR 32, TW0200 $5.70
15 256002-6 PIN 6, TW0200 $1.48
16 266026-4 TAPPING SCREW 4X12,5477NB $0.86
17 324339-0 SPINDLE, TW0200 $23.74
18 253794-8 F. WASHER 18, 6905B $1.63
19 285709-7 BEARING RETAINER 44, TW0200 $2.84
20 227093-4 INTERNAL GEAR 71, TW0200 $8.45
21 213670-8 O RING 58, HM1202C $1.96
22 153583-0 INTERNAL GEAR COVER CPL., TW0200 $9.77
23 213373-4 O RING 22, GEO600 $1.19
24 210005-4 BALL BEARING 608DDW, 9031 $13.07
25 241881-5 FAN 52, 6904VH $4.16
26 518860-1 ARMATURE ASS'Y 115V, TW0200 $71.80
27 681652-2 INSULATION WASHER, BO4556 $1.34
28 211021-9 BALL BEARING 607LLB, LS1013 $8.78
29 418187-8 BAFFLE PLATE, TW0200 $1.52
30 593561-2 FIELD ASS'Y 115V, TW0200 $28.05
31 183612-5 MOTOR HOUSING,TW0200 $26.92
32 819063-3 MAKITA LABEL, DA3010F $0.96
33 253929-1 CUP WASHER 5, 6906 $1.63
34 262001-8 RING 5, 6906 $3.61
35 266331-9 H.S.H. BOLT M5X50, TW0350 $1.96
37 266091-3 TAPPING SCREW 4X50, 6812 $1.19
38 417237-6 INSULATION COVER, 9564CV $1.52
39 418186-0 F/L CHANGE LEVER, TW0350 $2.84
40 650523-4 SWITCH, TW0200 $36.21
42 643550-8 BRUSH CAP , 9031 $1.63
43 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
46 850444-2 NAME PLATE, TW0200 $0.96
47 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
48 418189-4 HANDLE COVER, TW0200 $6.80
49 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
50 687063-9 STRAIN RELIEF, 4323K $1.26
51 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
51 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
52 682559-5 CORD GUARD 8, 6824 $2.51
52 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
53 324284-9 HOOK, 6953 $4.16
1001 824703-0 PLASTIC CARRYING CASE TW0200 $40.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
