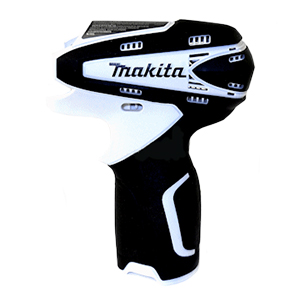

Makita TD090D Impact Wrench & Driver Parts

Makita TD090D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

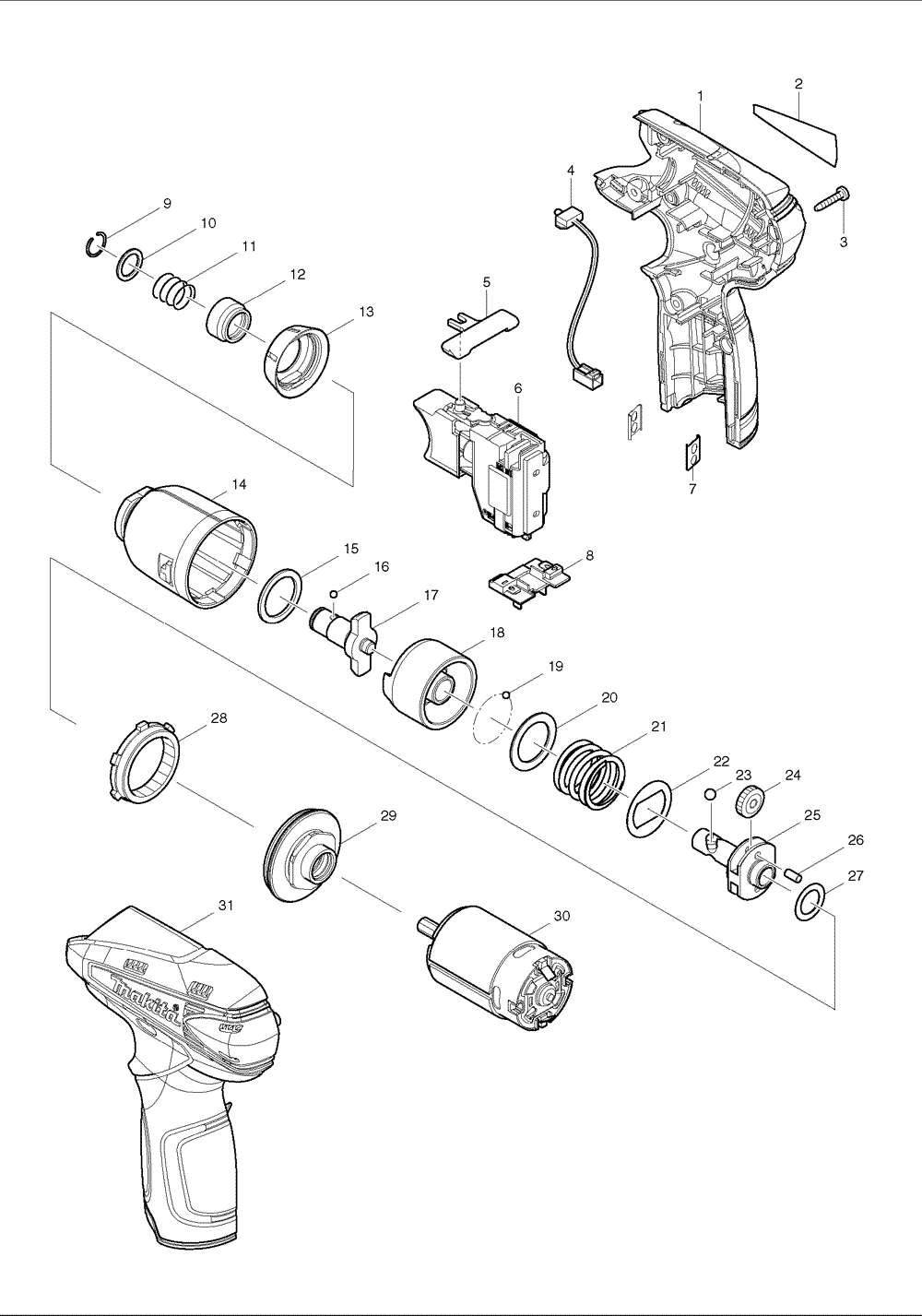

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	188519-0	HOUSING SET, TD090DW	$10.43
2	865121-3	NAME PLATE, TD090DW	$1.17
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
5	450504-6	F/R CHANGE LEVER, TD090DW	$0.75
6	650645-0	SWITCH, FD002	$26.60
7	345998-7	SET PLATE, LXFD01	$0.49
8	643830-2	TERMINAL, TD090DW	$1.48
9	231965-7	RING SPRING 10, DF030DW	$0.86
10	267143-3	FLAT WASHER 11, BTD060Z	$1.63
11	233005-7	COMP.SPRING 13,6903VDW	$1.48
12	324711-6	BIT SLEEVE, TD020	$2.95
13	424109-8	BUMPER, TD090DW	$3.94
14	158670-0	HAMMER CASE CPL. , TD090DW,DT01W	$5.15
15	261140-1	NYLON WASHER 20, TD090DW	$1.01
16	216019-1	STEEL BALL 3, BTD060Z	$0.53
17	324895-0	ANVIL M, TD090DW	$9.22
18	324894-2	HAMMER, TD090DW	$6.47
19	216019-1	STEEL BALL 3, BTD060Z	$0.53
20	267380-9	FLAT WASHER 20, TD090DW	$1.01
21	234064-4	COMPRESSION SPRING 21, TD090DW	$1.34
22	267813-4	WASHER 21, TD090DW	$1.01
23	216002-8	STEEL BALL 4.8, NHP1310	$0.53
24	227213-0	SPUR GEAR 17, TD090DW	$0.97
25	324897-6	SPINDLE, TD090DW	$4.71
26	268217-3	PIN 3.5, TD090DW	$0.75
27	253052-2	F. WASHER 12, 9031	$1.34
28	227215-6	INTERNAL GEAR 43, TD090DW	$2.84
29	158671-8	BEARING BOX CPL. , TD090DW	$3.94
30	629851-8	DC MOTOR, TD090DW	$10.65
31	188519-0	HOUSING SET, TD090DW	$10.43
1001	168467-9	HOLSTER TD090DW	$8.40
