Makita TD020D Cordless Screwdriver Parts

Makita TD020D  Cordless Screwdriver Parts Image

Makita TD020D Parts
Time to buy a new tool?

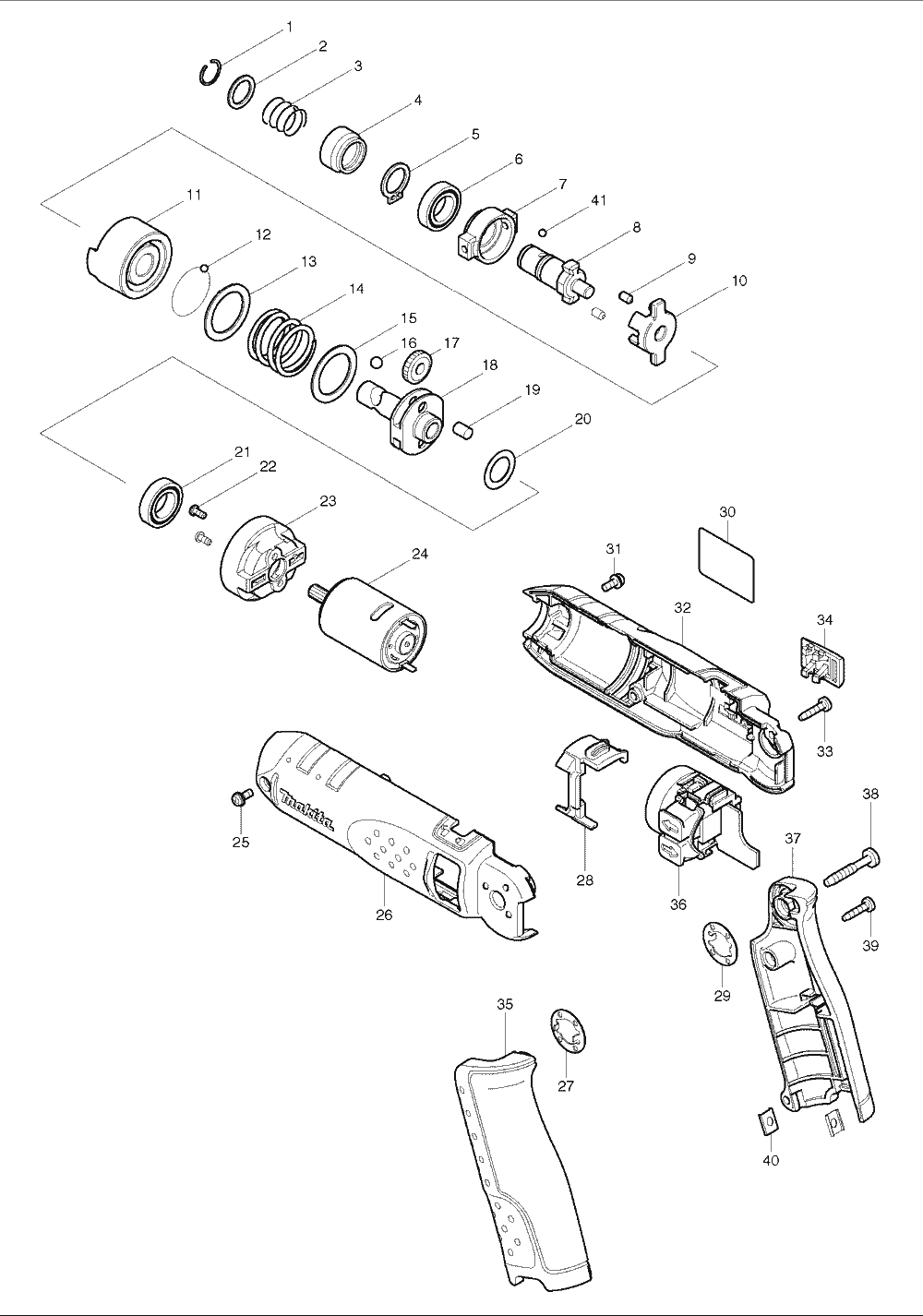

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 231965-7 RING SPRING 10, DF030DW $0.86
2 267143-3 FLAT WASHER 11, BTD060Z $1.63
3 233005-7 COMP.SPRING 13,6903VDW $1.48
4 324711-6 BIT SLEEVE, TD020 $2.95
5 961072-9 RETAINING RING S-12, 9607NB $1.19
6 210108-4 BALL BEARING 6801LLU, TD020 $4.93
7 313136-9 LOCK RING, TD020 $5.70
8 324717-4 SPINDLE M, TD020 $4.16
9 268160-6 PIN 3.5, TD020 $0.53
10 324713-2 ANVIL, TD020 $9.22
11 324714-0 HAMMER, TD020 $5.48
12 216019-1 STEEL BALL 3, BTD060Z $0.53
13 267335-4 FLAT WASHER 20, TD020 $1.63
14 233481-5 COMP. SPRING 20, TD020 $1.48
15 267335-4 FLAT WASHER 20, TD020 $1.63
16 216002-8 STEEL BALL 4.8, NHP1310 $0.53
17 227173-6 SPUR GEAR 27, TD020 $1.63
18 324715-8 SPINDLE, TD020 $8.45
19 268161-4 PIN 5, TD020 $0.86
20 253052-2 F. WASHER 12, 9031 $1.34
21 210108-4 BALL BEARING 6801LLU, TD020 $4.93
22 265172-0 P.H. SCREW 2.6X6, TD020 $0.53
23 419639-2 INTERNAL GEAR CASE, TD020 $2.95
24 629842-9 DC MOTOR, TD020 $6.47
25 265173-8 P.H. SCREW M3X8, TD020 $0.86
26 188205-3 MOTOR HOUSING SET, TD020 $5.92
27 267803-7 LOCK WASHER, TD020 $2.18
28 419637-6 CHANGE LEVER, TD020 $0.97
29 267803-7 LOCK WASHER, TD020 $2.18
30 862714-7 No Longer Available - NAME PLATE, TD020 $0.66
30 863818-8 N/A $1.90Disc
31 265173-8 P.H. SCREW M3X8, TD020 $0.86
32 188205-3 MOTOR HOUSING SET, TD020 $5.92
33 266404-8 T. SCREW 3X14, TD020 $0.53
34 419638-4 LIGHT COVER, TD020 $0.97
35 188199-2 HANDLE SET, TD020 $4.16
36 638470-9 SWITCH UNIT, TD020 $14.39
37 188199-2 HANDLE SET, TD020 $4.16
38 266374-1 TAPPING SCREW 4X25, GA7021 $0.53
39 266404-8 T. SCREW 3X14, TD020 $0.53
40 345749-8 SET PLATE, TD020 $0.49
41 216019-1 STEEL BALL 3, BTD060Z $0.53
42 810288-2 CAUTION LABEL, TD020 $0.46
1001 ***DC07SA N/A $1.90Disc
1002 194356-2 BL7010 BATTERY TD020 $1.90Disc
1003 168435-2 HOLSTOR TD020 $1.90Disc
1004 831272-4 SOFT CASE TD020 $1.90Disc
1004 831277-4 N/A $1.90Disc
1005 194375-8 DRILL SET TD020 $4.40
1005 711317-3 N/A $1.90Disc
1006 419730-6 HOLDER TD020 $2.40
1007 784025-9 N/A $1.90Disc
1008 784244-7 N/A $1.90Disc
1009 784245-5 N/A $1.90Disc
