Makita T221DW Stapler Parts

Makita T221DW Stapler Parts Image

Makita T221DW Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

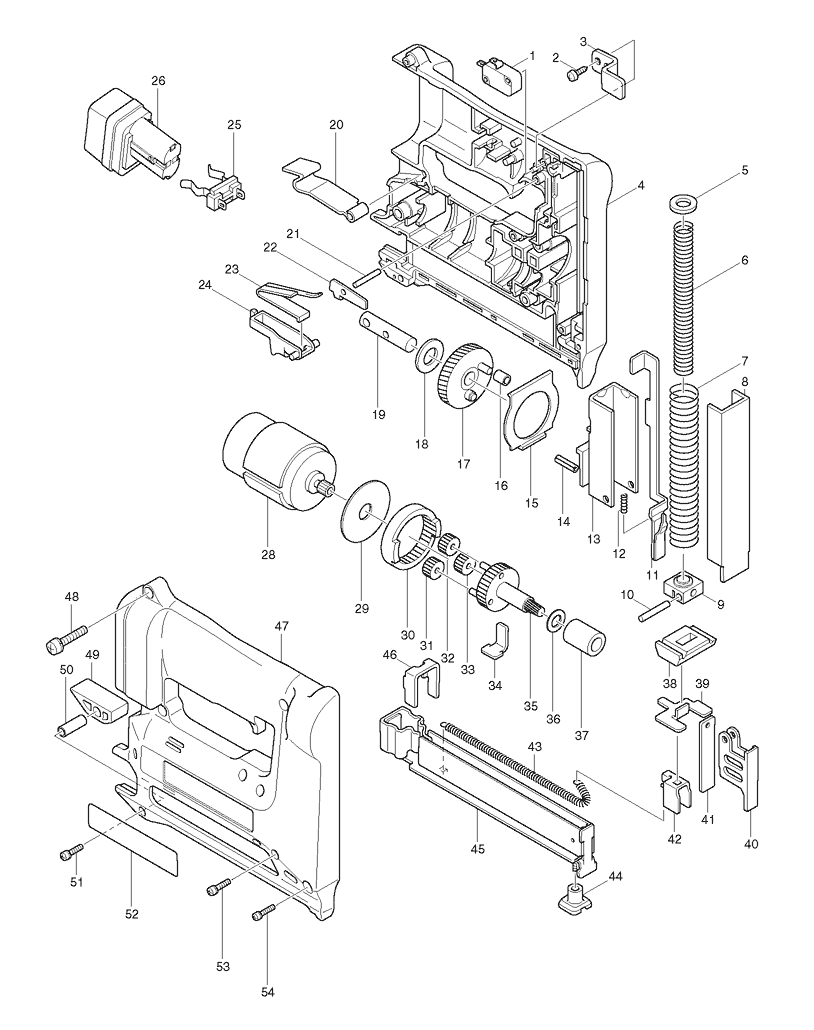

Makita T221DW Stapler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 651891-8 SWITCH, 6900DW, SH01W $6.47
2 265873-0 TAPPING SCREW BT 4X14, UH4510A $0.82
3 343967-2 FIX PLATE, T220DW $4.49
4 182598-0 HOUSING SET, T221DW $48.24
5 253733-8 F. WASHER 9, HR2432 $1.34
6 233003-1 COMPRESSION SPRING 9, T220DW $12.19
7 233004-9 COMPRESSION SPRING 13,T220DW $19.12
8 343630-7 GUIDE PLATE, T220DW $3.06
9 331382-2 DRIVER LOCK, T220DW $24.62
10 256206-0 PIN 4, T220DW $1.48
11 164961-9 SAFETY LEVER,T220DW $10.32
12 233002-3 COMPRESSION SPRING 3,9227C $1.48
13 165028-6 HAMMER, T220DW $27.59
14 951107-4 SPRING PIN 4-14,T220DW $0.86
15 343629-2 PLATE, T220DW $3.06
16 257639-2 SLEEVE 4, T220DW $4.49
17 153203-6 HELICAL GEAR 53 COMPLETE, T220DW $35.19
18 253171-4 F. WASHER 10, T220DW $1.34
19 256205-2 PIN 10, T220DW $13.95
20 343579-1 SET PLATE, 6211D $3.06
21 256158-5 PIN 3, BJR181 $1.19
22 343628-4 RELEASE PLATE, T220DW $1.63
23 232107-6 LEAF SPRING, T220DW $4.16
24 414549-8 SWITCH LEVER, T220DW $3.06
25 643909-9 BATTERY HOLDER, DA392D $4.49
28 629613-4 DC MOTOR 9.6V, T220DW $50.50
29 267053-4 F. WASHER 12, T220DW $1.63
30 221999-8 INTERNAL GEAR 69, T220DW $16.81
31 221961-3 SPUR GEAR 27, T220DW $6.25
32 221961-3 SPUR GEAR 27, T220DW $6.25
33 221961-3 SPUR GEAR 27, T220DW $6.25
34 232108-4 LEAF SPRING, T220DW $1.63
35 153204-4 HELICAL GEAR 7 COMPLETE, T220DW $48.24
36 253758-2 F. WASHER 10, 9901 $1.01
37 214058-5 PLANE BEARING 10, T220DW $3.06
38 421358-8 CUSHION, T220DW $4.49
39 343632-3 PUSHER GUIDE, T220DW $4.49
40 343928-2 DRIVER GUIDE, T220DW $10.32
41 343929-0 DRIVER, T220DW $11.75
42 343930-5 PUSHER, T220DW $4.49
43 231789-1 TENSION SPRING 4, T220DW $4.16
44 252634-7 NUT M4, T220DW $4.16
45 168239-2 SUB MAGAZINE, T220DW $68.30
46 343635-7 MAGAZINE LOCK, T220DW $3.06
47 182598-0 HOUSING SET, T221DW $48.24
48 911143-2 P.H. SCREW M4X22, 6211D $0.86
49 415045-9 BLOCK, T220DW $3.06
50 257645-7 SLEEVE 4,T220DW $4.49
51 911148-2 P.H. SCREW M4X25, 5057KB $0.86
53 911123-8 P.H. SCREW M4X14, N9501B $0.86
54 911158-9 P.H. SCREW M4X30, 9045B $0.86
