Makita T220D Stapler Parts

Makita T220D Stapler Parts Image

Makita T220D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

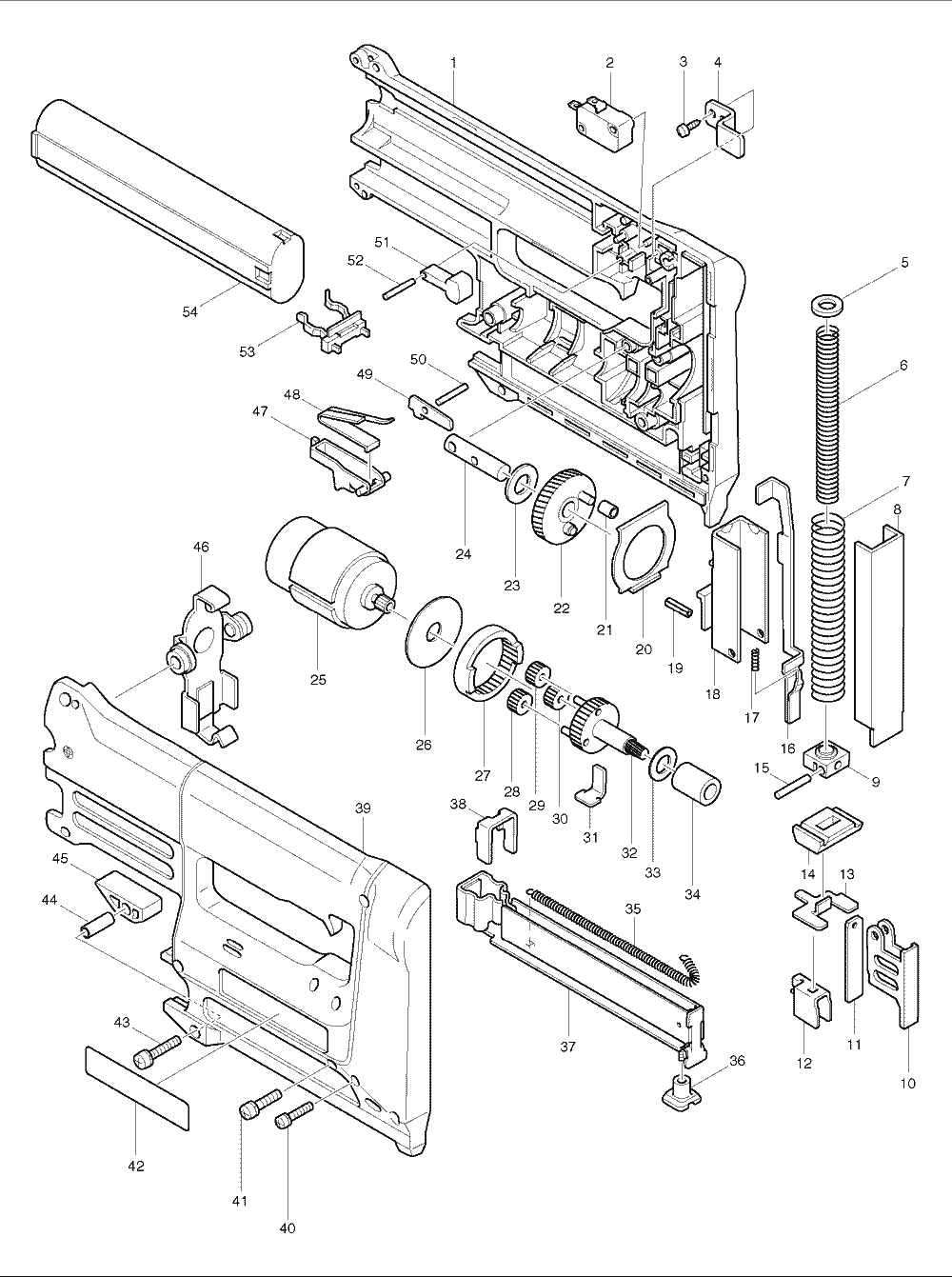

Makita T220D Stapler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 182540-1 HOUSING SET, T220DW $57.80
2 651891-8 SWITCH, 6900DW, SH01W $6.47
3 265873-0 TAPPING SCREW BT 4X14, UH4510A $0.82
4 343967-2 FIX PLATE, T220DW $4.49
5 253733-8 F. WASHER 9, HR2432 $1.34
6 233003-1 COMPRESSION SPRING 9, T220DW $12.19
7 233004-9 COMPRESSION SPRING 13,T220DW $19.12
8 343630-7 GUIDE PLATE, T220DW $3.06
9 331382-2 DRIVER LOCK, T220DW $24.62
10 343928-2 DRIVER GUIDE, T220DW $10.32
11 343929-0 DRIVER, T220DW $11.75
12 343930-5 PUSHER, T220DW $4.49
13 343632-3 PUSHER GUIDE, T220DW $4.49
14 421358-8 CUSHION, T220DW $4.49
15 256206-0 PIN 4, T220DW $1.48
16 164961-9 SAFETY LEVER,T220DW $10.32
17 233002-3 COMPRESSION SPRING 3,9227C $1.48
18 165028-6 HAMMER, T220DW $27.59
19 951107-4 SPRING PIN 4-14,T220DW $0.86
20 343629-2 PLATE, T220DW $3.06
21 257639-2 SLEEVE 4, T220DW $4.49
22 153203-6 HELICAL GEAR 53 COMPLETE, T220DW $35.19
23 253171-4 F. WASHER 10, T220DW $1.34
24 256205-2 PIN 10, T220DW $13.95
25 629613-4 DC MOTOR 9.6V, T220DW $50.50
26 267053-4 F. WASHER 12, T220DW $1.63
27 221999-8 INTERNAL GEAR 69, T220DW $16.81
28 221961-3 SPUR GEAR 27, T220DW $6.25
29 221961-3 SPUR GEAR 27, T220DW $6.25
30 221961-3 SPUR GEAR 27, T220DW $6.25
31 232108-4 LEAF SPRING, T220DW $1.63
32 153204-4 HELICAL GEAR 7 COMPLETE, T220DW $48.24
33 253758-2 F. WASHER 10, 9901 $1.01
34 214058-5 PLANE BEARING 10, T220DW $3.06
35 231789-1 TENSION SPRING 4, T220DW $4.16
36 252634-7 NUT M4, T220DW $4.16
37 168239-2 SUB MAGAZINE, T220DW $68.30
38 343635-7 MAGAZINE LOCK, T220DW $3.06
39 182540-1 HOUSING SET, T220DW $57.80
40 911128-8 P.H. SCREW M4X16, 1902 $1.48
41 911143-2 P.H. SCREW M4X22, 6211D $0.86
