Makita SR2300 Electric Saw Parts

Makita SR2300 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

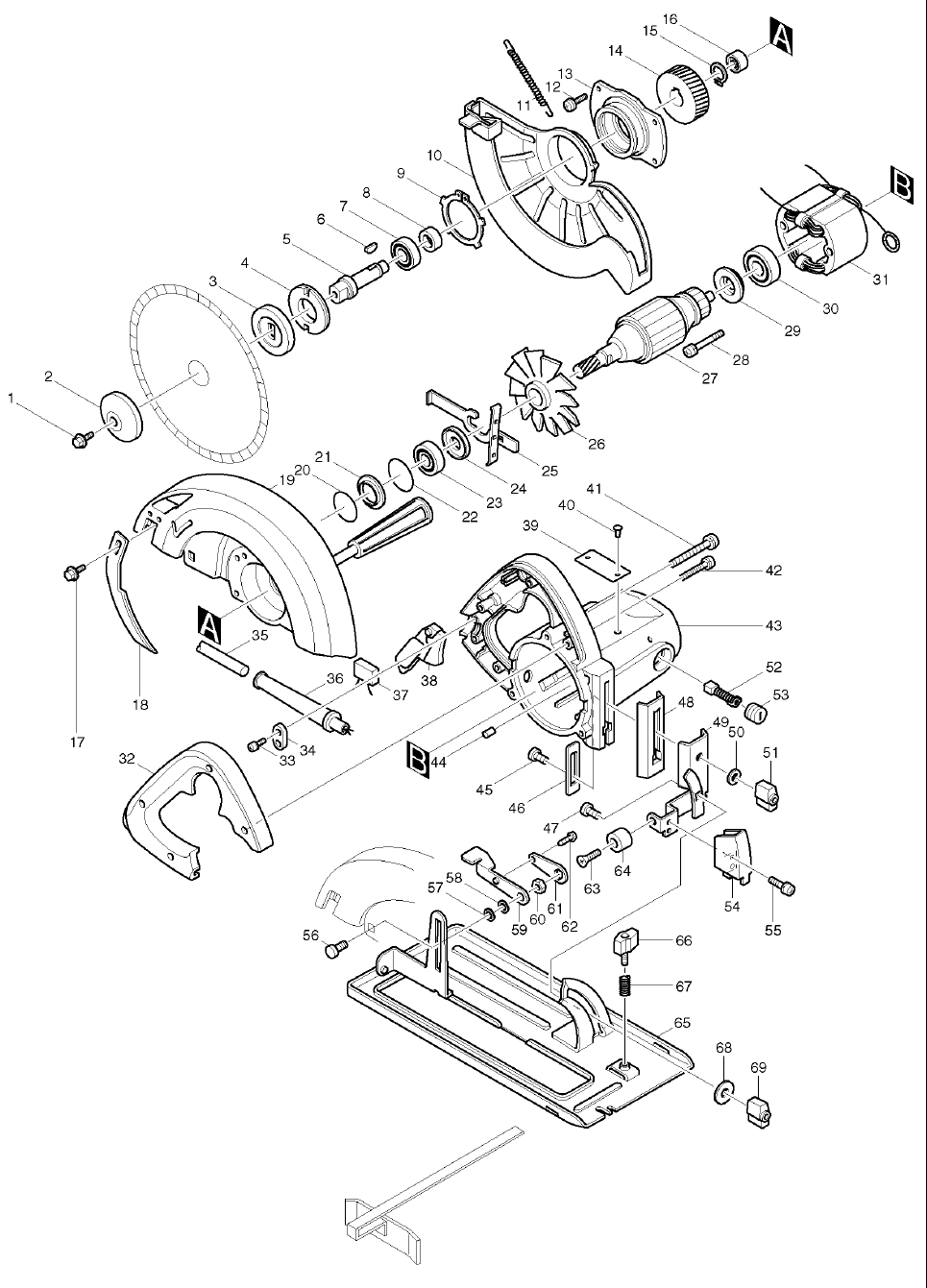

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	224275-9	OUTER FLANGE, 5620DWA	$5.92
4	285821-3	BEARING RETAINER 22-41, DS4000	$2.84
6	254032-1	WOODRUFF KEY 5, 5037NB	$1.63
7	211256-2	B. BEARING 6203LLB, GA7001L	$10.98
11	231753-2	TEN. SPRING 5, 5008NBA	$4.16
11	231838-4	TENSION SPRING 4, 5008FA	$1.96
12	911231-5	P.H. SCREW M5X20, HR4002	$0.86
15	961057-5	RETAINING RING S-17, LS1016L	$0.86
16	212052-1	N. BEARING 1010, HK1810	$7.46
17	251644-1	H.F.H. BOLT M8X20, 5037NB	$2.40
20	213412-0	O RING 29, 5008NBA	$1.96
21	341736-5	WASHER 25, 5008B, 5008NBA	$1.63
22	213459-4	O RING 32, HK1810	$1.19
23	211106-1	B. BEARING 6201LLB, 9227C	$13.07
24	213102-5	DUST SEAL 12, 5057KB	$1.63
25	163113-9	SHAFT LOCK, 5057KB	$4.49
26	241513-4	FAN 92, 5007NB	$4.16
27	514856-0	ARMATURE, 5008NBA	$98.10
28	911280-2	P.H. SCREW M5X55, JR3000V	$1.48
29	681625-5	INS. WASHER, 5007NK	$1.63
30	211033-2	B. BEARING 608LB, 5091D	$8.78
31	524536-0	FIELD ASS'Y, 5008NB	$63.30
33	911133-5	P.H. SCREW M4X18, N9501B	$0.86
34	687001-1	STRAIN RELIEF, 6013BR	$0.97
36	682503-2	CORD GUARD 8-90, 9005B	$2.51
36	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
37	645105-5	NOISE SUPPRESSOR, HK1800	$2.95
37	645200-1	NISE SURPRESSOR	$3.61
38	651023-7	SWITCH	$18.02
40	953106-2	RIVET 0-5, HM1500	$0.49
41	911273-9	P.H. SCREW M5X50, HR2400	$1.19
42	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
44	263014-2	RUBBER PIN 4, 9217SPC	$1.19
47	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
50	941151-9	F. WASHER 6, 5007NB	$0.75
52	181048-2	CARBON BRUSH 155, HR5000	$14.94
52	K21	Carbon Brush Set	$8.19
53	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
56	251918-0	C.S.N. BOLT M8X24, 4110C	$2.40
58	941201-0	F. WASHER 8, 5007NK	$0.75
59	341416-3	LEVER PLATE, 5057KB	$3.06
60	931402-8	HEX NUT M8, 5037NB	$1.34
61	341415-5	LOCK PLATE, 5057KB	$1.26
62	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
63	251227-7	C.H. SCREW M6X22, 5800BR	$1.12
64	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
66	251858-2	SCREW M6X15, 5007NK	$3.61
67	231316-4	COMP. SPRING 7, 5005BA	$0.79
69	252624-0	KNOB M6, 5007NB	$3.06
