Makita SR1800 Electric Saw Parts

Makita SR1800 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

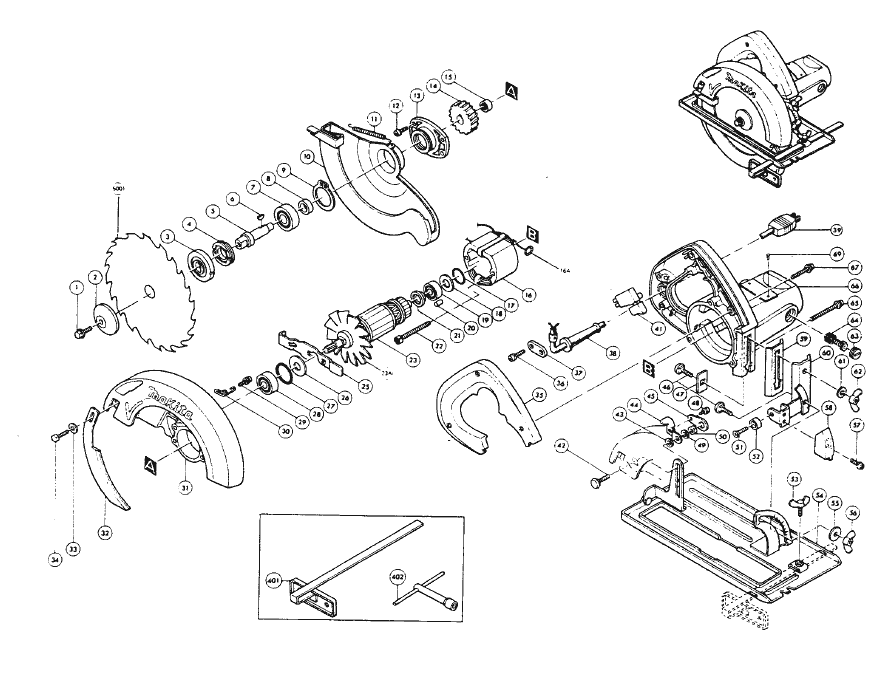

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251609-3	H.F.H. BOLT M6X17, 2030S	$1.96
2	224059-5	OUTER FLANGE, 5801B, M511	$20.11
3	224058-7	INNER FLANGE, 5801B, M511	$17.69
4	285802-7	BEARING RETAINER 19-33, 5740NB	$3.06
5	325252-5	SPINDLE, 5801B	$12.63
6	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
7	211106-1	B. BEARING 6201LLB, 9227C	$13.07
8	257012-6	RING 12, 5044KB	$1.30
9	961155-5	RETAINING RING S-38, 4200H	$1.96
10	164559-2	SAFETY COVER, SR1800	$23.96
11	231730-4	TEN. SPRING 4, 5005BA	$4.16
12	911126-2	P.H. SCREW M4X16, 5402NA	$0.53
13	315313-9	HOUSING W/O BEARING, SR1800	$8.12
14	221685-1	H. GEAR, SR1800	$14.50
15	212004-2	N.BEARING 810,4200N	$5.92
16	622521-8	FIELD, SR1800	$29.07
16A	654019-7	GARTER SPRING, JN3200	$1.34
17	213255-0	O RING 18, 4200H	$0.86
18	253192-6	F. WASHER 14, HR2400	$1.63
19	211031-6	BALL BEARING 608LLB, 9227C	$10.98
20	263002-9	RUBBER PIN 4, 5007NK	$0.86
22	925283-0	HEX BOLT M5X60, 9218SB,T1	$1.30
23	612731-5	ARMATURE, SR1800	$58.00
23A	241091-4	FAN 86, 5820	$3.61
25	341699-5	SPINDLE LOCK, SR1800	$3.61
26	253769-7	F. WASHER 10, LS0820	$1.30
27	213406-5	O RING 30, HR5000	$1.19
28	211066-7	B. BEARING 6200LLB, BO4552	$10.98
29	911124-6	P.H. SCREW M4X14, 6402	$0.86
30	231549-1	TOR. SPRING, SR1800	$2.51
31	154278-8	BLADE CASE, SR1800	$38.35
32	341701-4	RIVING KNIFE, SR1800	$18.90
33	941151-9	F. WASHER 6, 5007NB	$0.75
34	265251-4	HEX BOLT M6X16, SR1800	$1.01
35	411833-2	HANDLE COVER, SR1800	$5.92
36	911131-9	P.H. SCREW M4X18, HR3851	$0.53
37	687001-1	STRAIN RELIEF, 6013BR	$0.97
38	682502-4	CORD GUARD 8-85, HP2010N	$2.51
38	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
42	645200-1	NISE SURPRESSOR	$3.61
44	651236-0	SWITCH, 3620	$11.42
46	341717-9	LEVER PLATE, SR1800	$3.61
47	341718-7	LOCK PLATE, AN451	$1.85
48	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
50	911101-8	P.H. SCREW M4X6, LS1020	$0.53
51	931302-2	HEX NUT M6, HR2400	$0.79
52	251288-7	C.H. SCREW M5X20, SR1800	$1.30
53	262502-6	RUBBER SLEEVE 6, 5037NB	$1.26
54	924201-5	THUMB SCREW M5X8, 2400B	$1.74
55	168083-7	BASE, SR1800	$27.94
56	253804-1	F. WASHER 6, 6012HDW	$1.34
57	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
58	341702-2	FRONT GUARD, SR1800	$2.73
60	164560-7	ANGULAR PLATE, SR1800	$7.02
61	257078-6	RING 6, SR1800	$1.34
62	252624-0	KNOB M6, 5007NB	$3.06
63	643600-9	BRUSH CAP 6-10, 9005B	$1.63
64	181030-1	CARBON BRUSH CB-100,9045B	$3.72
65	911268-2	P.H. SCREW M5X45, 5007NK	$1.19
66	156790-4	MOTOR HOUSING, SR1800	$26.52
67	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
401	953101-2	RIVET 0-3, 5201NA	$0.49
901	164095-8	GUIDE RULE, 4200H	$12.60
902	782209-3	SOCKET WRENCH, 4200H	$6.40
