Makita SJ401 Electric Saw Parts

Makita SJ401 Electric Saw Parts Image

Makita SJ401 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

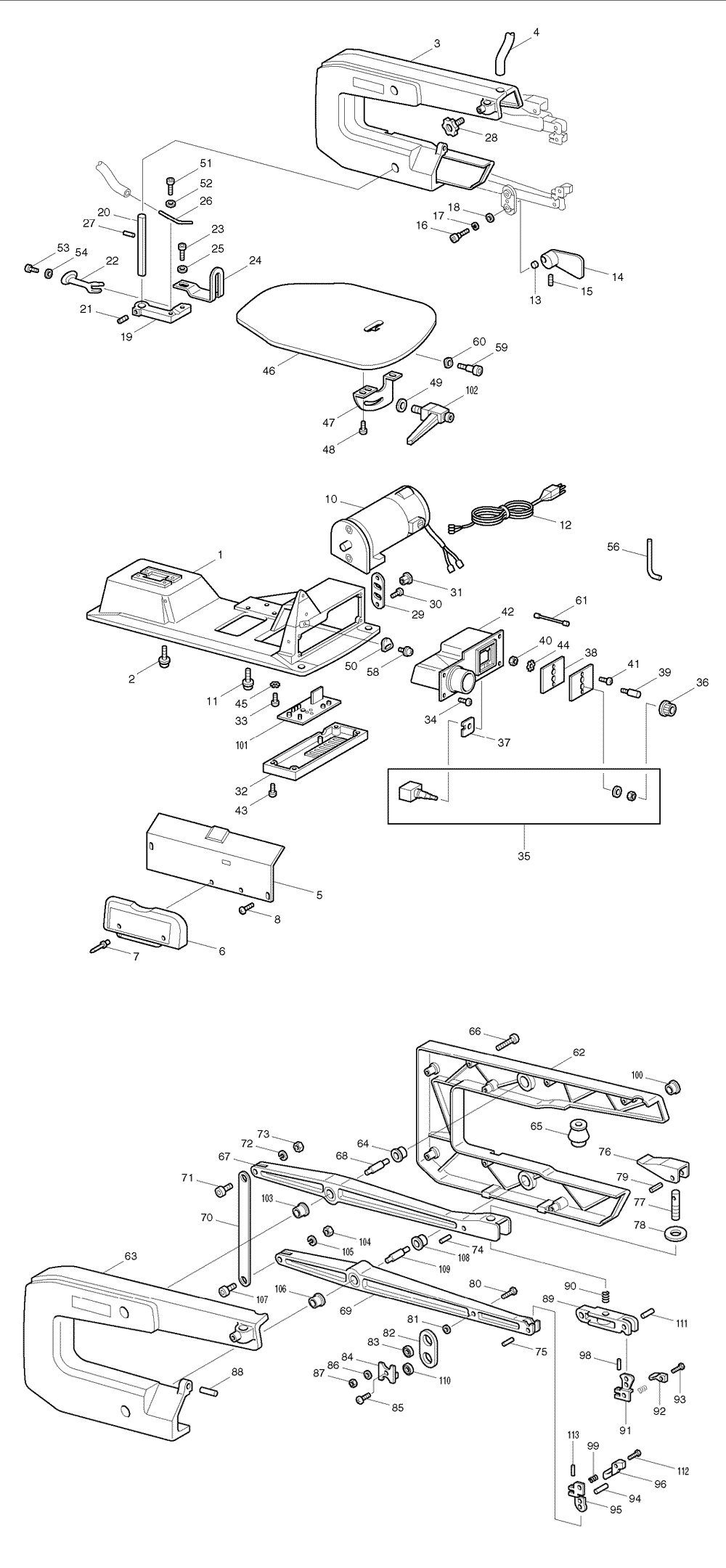

Makita SJ401 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 240051-000 BASE, SJ401 $63.00
2 020720-003 SCREW & WASHER M8, SJ401 $1.01
3 900567-000 BODY, SJ401 $109.33
4 303209-000 HOSE, SJ401 $0.97
5 270308-000 PLATE COVER, SJ401 $4.49
6 303202-000 BLADE STORAGE CASE, SJ401 $1.63
7 024201-001 PULL NAIL, SJ401 $0.49
8 020106-013 SCREW, SJ401 $0.49
10 990026-000 MOTOR, SJ401 $99.24
11 020723-005 SCREW & WASHER, SJ401 $1.01
12 080171-000 POWER CORD, SJ401 $6.80
13 060047-000 SPACER, SJ401 $0.75
14 240042-000 COUNTERWEIGHT, SJ401 $4.49
15 020508-001 SET SCREW, SJ401 $1.26
16 020613-001 HEX SOCKET BOLT, SJ401 $1.63
17 021200-001 SPRING WASHER, SJ401 $0.90
18 021101-027 FLAT WASHER, SJ401 $0.75
19 225070-000 HOLD DOWN BLOCK, SJ401 $4.49
20 290079-000 SUPPORT ROD, SJ401 $3.06
21 020505-003 SET SCREW, SJ401 $0.75
22 270309-000 HOLD DOWN FOOT, SJ401 $2.84
23 020601-003 HEX SOCKET BOLT, SJ401 $1.08
24 270310-000 BLADE SUPPORTER & GUARD, SJ401 $3.06
25 021104-023 FLAT WASHER, SJ401 $0.75
26 290081-000 DUST BLOWER, SJ401 $1.63
27 026104-001 PIN SPRING, SJ401 $0.79
28 303071-001 KNOB, SJ401 $1.63
29 270248-000 BUSING SET COVER, SJ401 $1.26
30 020103-015 SCREW, SJ401 $0.49
31 913002-000 BUSHING, SJ401 $0.75
32 303203-000 BOARD COVER, SJ401 $4.49
33 020103-015 SCREW, SJ401 $0.49
34 020103-015 SCREW, SJ401 $0.49
35 090033-001 SWITCH, WASHER, NUT, SJ401 $10.65
36 303207-000 CONTROL KNOB, SJ401 $3.06
37 303259-000 SWITCH COVER (PLASTIC), SJ401 $1.26
38 863301-003 INDICATION LABEL, SJ401 $1.61
39 290080-000 LOCK POST, SJ401 $1.63
40 022301-001 NUT, SJ401 $3.61
41 020228-001 SCREW, SJ401 $0.49
42 302043-000 SWITCH CASE, SJ401 $4.49
43 020200-001 SCREW, SJ401 $0.49
44 021308-001 EXT. TOOTH WASHER, SJ401 $0.75
45 021306-001 LOCK WASHER, SJ401 $0.75
46 224053-000 TABLE, SJ401 $28.25
47 270311-000 TILT BRACKETT, SJ401 $3.06
48 020219-001 SCREW, SJ401 $0.49
49 021101-025 FLAT WAHER, SJ401 $0.49
50 270249-000 POINTER, SJ401 $0.75
51 020601-003 HEX SOCKET BOLT, SJ401 $1.08
52 021104-023 FLAT WASHER, SJ401 $0.75
53 020601-003 HEX SOCKET BOLT, SJ401 $1.08
54 021104-023 FLAT WASHER, SJ401 $0.75
56 040026-001 BLADE CHANGE ROD, SJ401 $0.97
58 020726-001 PAN HEAD SCREW, SJ401 $0.49
59 020614-001 SOCKET HEAD SCREW, SJ401 $1.63
60 021402-001 WAVE WASHER, SJ401 $1.34
61 080177-000 GROUND WIRE, SJ401 $1.26
62 225111-000 ARM COVER(RIGHT), SJ401 $26.92
63 225112-000 ARM COVER $27.59
64 053014-000 BEARING FLANGE, SJ401 $1.26
65 330026-000 AIR DIAPHRAGM, SJ401 $3.06
66 020702-001 COVER SET SCREW, SJ401 $0.49
67 224041-000 UPPER ARM, SJ401 $11.75
68 290077-000 ARM PIN, SJ401 $3.06
69 224042-000 LOWER ARM, SJ401 $11.75
70 270251-000 CONNECTOR, SJ401 $3.06
71 028935-001 SET SCREW, SJ401 $1.63
72 021202-003 SPRING WASHER, SJ401 $0.90
73 022101-001 NUT, SJ401 $0.79
74 026102-007 PIN, SJ401 $0.49
75 026103-015 ROLL PIN, SJ401 $0.49
76 225069-000 BLADE TENSION LEVER, SJ401 $1.63
77 290078-000 TENSION ADJUSTING BOLT, SJ401 $1.34
78 021100-011 FLAT WASHER, SJ401 $0.75
79 026104-009 PIN, SJ401 $0.49
80 020600-001 HEX SOCKET BOLT, SJ401 $1.08
81 060052-000 SPACER, SJ401 $0.97
82 303201-000 ARM LINK, SJ401 $1.63
83 050012-000 BEARING, SJ401 $5.92
84 270252-000 BEARING FENCE, SJ401 $0.97
85 020200-005 SCREW M4X8, SJ401 $0.49
86 021101-027 FLAT WASHER, SJ401 $0.75
87 022101-001 NUT, SJ401 $0.79
88 026202-007 PIN, SJ401 $0.97
89 225073-000 BLADE SUPPORT, SJ401 $4.49
90 029141-001 SPRING, SJ401 $0.90
92 250006-000 UPPER BLADE PAD, SJ401 $4.49
94 026103-015 ROLL PIN, SJ401 $0.49
96 250004-000 LOWER BLADE NUT, SJ401 $4.71
98 026107-001 PIN, SJ401 $0.49
99 029144-001 COMPRESSION SPRING, SJ401 $0.90
100 330029-000 ARM COVER RUBBER CUP, SJ401 $0.75
101 900313-003 CONTROL BOARD ASSY, SJ401 $29.37
102 900403-000 LOCK HANDLE, SJ401 $4.49
103 053014-000 BEARING FLANGE, SJ401 $1.26
104 022101-001 NUT, SJ401 $0.79
105 021202-003 SPRING WASHER, SJ401 $0.90
106 053014-000 BEARING FLANGE, SJ401 $1.26
107 028935-001 SET SCREW, SJ401 $1.63
108 053014-000 BEARING FLANGE, SJ401 $1.26
109 290077-000 ARM PIN, SJ401 $3.06
110 050012-000 BEARING, SJ401 $5.92
111 026103-015 ROLL PIN, SJ401 $0.49
113 026107-001 PIN, SJ401 $0.49
