Makita SH01W Cordless Saw Parts

Makita SH01W Parts

Download Schematic

Time to buy a new tool?

Makita SH01W

12V max Lithium-Ion ...

$139.00

Free Shipping

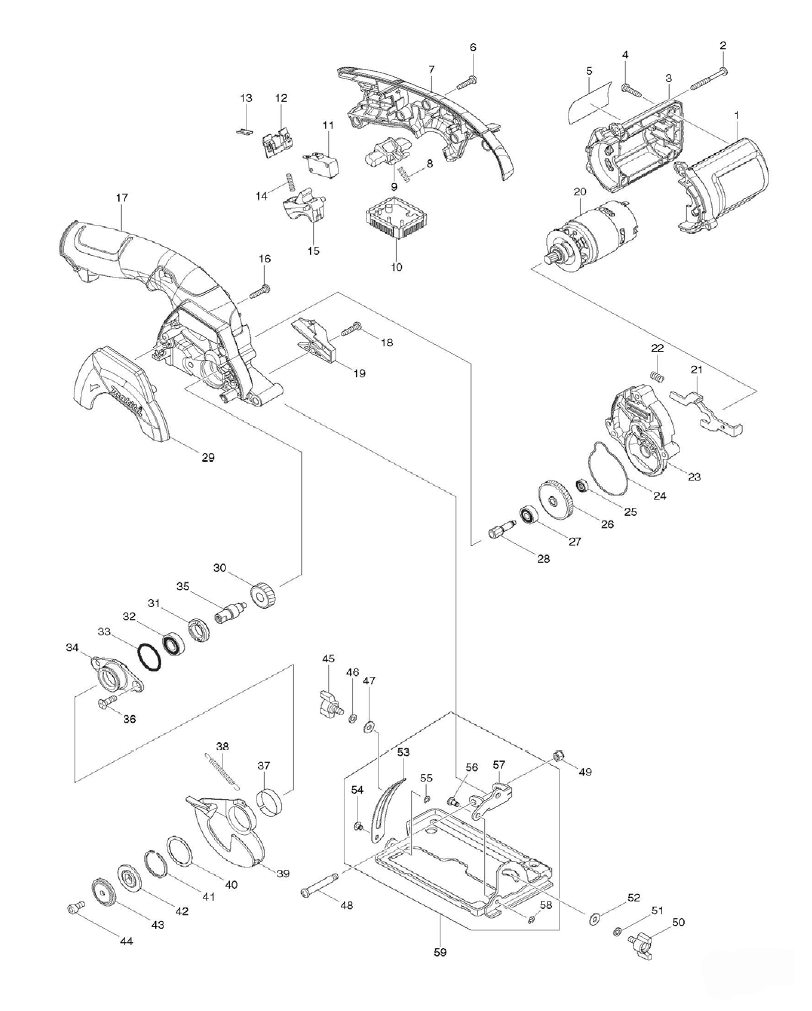

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	188967-3	MOTOR HOUSING SET, SH01W	$3.61
1	891089-7	CAUTION LABEL, SH01W	$0.64
2	266560-4	TAPPING SCREW 4X40, SH01W	$0.44
3	188967-3	MOTOR HOUSING SET, SH01W	$3.61
3	891089-7	CAUTION LABEL, SH01W	$0.64
4	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
5	868569-8	NAME PLATE, SH01W	$1.08
6	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
7	188965-7	HANDLE SET, SH01W	$11.53
7	263002-9	RUBBER PIN 4, 5007NK	$0.86
7	263005-3	RUBBER PIN 6, BHP452	$0.86
8	231469-9	COMP. SPRING 4, SH01W	$0.86
9	419664-3	LOCK OFF LEVER, BCS550/Z	$1.63
11	651891-8	SWITCH, 6900DW, SH01W	$6.47
12	643830-2	TERMINAL, TD090DW	$1.48
13	345998-7	SET PLATE, LXFD01	$0.49
14	231469-9	COMP. SPRING 4, SH01W	$0.86
15	419665-1	SWITCH LEVER, BCS550/Z	$1.63
16	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
17	188965-7	HANDLE SET, SH01W	$11.53
17	263002-9	RUBBER PIN 4, 5007NK	$0.86
17	263005-3	RUBBER PIN 6, BHP452	$0.86
18	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
19	452234-5	DUCT, SH01W	$1.12
20	629885-1	DC MOTOR, SH01W	$23.96
21	346337-4	SHAFT LOCK, SH01W	$1.12
22	233117-6	COMPRESSION SPRING, AF502,SH01W	$0.90
23	140617-8	GEAR HOUSING CPL., SH01W	$2.51
23	213325-5	O RING 19, SH01W	$0.66
24	424358-7	PACKING, SH01W	$0.90
25	210036-3	BALL BEARING 604ZZ, BCS550	$3.50
26	227737-6	HELICAL GEAR 47, SH01W	$3.61
27	210028-2	BALL BEARING 606ZZ, BSS611Z	$4.16
28	227735-0	HELICAL GEAR 9B, SH01W	$3.61
29	452235-3	BLADE COVER, SH01W	$2.51
30	227736-8	HERICAL GEAR 28, SH01W	$3.61
31	285847-5	BEARING RETAINER 14-23,BCS550/Z	$4.16
32	210069-8	BALL BEARING 6900DDW, BCS550/Z	$6.69
33	213435-8	O RING 26, SH01W	$1.19
34	318660-7	BEARING BOX, SH01W	$3.61
35	325983-6	SPINDLE, SH01W	$2.51
36	265034-2	C.S.H. SCREW, BCS550	$1.19
37	345470-9	THICKNESS RING, BCS550/Z	$1.06
38	231867-7	TENSION SPRING 4, SH01W	$0.44
39	452236-1	SAFETY COVER, SH01W	$1.34
40	267127-1	FLAT WASHER 26, 9046,SH01W	$2.18
41	257938-2	RETAINING RING,WR-26, BCS550/Z	$1.06
42	224435-3	INNER FLANGE 28, SH01W	$2.51
43	224177-9	OUTER FLANGE, SH01W	$1.63
44	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
45	265760-3	THUMB SCREW M5X10, SH01W	$0.66
46	942101-7	SPRING WASHER 5, 9005B	$0.90
47	941101-4	F. WASHER 5, 5007NK	$0.75
48	265056-2	PAN HEAD SCREW M5, 5620DWA,SH01W	$3.61
49	252103-8	HEX. LOCK NUT M5-8, 5007FK	$2.29
50	265760-3	THUMB SCREW M5X10, SH01W	$0.66
51	942101-7	SPRING WASHER 5, 9005B	$0.90
52	941101-4	F. WASHER 5, 5007NK	$0.75
53	346338-2	DEPTH GUIDE, SH01W	$1.12
54	268004-0	COLLAR HD PIN, 5091DW, SH01W	$1.96
55	961017-7	STOP RING E-3, 4304, SH01	$0.53
56	268028-6	PIN 5, 5093DWA, SH01W	$1.48
57	346339-0	ANGULAR GIDE, SH01W	$1.34
58	961017-7	STOP RING E-3, 4304, SH01	$0.53
59	135416-1	BASE ASSEMBLY, SH01W	$5.92
A01	783202-0	HEX WRENCH 4, JR3000V	$3.24
