Makita RST250 Trimmer Parts

Makita RST250 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

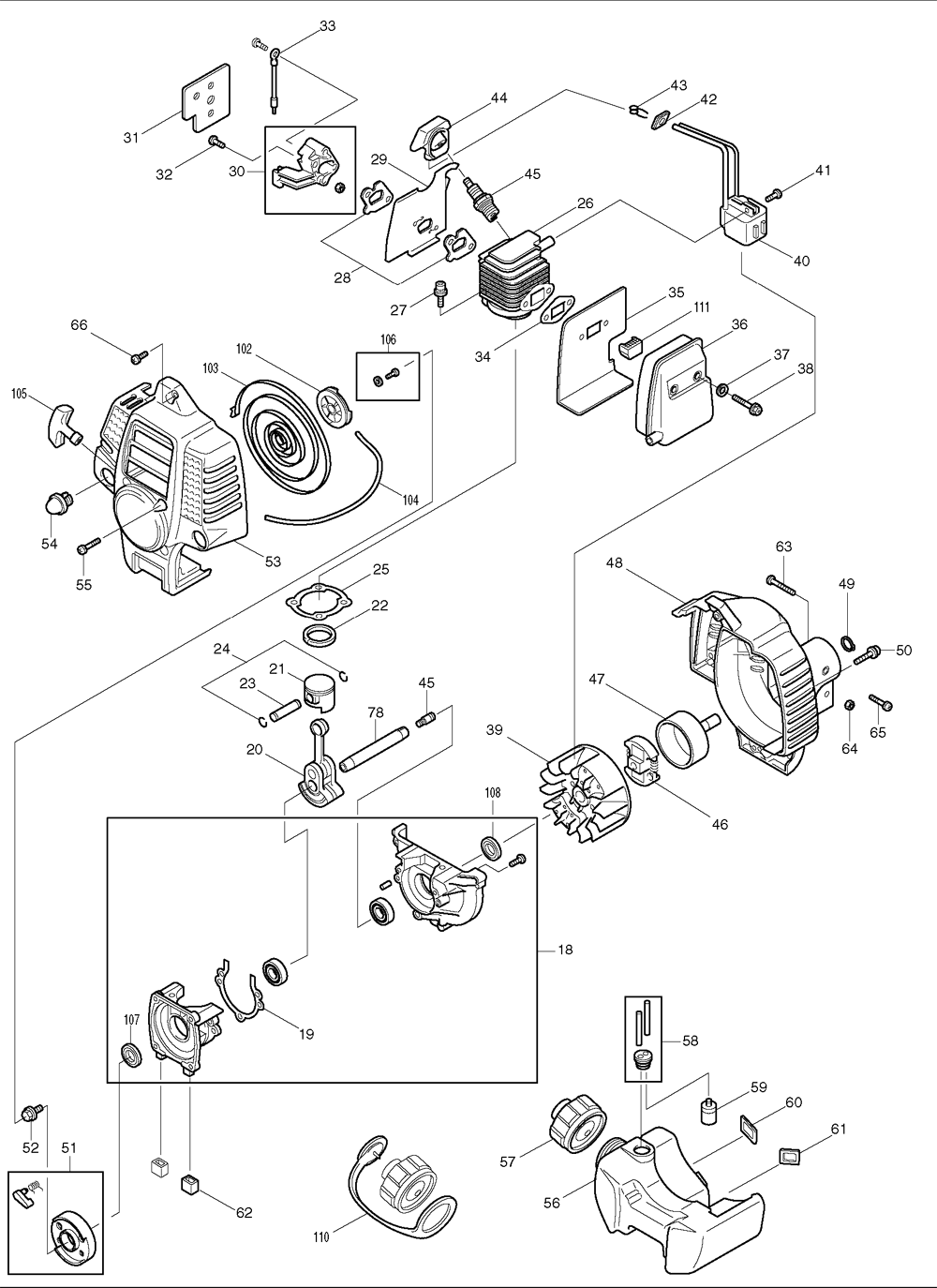

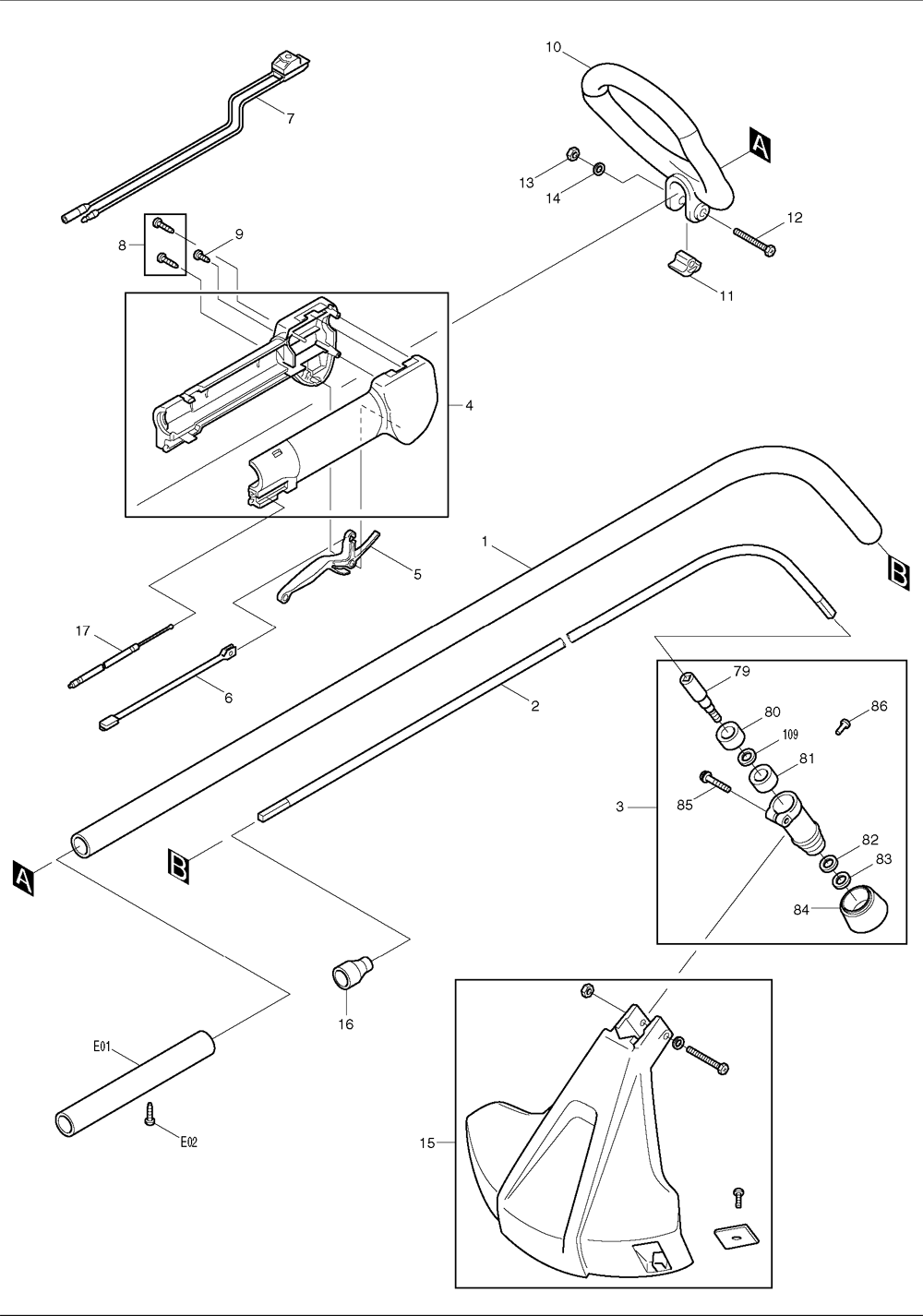

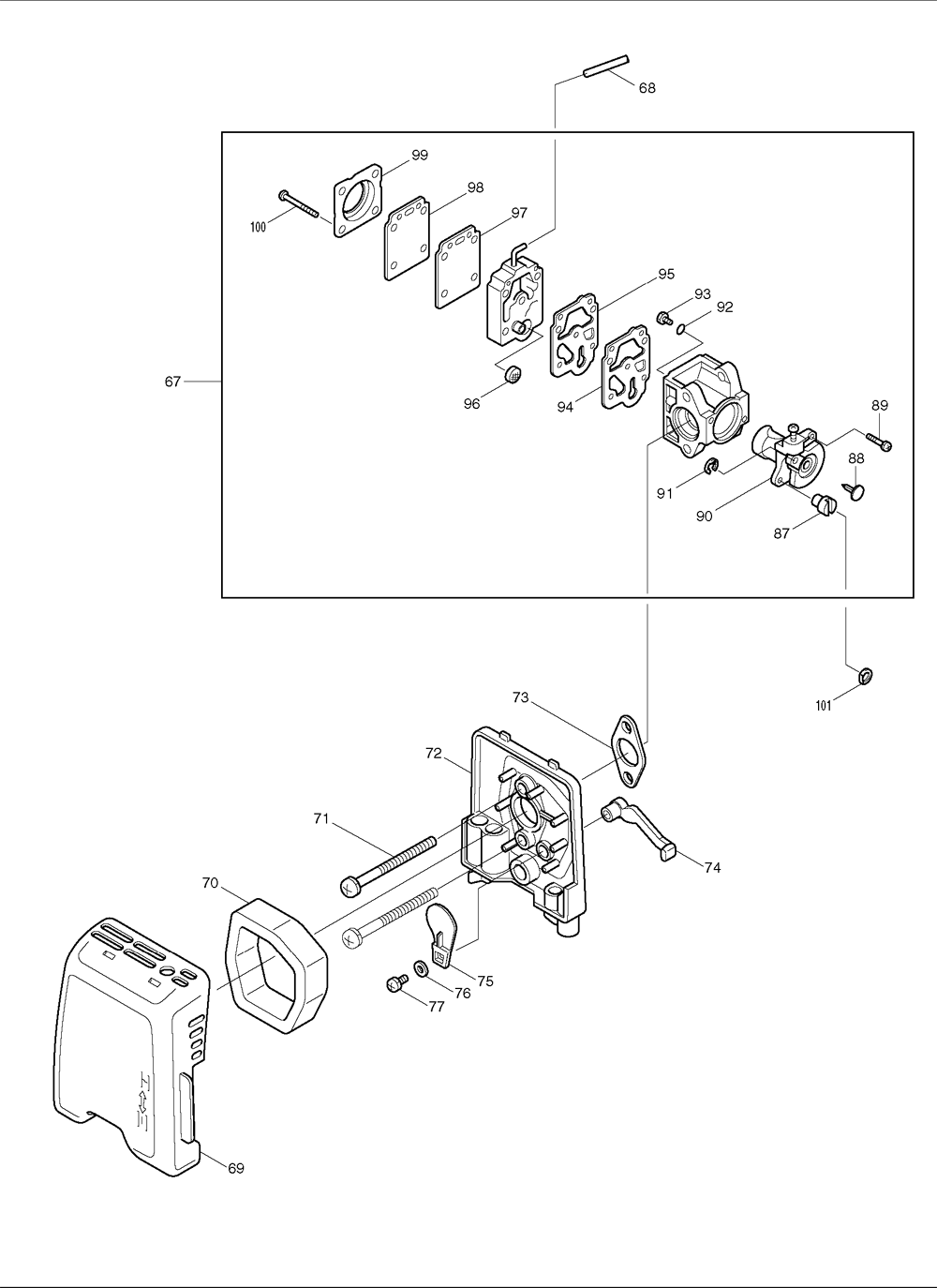

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	616-10090-01	FLEXIBLE PIPE UNIT, RST200	$73.60
51	521-50030-02	PULLY, RST250	$19.67
2	616-10050-31	FLEXIBLE SHAFT, RST250	$55.00
78	010-50649-70	STUD, RBC251	$3.50
3	616-30030-00	GEAR CASE CPL.,RST250	$114.66
47	616-20040-02	CLUTCH DRUM CPL., RST250	$32.53
4	616-50060-02	CONTROL LEVER ASS'Y, RST250-T1	$40.29
4	616-50060-04	CONTROL LEVER ASS'Y, RST250	$48.75
46	616-20050-02	CLUTCH , RBC251	$26.72
5	616-55006-01	LEVER, RST250	$11.42
00	A-15986	KNOB HEAD, RST250	$6.69
6	616-55007-01	CONNECTOR, RST250	$9.77
7	616-50090-02	SWITCH, RBE250,RBC221	$16.04
8	015-00499-20	TAPPING SCREW, RST250	$1.41
9	015-00499-11	TAPPING SCREW, RST250	$1.74
10	616-40020-03	HANDLE COMPLETE, RST250	$36.21
11	616-45002-00	SPACER, RBC251	$4.93
12	010-00698-20	BOLT W/WASHER, RST250	$2.40
12	001-70064-50	BOLT M6X45, RST250	$1.34
13	002-37060-00	FLANGE NUT, BBX7600	$1.96
14	003-11060-00	WASHER, BBX7600	$1.34
16	616-10050-41	SPACER, RST250	$7.68
17	063-00399-00	CONTROL CABLE, RST250	$9.77
18	523-10110-01	CRANK CASE ASS'Y, RBC256	$126.78
19	523-15022-02	CRANKCASE GASKET, RST250	$1.85
21	523-25019-02	PISTON, RST250	$32.64
22	524-25007-01	PISTON RING, RBC260	$8.12
23	257781-9	PISTON PIN, EM2650LH	$1.30
24	056-50899-70	CLIP, BBX2500	$1.96
27	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
27	014-00597-00	SCREW M5X20, RST250	$1.85
28	523-35039-02	INSULATOR GASKET, RST250	$3.50
29	523-35040-01	CARBURETOR INSULATOR, RST250	$8.45
30	523-30380-01	INSULATOR ,RST250	$11.42
31	523-35041-03	INSULATOR GASKET, RST250	$3.50
32	014-00595-20	SCREW M5X25, RBL250	$1.48
32	014-00595-00	P.H. SCREW M5X25, EH760	$1.48
33	616-55002-01	WIRE, BBX7600	$3.61
33	616-55012-00	WIRE, RST250	$4.93
34	523-35043-02	MUFFLER GASKET, RST250	$3.50
35	523-35044-02	MUFFLER INSULATOR, RST250	$8.01
36	525-30260-01	EXHAUST MUFFLER, RST250	$48.04
37	003-10050-00	WASHER M5, EH760	$1.34
38	011-90596-00	S.H. BOLT M5X45, RBE250	$3.61
38	011-90596-50	S.H. BOLT, RBC230	$1.85
41	014-00499-20	SCREW M4X20, RST250	$1.41
42	523-75032-02	GROMMET, RST250	$3.50
43	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
44	523-75033-01	PLUG CAP, RST250	$17.69
45	065-01498-10	SPARK PLUG BM7A, RBC230	$6.69
46	616-20050-02	CLUTCH , RBC251	$26.72
47	616-20040-02	CLUTCH DRUM CPL., RST250	$32.53
48	523-50200-01	ENGINE COVER, RST250	$50.28
49	003-15100-00	OUTER SNAP RING 10, RST250	$1.96
50	014-00593-60	SCREW & WASHER ASS'Y, BBX7600	$1.63
50	014-00597-00	SCREW M5X20, RST250	$1.85
51	521-50030-02	PULLY, RST250	$19.67
52	523-55047-00	BOLT, RBC251	$6.91
54	168398-2	PRIMER PUMP, RBC221	$4.71
55	004-36051-80	SCREW ASSEMBLY, RBC230	$1.41
55	014-00594-50	SCREW M5X18, EH760	$1.85
55	922222-1	H.S.H. BOLT M5X16, HM1211B	$1.08
56	523-65041-01	FUEL TANK, RST250	$26.72
57	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
57	531-60140-00	FUEL TANK CAP,RBL500	$13.51
57	531-60150-00	FUEL TANK CAP,	$8.67
57	531-60020-03	FUEL TANK CAP, RBC230	$7.02
59	523-65039-00	FILTER, RBL500	$11.42
60	503-65003-00	PLATE, EM4251	$3.50
61	503-65002-00	PLATE, EM4251	$3.50
62	521-65002-00	DAMPER, RBC230	$1.85
63	911253-5	P.H. SCREW M5X30, 2030S	$1.19
64	002-27050-00	NUT M5, EM4251	$1.34
65	015-00599-50	TAPPING SCREW M5X8,RST250	$1.85
66	015-00598-00	TAPING SCREW M5X18, BBX7600	$1.41
66	523-55046-00	TAPPING SCREW M5X18, RST250	$1.85
67	523-60470-04	CARBURETOR, RST250-T2	$132.99
67	523-60570-00	CARBURETOR, RBC221	$127.46
68	085-11499-60	TUBE 2.5X5X140, RST250,T2	$3.50
69	523-35046-02	AIR CLEANER CASE, RST250	$6.69
70	523-35047-00	AIR CLEANER ELEMENT, RST250	$3.50
71	014-00594-70	SCREW M5X62, RBC256	$1.85
72	523-30480-01	CLEANER PLATE, RST250	$10.65
73	523-35042-00	CARBURETOR GASKET, RST250	$3.50
74	523-35048-01	CHOKE LEVER, RST250	$1.85
75	523-35050-02	CHOKE PLATE, RST250	$1.85
76	003-11040-00	WASHER, RBC251	$1.34
77	015-00499-80	TAPPING SCREW M4X8, RST250	$1.08
78	010-50649-70	STUD, RBC251	$3.50
79	616-30020-21	CUTTER SHAFT, RST250,T1	$16.70
79	616-30030-20	CUTTER SHAFT, RST250	$22.09
80	616-30020-31	BALL BEARING 608LLU, RST250	$29.58
80	616-30020-41	METAL BUSH, RST250,T1	$8.34
81	616-30020-31	BALL BEARING 608LLU, RST250	$29.58
82	616-30020-51	WASHER, RST250 .	$29.17
83	616-30020-61	SPRING WASHER,RST250	$2.18
84	616-85008-00	RECEIVE WASHER, RST250	$19.01
85	616-30021-21	BOLT,RST250	$3.28
86	001-70051-00	CROSS RECESS H.BOLT 5X10,RST250	$1.96
86	004-31051-00	SCREW M5X10, RST250	$0.90
87	325922-6	SWIVEL, EM2650LH	$3.50
88	520-60081-10	PLUG, EM4250	$4.93
89	266581-6	PAN HEAD SCREW M3X8, EM2650LH	$1.30
90	523-60470-22	THROTTLE VALVE, RST250	$53.60
91	257964-1	STOP RING E-3, EM2650LH	$2.40
92	213538-8	O RING 2, EM2650LH	$2.40
93	503-60020-10	JET, RBC230	$9.77
93	523-60570-10	JET, RBC221	$12.96
94	524-60010-30	PUMP GASKET, RBC230	$6.14
95	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
96	352010-6	INLET SCREEN, EM2650LH	$2.40
97	501-60041-30	GASKET, RBC221	$4.93
98	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
99	531-60050-30	PRIMER PUMP COVER, RBC221	$10.65
100	521-60020-20	P.H. SCREW, RBC221	$3.50
101	521-95000-00	HOLDER, RBC221	$1.08
102	521-50020-20	REEL, RBC230	$7.68
103	232258-5	SPIRAL SPRING, EM2650LH	$4.60
104	521-50020-60	STARTER ROPE, RBC230	$8.12
105	424319-7	STARTER KNOB, EM2650LH	$2.40
106	542-50030-10	SET SCREW, RBC221	$4.71
107	044-01299-70	OIL SEAL, RBC221	$6.69
108	044-01299-70	OIL SEAL, RBC221	$6.69
109	616-30030-41	SPACER, RST250	$3.61
110	056-10599-90	HOSE CLAMP, EM4251	$1.41
111	523-35066-00	SPARK ARRESTER, RBC256	$14.28
111	525-30330-10	SPARK ARRESTER, RBC2510	$4.71
5003	525-60670-00	STRAP, RBL500	$7.68
5003	625-50210-02	STRAP UNIT, RBC201	$3.83
