Makita RP1101 Router Parts

Makita RP1101 Router Parts Image

Makita RP1101 Parts
2-1/4 Inch HP Industrial Plunge Router

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita RP1101
2-1/4 Inch HP Indust...
$199.99
Tool Diagram    (Click image to Zoom in) View larger Image

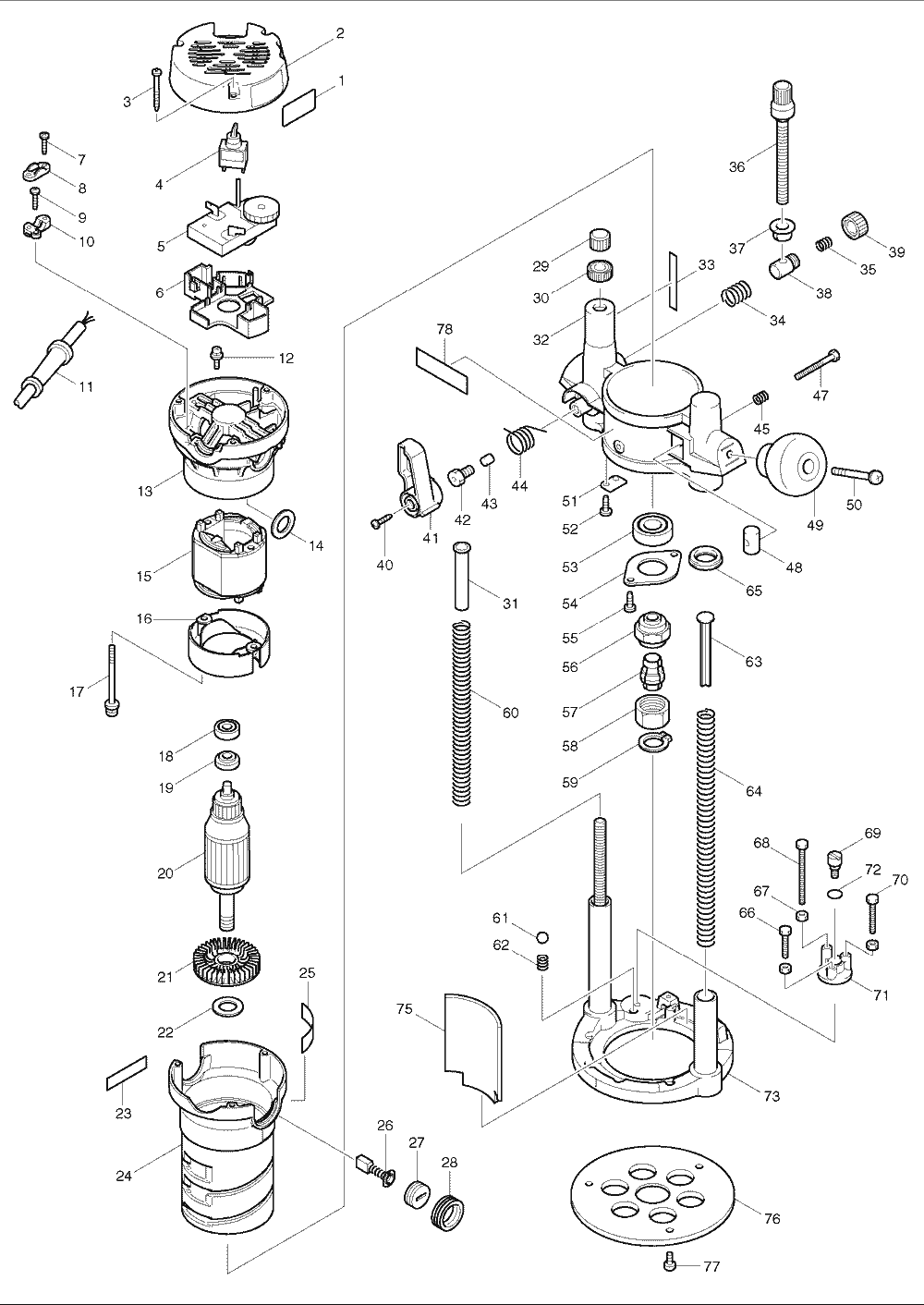

Makita RP1101 Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 812990-3 INDICATION LABEL, RP1101 $1.48

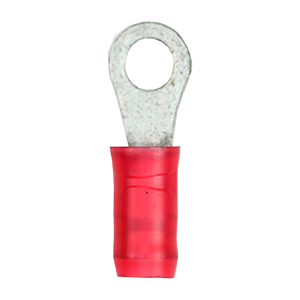

00 654198-1 INSULATED TERMINAL, RP1101 $2.84
2 417140-1 REAR COVER, RD1101 $5.48
3 266203-8 T.SCREW BIND CT 4X40, 9403 $1.19
4 651423-1 SWITCH, RD1100/1101 $13.84
5 631397-2 CONTROLLER, RD1101 $65.60
6 417143-5 CONTROLLER HOLDER, RD1100/1101 $2.84
7 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
8 687052-4 STRAIN RELIEF, HM1500B $1.26
9 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
10 687100-9 STRAIN RELIEF, RD1100/1101 $2.84
11 565056-5 POWER SUPPLY CORD, RF1100 $20.55
11 EC163 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $15.19
12 652014-1 P.H. SCREW M4X8, 2708 $0.75
13 151879-3 MOTOR REAR HOUSING CPL., RD1100 $42.63
14 681009-7 WASHER, RD1100/1101 $1.01
15 594356-6 FIELD ASS'Y 115V, RD1100/1101 $45.49
16 417136-2 BAFFLE PLATE, RD1100/1101 $4.16
17 911686-4 P.H.SCREW M5X65, RD1100/1101 $1.48
18 210005-4 BALL BEARING 608DDW, 9031 $13.07
19 681650-6 INSULATION WASHER, HR4000C $11.75
20 518633-2 ARMATURE ASS'Y, RF1101 ,T2 $71.30
21 240031-9 FAN 60, RD1100/1101 $2.84
22 253853-8 F. WASHER 15, LS1211 $1.63
23 817443-7 CAUTION LABEL EN/FR $2.74
24 317319-3 MOTOR HOUSING, RD1100/1101 $51.20
25 853157-4 NAME PLATE, RP1101 $0.96
26 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
27 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
28 681655-6 HOLDER RING, RD1100/1101 $2.84
29 252643-6 WING NUT M10, RP1101 $1.96
30 410129-8 NYLON NUT M10, 3612C $1.96
31 417320-9 SILENT POLE, RP1101 $2.84
32 183358-3 SLIDE BASE,RP1101 $54.90
33 816804-8 SCALE PLATE INCH, RP1101 $1.52
34 231231-2 COMP. SPRING 12, 3612BR $1.63
35 231419-4 COMP. SPRING 5, 3620 $2.07
36 265749-1 SCREW 3/8-16UNCM, RP1101 $15.82
37 417548-9 DEPTH POINTER, RF1101KIT $1.26
38 153475-3 HALF NUT COMPLETE, RP1101 $10.98
38 324104-7 HALF NUT, RP1101 $4.71
39 252644-4 THUMB NUT M14, RP1101 $2.51
40 911118-1 P.H. SCREW M4X12, 6221D $0.86
41 417546-3 LEVER 55, RF1101KIT $4.16
42 266275-3 SET BOLT B816, RP1101 $1.48
43 323856-7 LOCK PIN, RP1101 $2.84
44 231651-0 TORSION SPRING 16, RP1101 $1.96
45 231456-8 COMP. SPRING, 9627 $1.48
47 911273-9 P.H. SCREW M5X50, HR2400 $1.19
48 324105-5 LOCK NUT M5, RP1101 $4.71
49 271313-8 KNOB 55, RD1100/1101 $4.16
50 911378-5 P.H. SCREW M6X55, JV2000 $1.48
51 344217-8 GUIDE PLATE, RP1101 $1.63
52 266026-4 TAPPING SCREW 4X12,5477NB $0.86
53 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
54 285689-7 BEARING RETAINER 55, SP6000K, LS0711Z $3.06
55 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
56 763641-0 COLLET BODY, RD1100/1101 $15.93
57 763643-6 COLLET CONE 12.7 RD1100/1101 $37.20
58 763642-8 COLLET NUT, RD1100/1101 $5.92
59 961056-7 RETAINING RING S-16, 5077B $1.48
60 233303-9 COMPRESSION SPRING 13, RP1101 $1.96
61 216009-4 STEEL BALL 7.1, HR2400 $0.86
62 231419-4 COMP. SPRING 5, 3620 $2.07
63 417252-0 POLE, RP1101 $2.84
64 233302-1 COMPRESSION SPRING 12, RP1101 $3.61
65 213323-9 DUST SEAL 20, RP1101 $1.52
66 265333-2 HEX BOLT M5X16, 3620 $1.08
67 931202-6 HEX NUT M5, HR2410 $0.79
68 265336-6 HEX BOLT M5X40, 3612C $1.34
69 251467-7 FLAT HEAD SCREW M6,RP1101 $3.28
70 265335-8 HEX BOLT M5X28, 3620 $1.34
71 315931-3 STOPPER, RP1101 $5.48
72 213030-4 O RING 8, AN451 $0.82
73 152878-8 BASE CPL., RP1101 $53.80
75 417547-1 CHIP DEFLECTOR, RF1101KIT $4.16
76 417138-8 BASE PLATE, RD1100/1101 $10.65
77 265081-3 P.H.SCREW W3X16-24X10, RD1100 $1.19
78 813916-8 INDICATION LABEL EN/FR, RP1101 $0.96
1001 193214-9 COLLET CONE 6.35 RD1100/1101 $51.80
1003 781213-9 WRENCH, 3612BR, 3620 $4.40
