Makita RF1100 Router Parts

Makita RF1100  Router Parts Image

Makita RF1100 Parts
Time to buy a new tool?

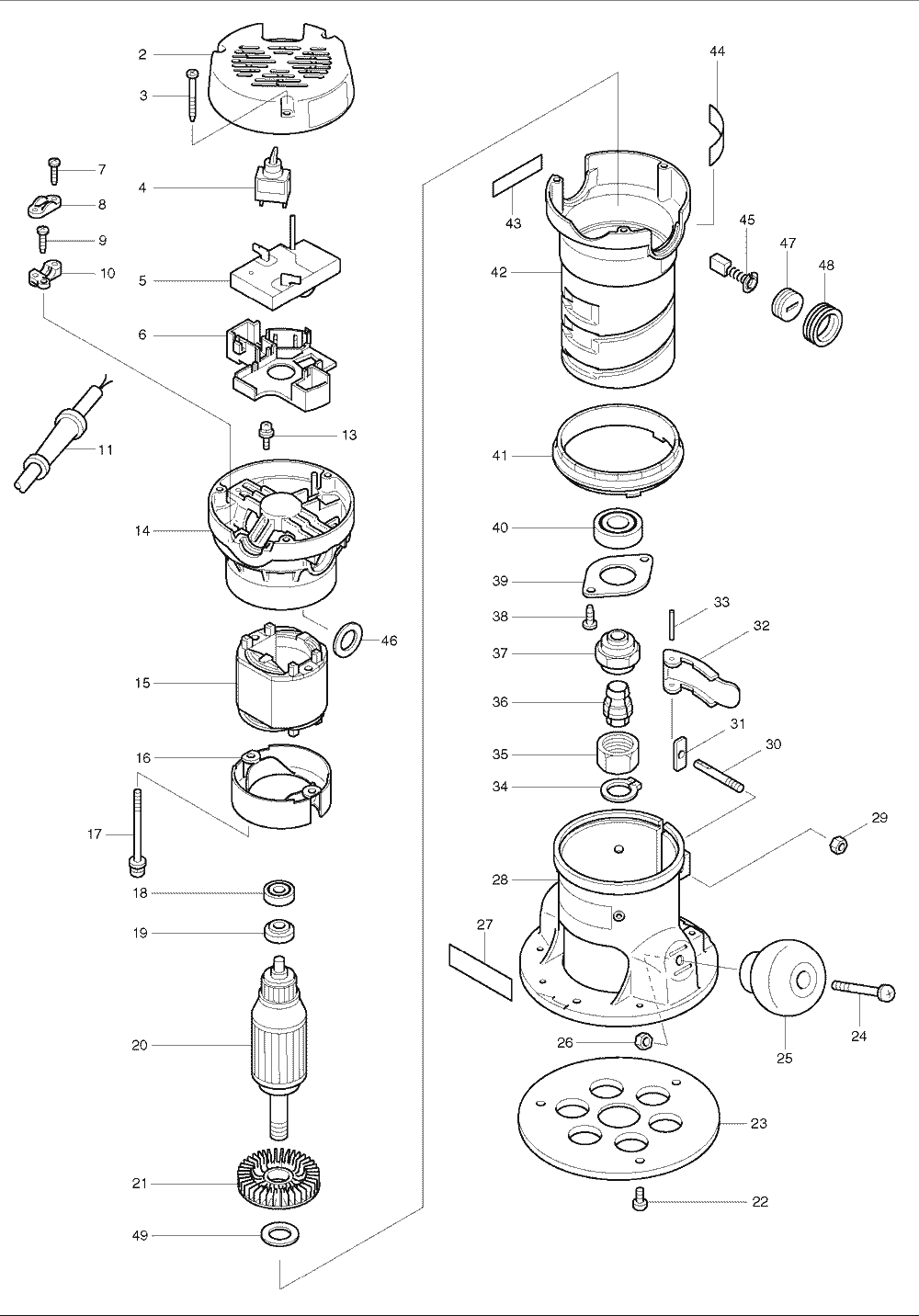

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
2 417139-6 REAR COVER, RD1100 $5.48
3 266203-8 T.SCREW BIND CT 4X40, 9403 $1.19
4 651423-1 SWITCH, RD1100/1101 $13.84
5 631398-0 CONTROLLER, RD1100 $57.30
6 417143-5 CONTROLLER HOLDER, RD1100/1101 $2.84
7 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
8 687052-4 STRAIN RELIEF, HM1500B $1.26
9 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
10 687100-9 STRAIN RELIEF, RD1100/1101 $2.84
11 565056-5 POWER SUPPLY CORD, RF1100 $20.55
11 EC163 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $15.19
13 652014-1 P.H. SCREW M4X8, 2708 $0.75
14 151879-3 MOTOR REAR HOUSING CPL., RD1100 $42.63
15 594356-6 FIELD ASS'Y 115V, RD1100/1101 $45.49
16 417136-2 BAFFLE PLATE, RD1100/1101 $4.16
17 911686-4 P.H.SCREW M5X65, RD1100/1101 $1.48
18 210005-4 BALL BEARING 608DDW, 9031 $13.07
19 681650-6 INSULATION WASHER, HR4000C $11.75
20 518633-2 ARMATURE ASS'Y, RF1101 ,T2 $71.30
21 240031-9 FAN 60, RD1100/1101 $2.84
22 265081-3 P.H.SCREW W3X16-24X10, RD1100 $1.19
23 417138-8 BASE PLATE, RD1100/1101 $10.65
24 911378-5 P.H. SCREW M6X55, JV2000 $1.48
25 271313-8 KNOB 55, RD1100/1101 $4.16
26 931301-4 HEX NUT M6, 2040 $0.79
27 812986-4 INDICATION LABEL, RF1100 $1.30
28 151880-8 ROUTER BASE CPL.,RF1100 $72.80
29 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
30 323968-6 SUPPORT PIN, RD1100/1101 $2.84
31 344852-2 PLATE, RD1100/1101 $1.26
32 344851-4 LOCK LEVER, RD1100/1101 $4.16
33 268063-4 PIN 4, RD1100/1101 $1.19
34 961056-7 RETAINING RING S-16, 5077B $1.48
35 763642-8 COLLET NUT, RD1100/1101 $5.92
36 763643-6 COLLET CONE 12.7 RD1100/1101 $37.20
37 763641-0 COLLET BODY, RD1100/1101 $15.93
38 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
39 285689-7 BEARING RETAINER 55, SP6000K, LS0711Z $3.06
40 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
41 417137-0 SCALE RING, RD1100/1101 $4.16
42 317319-3 MOTOR HOUSING, RD1100/1101 $51.20
43 817443-7 CAUTION LABEL EN/FR $2.74
43 817361-9 CAUTION LABEL, RF1100 $1.52
44 852510-1 NAME PLATE, RF1100 $0.89
45 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.99Disc
45 K40 This item will be shipped Free Carbon Brush Set of 2 Piece Replaces Makita (CB-... $8.50
46 681009-7 WASHER, RD1100/1101 $1.01
47 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
48 681655-6 HOLDER RING, RD1100/1101 $2.84
49 253853-8 F. WASHER 15, LS1211 $1.63
1001 781031-5 WRENCH 27 RD1100/1101 $1.90Disc
1002 193214-9 COLLET CONE 6.35 RD1100/1101 $51.80
