Makita RD1101 Router Parts

Makita RD1101 Parts

2-1/4 HP Variable Speed D-Handle Router

Download Schematic

Time to buy a new tool?

Makita RD1101

2-1/4 HP Variable Sp...

$232.99

Free Shipping

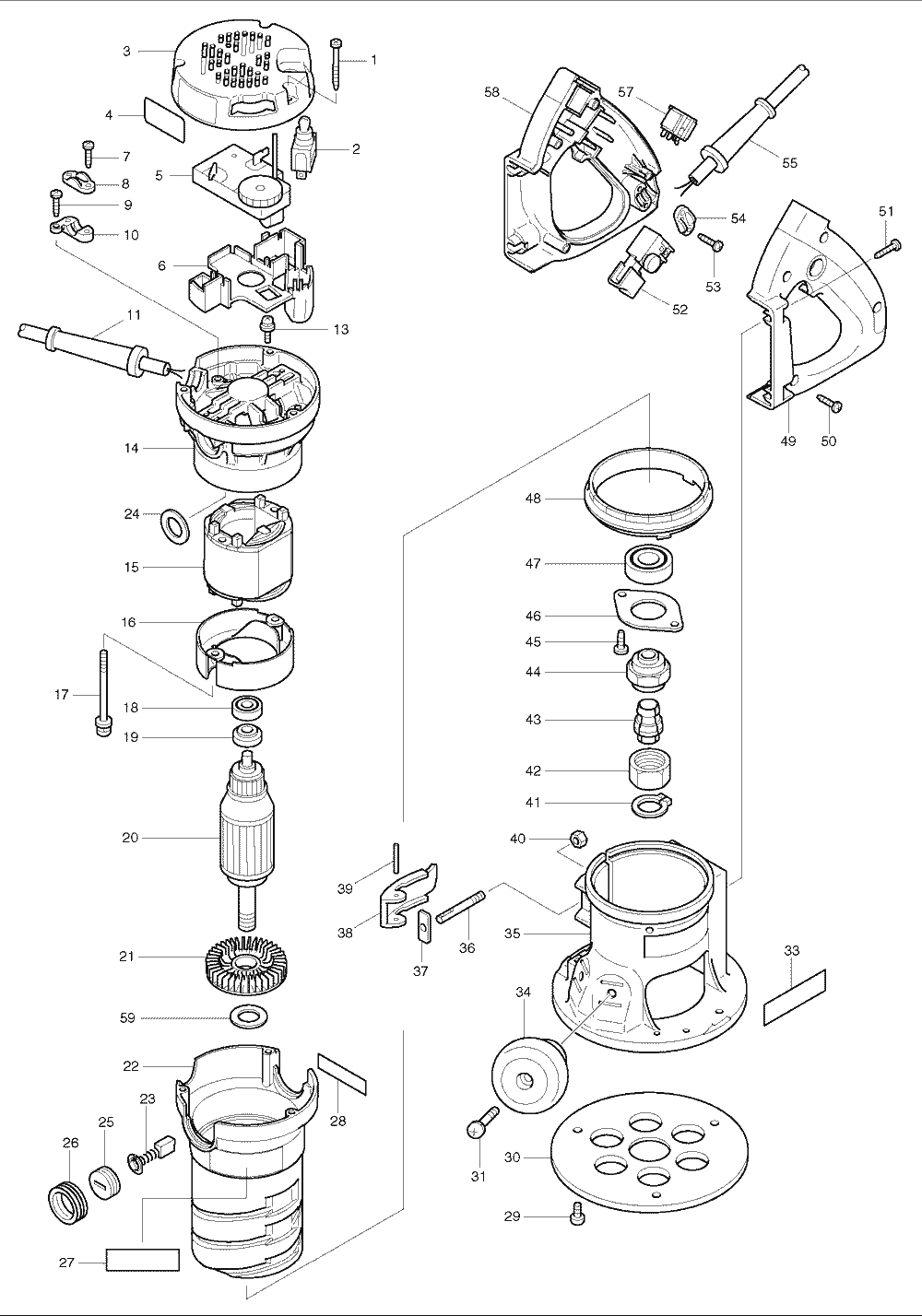

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	266203-8	T.SCREW BIND CT 4X40, 9403	$1.19
2	651423-1	SWITCH, RD1100/1101	$13.84
3	417140-1	REAR COVER, RD1101	$5.48
4	812990-3	INDICATION LABEL, RP1101	$1.48
5	631397-2	CONTROLLER, RD1101	$65.60
6	417143-5	CONTROLLER HOLDER, RD1100/1101	$2.84
7	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
8	687052-4	STRAIN RELIEF, HM1500B	$1.26
9	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
10	687100-9	STRAIN RELIEF, RD1100/1101	$2.84
11	565055-7	P.S.CORD AWG#16-3-0.7, RD1100/1101	$11.53
13	652014-1	P.H. SCREW M4X8, 2708	$0.75
14	151879-3	MOTOR REAR HOUSING CPL., RD1100	$42.63
15	594356-6	FIELD ASS'Y 115V, RD1100/1101	$45.49
16	417136-2	BAFFLE PLATE, RD1100/1101	$4.16
17	911686-4	P.H.SCREW M5X65, RD1100/1101	$1.48
18	210005-4	BALL BEARING 608DDW, 9031	$13.07
19	681650-6	INSULATION WASHER, HR4000C	$11.75
20	518633-2	ARMATURE ASS'Y, RF1101 ,T2	$71.30
21	240031-9	FAN 60, RD1100/1101	$2.84
22	317319-3	MOTOR HOUSING, RD1100/1101	$51.20
23	194996-6	CARBON BRUSH CB-303 SET, 9227C	$8.12
24	681009-7	WASHER, RD1100/1101	$1.01
25	643750-0	BRUSH HOLDER CAP, HM1100C	$1.63
26	681655-6	HOLDER RING, RD1100/1101	$2.84
27	852509-6	NAME PLATE, RD1101	$0.89
28	817364-3	CAUTION LABEL, RD1100	$1.30
28	817365-1	CAUTION LABEL, RD1100	$1.48
29	265081-3	P.H.SCREW W3X16-24X10, RD1100	$1.19
30	417138-8	BASE PLATE, RD1100/1101	$10.65
31	911378-5	P.H. SCREW M6X55, JV2000	$1.48
33	812988-0	INDICATION LABEL, RD1100	$1.12
34	271313-8	KNOB 55, RD1100/1101	$4.16
35	151881-6	ROUTER BASE CPL., RD1100/1101	$60.90
36	323968-6	SUPPORT PIN, RD1100/1101	$2.84
37	344852-2	PLATE, RD1100/1101	$1.26
38	344851-4	LOCK LEVER, RD1100/1101	$4.16
39	268063-4	PIN 4, RD1100/1101	$1.19
40	252014-7	HEX LOCK NUT M6-10, LS1040	$4.16
41	961056-7	RETAINING RING S-16, 5077B	$1.48
42	763642-8	COLLET NUT, RD1100/1101	$5.92
43	763643-6	COLLET CONE 12.7 RD1100/1101	$37.20
44	763641-0	COLLET BODY, RD1100/1101	$15.93
45	266035-3	TAPPING SCREW BIND CT5X12, 9031	$0.86
46	285689-7	BEARING RETAINER 55, SP6000K, LS0711Z	$3.06
47	211228-7	BALL BEARING 6202DDW, HM1303B	$15.27
48	417137-0	SCALE RING, RD1100/1101	$4.16
49	183218-9	HANDLE SET, RD1100/1101	$11.97
50	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
51	266036-1	TAPPING SCREW 5X20, 5177B	$1.48
52	651284-9	SWITCH, 2107F	$13.84
53	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
54	687052-4	STRAIN RELIEF, HM1500B	$1.26
55	565054-9	P.S.CORD AWG#16-3-2.8, RD1101	$20.55
57	655116-2	OUTLET, RD1100/1101	$5.48
58	183218-9	HANDLE SET, RD1100/1101	$11.97
59	253853-8	F. WASHER 15, LS1211	$1.63
1002	193214-9	COLLET CONE 6.35 RD1100/1101	$51.80
2001	534044-3	LEAD WIRE ASS'Y, RD1100	$2.84
