Makita RBL500 Trimmer Parts

Makita RBL500 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

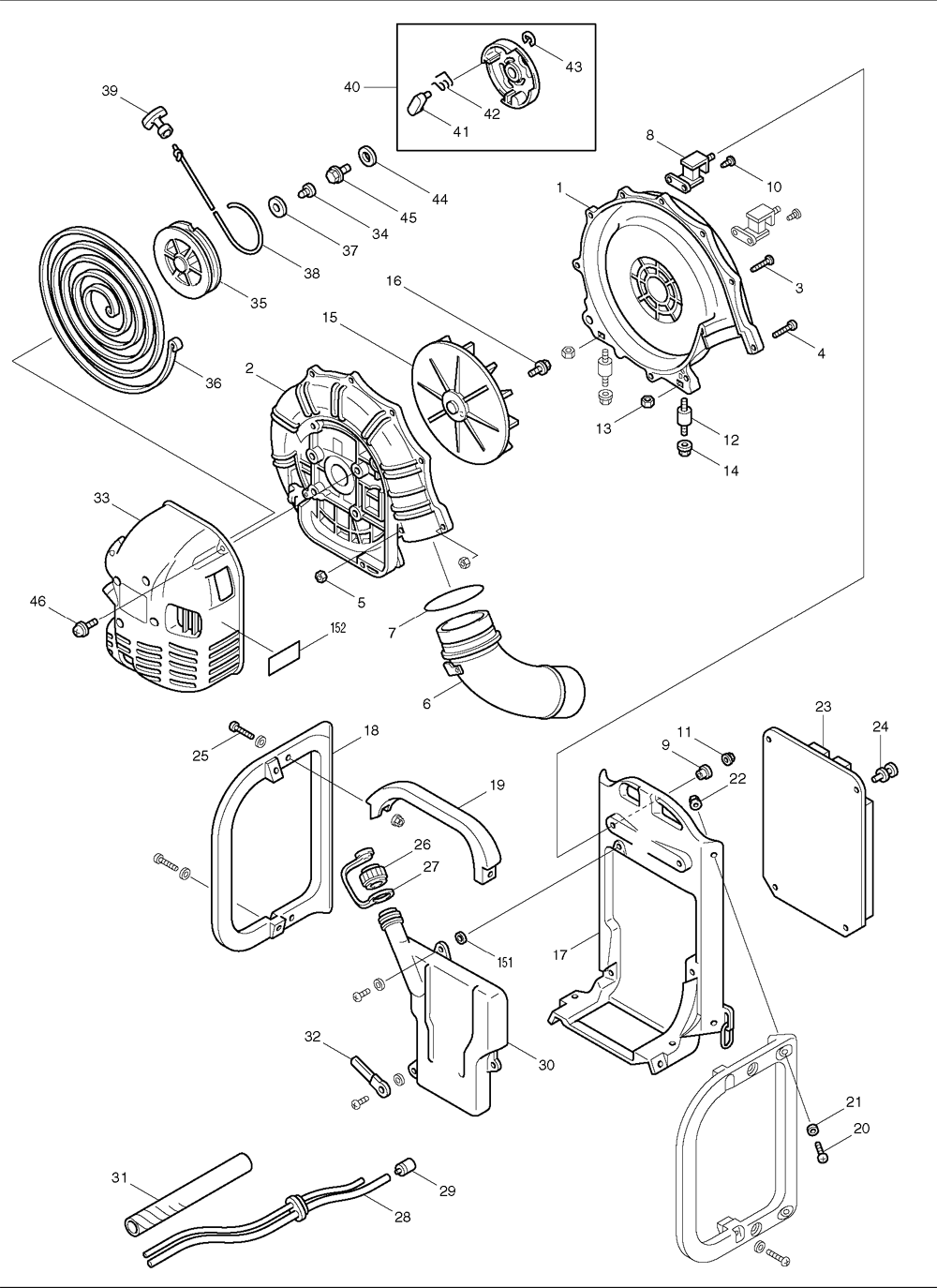

Page-1

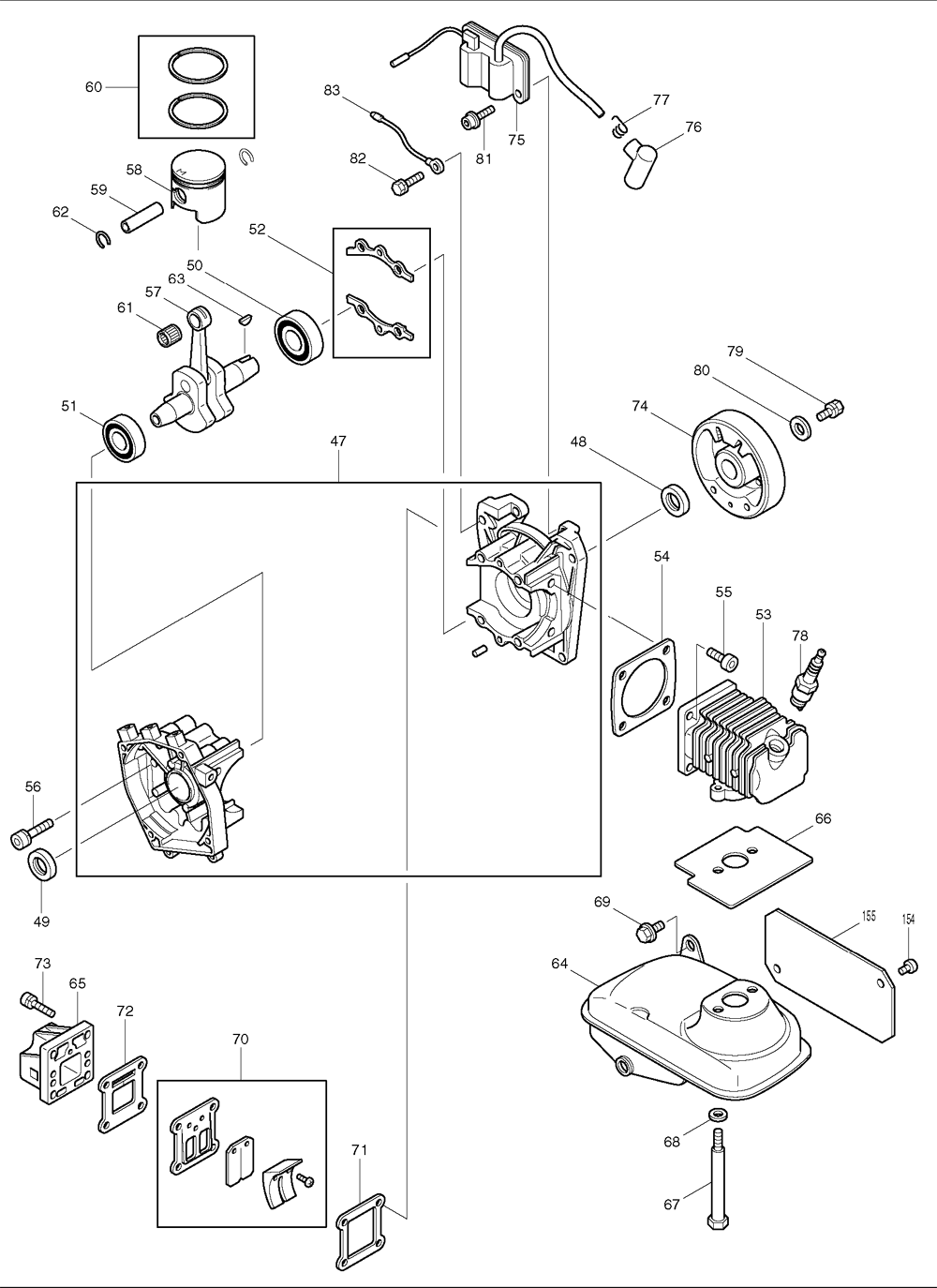

Page-2

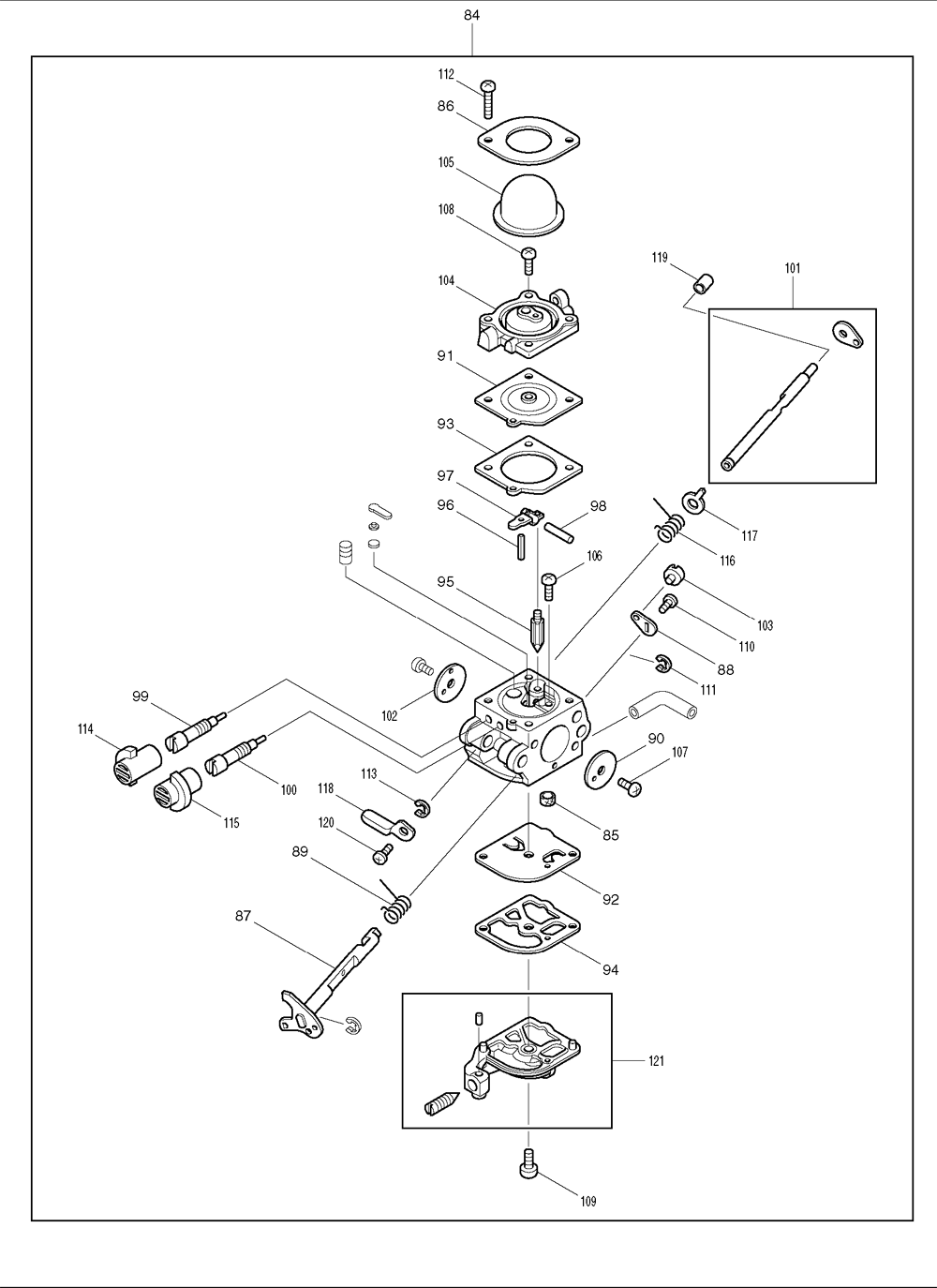

Page-3

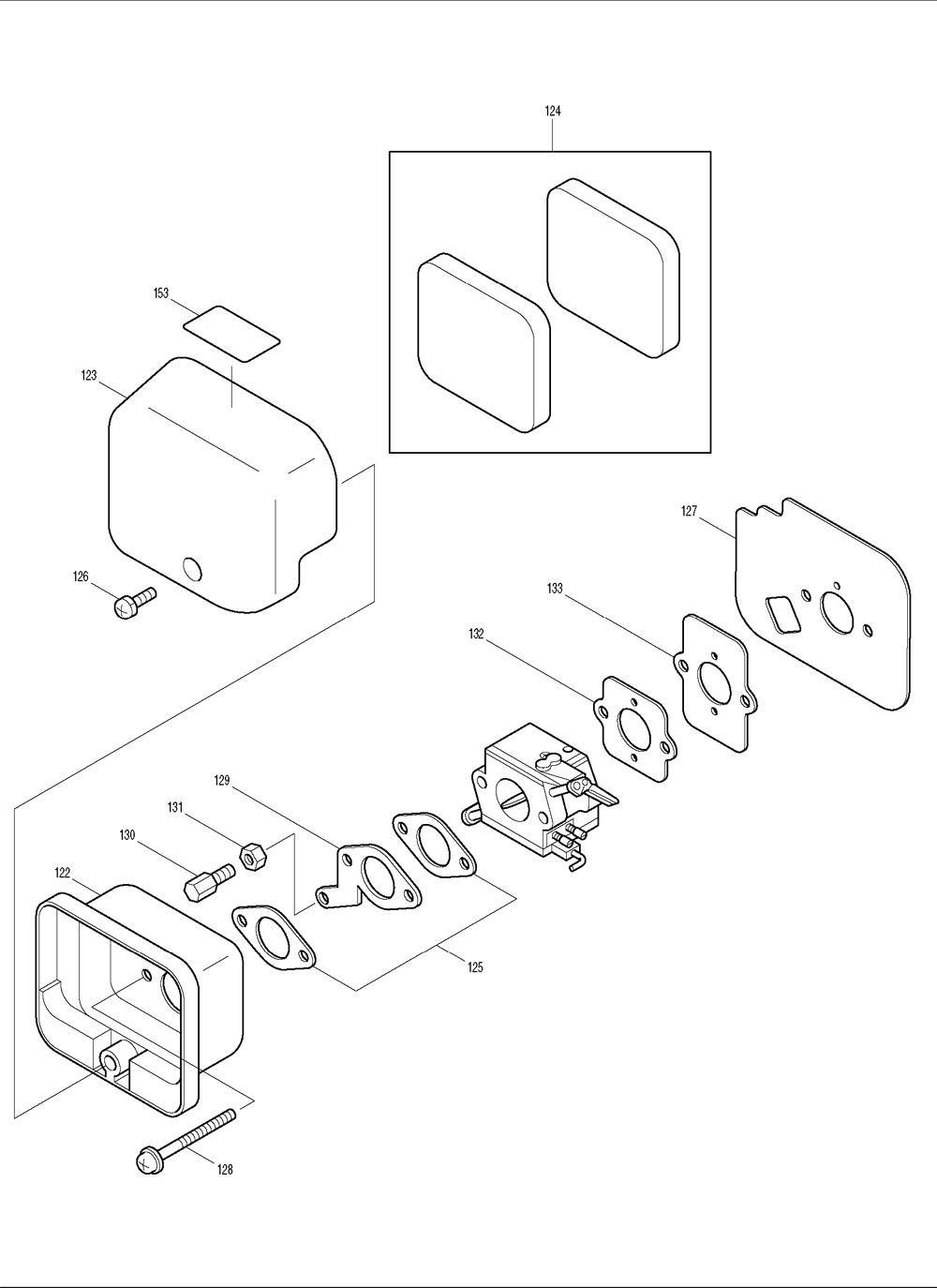

Page-4

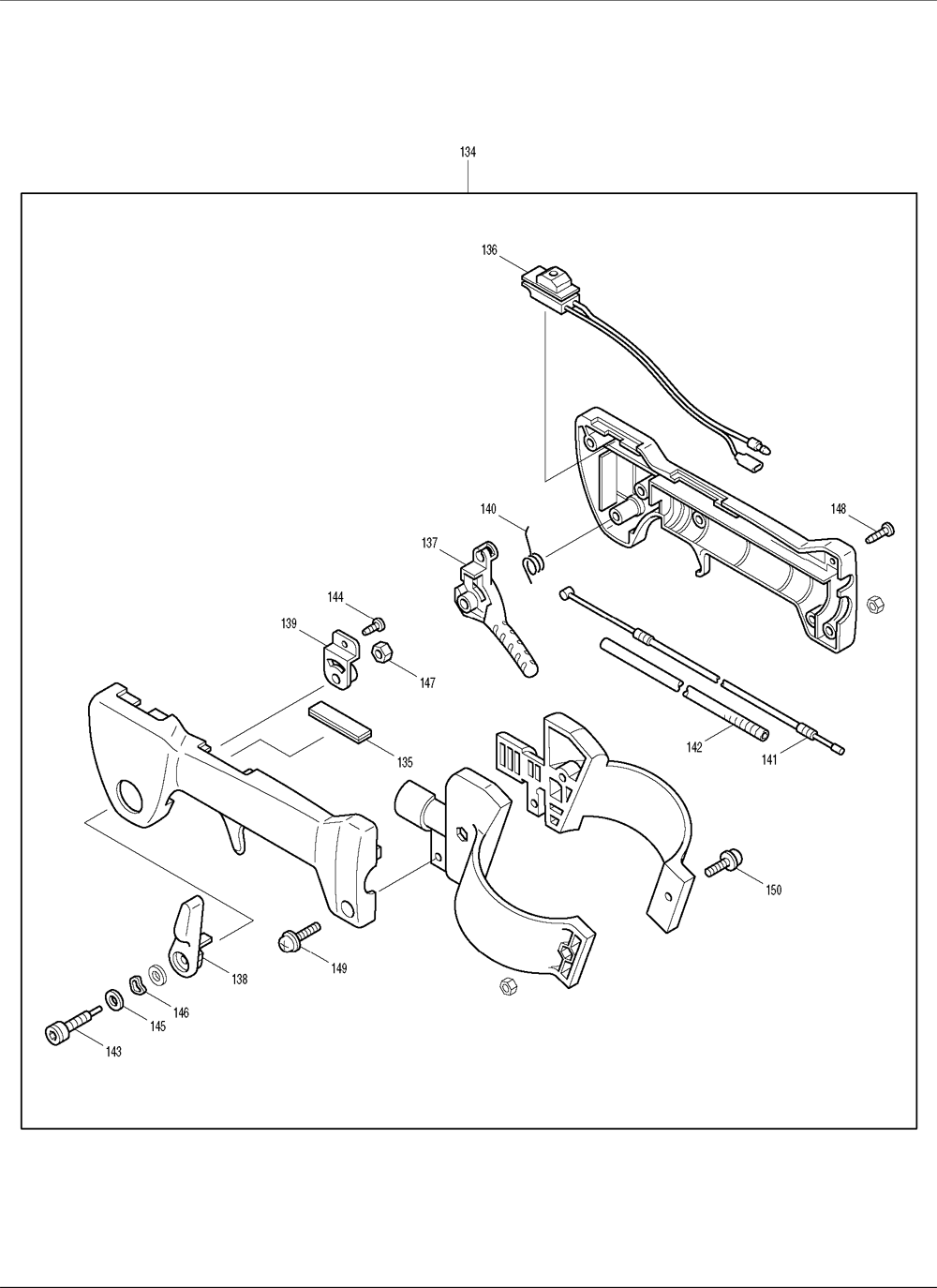

Page-5

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
27	625-50210-02	STRAP UNIT, RBC201	$3.83
1	662-15002-01	VOLUTE CASE 1, RBL500	$59.30
3	015-00598-70	TAPPING SCREW, RBL500	$1.41
5	002-17050-00	NUT M5, EM4251	$1.34
6	662-10060-01	ELBOW COMPLETE, RBL500	$28.25
7	006-26308-50	O RING, RBL500	$6.69
8	662-10050-00	BRACKET COMPLETE, RBL500	$19.34
9	662-15009-00	SPACER, RBL500	$4.71
10	015-00599-10	TAPPING SCREW, RBL500	$1.41
11	002-37050-00	FLANGE NUT, RBL500	$1.34
12	662-15004-01	DAMPER, RBL500	$12.96
13	002-17060-00	NUT, G3511R	$1.34
14	002-37060-00	FLANGE NUT, BBX7600	$1.96
15	682-15002-01	IMPELLER, RBL500	$89.70
16	001-13062-50	BOLT ASSEMBLY, RBL500	$1.96
17	662-20080-01	FRAME COMPLETE, RBL500	$53.60
18	662-25006-00	SIDE FRAME, RBL500	$28.25
19	662-25007-01	KNOB, RBL500	$19.34
21	003-12050-00	WASHER, RBL500	$1.34
22	002-37050-00	FLANGE NUT, RBL500	$1.34
23	662-20100-01	CUSHION, RBL500	$43.14
24	682-25002-00	LOCK RIVET, RBL500	$3.50
26	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
26	531-60140-00	FUEL TANK CAP,RBL500	$13.51
27	525-60670-00	STRAP, RBL500	$7.68
27	625-50210-02	STRAP UNIT, RBC201	$3.83
28	662-30030-01	TUBE, RBL500	$35.59
29	523-65039-00	FILTER, RBL500	$11.42
30	662-30050-00	FUEL TANK ASSEMBLY, RBL500	$50.50
30	662-35003-00	FUEL TANK, RBL500,T1	$33.86
31	855-85022-00	SPIRAL TUBE, RBL500	$6.69
32	855-85011-00	CLAMP, RBL500	$5.26
33	662-80020-02	ENGINE COVER COMPL, RBL500	$82.50
34	510-50151-10	SCREW, RBL500	$1.85
35	541-50030-10	REEL, RBL500	$13.62
36	541-50030-20	SPIRAL SPRING, RBC260	$14.61
37	541-50030-30	WASHER, RBC260	$1.85
38	541-50011-40	STARTER ROPE, RBC260	$6.69
39	530-50021-10	STARTER KNOB, BBX7600	$10.65
40	541-50110-00	PULLY UNIT, RBL500	$22.53
41	541-50110-10	RATCHET, RBL500	$4.93
42	541-50110-20	RETURN SPRING, RBL500	$3.50
43	521-50030-40	E-RING, RBL500	$3.17
44	020-00699-20	WASHER M6, RBL500	$3.72
45	001-13061-60	BOLT ASS'Y, RBL500	$1.96
46	004-36062-00	SCREW ASSEMBLY, RBL500	$1.41
48	044-01799-20	OIL SEAL, RBL500	$10.65
49	044-01599-50	OIL SEAL, RBL500	$9.22
50	060-01798-30	BALL BEARING, RBL500	$17.69
51	060-01500-60	BALL BEARING, RBL500	$7.68
51	060-01598-80	BALL BEARING 6202C3, RBL500	$12.96
52	541-15012-00	GASKET (CRANKCASE), EW110R	$3.50
53	541-15018-00	CYLINDER, RBL500	$131.64
54	541-15005-01	CYLINDER GASKET, RBL500	$4.71
55	011-90699-90	H.S.H BOLT M6X18, EW110R	$1.41
56	011-90599-40	SOCKET HEAD BOLT, EW110R	$1.85
57	541-20240-00	CRANKSHAFT COMPLETE, RBL500	$166.65
58	541-25007-00	PISTON, RBL500	$41.41
59	560-25011-00	PISTON PIN, RBL500	$8.12
60	560-25009-00	PISTON RING, RBL500	$6.69
61	061-01299-50	NEEDLE ROLLER BEARING, RBL500	$12.96
62	056-51199-90	CLIP, BBX7600	$1.96
63	005-32031-01	WOODRUFF KEY, RBL500	$1.96
65	541-30460-02	INSULATOR COMPLETE, RBL500	$13.62
66	541-35017-00	MUFFLER GASKET, RBL500	$16.04
67	541-35020-01	MUFFLER BOLT, RBL500	$4.93
68	020-00999-90	WASHER, RBL500	$1.63
69	001-15061-60	BOLT ASSEMBLY, RBL500	$1.41
70	541-30360-00	LEAD VALVE ASSEMBLY, RBL500	$45.79
71	541-35028-00	GASKET (LEAD VALVE, EW110R	$1.85
72	540-35006-00	INSULATER GASKET, RBL500	$1.85
73	011-90596-30	S.H. BOLT M5X20, RBL500	$3.61
75	541-70240-21	COIL, RBL500	$134.45
76	065-50098-70	PLUG CAP, RBl500	$6.14
77	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
78	065-01497-10	SPARK PLUG BPM7A,RBC260	$6.69
79	001-13081-60	BOLT & WASHER ASS'Y, G5501R .	$1.63
80	003-11080-00	WASHER, G1300R	$1.34
81	011-90597-90	S.H.B.M5X22, EW110R	$1.85
82	001-13062-50	BOLT ASSEMBLY, RBL500	$1.96
83	662-80030-00	WIRE COMPLETE, RBL500	$6.91
84	541-60430-01	CARBURETOR, RBL500,T1	$99.10
84	541-60430-03	CARBURETOR, RBL500	$126.78
85	541-60434-30	STRAINER, RBL500	$4.93
86	541-60434-60	RETAINER, RBL500	$5.04
86	541-60438-60	RETAINER, RBL500	$6.47
87	541-60430-20	THROTTLE SHAFT ASSEMBLY, RBL500	$32.53
88	541-60435-20	THROTTLE LEVER, RBL500	$8.01
89	541-60430-30	THROTTLE RETURN SPRING, RBL500	$5.26
90	541-60430-40	THROTTLE VALVE, RBL500	$9.55
91	541-60432-60	DIAPHRAGM ASSEMBLY, RBL500	$35.59
92	541-60431-10	PUMP DIAPHRAGM, RBL500	$11.42
93	541-60433-10	METERING CHAMBER GASKET, RBL500	$4.93
94	541-60431-20	PUMP GASKET, RBL500	$4.93
95	541-60432-10	INLET NEEDLE VALVE, RBL500	$23.96
96	541-60432-20	METERING LEVER SPRING, RBL500	$8.12
97	541-60432-30	METERING LEVER, RBL500	$9.77
98	541-60432-40	PIN, RBL500	$3.50
99	541-60433-50	MAIN MIXTURE SCREW, RBL500	$16.04
100	541-60433-60	IDLE MIXTURE SCREW, RBL500	$16.04
101	541-60435-50	CHOKE SHAFT ASSY, RBL500 T1	$28.56
101	541-60435-51	CHOKE SHAFT ASS'Y, RBL500	$36.21
102	541-60436-20	CHOKE VALVE, RBL500	$8.45
103	541-60435-40	POST, RBL500	$14.28
104	541-60433-20	PRIMER BASE ASSEMBLY, RBL500	$51.60
104	541-60439-20	PRIMER BASE ASSEMBLY, RBL500	$67.00
105	541-60435-10	SYRINGE, RBL500	$11.42
106	541-60432-50	SCREW, RBL500	$1.96
107	541-60430-50	SCREW, RBL500	$1.48
108	541-60433-40	SCREW, RBL500	$1.48
109	541-60431-60	SCREW, RBL500	$1.96
110	541-60435-30	SCREW, RBL500	$1.96
111	541-60430-60	E-RING, RBL500	$1.96
112	541-60433-30	RETAINER SCREW, RBL500	$1.48
112	541-60439-10	RETAINER SCREW, RBL500	$3.28
113	541-60437-20	E-RING, RBL500 T1	$1.34
113	541-60438-50	COLLAR, RBL500	$4.93
114	541-60437-60	TAMPER RESIST (R) LIMITER, RBL500	$8.45
115	541-60438-10	TAMPER RESIST(W) LIMITER, RBL500	$8.45
116	541-60436-40	CHOKE RETURN SPRING, RBL500	$5.26
117	541-60435-60	CHOKE CONTROL LEVER, RBL500	$6.69
118	541-60436-60	CHOKE LEVER, RBL500	$6.69
119	541-60436-10	CHOKE SHAFT COLLER, PB500R	$1.48
120	541-60437-10	CHOKE LEVER SCREW, RBL500	$1.85
121	541-60438-20	PUMP COVER KIT, RBL500	$26.41
122	541-30480-01	PLATE CLEANER ASSEMBLY, RBL500	$12.96
123	541-35070-01	AIR CLEANER CASE, RBL500	$6.69
124	541-35071-01	AIR CLEANER ELEMENT, RBL500	$8.12
125	541-35072-00	AIR CLEANER GASKET, RBL500	$1.85
126	004-36051-40	SCREW M5X14, RBC251	$1.41
127	541-65043-02	CARBURETOR GASKET, RBL500	$4.93
128	004-36055-50	SCREW, RBL500	$1.85
129	541-65046-00	CABLE BRACKET, RBL500	$4.93
130	521-60080-10	CABLE ADJUST SCREW, RBL500	$4.93
131	002-27060-00	NUT, EM4251	$1.34
132	541-35079-00	CARBURETOR GASKET, RBL500	$3.50
133	541-35078-00	PLATE, RBL500	$4.93
134	662-50010-02	CONTROL LEVER ASSY, RBL500	$70.90
135	662-55005-00	CASE COVER, RBL500	$4.93
136	662-50030-01	SWITCH COMPL, RBL500	$14.61
137	662-55006-01	THROTTLE LEVER 1, RBL500	$8.12
138	662-55007-01	THROTTLE LEVER 2, RBL500	$8.12
139	662-50040-00	PLATE COMPLETE, RBL500	$8.45
140	662-55009-01	TORSION SPRING, RBL500	$4.93
141	063-01399-01	CONTROL CABLE, RBL500	$17.69
142	662-55010-01	CABLE TUBE, RBL500	$16.04
143	662-55017-00	SOCKET HEAD BOLT, RBL500	$6.69
144	015-00499-70	TAPPING SCREW, RBL500	$1.19
145	003-11060-00	WASHER, BBX7600	$1.34
146	003-22060-00	WAVE WASHER, BBX7600	$1.85
147	002-27060-00	NUT, EM4251	$1.34
148	015-00499-40	TAPPING SCREW, RBL500	$1.08
151	020-00699-20	WASHER M6, RBL500	$3.72
152	662-95086-00	CAUTION LABEL, RBL500	$4.18
153	073-64094-30	LABEL, RBL500	$4.75
154	014-00599-20	SCREW M5X8, RBC310	$1.19
155	541-35060-01	TANK PROTECTOR, RBL500	$10.65
156	662-55008-02	HANDLE HOLDER 1, RBL500	$13.62
157	662-50050-02	HANDLE HOLDER 2, RBL500	$13.62
1004	6989506900	FLEXIBLE PIPE RBL500	$29.65
1006	6709017020	PIPE 2 RBL500	$27.56
1007	6629506700	END PIPE RBL500	$25.66
