Tool Diagram    (Click image to Zoom in) View larger Image

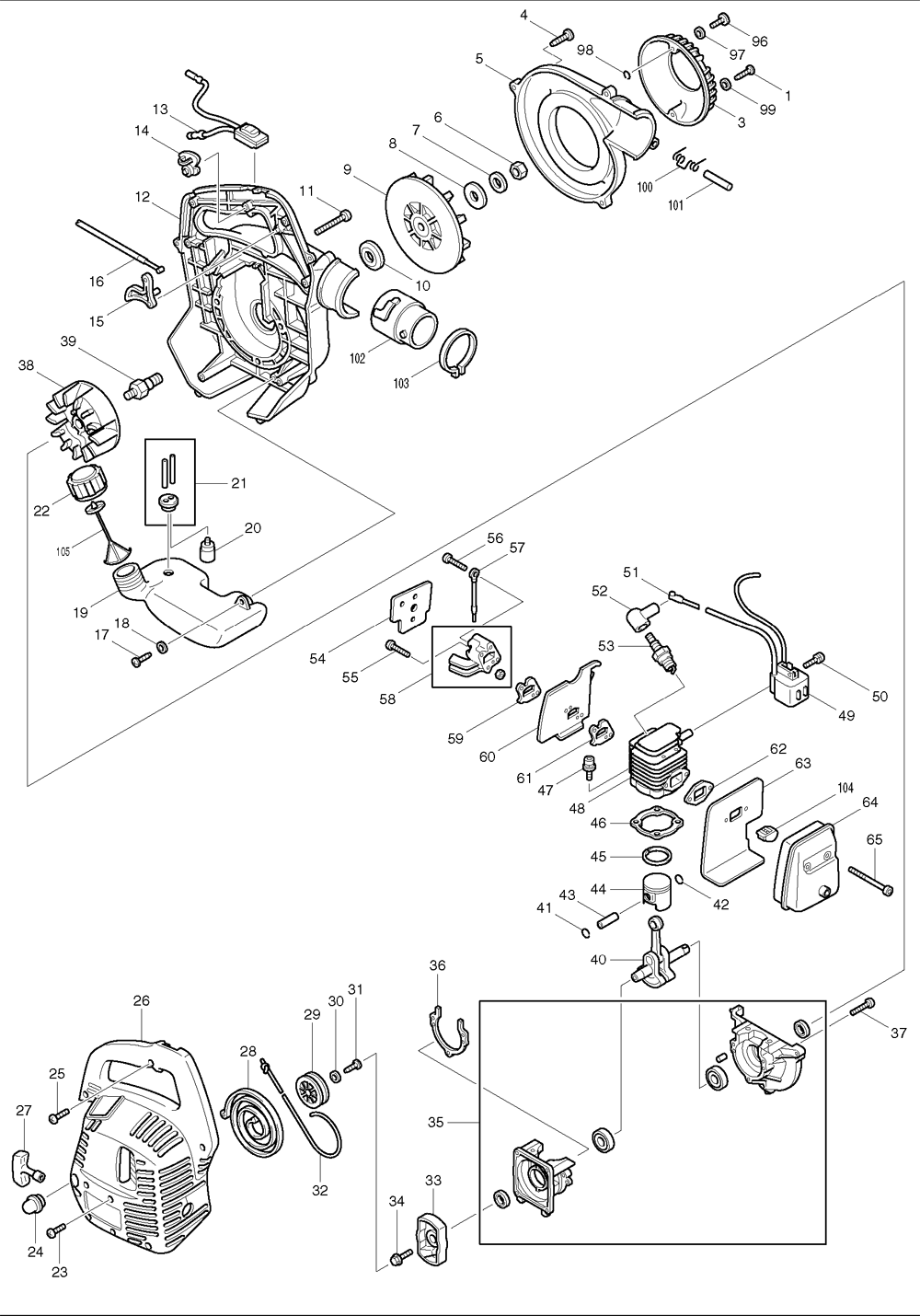

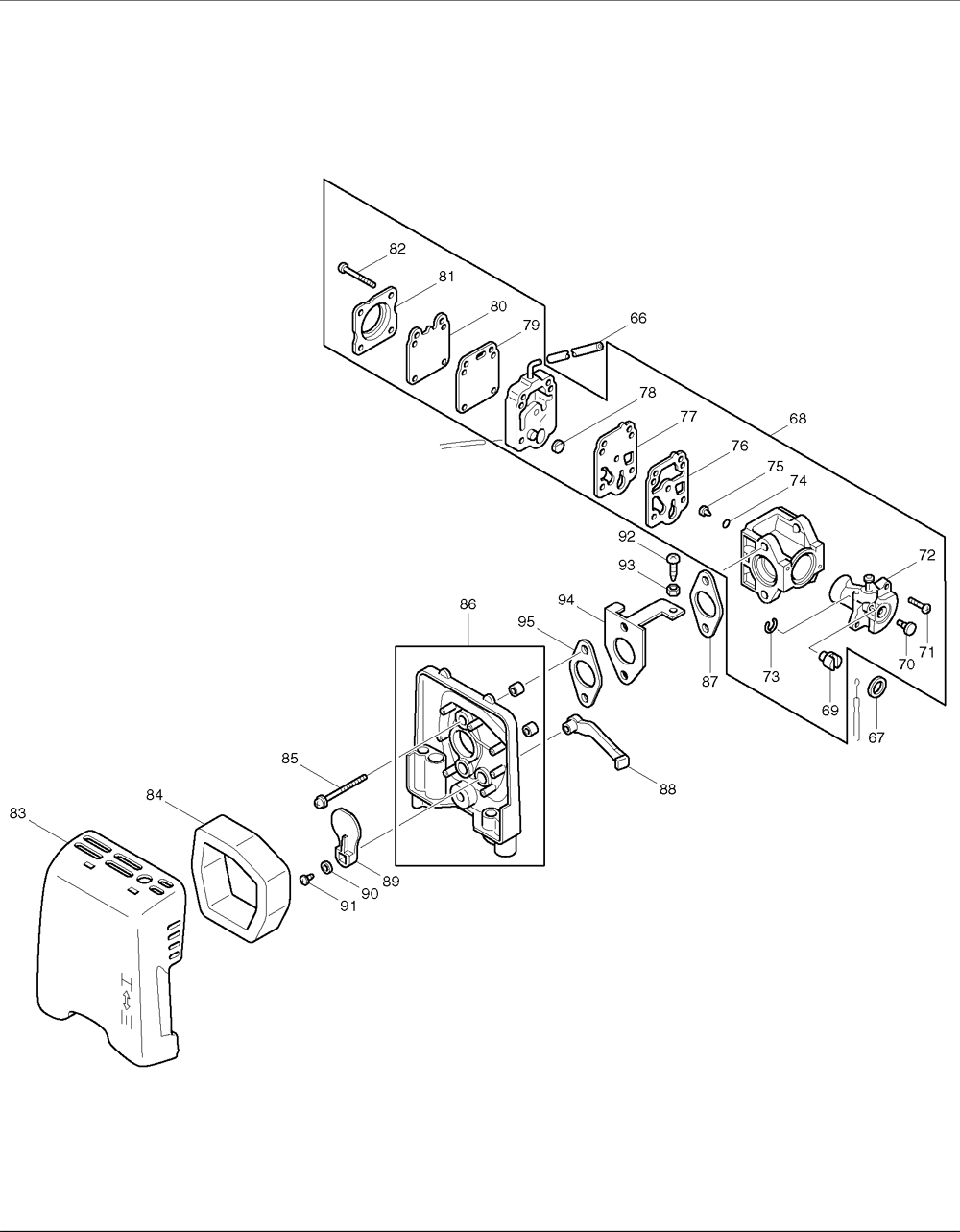

Makita RBL250 Electric Blower Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 660-15005-00 TAPPING SCREW, RBL250 $3.50
68 525-60130-00 CARBURETOR, RBL250 $121.93
2 660-15022-00 PLATE, RBL250-T1 $6.14
94 525-60140-00 THROTTLE STOPPER COMPLETE, RBL250 $11.97
3 660-15027-04 PROTECTOR, BHX2500 $18.13
3 660-15012-00 PROTECTOR, RBL250-T1 $18.13
00 525-65008-01 CONE POINT SCREW, PB250 $3.83
4 660-15013-00 TAPPING SCREW M5X20,RBL250 $1.48
75 525-60130-10 JET, RBL250 $14.28
5 660-10150-00 VALUTE CASE 1 CPL., RBL250-T1 $53.20
5 660-10200-00 VOLUTE CASE 1 CPL., RBL250 $50.50
6 002-17080-00 NUT, G3501R $1.34
7 020-00898-50 WASHER, RBL250 $1.85
8 003-12080-00 WASHER, G2410R $0.90
10 003-12080-00 WASHER, G2410R $0.90
10 660-15036-00 WASHER, RBL250 $8.12
11 004-36053-50 SCREW M5X35, RBL250 $1.96
12 660-10160-01 VOLUTE CASE 2 CPL., RBL250-T1 $51.90
12 660-10160-03 VOLUTE CASE 2 COMPLETE, RBL250 $47.32
13 660-50100-02 SWITCH COMPLETE, RBL250 $12.96
14 660-55021-01 STOPPER, RBL250 $4.93
15 660-55027-00 THROTTLE LEVER, RBL250 $4.71
16 063-00498-30 CONTROL CABLE, RBL250 $12.74
16 063-00499-30 CONTROL CABLE, RBC261 $14.61
17 523-55046-00 TAPPING SCREW M5X18, RST250 $1.85
17 660-15013-00 TAPPING SCREW M5X20,RBL250 $1.48
18 003-10050-00 WASHER M5, EH760 $1.34
19 660-35001-01 FUEL TANK, RBL250 $29.37
20 523-65039-00 FILTER, RBL500 $11.42
21 660-30010-00 TUBE, RBL250 $9.22
22 525-60580-00 FUEL TANK CAP ASSEMBLY, RBL500 $9.22
22 531-60140-00 FUEL TANK CAP,RBL500 $13.51
22 531-60150-00 FUEL TANK CAP, $8.67
22 531-60020-03 FUEL TANK CAP, RBC230 $7.02
23 004-36051-80 SCREW ASSEMBLY, RBC230 $1.41
23 014-00594-50 SCREW M5X18, EH760 $1.85
24 168398-2 PRIMER PUMP, RBC221 $4.71
25 523-55046-00 TAPPING SCREW M5X18, RST250 $1.85
25 660-15013-00 TAPPING SCREW M5X20,RBL250 $1.48
26 660-80010-01 ENGINE COVER CPL., RBL250-T1 $47.53
26 660-80010-02 ENGINE COVER CPL., RBL250 $57.30
27 660-80010-50 STARTER KNOB, RBL250 $6.14
28 660-80010-40 SPIRAL SPRING, RBL250 $11.42
29 660-80010-30 REEL, RBL250 $7.68
30 660-80010-20 WASHER, RBL250 $1.34
31 660-80010-10 TAPPING SCREW, RBL250 $8.12
32 660-80010-60 STARTER ROPE, RBL250, 3.5X870 $4.93
33 523-50250-01 PULLEY, RBC251 $21.10
34 523-55047-00 BOLT, RBC251 $6.91
35 523-10110-01 CRANK CASE ASS'Y, RBC256 $126.78
36 523-15022-02 CRANKCASE GASKET, RST250 $1.85
37 014-00595-20 SCREW M5X25, RBL250 $1.48
39 660-55022-03 SHAFT, RBL250 $13.62
40 525-20080-00 CRANKSHAFT COMPLETE,RBL250 $139.49
41 056-50899-70 CLIP, BBX2500 $1.96
42 056-50899-70 CLIP, BBX2500 $1.96
43 257781-9 PISTON PIN, EM2650LH $1.30
44 523-25019-02 PISTON, RST250 $32.64
45 524-25007-01 PISTON RING, RBC260 $8.12
47 011-90597-30 S.H. BOLT M5X20, EH760 $1.85
49 523-70340-22 COIL, RBL250 $116.21
50 014-00499-20 SCREW M4X20, RST250 $1.41
51 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
52 065-50098-70 PLUG CAP, RBl500 $6.14
53 065-01498-10 SPARK PLUG BM7A, RBC230 $6.69
54 523-35041-03 INSULATOR GASKET, RST250 $3.50
55 014-00595-00 P.H. SCREW M5X25, EH760 $1.48
56 014-00595-00 P.H. SCREW M5X25, EH760 $1.48
57 616-55002-01 WIRE, BBX7600 $3.61
57 616-55012-00 WIRE, RST250 $4.93
58 523-30380-01 INSULATOR ,RST250 $11.42
59 523-35039-02 INSULATOR GASKET, RST250 $3.50
60 523-35052-01 CARBURETOR INSULATOR, RBC251 $8.12
61 523-35039-02 INSULATOR GASKET, RST250 $3.50
62 523-35043-02 MUFFLER GASKET, RST250 $3.50
63 525-35004-00 MUFFLER INSULATOR, RBL250 $5.04
63 525-35004-01 MUFFLER GASKET, RBL250 $8.01
64 525-30020-01 EXHAUST MUFFLER, RBL250 $48.75
65 011-90596-70 S.H. BOLT M5X55, RBC260 $4.93
66 085-11399-62 TUBE, RBL250 $3.50
67 521-95000-00 HOLDER, RBC221 $1.08
68 525-60130-00 CARBURETOR, RBL250 $121.93
69 325922-6 SWIVEL, EM2650LH $3.50
71 266581-6 PAN HEAD SCREW M3X8, EM2650LH $1.30
73 257964-1 STOP RING E-3, EM2650LH $2.40
74 213538-8 O RING 2, EM2650LH $2.40
75 525-60130-10 JET, RBL250 $14.28
76 524-60010-30 PUMP GASKET, RBC230 $6.14
77 168575-6 PUMP DIAPHRAGM, EM2650LH $4.60
78 352010-6 INLET SCREEN, EM2650LH $2.40
79 501-60041-30 GASKET, RBC221 $4.93
80 531-60052-50 METERING DIAPHRAGM ASS'Y,RBC260 $27.15
81 531-60050-30 PRIMER PUMP COVER, RBC221 $10.65
82 521-60020-20 P.H. SCREW, RBC221 $3.50
83 523-35046-02 AIR CLEANER CASE, RST250 $6.69
84 523-35047-00 AIR CLEANER ELEMENT, RST250 $3.50
85 014-00594-70 SCREW M5X62, RBC256 $1.85
86 523-30480-01 CLEANER PLATE, RST250 $10.65
87 523-35042-00 CARBURETOR GASKET, RST250 $3.50
88 523-35048-01 CHOKE LEVER, RST250 $1.85
89 523-35050-02 CHOKE PLATE, RST250 $1.85
90 003-11040-00 WASHER, RBC251 $1.34
91 015-00499-80 TAPPING SCREW M4X8, RST250 $1.08
94 525-60140-00 THROTTLE STOPPER COMPLETE, RBL250 $11.97
95 523-35042-00 CARBURETOR GASKET, RST250 $3.50
96 660-15032-01 SCREW, RBL250 $4.93
97 660-15035-00 RUBBER WASHER, RBL250 $1.85
98 660-15034-00 OUTER SNAP RING, RBL250 $3.50
99 003-12050-00 WASHER, RBL500 $1.34
100 660-15030-01 SPRING, RBL250 $4.93
101 660-15031-00 SHAFT, RBL250 $3.61
102 660-95113-00 EXTENSION PIPE, PB250-T2, DOLMAR $9.22
103 660-95085-00 HOSE CLAMP, PB250, DOLMAR $9.88
104 525-30021-30 SPARK ARRESTER, RBL250 $12.74
5001 525-60670-00 STRAP, RBL500 $7.68
5001 625-50210-02 STRAP UNIT, RBC201 $3.83
