Makita RBC321 Trimmer Parts

Makita RBC321 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

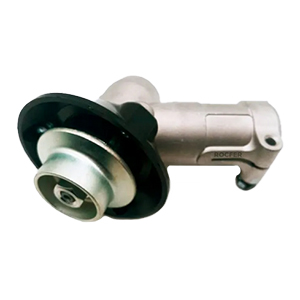

1	627-30010-08	GEAR CASE ASS'Y, RBC281	$180.81
2	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
3	641-35006-00	OIL BOLT, RBC321	$4.93
4	641-85002-00	GUARD, RBC310	$15.16
5	625-85050-01	NUT, EM4250	$3.06
5	625-85050-00	NUT, RBC221, RBC251	$2.51
7	625-35026-00	OUTER SNAP RING, RBC311	$1.96
8	625-85000-01	CLAMP WASHER, RBC310	$19.34
9	625-85036-00	RECEIVE WASHER, RBC321	$31.11
10	625-35013-00	SPACER, RBC311	$6.69
11	621-45004-00	GRIP, RBC230	$27.94
12	621-45000-01	HANDLE, RBC230	$14.72
12	627-40120-00	HANDLE CPL., RBC281	$22.64
13	621-40160-30	SCREW, EM4251	$3.28
13	011-90598-60	S.H. BOLT M5X33, RBC230	$1.85
14	002-27050-00	NUT M5, EM4251	$1.34
15	625-50180-00	CONTROL LEVER, RBC311	$38.45
15	627-50010-01	CONTROL LEVER ASS'Y, RBC281	$84.50
16	615-55001-00	CONTROL CABLE, RBC230	$8.12
17	009-19120-90	CLIP TUBE, RBC230	$4.71
17	009-19121-70	CLIP TUBE, RBC321	$3.61
18	625-40230-00	HANGER ASS'Y, RBC321	$12.74
19	627-10020-01	SHAFT PIPE COMPLETE, RBC321	$161.51
20	6218008003	PROTECTOR ASS'Y EM4251	$54.92
22	001-13061-20	BOLT ASS'Y M6X12, G2800R	$1.41
22	013-00699-10	BOLT ASSY M6X14, RBC281	$1.74
23	013-00699-20	BOLT ASSY M6X30, RBC281	$1.74
24	962103-7	RETAINING RING R-24, AN611	$1.08
25	003-14300-00	INNER SNAP RING, RBC310	$3.61
26	011-90597-80	S.H. BOLT M5X12 W/W & SW, BHX2500	$1.85
27	060-01099-70	BALL BEARING #6200DDU, RBC321	$13.62
28	060-00799-90	BALL BEARING, RBC310	$21.10
29	004-36052-00	SCREW & WASHER ASS'Y, EM4251	$1.01
32	620-20060-00	BOLT ASSEMBLY, RBC310	$1.85
33	625-25004-00	CLUTCH BOLT, RBC260	$4.93
34	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
34	531-60140-00	FUEL TANK CAP,RBL500	$13.51
34	531-60150-00	FUEL TANK CAP,	$8.67
35	627-10040-02	CLUTCH CASE ASS'Y, RBC281	$78.40
36	627-20020-02	CLUTCH DRUM COMPLETE, RBC321	$32.13
37	627-20030-00	CLUTCH, RBC321	$48.75
38	531-55039-00	CYLINDER COVER, RBC281	$25.61
39	531-75007-00	PLUG COVER, RBC321	$6.14
40	531-35033-00	MUFFLER COVER, RBC321	$11.42
41	531-10070-00	CRANKCASE COMPLETE, RBC321	$133.28
42	531-15012-00	CRANKCASE GASKET, RBC321	$3.61
43	531-20070-01	CRANKSHAFT COMPLETE, RBC281	$142.11
44	531-15002-01	CYLINDER, RBC310	$122.81
45	521-65002-00	DAMPER, RBC230	$1.85
46	531-55041-00	DAMPER, RBC321	$4.93
47	531-65031-00	DAMPER, RBC321	$4.93
48	531-70100-30	PLUG CAP, RBC321	$3.50
49	531-70100-20	COIL, RBC321	$114.95
50	531-70100-10	FLYWHEEL, RBC321	$73.60
51	510-35028-01	SPACER GASKET, RBC281	$1.74
52	531-15003-01	CYLINDER GASKET, RBC281	$3.50
53	531-35023-00	INSULATION GASKET, RBC321	$3.50
54	531-35006-00	MUFFLER GASKET, RBC310	$4.93
54	531-35022-00	MUFFLER GASKET, RBC321	$4.93
55	531-35005-00	INSULATOR, RBC310	$6.69
56	531-30090-01	EXHAUST MUFFLER, RBC321	$50.08
57	531-25004-00	PISTON PIN, RBC310	$6.14
58	531-25006-01	PISTON, RBC321	$33.55
59	503-65002-00	PLATE, EM4251	$3.50
60	503-65003-00	PLATE, EM4251	$3.50
61	598-25002-00	PISTON RING, RBC310	$6.69
62	531-50120-00	REWIND STARTER, RBC321	$58.70
63	524-50070-00	PULLEY STARTER, RBC260	$21.10
64	531-50070-10	REEL, RBC321	$12.19
65	531-50070-20	SET SCREW, RBC321	$3.61
66	541-50030-20	SPIRAL SPRING, RBC260	$14.61
67	521-50021-10	STARTER KNOB, RBC230	$6.69
68	523-50240-22	STARTER ROPE, RBC221	$12.96
69	523-65039-00	FILTER, RBL500	$11.42
70	531-65020-01	FUEL TANK, RBC321	$39.06
71	627-25000-00	WASHER, RBC321	$1.63
72	001-17052-00	BOLT ASS'Y M5X20, G12010R	$1.96
72	001-16052-00	BOLT ASSEMBLY, RBC280	$1.34
73	001-66061-60	BOLT M6X16, RBC310	$1.96
74	002-17050-00	NUT M5, EM4251	$1.34
75	961052-5	RETAINING RING S-12, 9218PBL	$0.86
76	006-26100-60	O RING, RBC281	$1.12
77	962151-6	RETAINING RING R-32, 9005B	$1.48
78	060-01299-50	BALL BEARING 6201DD/6201 2RU,EM4250	$19.67
79	003-20060-00	SPRING WASHER, G2800R	$1.34
80	011-90595-70	S.H. BOLT M5X30 W/SW, BBX7600	$1.74
81	011-90596-30	S.H. BOLT M5X20, RBL500	$3.61
82	014-00597-90	SCREW RBC310	$1.48
83	011-90596-70	S.H. BOLT M5X55, RBC260	$4.93
84	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
85	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
86	014-00594-80	SCREW M5X14, BBX2500	$1.41
87	020-00699-20	WASHER M6, RBL500	$3.72
88	267817-6	WASHER 8, EM2650LH	$0.64
89	254040-2	WOODRUFF KEY 3, EM2650LH	$2.40
90	056-50899-70	CLIP, BBX2500	$1.96
91	061-00899-90	NEEDLE R. BEARING, RBC230	$9.77
92	065-01498-10	SPARK PLUG BM7A, RBC230	$6.69
93	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
94	616-55002-01	WIRE, BBX7600	$3.61
95	085-11999-71	TUBE, RPT250	$11.09
96	627-15003-01	PIPE BRACKET 1, RBC321	$9.77
97	627-15004-01	PIPE BRACKET 2, RBC321	$9.77
98	627-15003-01	PIPE BRACKET 1, RBC321	$9.77
99	627-15004-01	PIPE BRACKET 2, RBC321	$9.77
100	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
101	922211-6	HEX. SOCKET HAD BOLT M5X12, EM2650LH	$0.64
102	531-60210-00	CARBURETOR, RBC321	$125.52
103	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
104	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
105	523-60520-20	BRACKET CABLE, BBX7600	$19.01
106	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
107	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
108	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
109	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
110	524-60010-30	PUMP GASKET, RBC230	$6.14
111	503-60020-10	JET, RBC230	$9.77
112	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
113	213538-8	O RING 2, EM2650LH	$2.40
114	424314-7	PRIMER PUMP, EM2650LH	$3.50
115	523-60180-20	RING PACKING, BBX7600	$4.93
116	257964-1	STOP RING E-3, EM2650LH	$2.40
117	352010-6	INLET SCREEN, EM2650LH	$2.40
118	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
119	524-60012-40	THROTTLE COLLAR SCREW, BBX7600	$3.50
120	531-60200-20	SCREW CABLE ADJ., RBC321	$10.65
121	325922-6	SWIVEL, EM2650LH	$3.50
122	523-60520-30	WASHER, MS3200	$3.83
123	531-35032-00	AIR CASE CLEANER, RBC321	$6.69
124	523-35047-00	AIR CLEANER ELEMENT, RST250	$3.50
125	501-35024-00	AIR CLEANER PLATE ASS'Y, RBC321	$12.96
126	531-30150-00	AIR CLEANER PLATE ASS'Y, RBC321	$13.62
127	014-00598-50	SCREW M5X50, RBC311	$1.85
128	003-11040-00	WASHER, RBC251	$1.34
129	015-00499-80	TAPPING SCREW M4X8, RST250	$1.08
130	014-00594-80	SCREW M5X14, BBX2500	$1.41
131	056-10599-90	HOSE CLAMP, EM4251	$1.41
132	625-95147-00	CAUTION LABEL, RBC321	$4.75
133	524-35014-00	SPARK ARRESTER, RBC281	$41.92
134	531-35006-00	MUFFLER GASKET, RBC310	$4.93
135	62740030-10	SPACER, RBC281	$4.71
1002	B-60143	TRIMMER HEAD RBC253 BUMP FEED	$25.66
5005	525-60670-00	STRAP, RBL500	$7.68
5005	625-50210-02	STRAP UNIT, RBC201	$3.83
