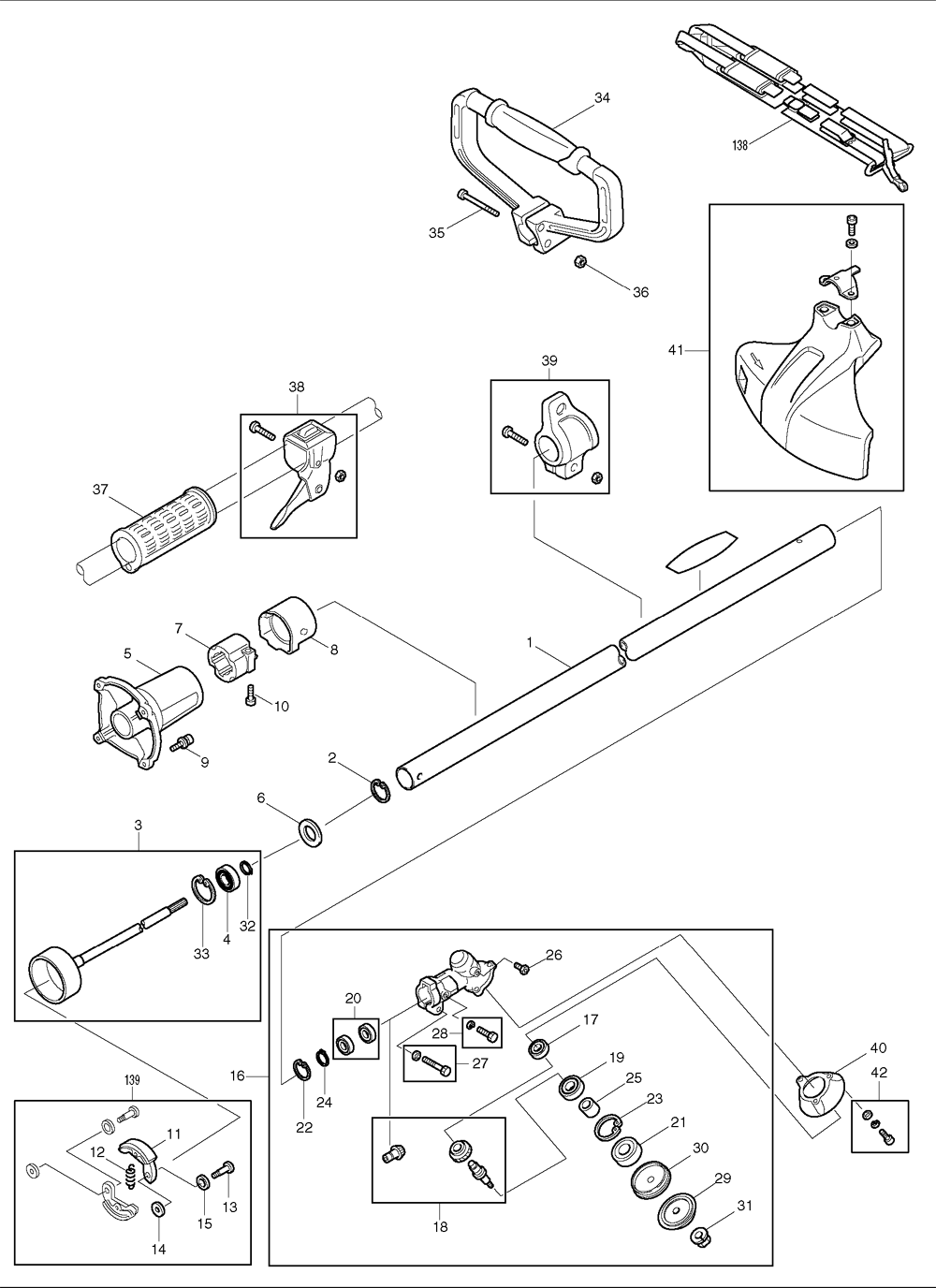

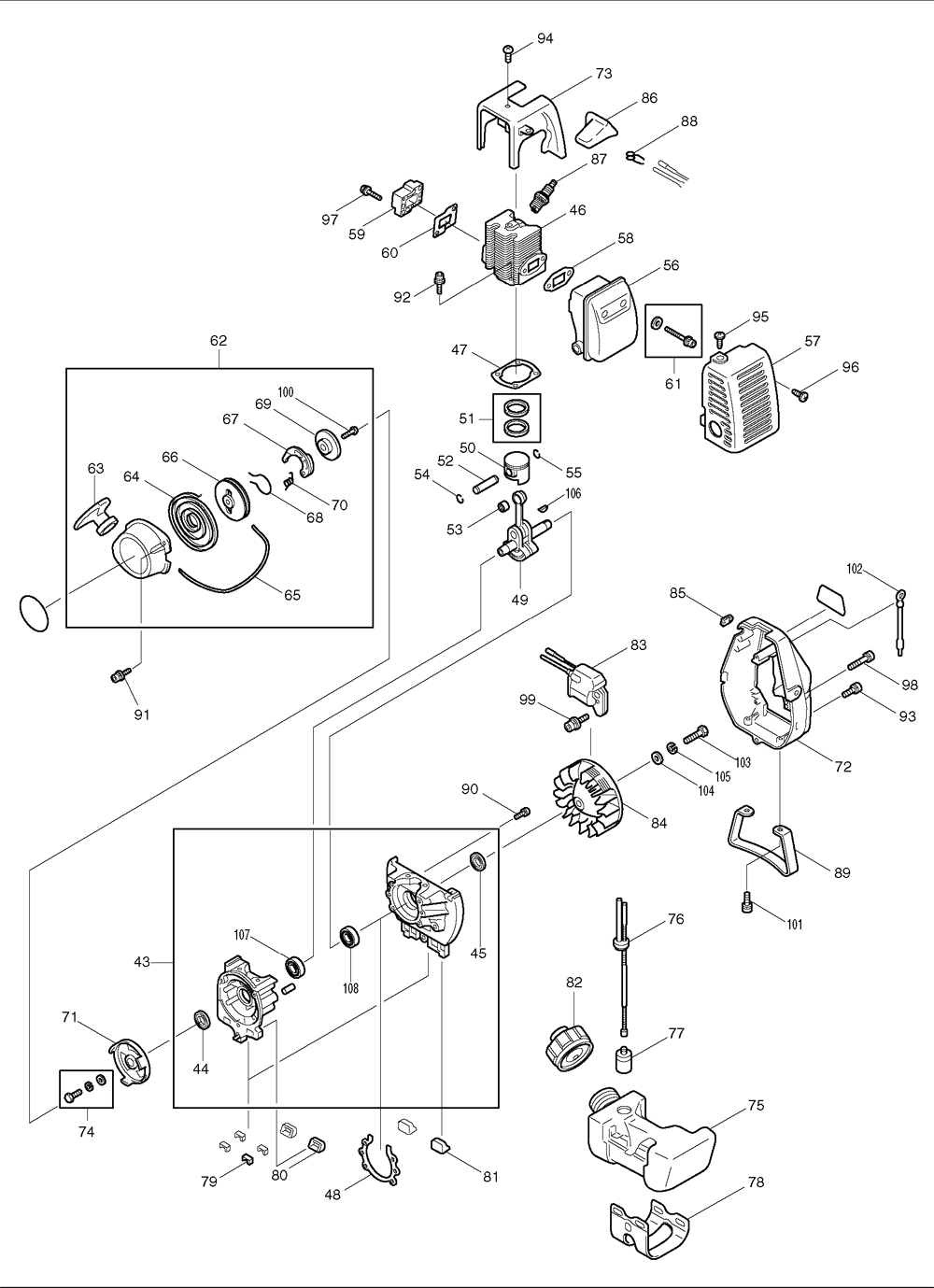

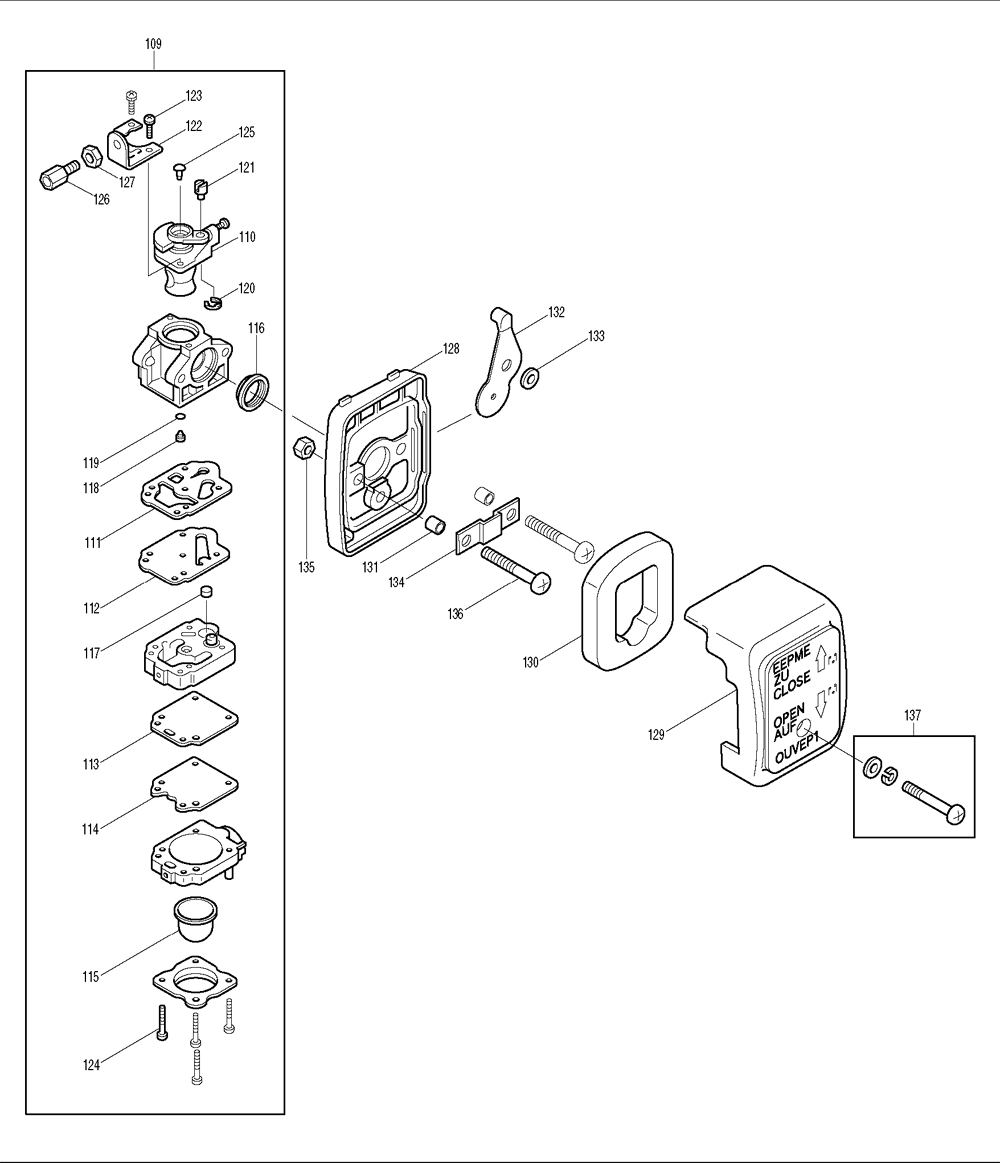

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	625-10020-00	PIPE SHAFT COMP., RBC310	$160.93
2	625-15010-00	OUTER SNAP RING, RBC310	$4.71
3	625-10250-00	SHAFT ASSEMBLY, RBC310	$93.90
4	060-01299-50	BALL BEARING 6201DD/6201 2RU,EM4250	$19.67
5	625-15055-01	CLUTCH CASE, RBC310	$63.70
6	625-15013-00	WASHER, RBC310	$1.63
7	625-10050-01	BUSHING COMPLETE, RBC310	$25.61
8	625-15022-00	CASE CAP, RBC310	$9.22
9	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
10	011-90598-80	S.H. BOLT M5X25, RBC310	$1.85
11	640-25001-00	CLUTCH SHOE	$16.04
11	640-25001-01	CLUTCH SHOE	$17.25
12	640-25003-00	SPRING	$3.61
13	625-25005-00	CLUTCH BOLT, RBC310	$2.51
14	620-25006-00	WASHER, RBC260	$1.63
15	267817-6	WASHER 8, EM2650LH	$0.64
16	625-30040-01	GEAR CASE ASSEMBLY, RBC310	$175.29
17	060-00799-90	BALL BEARING, RBC310	$21.10
18	625-30050-00	CUTTER SET SHAFT, RBC311	$56.90
19	060-01099-90	BALL BEARING #6200, RBC311	$8.12
20	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
21	625-35011-00	OIL SEAL, RBC311	$4.71
22	962103-7	RETAINING RING R-24, AN611	$1.08
23	003-14300-00	INNER SNAP RING, RBC310	$3.61
24	625-35026-00	OUTER SNAP RING, RBC311	$1.96
25	625-35013-00	SPACER, RBC311	$6.69
26	641-35006-00	OIL BOLT, RBC321	$4.93
27	013-00699-20	BOLT ASSY M6X30, RBC281	$1.74
28	001-13061-20	BOLT ASS'Y M6X12, G2800R	$1.41
29	625-85000-01	CLAMP WASHER, RBC310	$19.34
30	625-85036-00	RECEIVE WASHER, RBC321	$31.11
31	625-85050-01	NUT, EM4250	$3.06
31	625-85050-00	NUT, RBC221, RBC251	$2.51
32	961052-5	RETAINING RING S-12, 9218PBL	$0.86
33	962151-6	RETAINING RING R-32, 9005B	$1.48
34	621-45000-01	HANDLE, RBC230	$14.72
34	627-40120-00	HANDLE CPL., RBC281	$22.64
35	621-40160-30	SCREW, EM4251	$3.28
35	011-90598-60	S.H. BOLT M5X33, RBC230	$1.85
36	002-27050-00	NUT M5, EM4251	$1.34
37	621-45004-00	GRIP, RBC230	$27.94
38	625-50180-00	CONTROL LEVER, RBC311	$38.45
39	625-40230-00	HANGER ASS'Y, RBC321	$12.74
40	641-85002-00	GUARD, RBC310	$15.16
41	6218008003	PROTECTOR ASS'Y EM4251	$54.92
42	011-90597-80	S.H. BOLT M5X12 W/W & SW, BHX2500	$1.85
43	531-10020-00	CRANKCASE ASS'Y, RBC310	$133.38
44	044-01299-91	OIL SEAL, RBC260	$6.69
45	044-01299-91	OIL SEAL, RBC260	$6.69
46	531-15002-01	CYLINDER, RBC310	$122.81
47	531-15003-01	CYLINDER GASKET, RBC281	$3.50
48	531-15004-00	CRANKCASE GASKET, RBC310	$1.85
49	531-20020-00	CRANKSHAFT COMP. RBC310	$142.89
50	531-25006-01	PISTON, RBC321	$33.55
51	598-25002-00	PISTON RING, RBC310	$6.69
52	531-25004-00	PISTON PIN, RBC310	$6.14
53	061-00899-90	NEEDLE R. BEARING, RBC230	$9.77
54	056-50899-70	CLIP, BBX2500	$1.96
55	056-50899-70	CLIP, BBX2500	$1.96
56	524-30010-02	EXHAUST MUFFLER, RBC260	$41.82
57	531-35003-00	MUFFLER COVER, RBC310	$16.04
58	531-35006-00	MUFFLER GASKET, RBC310	$4.93
59	531-35005-00	INSULATOR, RBC310	$6.69
60	531-35007-00	INSULATOR GASKET, RBC310	$1.85
61	011-90596-70	S.H. BOLT M5X55, RBC260	$4.93
63	530-50021-10	STARTER KNOB, BBX7600	$10.65
64	510-50150-40	SPIRAL SPRING, RBC310	$16.04
65	524-50010-50	STARTER ROPE, RBC310	$7.68
66	502-50010-10	REEL, RBC310	$11.42
67	510-50150-20	RATCHET, RBC310	$8.12
68	510-50150-50	SPRING FRICTION, RBC310	$7.02
69	550-50010-30	FRICTION PLATE, RBC310	$6.69
70	510-50150-60	SPRING RETURN, RBC310	$4.93
71	531-55004-00	PULLEY STARTER, RBC310	$7.68
72	524-55016-00	BLOWER HSG, RBC310	$99.53
73	531-55018-00	CYL. COVER/MAKITA BLUE	$22.53
74	620-20060-00	BOLT ASSEMBLY, RBC310	$1.85
77	523-65039-00	FILTER, RBL500	$11.42
78	531-60010-00	FUEL TANK STRAP, RBC310	$8.12
79	531-65004-00	TANK BAND SPACER, RBC310	$3.50
80	531-65002-00	DAMPER, RBC310	$1.85
81	531-65002-00	DAMPER, RBC310	$1.85
82	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
82	531-60140-00	FUEL TANK CAP,RBL500	$13.51
82	531-60150-00	FUEL TANK CAP,	$8.67
82	531-60020-03	FUEL TANK CAP, RBC230	$7.02
83	531-70040-20	COIL, RBC310	$121.55
84	531-70040-10	FLYWHEEL, RBC310	$76.60
85	531-75001-00	WIRE GROMMET, RBC310	$1.85
86	531-75002-00	SPARK PLUG CAP, RBC260	$16.70
87	065-01498-10	SPARK PLUG BM7A, RBC230	$6.69
88	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
89	630-55005-00	STAND, RBC310	$12.96
90	014-00597-90	SCREW RBC310	$1.48
91	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
92	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
93	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
94	014-00599-20	SCREW M5X8, RBC310	$1.19
95	014-00599-20	SCREW M5X8, RBC310	$1.19
96	014-00599-20	SCREW M5X8, RBC310	$1.19
97	011-90596-30	S.H. BOLT M5X20, RBL500	$3.61
98	011-90598-30	S.H. BOLT M5X35, RBC310	$1.85
99	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
100	510-50151-10	SCREW, RBL500	$1.85
101	011-90597-80	S.H. BOLT M5X12 W/W & SW, BHX2500	$1.85
102	616-55002-01	WIRE, BBX7600	$3.61
103	001-66061-60	BOLT M6X16, RBC310	$1.96
104	020-00699-20	WASHER M6, RBL500	$3.72
105	003-20060-00	SPRING WASHER, G2800R	$1.34
106	254040-2	WOODRUFF KEY 3, EM2650LH	$2.40
106	005-32031-01	WOODRUFF KEY, RBL500	$1.96
107	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
107	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
108	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
108	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
109	521-60100-00	CARBURETOR, RBC230	$130.28
110	523-60180-10	THROTTLE VALVE ASS'Y, RBC230	$38.45
111	524-60010-30	PUMP GASKET, RBC230	$6.14
112	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
113	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
114	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
115	424314-7	PRIMER PUMP, EM2650LH	$3.50
116	523-60180-20	RING PACKING, BBX7600	$4.93
117	352010-6	INLET SCREEN, EM2650LH	$2.40
118	503-60020-10	JET, RBC230	$9.77
119	213538-8	O RING 2, EM2650LH	$2.40
120	257964-1	STOP RING E-3, EM2650LH	$2.40
121	325922-6	SWIVEL, EM2650LH	$3.50
122	523-60180-30	BRACKET CABLE, RBC230	$9.77
123	524-60012-40	THROTTLE COLLAR SCREW, BBX7600	$3.50
124	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
125	520-60081-10	PLUG, EM4250	$4.93
126	521-60080-10	CABLE ADJUST SCREW, RBL500	$4.93
127	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
128	521-35004-00	AIR CLEANER CASE, RBC230	$4.93
129	521-35005-01	AIR CLEANER CASE COVER,RBC230	$4.93
130	521-35007-00	AIR CLEANER ELEMENT, RBC260	$3.50
131	023-00599-70	SPACER, RBC230	$1.08
132	521-35009-00	CHOKE LEVER, RBC230	$3.50
133	021-30699-90	GASKET, RBC230	$1.08
134	501-35014-00	AIR CLEANER PLATE, RBC230	$3.50
135	002-27050-00	NUT M5, EM4251	$1.34
136	014-00598-50	SCREW M5X50, RBC311	$1.85
137	004-36051-20	SCREW ASSEMBLY M5X12, G1100	$1.41
139	625-20040-00	CLUTCH, RBC310	$66.60
140	62740030-10	SPACER, RBC281	$4.71
5009	525-60670-00	STRAP, RBL500	$7.68
5009	625-50210-02	STRAP UNIT, RBC201	$3.83
