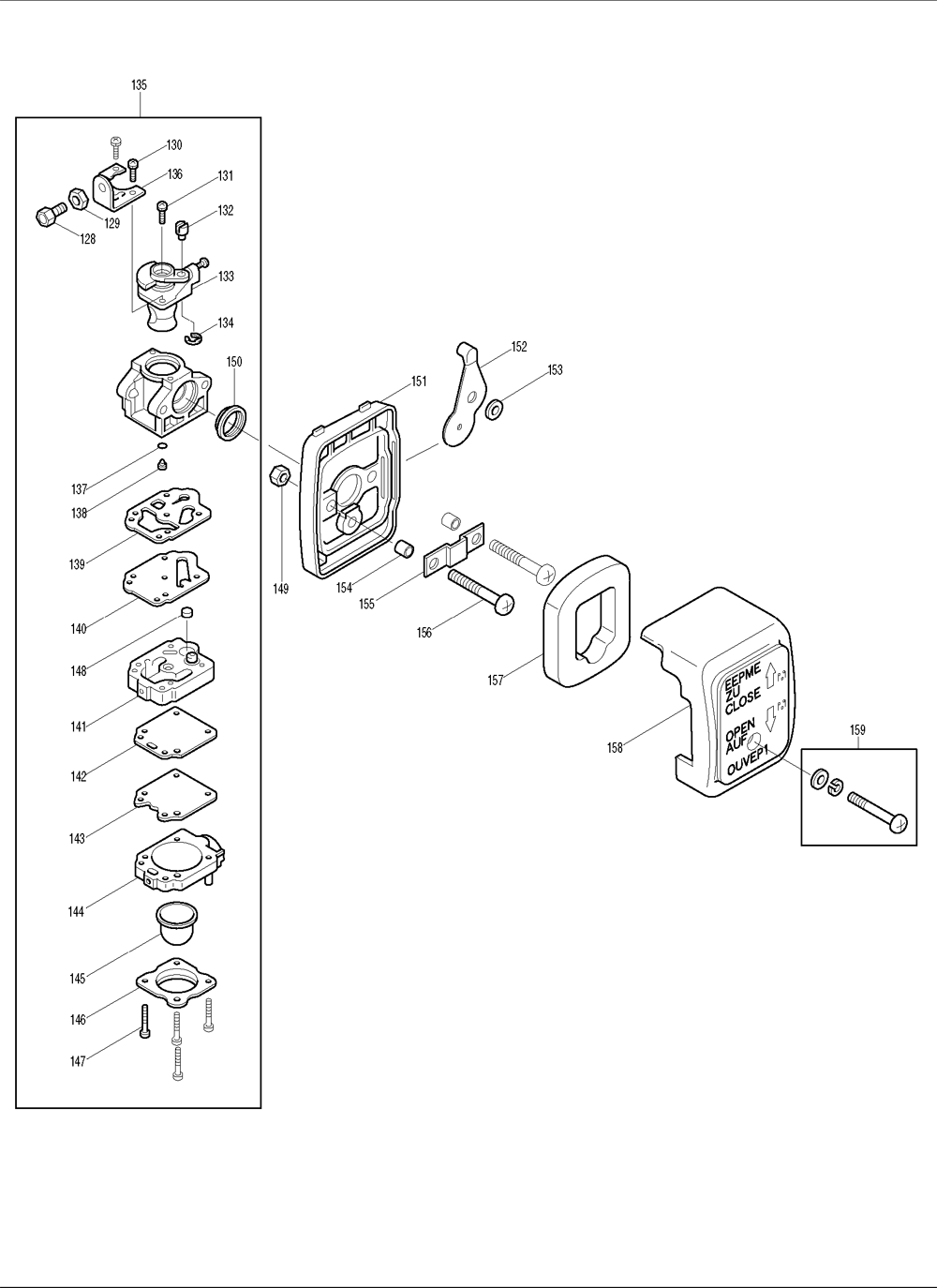

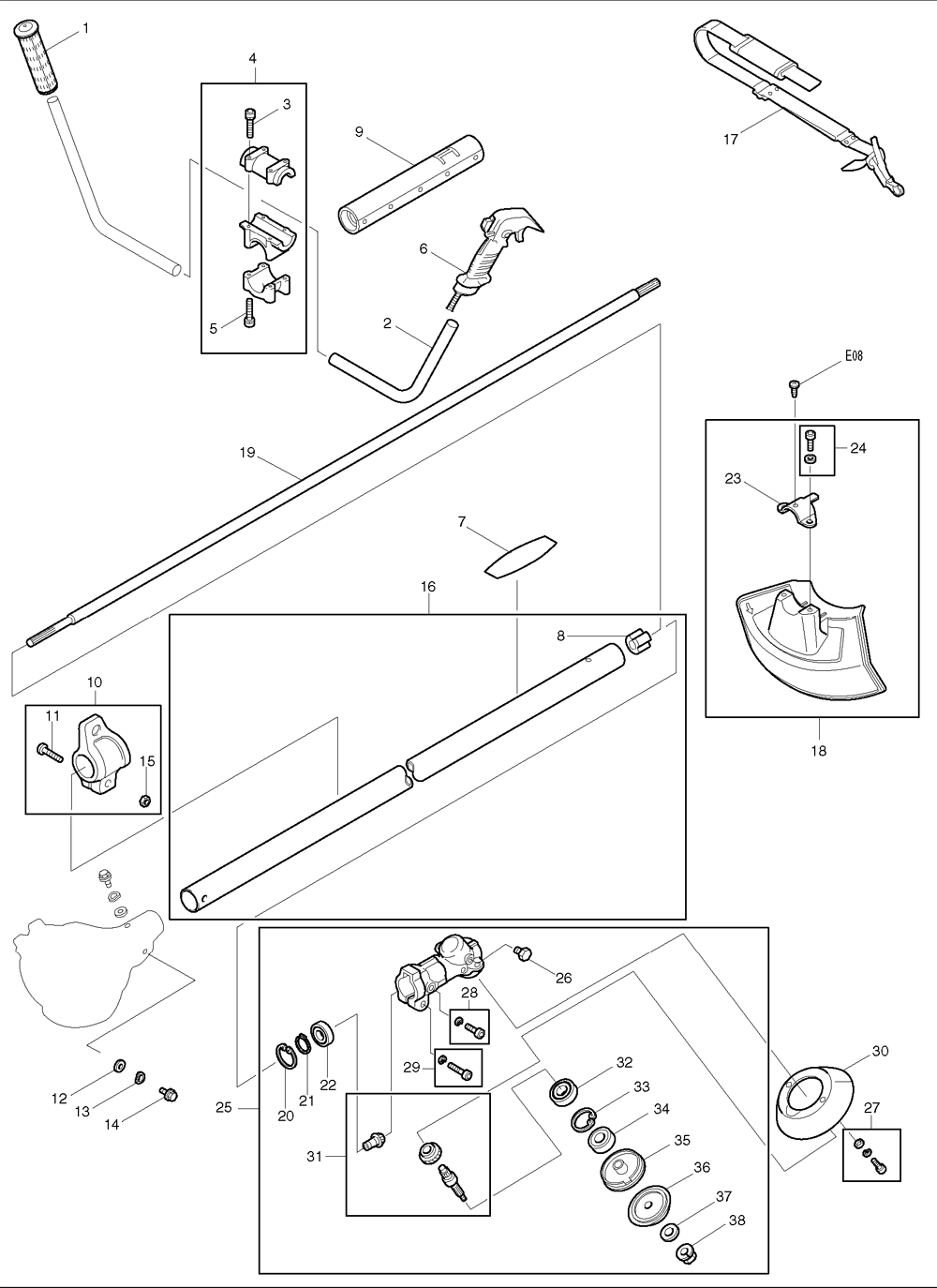

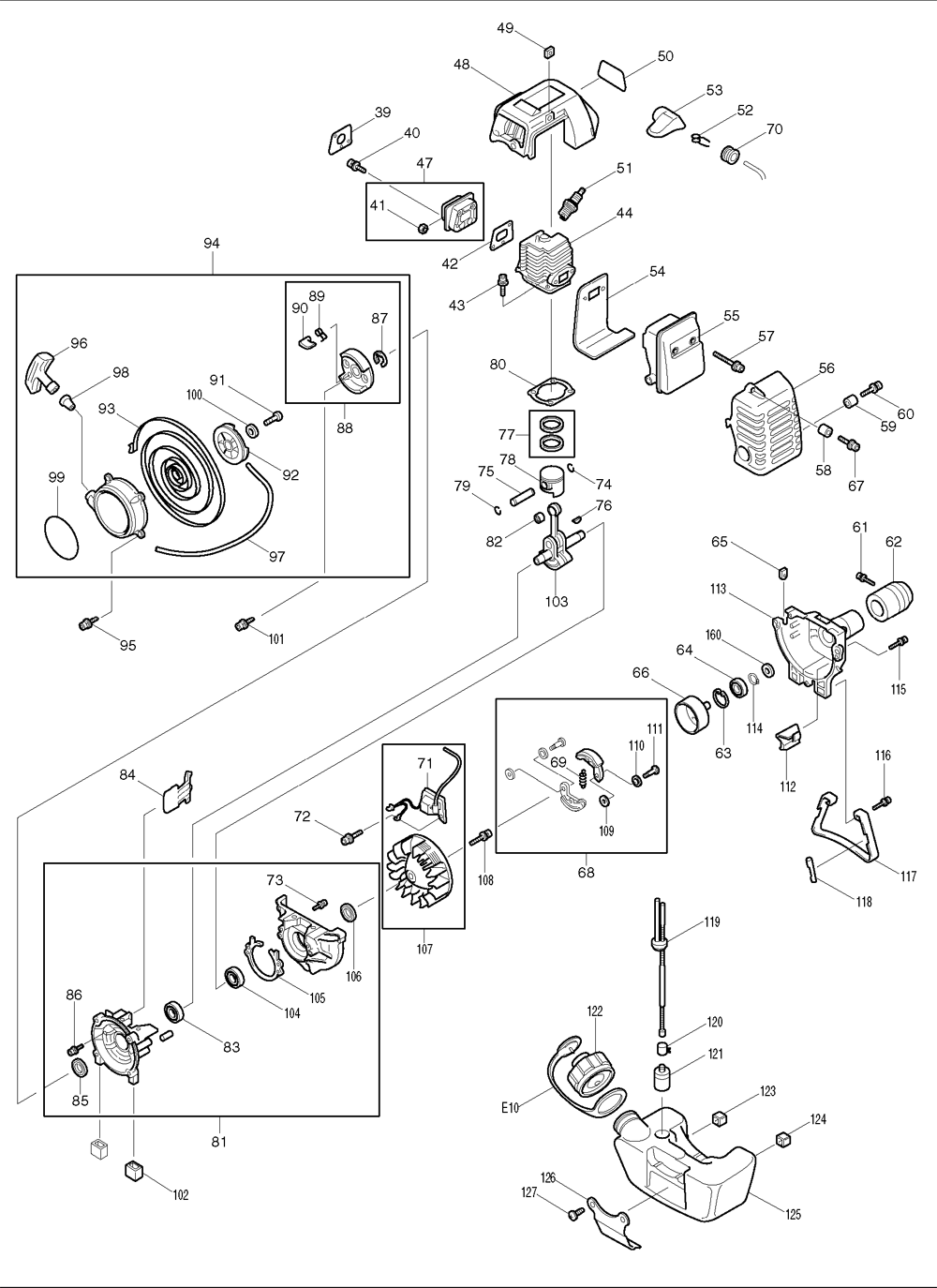

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	625-45000-00	GRIP, EM4250	$6.69
69	625-25006-00	SPRING, RBC260	$4.93
37	020-30899-90	SPRING WASHER, RBC260,T1	$1.12
2	620-45006-00	HANDLE, RBC260	$14.61
3	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
4	625-40070-01	HANDLE HOLDER ASS'Y,EM4250	$18.13
5	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
6	625-50260-01	CTL.LEVER ASS'Y, RBC260	$82.50
9	625-75001-00	CUSHION, RBC260	$24.73
10	625-40190-00	HANGER ASSY, EM4251	$12.96
10	625-40040-00	HANGER ASSEMBLY, RBC310	$27.26
11	004-31051-40	P.H. SCREW M5X14, RBE250	$1.08
12	621-95004-00	WASHER, RBC230	$3.72
13	003-22140-00	WAVE WASHER, RBC230	$1.63
14	621-10050-00	DAMPER BOLT, RBC230	$13.62
14	621-15029-02	DAMPER BOLT, RBC260,T1	$12.96
15	002-27050-00	NUT M5, EM4251	$1.34
16	621-10040-00	PIPE SHAFT COMP., RBC230	$146.96
16	625-10260-00	PIPE SHAFT COMP., RBC261	$144.24
17	6207003002	BAND ASS'Y EM4251	$39.34
19	625-15050-00	SHAFT, RBC230	$41.41
20	962103-7	RETAINING RING R-24, AN611	$1.08
21	003-15080-00	OUTER SNAP RING, RBC230	$1.85
22	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
23	641-85003-01	PROTECT CLAMP	$4.71
23	641-85003-02	PROTECTOR CLAMP, RBC255	$5.26
24	001-17063-00	BOLT M6X30, EM4251	$1.74
25	621-30090-02	GEAR CASE ASSEMBLY, RBC230	$200.12
26	641-35006-00	OIL BOLT, RBC321	$4.93
27	011-90597-80	S.H. BOLT M5X12 W/W & SW, BHX2500	$1.85
28	922211-6	HEX. SOCKET HAD BOLT M5X12, EM2650LH	$0.64
29	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
30	621-85002-00	GUARD, RBC230	$12.96
31	621-30040-00	GEAR SET, RBC261	$53.80
31	621-30040-01	GEAR SET, RBC230	$68.40
32	060-01099-80	BALL BEARING 6000, RBC261	$12.96
33	003-14260-00	INNER SNAP RING, EM4251	$1.85
34	621-35005-00	OIL SEAL, RBC261	$3.61
35	621-85000-00	RECEIVE WASHER, RBC261	$27.15
36	621-80030-01	CLAMP CPL. WASHER, EM4251	$13.62
37	020-30899-90	SPRING WASHER, RBC260,T1	$1.12
38	625-85050-01	NUT, EM4250	$3.06
38	625-85050-00	NUT, RBC221, RBC251	$2.51
38	625-85005-01	NUT, RBC260,T1	$1.34
39	510-35028-01	SPACER GASKET, RBC281	$1.74
40	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
40	011-90596-30	S.H. BOLT M5X20, RBL500	$3.61
41	002-17050-00	NUT M5, EM4251	$1.34
42	524-35003-01	INSULATOR GASKET, RBC260	$3.50
43	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
44	524-15004-03	CYLINDER, RBC260	$131.64
45	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
46	023-00599-90	SPACER - RBC260	$1.48
47	524-30040-01	INSULATOR COMP., RBC260	$10.65
48	524-55015-02	CYLINDER COVER, RBC260	$17.03
49	541-50011-60	NUT, RBC260	$3.39
50	621-95124-01	TRADE MARK LABEL, RBC310	$4.16
51	065-01497-10	SPARK PLUG BPM7A,RBC260	$6.69
52	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
53	531-75002-00	SPARK PLUG CAP, RBC260	$16.70
54	524-35001-01	MUFFLER GASKET, RBC260	$15.16
55	524-30010-02	EXHAUST MUFFLER, RBC260	$41.82
56	524-35002-03	MUFFLER COVER, RBC260	$13.62
57	011-90596-70	S.H. BOLT M5X55, RBC260	$4.93
58	023-00599-40	SPACER RBC260	$1.08
59	023-00599-30	SPACER, RBC260	$0.82
60	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
61	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
62	625-10240-00	DAMPER ASSEMBLY, RBC260,T1	$35.90
62	625-10240-01	DAMPER ASS'Y, RBC261	$60.80
63	962151-6	RETAINING RING R-32, 9005B	$1.48
64	060-01299-50	BALL BEARING 6201DD/6201 2RU,EM4250	$19.67
65	024-10299-90	GROMMET, RBC260	$1.96
66	625-20100-00	CLUTCH COMP. DRUM, RBC260	$47.32
67	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
69	625-25006-00	SPRING, RBC260	$4.93
70	024-10550-00	GROMMET, RBC230	$1.85
71	524-70040-20	IGNITION COIL, RBC260	$131.64
72	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
73	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
74	056-50899-70	CLIP, BBX2500	$1.96
75	524-25001-00	PISTON PIN, RBC230	$6.14
76	254040-2	WOODRUFF KEY 3, EM2650LH	$2.40
76	005-32031-01	WOODRUFF KEY, RBL500	$1.96
77	524-25007-01	PISTON RING, RBC260	$8.12
78	524-25006-01	PISTON, RBC260	$33.45
79	056-50899-70	CLIP, BBX2500	$1.96
80	524-15005-00	CYLINDER GASKET, RBC260	$1.85
81	524-10030-00	CRANKCASE ASS'Y, RBC260	$138.72
82	061-00899-90	NEEDLE R. BEARING, RBC230	$9.77
83	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
83	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
84	521-55000-00	PROTECTOR, RBC230	$3.50
85	044-01299-91	OIL SEAL, RBC260	$6.69
85	044-01299-11	OIL SEAL, RBC260	$3.61
86	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
87	521-50030-40	E-RING, RBL500	$3.17
88	524-50070-00	PULLEY STARTER, RBC260	$21.10
89	524-50070-20	RETURN SPRING	$2.51
90	524-50070-10	RATCHET	$9.22
91	510-50151-10	SCREW, RBL500	$1.85
92	541-50030-10	REEL, RBL500	$13.62
93	541-50030-20	SPIRAL SPRING, RBC260	$14.61
94	524-50060-00	REWIND STARTER, RBC260	$55.00
95	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
96	530-50021-10	STARTER KNOB, BBX7600	$10.65
97	541-50011-40	STARTER ROPE, RBC260	$6.69
98	541-50011-20	ROPE GUIDE, RBC260	$4.93
99	625-95096-01	MODEL LABEL M-BRAND, RBC260	$4.16
100	541-50030-30	WASHER, RBC260	$1.85
101	011-90698-41	S.H. BOLT M6X15, RBC260	$2.51
102	524-65003-01	DAMPER, RBC260	$1.85
103	524-20010-02	CRANKSHAFT COMP., RBC260	$138.72
104	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
104	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
105	524-15006-00	CRANKCASE GASKET, RBC260	$3.50
106	044-01299-91	OIL SEAL, RBC260	$6.69
106	044-01299-11	OIL SEAL, RBC260	$3.61
107	524-70020-11	MAGNETO FLYWHEEL, RBC260	$83.80
108	011-90698-41	S.H. BOLT M6X15, RBC260	$2.51
109	620-25006-00	WASHER, RBC260	$1.63
110	267817-6	WASHER 8, EM2650LH	$0.64
111	625-25004-00	CLUTCH BOLT, RBC260	$4.93
112	524-55007-02	BAFFLE PLATE, RBC260	$3.17
113	625-15053-00	CLUTCH CASE, RBC260,T1	$44.37
113	625-15053-01	CLUTCH CASE, RBC261	$63.70
114	961052-5	RETAINING RING S-12, 9218PBL	$0.86
115	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
116	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
117	625-55020-02	STAND, RBC260	$23.96
118	625-55021-00	STAND DAMPER, RBC260	$3.50
120	345918-1	HOSE CLAMP, EM2650LH	$0.64
120	023-00899-70	SPACER, RBC260,T1	$3.61
121	523-65039-00	FILTER, RBL500	$11.42
122	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
122	531-60140-00	FUEL TANK CAP,RBL500	$13.51
122	531-60150-00	FUEL TANK CAP,	$8.67
122	531-60020-03	FUEL TANK CAP, RBC230	$7.02
123	524-65003-01	DAMPER, RBC260	$1.85
124	524-65003-01	DAMPER, RBC260	$1.85
125	524-65005-00	FUEL TANK, RBC260	$27.94
126	524-65002-02	FUEL TANK PLATE, RBC260	$6.69
127	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
128	521-60080-10	CABLE ADJUST SCREW, RBL500	$4.93
129	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
130	524-60012-40	THROTTLE COLLAR SCREW, BBX7600	$3.50
131	520-60081-10	PLUG, EM4250	$4.93
132	325922-6	SWIVEL, EM2650LH	$3.50
133	523-60180-10	THROTTLE VALVE ASS'Y, RBC230	$38.45
134	257964-1	STOP RING E-3, EM2650LH	$2.40
135	524-60080-00	CARBURETOR, RBC260	$133.38
136	523-60180-30	BRACKET CABLE, RBC230	$9.77
137	213538-8	O RING 2, EM2650LH	$2.40
138	523-60460-30	JET, RBC260	$13.51
139	524-60010-30	PUMP GASKET, RBC230	$6.14
140	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
141	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
142	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
143	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
144	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
145	424314-7	PRIMER PUMP, EM2650LH	$3.50
146	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
147	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
148	352010-6	INLET SCREEN, EM2650LH	$2.40
149	002-27050-00	NUT M5, EM4251	$1.34
150	523-60180-20	RING PACKING, BBX7600	$4.93
151	521-35004-00	AIR CLEANER CASE, RBC230	$4.93
152	521-35009-00	CHOKE LEVER, RBC230	$3.50
153	021-30699-90	GASKET, RBC230	$1.08
154	023-00599-70	SPACER, RBC230	$1.08
155	501-35014-00	AIR CLEANER PLATE, RBC230	$3.50
156	014-00598-50	SCREW M5X50, RBC311	$1.85
157	521-35007-00	AIR CLEANER ELEMENT, RBC260	$3.50
158	521-35005-01	AIR CLEANER CASE COVER,RBC230	$4.93
159	004-36051-20	SCREW ASSEMBLY M5X12, G1100	$1.41
160	625-15013-00	WASHER, RBC310	$1.63
5009	525-60670-00	STRAP, RBL500	$7.68
5009	625-50210-02	STRAP UNIT, RBC201	$3.83
