Tool Diagram    (Click image to Zoom in) View larger Image

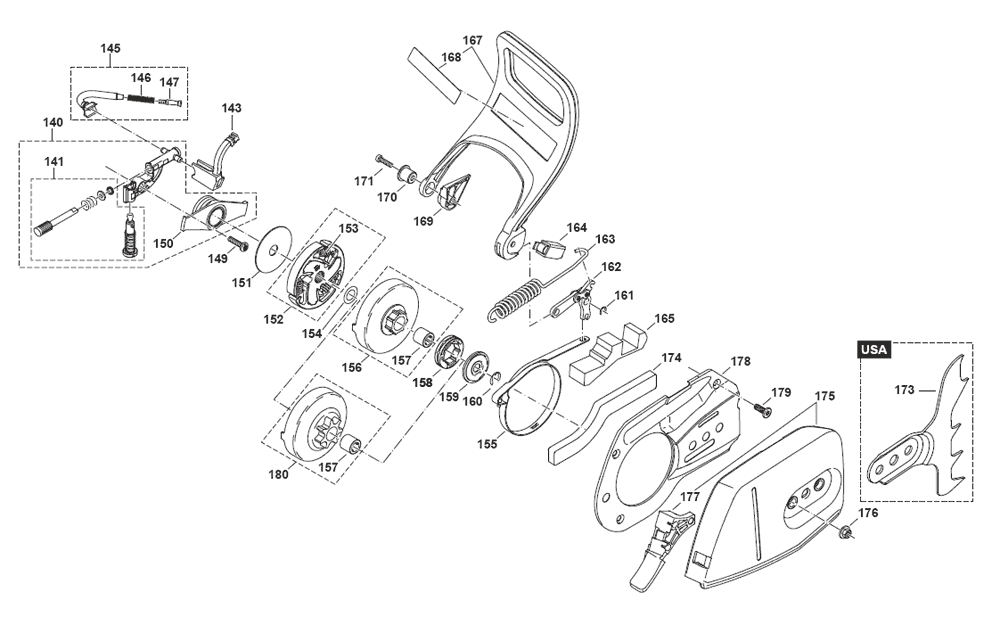

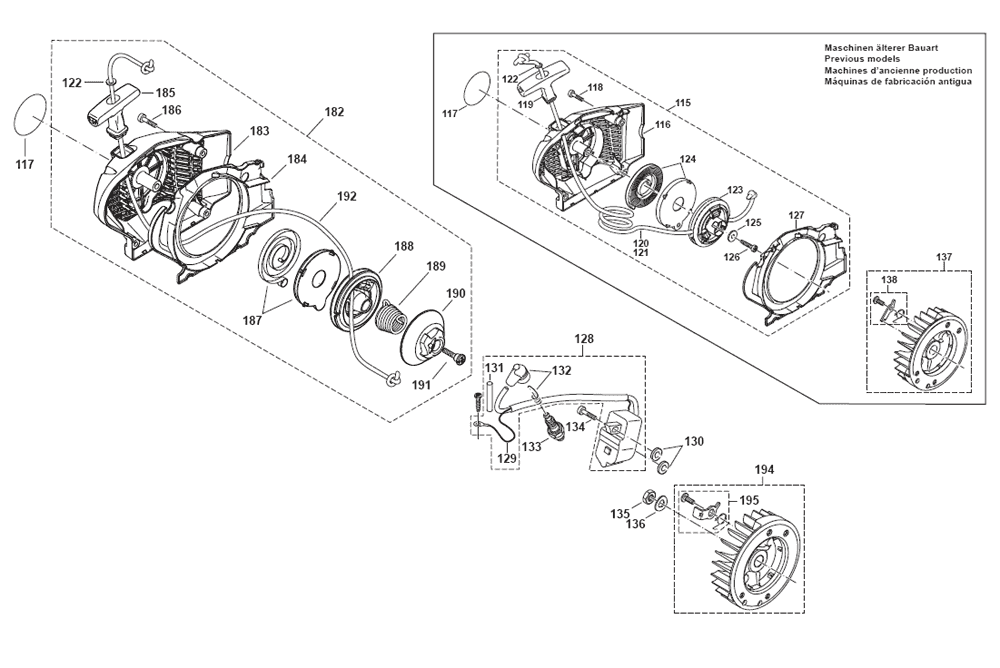

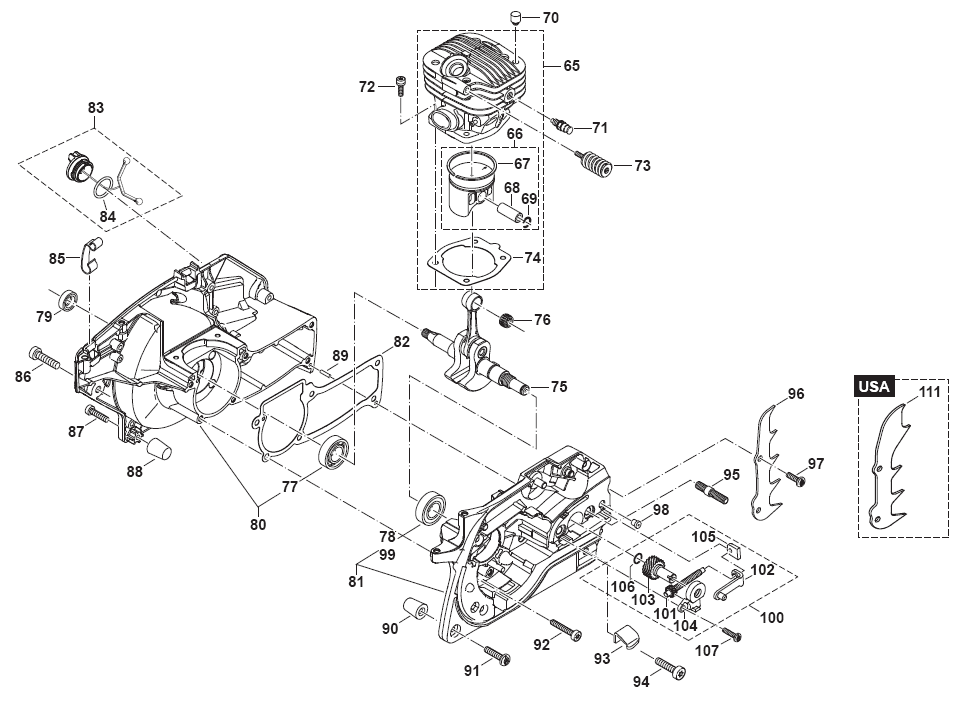

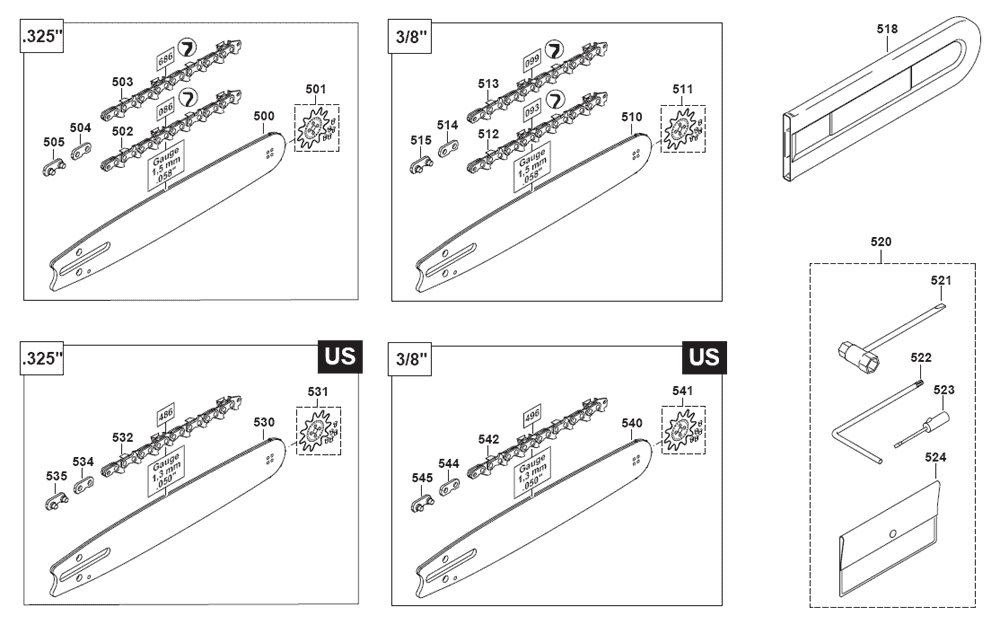

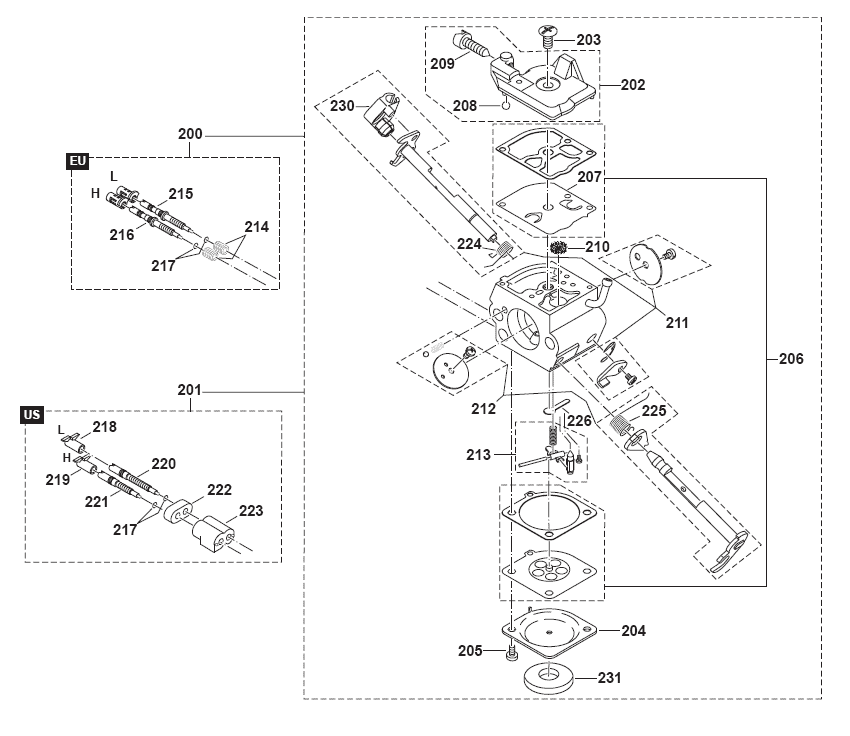

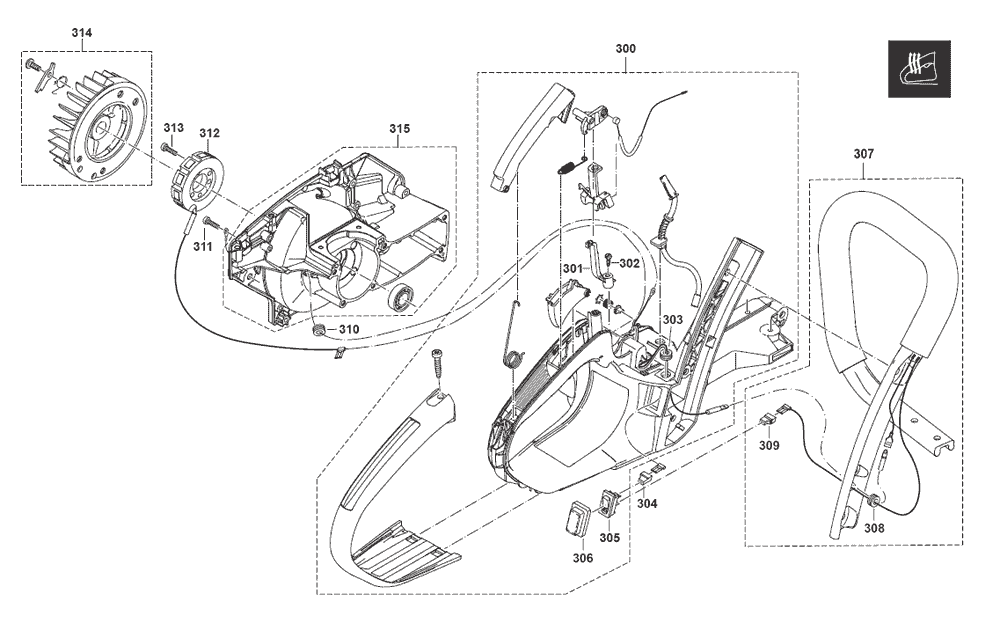

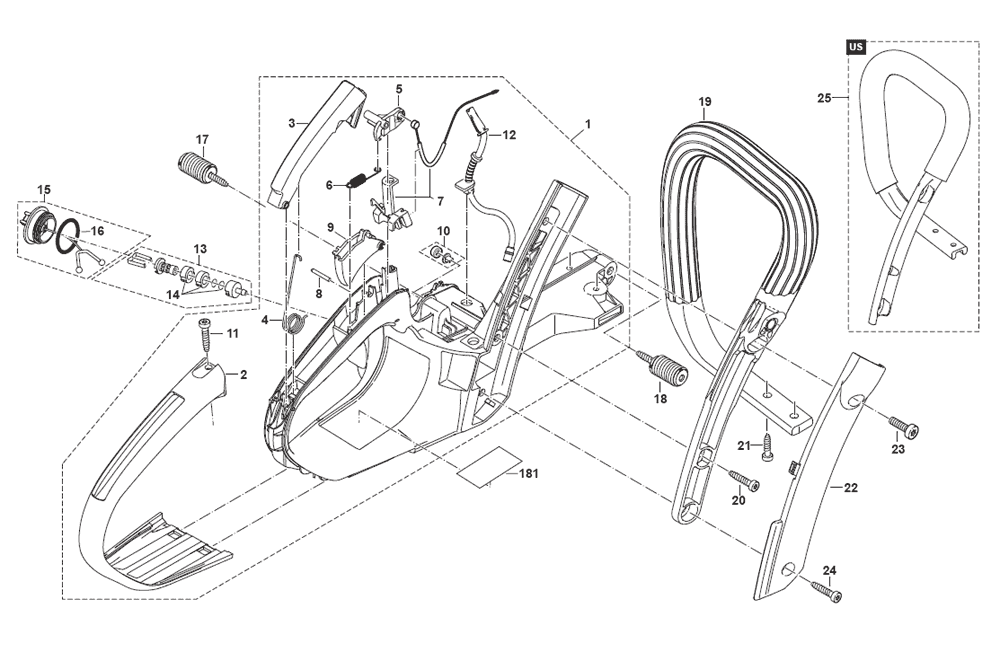

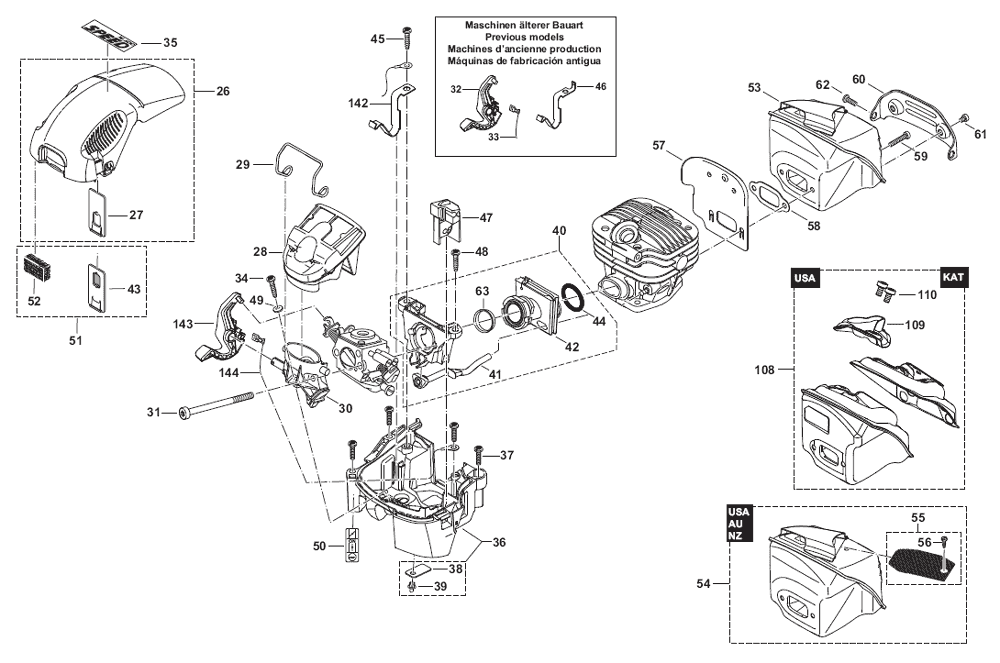

Makita PS-5100S Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 181-114-110 TANK CPL. RED, PS460 $84.70
2 181-117-050 GRIP, O.S. BLACK, DCS510 $12.19
3 181-117-132 CATCH LEVER, DCS510 $4.71
4 181-117-031 SPRING, DCS510 $3.61
5 181-117-081 ROCKER, DCS510 $4.71
6 181-117-110 SPRING, DCS510 $3.61
7 010-117-050 MODIFICATION SET, DCS510 $19.67
8 935-930-240 CYLINDRAL PIN 3X24, DCS460 $3.17
9 181-117-121 THROTTLE LEVER, DCS460 $4.71
9 181-117-120 THROTTLE LEVER, DS510 $4.71
10 957-114-061 AIR VALVE CPL, DCS6401 $6.47
11 913-455-204 SCREW M5.5X20, DCS6800I $1.85
12 181-114-064 FUEL LINE, DCS510 $13.62
13 010-114-010 SUCTION HEAD, DPC7001 $6.69
14 010-114-020 FILTER SET FOR SUCTION HEAD,DCS510 $23.96
15 181-114-202 TANK CAP CPL. FUEL $6.14
16 963-229-036 PACKING RING, DPC7331 $3.17
20 913-455-204 SCREW M5.5X20, DCS6800I $1.85
21 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
23 908-006-205 F.H.SCREW, DCS460 $1.85
24 913-455-204 SCREW M5.5X20, DCS6800I $1.85
25 181-310-250 TUBULAR HANDLE, DCS510 $80.40
27 181-118-060 INSERT, DCS510 $4.71
28 181-173-200 AIR FILTER CPL.FINE, PS460 $16.04
29 181-171-050 AIR FILTER CLIP, DCS510 $4.71
30 010-117-050 MODIFICATION SET, DCS510 $19.67
31 908-505-555 TORX SCREW 5X55, EHW120 $3.50
32 181-155-020 CHOKE ON/OFF SWITCH, DCS510 $4.71
33 970-311-550 EARTH CABLE, DCS510 $5.59
34 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
37 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
38 038-118-110 RUBBER FLAP, DCS460 $2.95
39 938-650-062 RIVET, DCS460 $1.59
40 181-171-150 FLANGE CPL.,DCS510 $44.57
41 181-131-090 TUBE, DCS510 $13.62
42 181-131-040 SUCTION HOSE, DCS510 $27.94
43 181-118-160 INSERT FOR SUMMER/WINTER(SNOW), DCS460 $8.12
44 181-131-070 ANNULAR SPRING, DCS510 $4.71
45 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
46 181-155-010 CONTACT SPRING, DCS510 $6.14
47 181-155-030 ADJUSTING GUIDE, DCS510 $4.71
48 913-455-164 SELF-CUTTING SCREW,DCS520I $1.85
49 928-405-000 WASHER, DCS340 $1.85
50 980-114-928 LABEL, DCS510 $4.56
52 181-173-250 SNOW FILTER, DCS510 $3.17
54 181-174-201 MUFFLER US $50.08
55 181-174-250 SPARK ARRESTOR SCREEN,DCS510 $4.71
56 915-035-120 TAPPING SCREW, M3.5X12, DPC7331 $1.34
58 181-174-050 GASKET, DCS510 $3.17
59 908-005-205 SCREW M5X20, DCS460 $1.85
60 181-174-091 SHEET-METAL $7.68
61 908-005-095 SCREW M5X9, DCS5200I $1.85
62 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
63 181-131-021 INSERT FOR SUCTION HOSE, DCS460 $2.51
110 908-005-095 SCREW M5X9, DCS5200I $1.85
67 181-132-080 PISTON RING, DCS510 $19.67
69 181-132-050 SPRING RING 12X1, DCS510 $1.96
70 181-118-070 DAMPING PLUG, DCS510 $4.71
72 908-805-235 SCREW W/SPRING WASHER, DPC7331 $2.51
74 181-131-132 CYLINDER GASKET FIBRE, DCS460 $4.71
74 181-131-131 CYLINDER GASKET METAL, DCS460 $4.71
75 181-120-100 CRANKSHAFT CPL., DCS460 $212.53
76 962-210-033 NEEDLE CAGE, DCS510 $15.82
77 960-102-159 BALL BEARING, DCS6800I $19.34
78 960-123-159 BALL BEARING 6202 C3, DCS510 $27.15
82 181-111-060 GASKET, DCS510 $4.71
84 963-225-030 PACKING RING, DCS460 $3.17
85 181-118-050 STEEL CLIP, DCS510 $4.71
86 908-006-205 F.H.SCREW, DCS460 $1.85
87 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
88 181-111-230 IMPACT PROTECTION, DCS510 $4.71
89 936-430-160 SPIRAL PIN 3X16, DCS460 $1.85
90 181-111-230 IMPACT PROTECTION, DCS510 $4.71
91 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
92 908-005-205 SCREW M5X20, DCS460 $1.85
93 181-111-050 CHAIN CATCH, DCS510 $4.71
94 908-006-205 F.H.SCREW, DCS460 $1.85
96 181-250-011 SPIKE BAR, DCS510 $15.16
97 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
98 010-245-030 VENT VALVE, DCS6401 $6.14
100 181-213-300 CHAIN TENSIONER CPL.,DCS510 $29.37
101 181-213-230 TENSIONING SCREW, DCS510 $16.70
102 181-213-240 TENSION SLIDE, DCS510 $9.22
103 181-213-250 ADJUSTING SCREW, DCS510 $15.16
104 181-213-270 TRANSMISSION COVER, DCS510 $4.27
105 181-213-260 TEN. SCREW BEARING, DCS510 $3.17
106 963-207-020 PACKING RING 7X2,DCS510 $1.41
107 908-705-125 CYLINDER SCREW M5X12, DCS460 $1.74
115 181-160-150 STARTER ASS'Y RED, PS460 $48.55
117 980-115-228 LABEL, PS5100S $4.60
118 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
119 001-161-020 STARTER GRIP, DPC6410 $6.14
120 108-164-020 STARTER ROPE 980MM,DCS431 $6.14
121 985-000-155 STARTER ROPE 100 METER,DCS34 $81.00
122 928-405-000 WASHER, DCS340 $1.85
123 181-162-150 CABLE DRUM CPL.,DCS510 $15.16
124 181-163-020 REWIND SPRING, DCS510 $10.65
125 924-605-510 WASHER 5.5X18X1.6, DCS6401 $0.90
126 913-455-204 SCREW M5.5X20, DCS6800I $1.85
127 181-118-041 AIR GUIDE PLATE, DCS510 $7.68
129 181-147-050 IGNITION CABLE, DCS510 $6.14
130 195-143-030 WASHER, EK7301 $1.30
131 970-502-110 INSULATING HOSE (43 MM), DCS340 $8.12
132 957-604-260 PLUG CAP ASSY, DPC7331 $6.14
133 965-603-021 SPARK PLUG,WSR5F DPC6200 $6.14
134 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
135 920-308-024 HEX NUT M8X1, DCS34 $1.96
136 926-208-001 SPRING WASHER 8, DPC7000 $2.51
137 181-141-104 FLYWHEEL CPL., DCS510 $120.19
141 181-245-260 REPAIR KIT,OIL PUMP,DCS510 $29.37
143 181-245-120 OIL LINE, DCS510 $15.16
145 181-245-100 OIL LINE CPL.,DCS510 $21.10
147 001-245-020 HOSE STEM, DCS510 $1.74
149 908-705-125 CYLINDER SCREW M5X12, DCS460 $1.74
150 181-245-090 PUMP DRIVE, DCS510 $15.16
151 001-182-042 GUIDE DISC, DCS6401 $4.71
152 181-180-200 CLUTCH ASS'Y $32.51
153 181-184-010 SPRING, DCS510 $3.61
155 181-213-010 BRAKE SPRING, DCS510 $15.16
157 962-300-009 NEEDLE SLEEVER, DCS510 $9.22
158 181-224-040 "RIM SPROCKET .325"", PS5100S" $8.12
158 026-224-010 "RIM SPROCKET 3/8"",DCS520I" $9.77
159 181-224-081 DISC, DCS510 $6.14
160 927-408-000 RETAINING CLIP, DCS6401 $1.96
161 927-304-000 SAFETY WASHER , DCS431 $1.63
162 181-213-100 BRAKING MECHANISM, DCS510 $15.16
164 181-213-170 H.GUARD GUIDE CPL.,DCS510 $15.16
165 181-213-371 FOAM SPONGE, DCS510 $4.71
168 980-114-237 LABEL (SAFETY), DCS430 $1.80
169 181-213-310 SPACER, DCS510 $4.71
170 181-213-320 BUSHING, DCS510 $4.71
171 908-805-205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 $1.74
174 181-213-400 FOAM PLATE, DCS460 $3.61
175 957-213-200 SPROCKET GUARD CPL.RED,PS460 $16.04
176 923-208-004 HEX NUT, DCS341 $4.16
177 957-213-220 CHIP GUIDE, DCS510 $7.68
179 908-105-126 FLAT HEAD SCREW M5X12, DCS460 $1.74
201 181-153-300 CARBURETOR, DCS510 $128.43
202 181-153-030 PUMP COVER, DCS510 $24.18
203 038-153-360 SCREW, DCS6401 $2.95
204 181-153-040 DIAPHRAGM COVER, DCS510 $7.68
205 001-153-020 SCREW, DCS460 $3.17
206 181-153-020 SET DIAPHRAGMS/GASKETS,DCS510 $27.15
207 181-153-060 PUMP DIAPHRAGM RUBBER,DCS510 $9.22
207 181-153-050 PUMP DIAPHRAGM TEFLON,DCS510 $7.68
208 038-153-210 FRICTION BALL, DCS460 $4.27
209 181-153-070 IDLE STOP SCREW, DCS510 $7.68
210 036-153-040 SCREEN, DCS34 $5.26
211 957-153-090 KIT THROTTLE SHAFT,DCS510 $62.70
212 957-153-080 KIT CHOKE SHAFT, DCS510 $33.45
213 957-153-070 CONTROL PARTS, DCS6401 $29.37
217 181-153-220 WASHER, DCS460 $4.27
218 181-153-280 LIMITER CAP,WHITE, DCS460 $3.61
219 038-153-310 LIMITER CAP-RED, DCS460 $9.77
220 181-153-260 IDLE ADJUST. SCREW, DCS460 $10.43
221 181-153-270 MAIN ADJUST. SCREW, DCS510 $10.65
222 181-153-290 RUBBER RING, DCS510 $6.14
223 038-153-320 ADJUSTING GUIDE, DCS460 $11.09
224 181-153-110 SPRING, DS510 $4.71
225 181-153-160 SPRING, DCS510 $4.71
226 181-153-210 PLUG-WELCH, DCS510 $4.71
230 038-155-012 RETAINING CLIP, DCS6401 $3.61
521 941719131 UNIVERSAL WRENCH DCS431 $13.88
522 940827000 WRENCH TORX DCS431 $7.99
523 944340001 CARBURETOR SCREWDRIVER DCS6800I $4.19
