Makita PB500R Electric Blower Parts

Makita PB500R Electric Blower Parts Image

Makita PB500R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Tool Diagram    (Click image to Zoom in) View larger Image

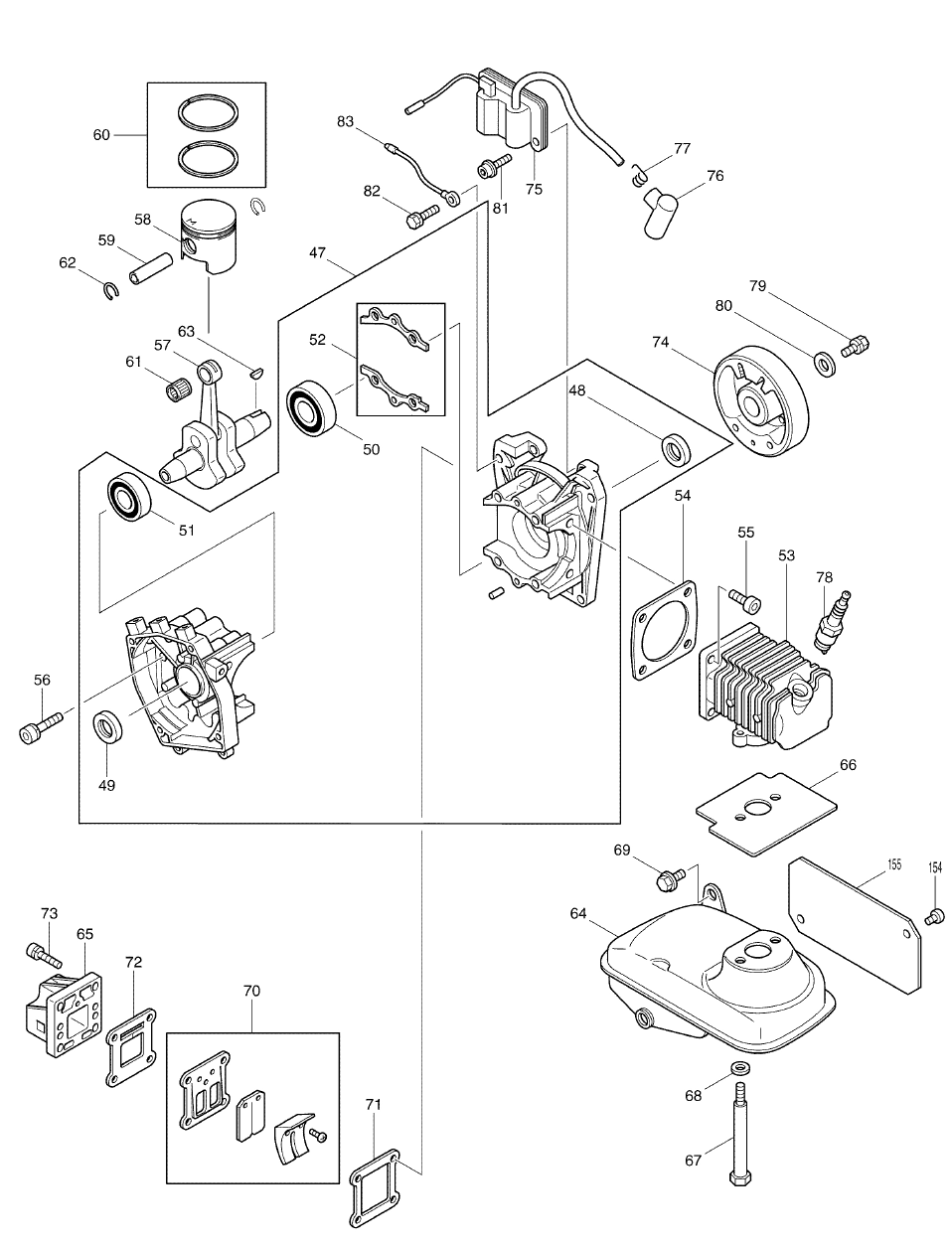

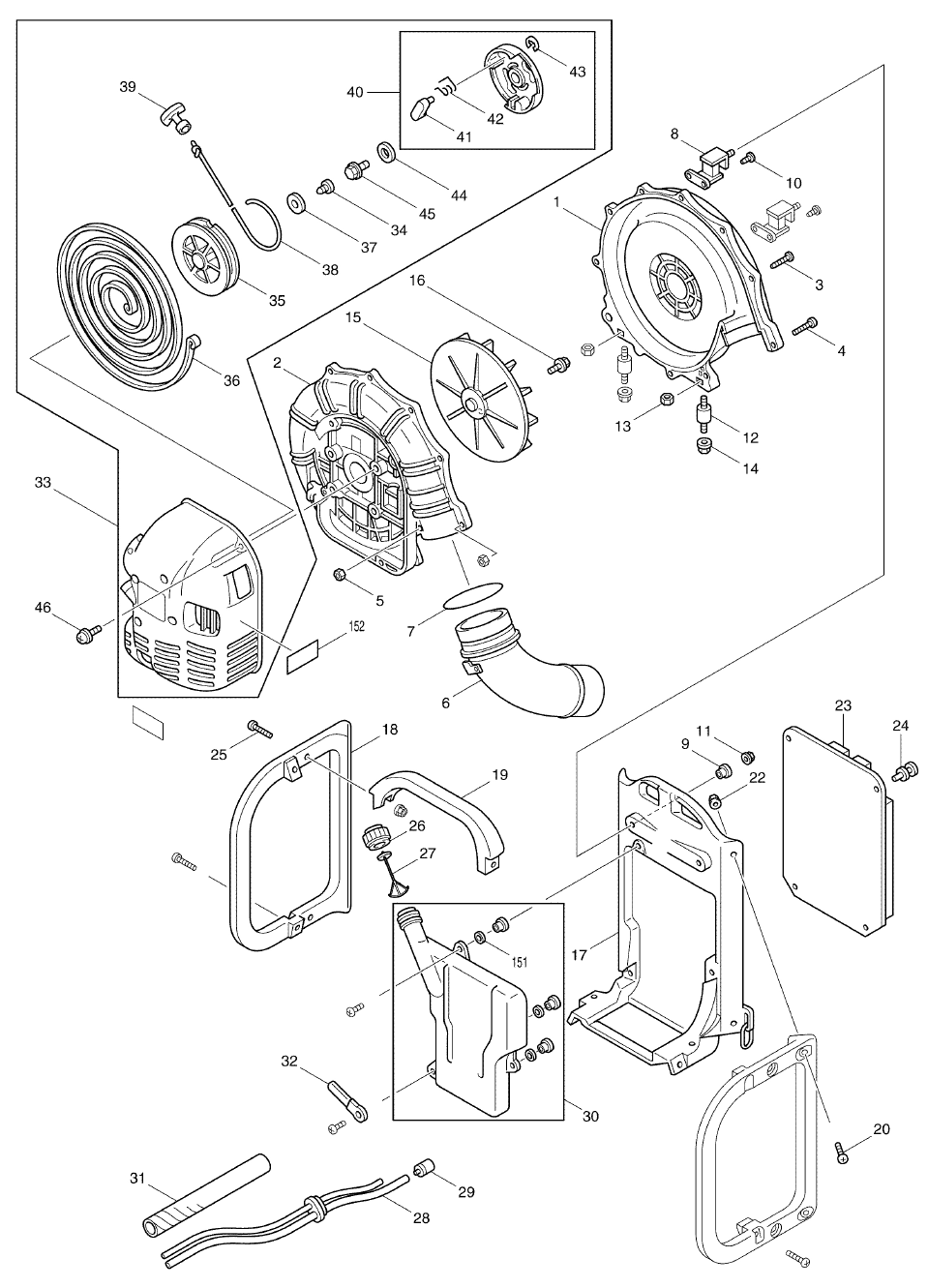

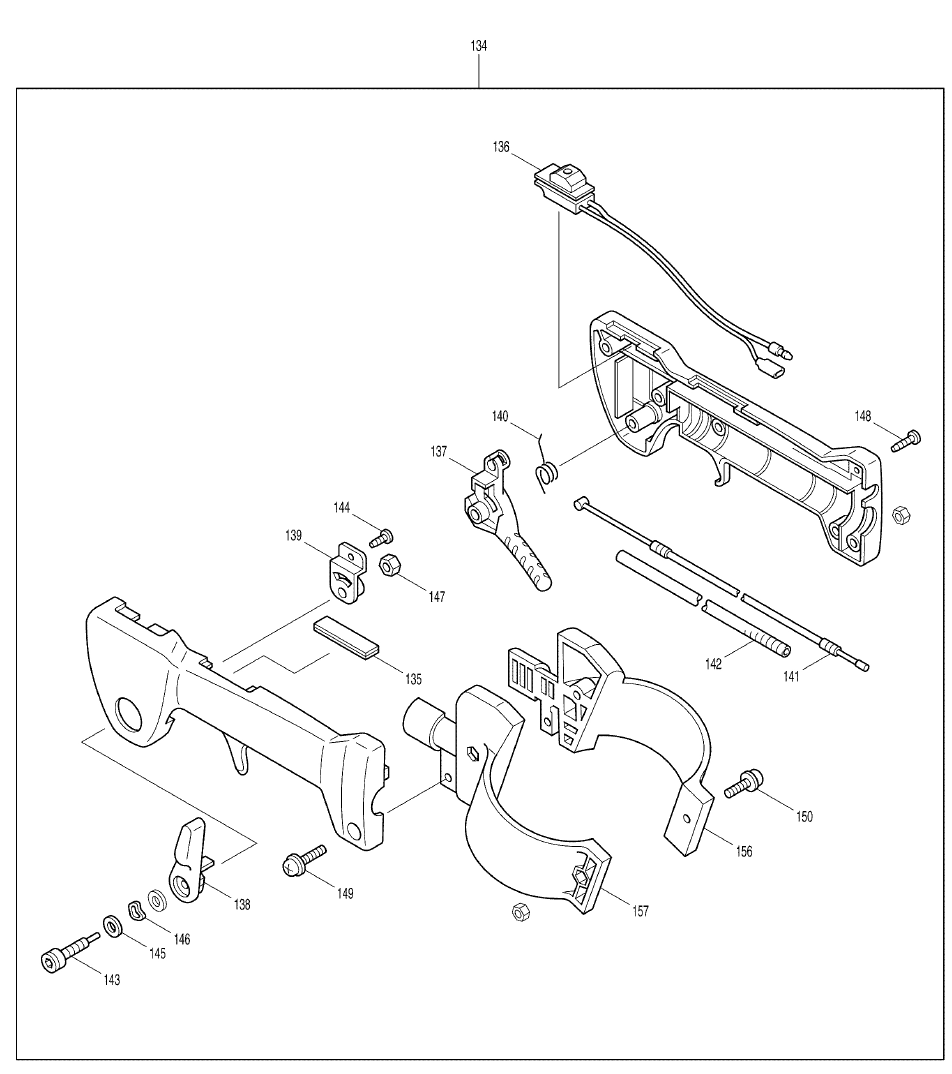

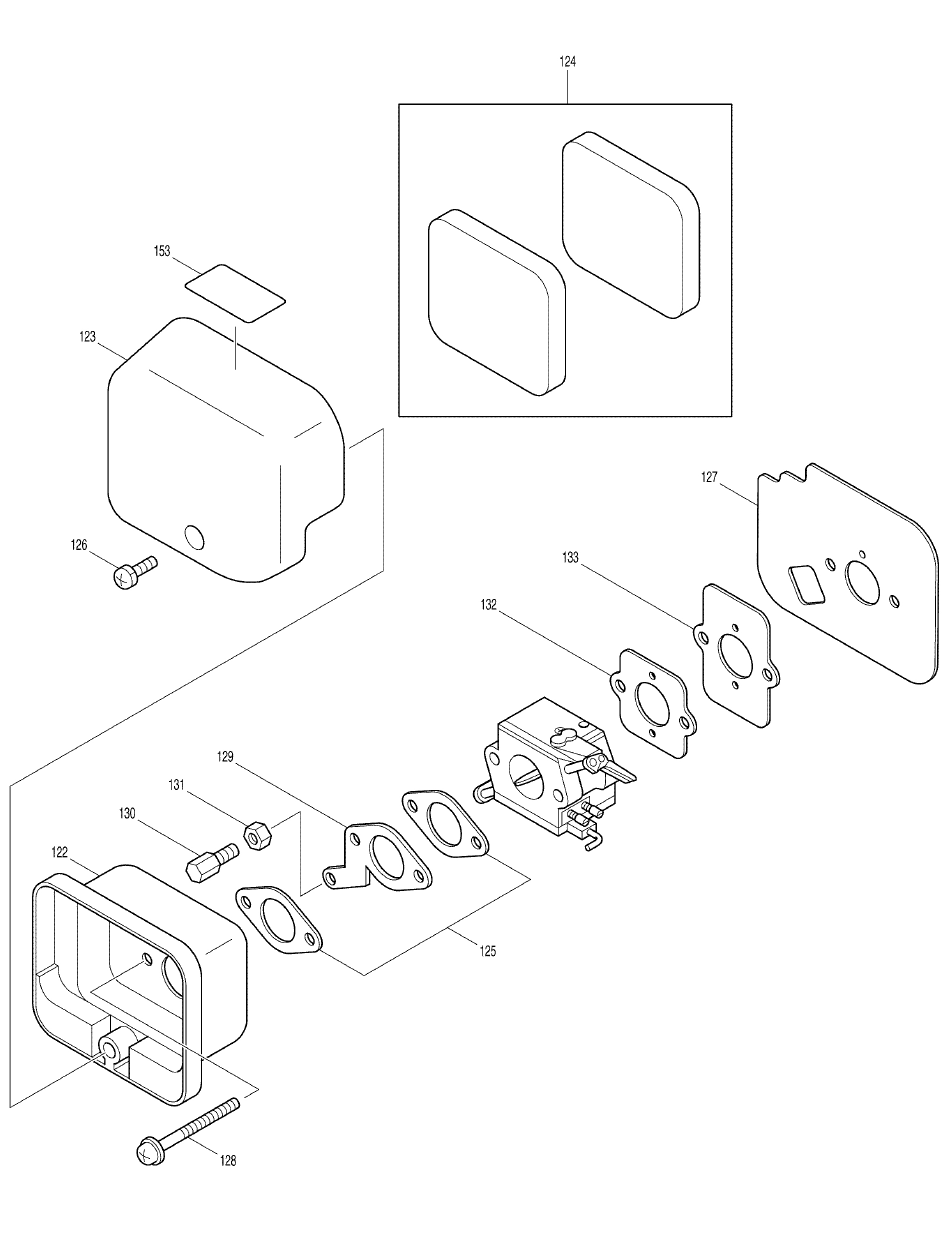

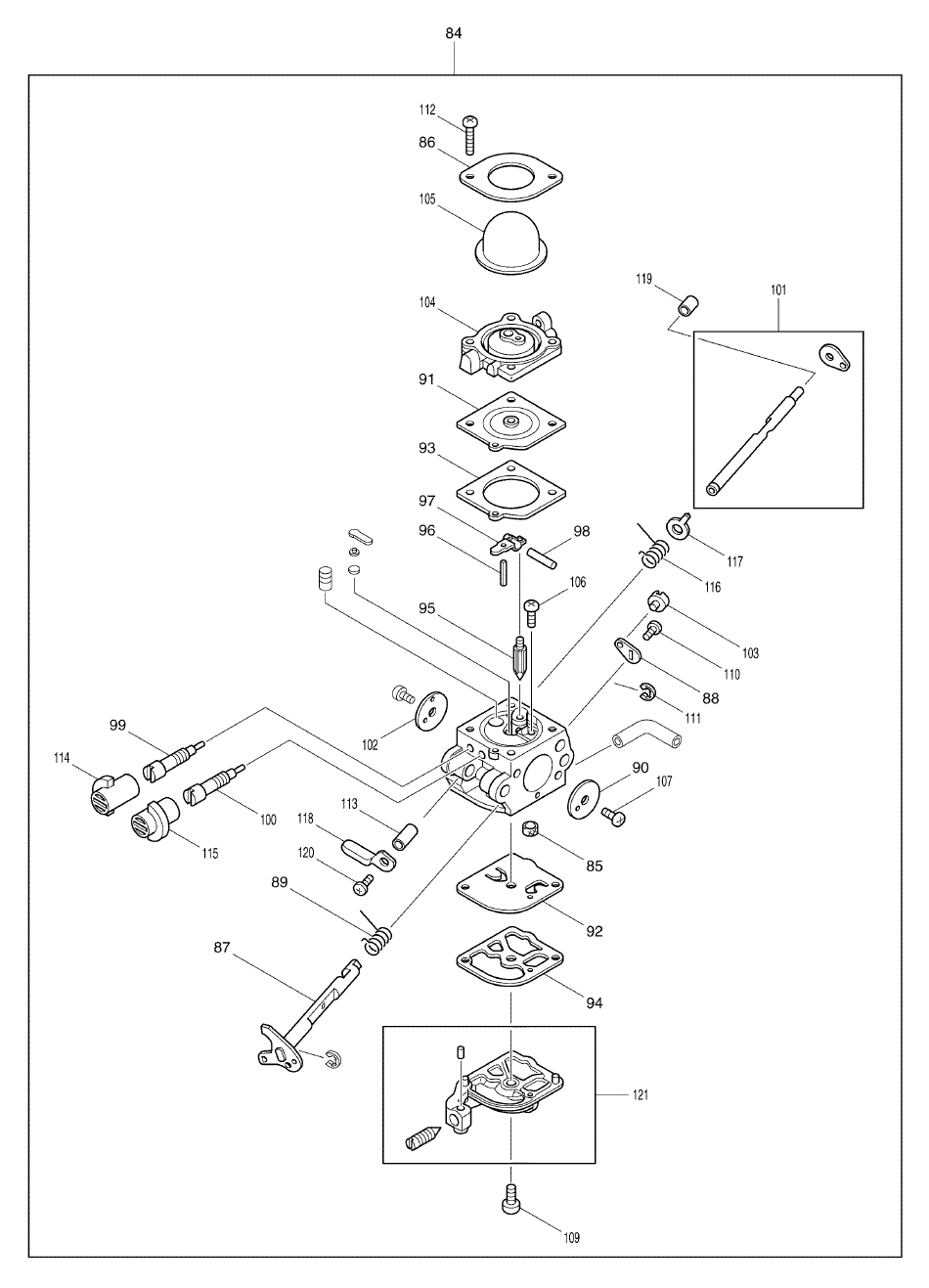

Makita PB500R Electric Blower Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 662-15002-01 VOLUTE CASE 1, RBL500 $59.30
3 015-00598-70 TAPPING SCREW, RBL500 $1.41
6 662-10060-01 ELBOW COMPLETE, RBL500 $28.25
7 006-26308-50 O RING, RBL500 $6.69
8 662-10050-00 BRACKET COMPLETE, RBL500 $19.34
9 662-15009-00 SPACER, RBL500 $4.71
10 015-00599-10 TAPPING SCREW, RBL500 $1.41
12 662-15004-01 DAMPER, RBL500 $12.96
15 682-15002-01 IMPELLER, RBL500 $89.70
17 662-20080-01 FRAME COMPLETE, RBL500 $53.60
18 662-25006-00 SIDE FRAME, RBL500 $28.25
19 662-25007-01 KNOB, RBL500 $19.34
21 003-12050-00 WASHER, RBL500 $1.34
22 002-37050-00 FLANGE NUT, RBL500 $1.34
23 662-20100-01 CUSHION, RBL500 $43.14
24 682-25002-00 LOCK RIVET, RBL500 $3.50
26 525-60580-00 FUEL TANK CAP ASSEMBLY, RBL500 $9.22
26 531-60140-00 FUEL TANK CAP,RBL500 $13.51
27 525-60670-00 STRAP, RBL500 $7.68
27 625-50210-02 STRAP UNIT, RBC201 $3.83
28 662-30030-01 TUBE, RBL500 $35.59
29 523-65039-00 FILTER, RBL500 $11.42
30 662-30050-00 FUEL TANK ASSEMBLY, RBL500 $50.50
30 662-35003-00 FUEL TANK, RBL500,T1 $33.86
31 855-85022-00 SPIRAL TUBE, RBL500 $6.69
32 855-85011-00 CLAMP, RBL500 $5.26
34 510-50151-10 SCREW, RBL500 $1.85
35 541-50030-10 REEL, RBL500 $13.62
36 541-50030-20 SPIRAL SPRING, RBC260 $14.61
37 541-50030-30 WASHER, RBC260 $1.85
38 541-50011-40 STARTER ROPE, RBC260 $6.69
39 530-50021-10 STARTER KNOB, BBX7600 $10.65
40 541-50110-00 PULLY UNIT, RBL500 $22.53
41 541-50110-10 RATCHET, RBL500 $4.93
42 541-50110-20 RETURN SPRING, RBL500 $3.50
43 521-50030-40 E-RING, RBL500 $3.17
48 044-01799-20 OIL SEAL, RBL500 $10.65
50 060-01798-30 BALL BEARING, RBL500 $17.69
52 541-15012-00 GASKET (CRANKCASE), EW110R $3.50
53 541-15018-00 CYLINDER, RBL500 $131.64
54 541-15005-01 CYLINDER GASKET, RBL500 $4.71
57 541-20240-00 CRANKSHAFT COMPLETE, RBL500 $166.65
58 541-25007-00 PISTON, RBL500 $41.41
59 560-25011-00 PISTON PIN, RBL500 $8.12
60 560-25009-00 PISTON RING, RBL500 $6.69
61 061-01299-50 NEEDLE ROLLER BEARING, RBL500 $12.96
63 005-32031-01 WOODRUFF KEY, RBL500 $1.96
65 541-30460-02 INSULATOR COMPLETE, RBL500 $13.62
66 541-35017-00 MUFFLER GASKET, RBL500 $16.04
67 541-35020-01 MUFFLER BOLT, RBL500 $4.93
68 020-00999-90 WASHER, RBL500 $1.63
69 001-15061-60 BOLT ASSEMBLY, RBL500 $1.41
70 541-30360-00 LEAD VALVE ASSEMBLY, RBL500 $45.79
71 541-35028-00 GASKET (LEAD VALVE, EW110R $1.85
72 540-35006-00 INSULATER GASKET, RBL500 $1.85
73 011-90596-30 S.H. BOLT M5X20, RBL500 $3.61
75 541-70240-21 COIL, RBL500 $134.45
79 001-13081-60 BOLT & WASHER ASS'Y, G5501R . $1.63
82 001-13062-50 BOLT ASSEMBLY, RBL500 $1.96
83 662-80030-00 WIRE COMPLETE, RBL500 $6.91
84 541-60430-01 CARBURETOR, RBL500,T1 $99.10
84 541-60430-03 CARBURETOR, RBL500 $126.78
85 541-60434-30 STRAINER, RBL500 $4.93
86 541-60434-60 RETAINER, RBL500 $5.04
86 541-60438-60 RETAINER, RBL500 $6.47
87 541-60430-20 THROTTLE SHAFT ASSEMBLY, RBL500 $32.53
88 541-60435-20 THROTTLE LEVER, RBL500 $8.01
89 541-60430-30 THROTTLE RETURN SPRING, RBL500 $5.26
90 541-60430-40 THROTTLE VALVE, RBL500 $9.55
91 541-60432-60 DIAPHRAGM ASSEMBLY, RBL500 $35.59
92 541-60431-10 PUMP DIAPHRAGM, RBL500 $11.42
93 541-60433-10 METERING CHAMBER GASKET, RBL500 $4.93
94 541-60431-20 PUMP GASKET, RBL500 $4.93
95 541-60432-10 INLET NEEDLE VALVE, RBL500 $23.96
96 541-60432-20 METERING LEVER SPRING, RBL500 $8.12
97 541-60432-30 METERING LEVER, RBL500 $9.77
98 541-60432-40 PIN, RBL500 $3.50
99 541-60433-50 MAIN MIXTURE SCREW, RBL500 $16.04
100 541-60433-60 IDLE MIXTURE SCREW, RBL500 $16.04
101 541-60435-50 CHOKE SHAFT ASSY, RBL500 T1 $28.56
101 541-60435-51 CHOKE SHAFT ASS'Y, RBL500 $36.21
102 541-60436-20 CHOKE VALVE, RBL500 $8.45
103 541-60435-40 POST, RBL500 $14.28
104 541-60433-20 PRIMER BASE ASSEMBLY, RBL500 $51.60
104 541-60439-20 PRIMER BASE ASSEMBLY, RBL500 $67.00
105 541-60435-10 SYRINGE, RBL500 $11.42
106 541-60432-50 SCREW, RBL500 $1.96
107 541-60430-50 SCREW, RBL500 $1.48
109 541-60431-60 SCREW, RBL500 $1.96
110 541-60435-30 SCREW, RBL500 $1.96
111 541-60430-60 E-RING, RBL500 $1.96
112 541-60433-30 RETAINER SCREW, RBL500 $1.48
112 541-60439-10 RETAINER SCREW, RBL500 $3.28
113 541-60437-20 E-RING, RBL500 T1 $1.34
113 541-60438-50 COLLAR, RBL500 $4.93
114 541-60437-60 TAMPER RESIST (R) LIMITER, RBL500 $8.45
115 541-60438-10 TAMPER RESIST(W) LIMITER, RBL500 $8.45
116 541-60436-40 CHOKE RETURN SPRING, RBL500 $5.26
117 541-60435-60 CHOKE CONTROL LEVER, RBL500 $6.69
118 541-60436-60 CHOKE LEVER, RBL500 $6.69
119 541-60436-10 CHOKE SHAFT COLLER, PB500R $1.48
120 541-60437-10 CHOKE LEVER SCREW, RBL500 $1.85
121 541-60438-20 PUMP COVER KIT, RBL500 $26.41
122 541-30480-01 PLATE CLEANER ASSEMBLY, RBL500 $12.96
123 541-35070-01 AIR CLEANER CASE, RBL500 $6.69
124 541-35071-01 AIR CLEANER ELEMENT, RBL500 $8.12
125 541-35072-00 AIR CLEANER GASKET, RBL500 $1.85
127 541-65043-02 CARBURETOR GASKET, RBL500 $4.93
128 004-36055-50 SCREW, RBL500 $1.85
129 541-65046-00 CABLE BRACKET, RBL500 $4.93
130 521-60080-10 CABLE ADJUST SCREW, RBL500 $4.93
132 541-35079-00 CARBURETOR GASKET, RBL500 $3.50
133 541-35078-00 PLATE, RBL500 $4.93
134 662-50010-02 CONTROL LEVER ASSY, RBL500 $70.90
135 662-55005-00 CASE COVER, RBL500 $4.93
136 662-50030-01 SWITCH COMPL, RBL500 $14.61
137 662-55006-01 THROTTLE LEVER 1, RBL500 $8.12
138 662-55007-01 THROTTLE LEVER 2, RBL500 $8.12
139 662-50040-00 PLATE COMPLETE, RBL500 $8.45
140 662-55009-01 TORSION SPRING, RBL500 $4.93
141 063-01399-01 CONTROL CABLE, RBL500 $17.69
142 662-55010-01 CABLE TUBE, RBL500 $16.04
143 662-55017-00 SOCKET HEAD BOLT, RBL500 $6.69
144 015-00499-70 TAPPING SCREW, RBL500 $1.19
148 015-00499-40 TAPPING SCREW, RBL500 $1.08
152 662-95086-00 CAUTION LABEL, RBL500 $4.18
153 073-64094-30 LABEL, RBL500 $4.75
154 014-00599-20 SCREW M5X8, RBC310 $1.19
155 541-35060-01 TANK PROTECTOR, RBL500 $10.65
156 662-55008-02 HANDLE HOLDER 1, RBL500 $13.62
157 662-50050-02 HANDLE HOLDER 2, RBL500 $13.62
1004 6989506900 FLEXIBLE PIPE RBL500 $29.65
1006 6709017020 PIPE 2 RBL500 $27.56
1007 6629506700 END PIPE RBL500 $25.66
