Makita NHP1310 Hammer Drill Parts

Makita NHP1310 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

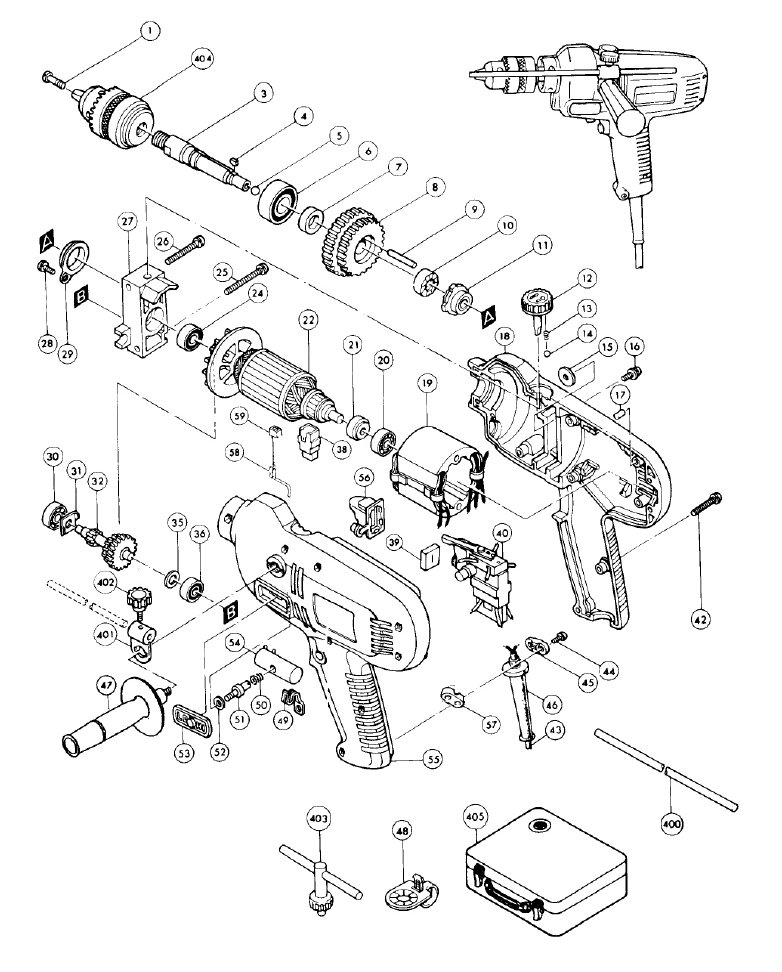

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251425-3	FLAT SCREW M6X22, NHP1310	$1.48
3	321333-3	SPINDLE,NHP1310	$27.59
4	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
5	216002-8	STEEL BALL 4.8, NHP1310	$0.53
6	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
7	257074-4	RING 13,NHP1310	$3.06
8	226050-9	GEAR 47-57,NHP1310	$44.88
9	256103-0	PIN 4,NHP1310	$3.28
10	223056-8	CAM (B),NHP1310	$13.18
11	153129-2	CAM COMPLETE,NHP1310	$24.62
12	271407-9	SCREW 23,NHP1310	$10.54
13	231282-5	COMP. SPRING 2.4,NHP1310	$1.48
14	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
15	261046-3	WASHER 4,NHP1310	$1.01
16	911113-1	P.H. SCREW M4X10, 4301BV	$0.86
17	263002-9	RUBBER PIN 4, 5007NK	$0.86
19	633216-8	FIELD, NHP1310	$30.80
20	211028-5	B. BEARING 627LB, 6510LVR	$8.78
21	681614-0	INS. WASHER, 9031	$1.63
22	511996-5	ARMATURE, NHP1310	$92.10
24	211028-5	B. BEARING 627LB, 6510LVR	$8.78
25	911166-0	P.H. SCREW M4X40, 9218PBL	$1.48
26	911161-0	P.H. SCREW M4X35, 9218SB	$0.86
27	315219-1	HOUSING W/O BEARING, NHP1310	$33.55
28	911106-8	P.H. SCREW M4X8, NHP1310	$0.53
29	341628-8	CAM RETAINER,NHP1310	$3.06
30	211020-1	BALL BEARING 626Z, NHP1310	$10.98
31	341658-9	GREASE WIPER,NHP1310	$1.63
32	153166-6	GEAR 11-21-38,NHP1310	$49.06
35	253715-0	F. WASHER 6, NHP1310	$1.34
36	211020-1	BALL BEARING 626Z, NHP1310	$10.98
42	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
44	265941-9	TAPPING SCREW M4X18, N1900B	$0.86
45	687063-9	STRAIN RELIEF, 4323K	$1.26
46	682502-4	CORD GUARD 8-85, HP2010N	$2.51
46	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
47	152491-2	GRIP, GV5000	$4.49
48	410102-8	KEY HOLDER, 6013BR	$1.26
49	342965-3	SHIFTER ROD RETAINER,NHP1310	$1.63
50	231283-3	COMP. SPRING 5,NHP1310	$1.48
51	321222-2	SCREW,NHP1310	$3.61
52	253821-1	F. WASHER 3, NHP1310	$1.34
53	411720-5	CHANGE BUTTON,NHP1310	$3.06
54	154269-9	SHIFTER ROD,NHP1310	$10.32
57	687051-6	STRAIN RELIEF, NHP1310	$1.26
58	654069-2	RECEPTACLE, BO4556	$0.75
59	686015-7	RECEPTACLE SLEEVE, 6820V	$0.75
402	164549-5	STOPPER HOLDER, NHP1030	$8.20
401	251851-6	KNOB, NHP1030	$4.20
