Makita ML900 Flashlight Parts

Makita ML900 Flashlight Parts Image

Makita ML900 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

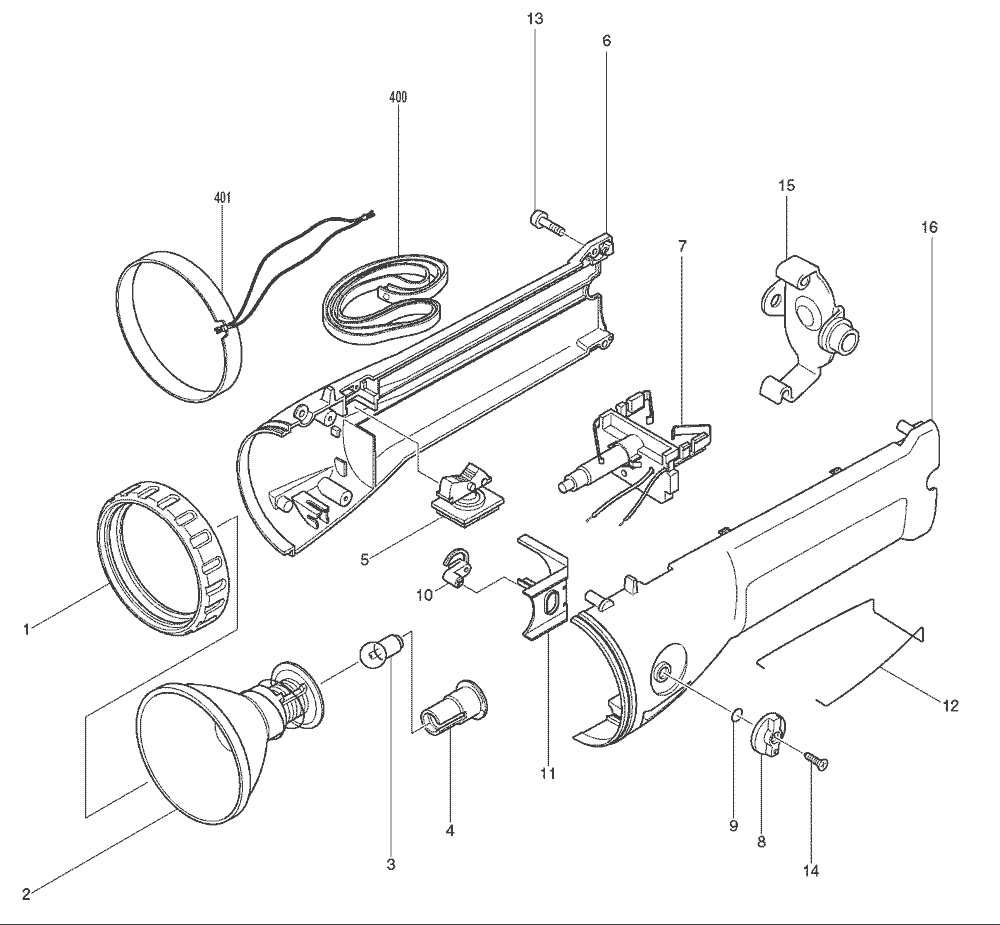

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	410618-3		REFLECTOR RETAINER, ML900	$4.49
00	431003-7		LENS, ML900	$3.06
9	213011-8		O RING 7, HR2511,LS1214FL	$0.86
2	151191-1		REFLECTOR, ML900	$23.19
3	192241-3		BULB ML900 T1	$3.61
4	643910-4		BULB HOLDER, ML900	$7.46
5	651504-1		SWITCH, ML700	$5.48
6	181835-9		CASE SET, ML900	$21.10
7	632252-1		TERMINAL, ML900	$5.48
8	410612-5		KNOB 25, ML900	$1.63
9	213011-8		O RING 7, HR2511,LS1214FL	$0.86
10	410614-1		LEVER, ML900	$1.63
11	342933-6		DIFFUSER, ML900	$1.63
12	321871-5		STAND, ML900	$3.06
13	265869-1		TAPPING SCREW 3X14, ML901	$1.96
14	265868-3		TAPPING SCREW 3X12, ML900	$1.74
16	181835-9		CASE SET, ML900	$21.10
400	181746-8		CARRYING STRAP, ML701	$5.92
401	410613-3		SIGNAL CAP, ML900	$4.49
