Makita ML701 Flashlight Parts

Makita ML701 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

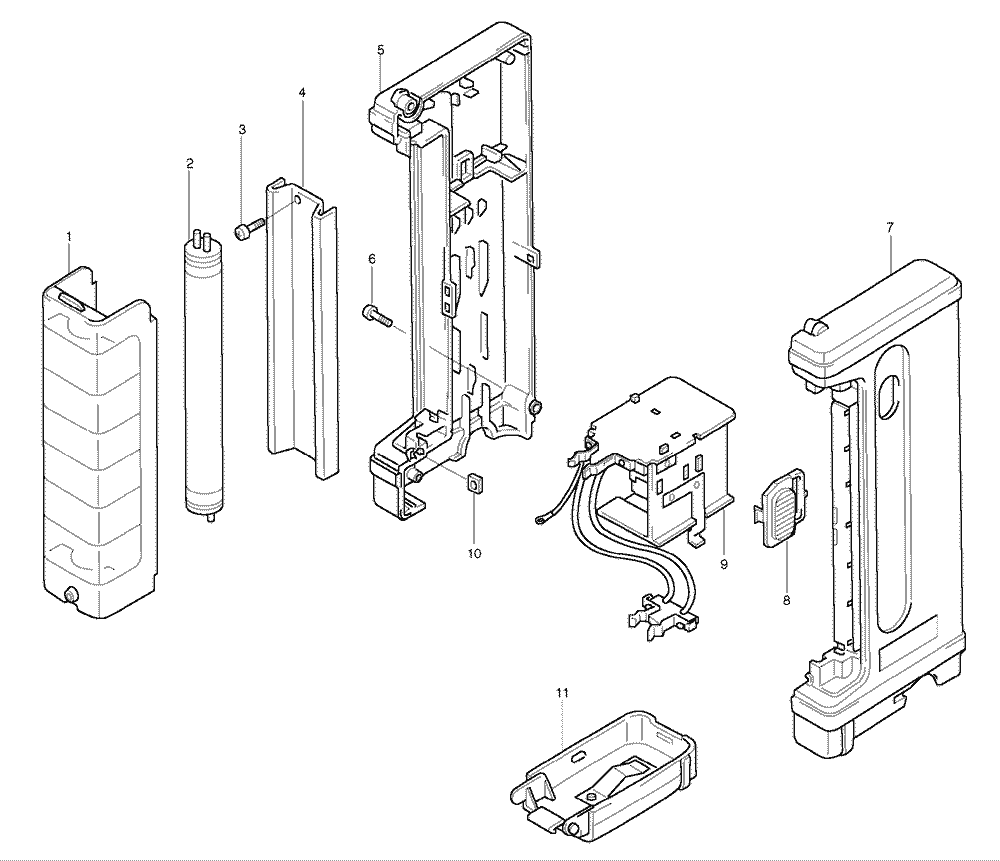

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	152269-3	COVER, ML701	$10.32
11	152282-1	CASE COVER, ML701	$7.46
2	678046-0	FLUORESCENT TUBE ML701	$12.20
3	265858-6	TAPPING SCREW M3X6, ML701	$3.28
4	342849-5	REFLECTOR, ML701	$4.49
5	181836-7	CASE SET, ML701	$26.92
6	265859-4	TAPPING SCREW M3X18, ML701	$3.28
7	181836-7	CASE SET, ML701	$26.92
8	652174-9	SWITCH LEVER, ML701	$7.46
10	252086-2	SQUARE NUT M3X6, ML701	$3.61
11	152282-1	CASE COVER, ML701	$7.46
400	181746-8	CARRYING STRAP, ML701	$5.92
