Makita ML183 Flashlight Parts

Makita ML183 Flashlight Parts Image

Makita ML183 Parts

18 Volt Fluorescent Automotive Light

Download Schematic

Time to buy a new tool?

Makita ML183

18 Volt Fluorescent ...

$80.99

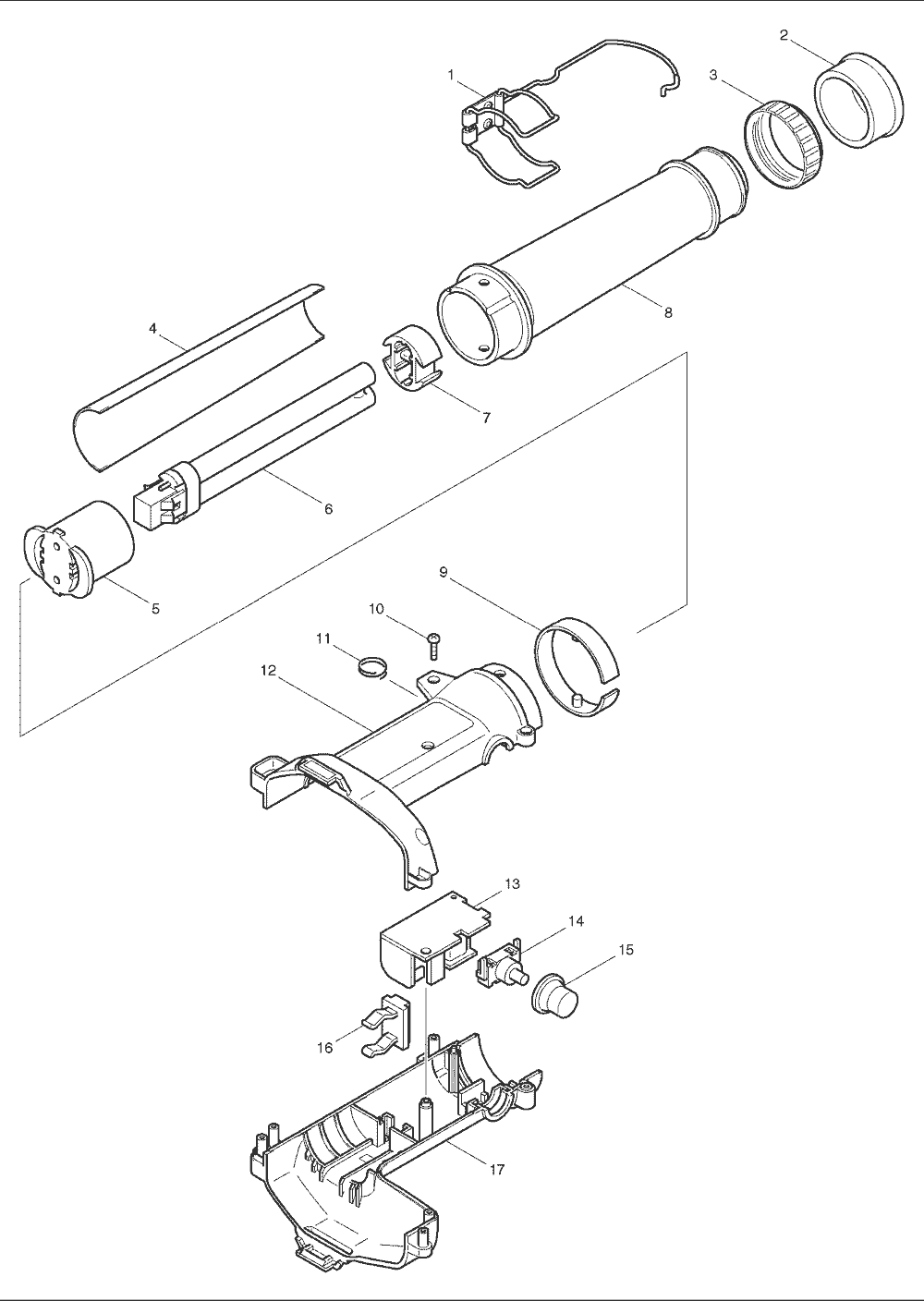

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	SM00000300		HOOK, ML123	$4.16
2	SM00000080		LAMP COVER PROTECTOR, ML123	$2.84
3	SM00000316		SCREW RING, ML143	$1.48
4	SM00000301		REFLECTOR, ML143	$1.52
5	SM00000040		HOLDER, ML123	$1.52
6	A-90978		FLUORESCENT TUBE ML123	$11.20
7	SM00000060		ABSORBER, ML123	$1.26
8	SM00000070		LAMP COVER, ML123	$5.48
9	SM00000315		C RING, ML143	$1.26
10	265868-3		TAPPING SCREW 3X12, ML900	$1.74
11	SM00000190		RING, ML123	$0.75
12	SM00000312		HOUSING L/R SET, ML183	$4.16
13	SM00000314		PRINTED CIRCUIT BOARD, ML143	$10.65
14	SM00000322		SWITCH ML123	$3.61
15	SM00000020		SWITCH COVER, ML143	$0.75
16	SM00000140		BATTERY HOLDER, ML123	$1.52
17	SM00000312		HOUSING L/R SET, ML183	$4.16
