Makita ML123 Flashlight Parts

Makita ML123 Parts

12 Volt Fluorescent Automotive Light

Download Schematic

Time to buy a new tool?

Makita ML123

12 Volt Fluorescent ...

$67.99

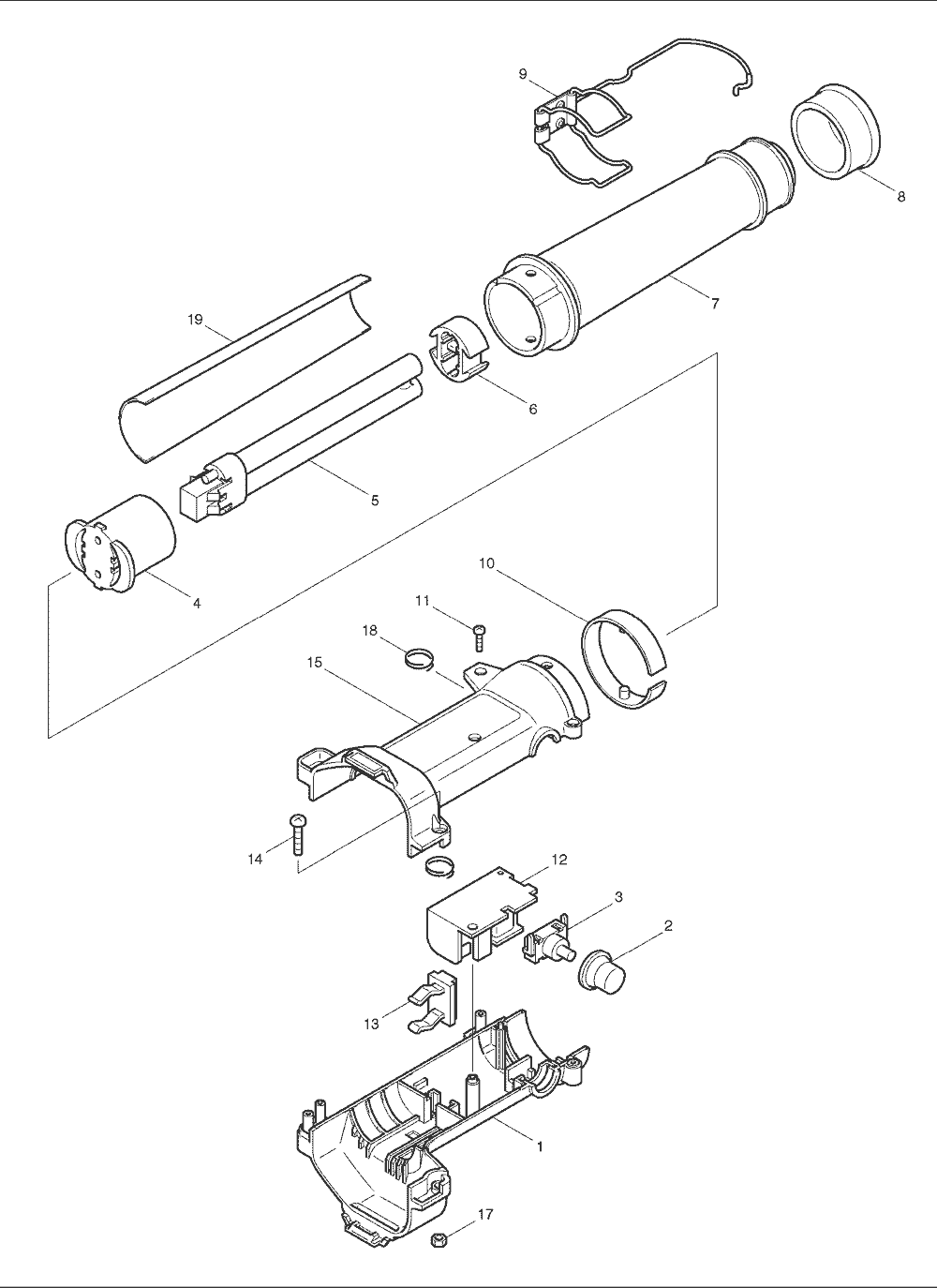

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	SM00000010	HOUSING L/R SET, ML123	$4.16
00	82ML123	CLAMSHELL (BRISTER & CARD), ML123	$5.90
2	SM00000020	SWITCH COVER, ML143	$0.75
3	SM00000322	SWITCH ML123	$3.61
4	SM00000040	HOLDER, ML123	$1.52
5	A-90978	FLUORESCENT TUBE ML123	$11.20
6	SM00000060	ABSORBER, ML123	$1.26
7	SM00000070	LAMP COVER, ML123	$5.48
8	SM00000080	LAMP COVER PROTECTOR, ML123	$2.84
9	SM00000300	HOOK, ML123	$4.16
10	SM00000315	C RING, ML143	$1.26
10	SM00000110	C RING, ML123	$1.26
11	265868-3	TAPPING SCREW 3X12, ML900	$1.74
12	SM00000130	PRINTED CIRCUIT BOARD, ML123	$13.29
13	SM00000140	BATTERY HOLDER, ML123	$1.52
14	911137-7	P.H. SCREW M4X20, ML123	$0.86
15	SM00000010	HOUSING L/R SET, ML123	$4.16
18	SM00000190	RING, ML123	$0.75
19	SM00000301	REFLECTOR, ML143	$1.52
1001	SM00000170	SET PLATE ML123	$2.40
1002	SM00000311	STRAP SET, ML123	$4.16
