Makita ML121 Flashlight Parts

Makita ML121 Flashlight Parts Image

Makita ML121 Parts

12 Volt Head Lamp

Download Schematic

Time to buy a new tool?

Makita ML121

12 Volt Head Lamp

$45.99

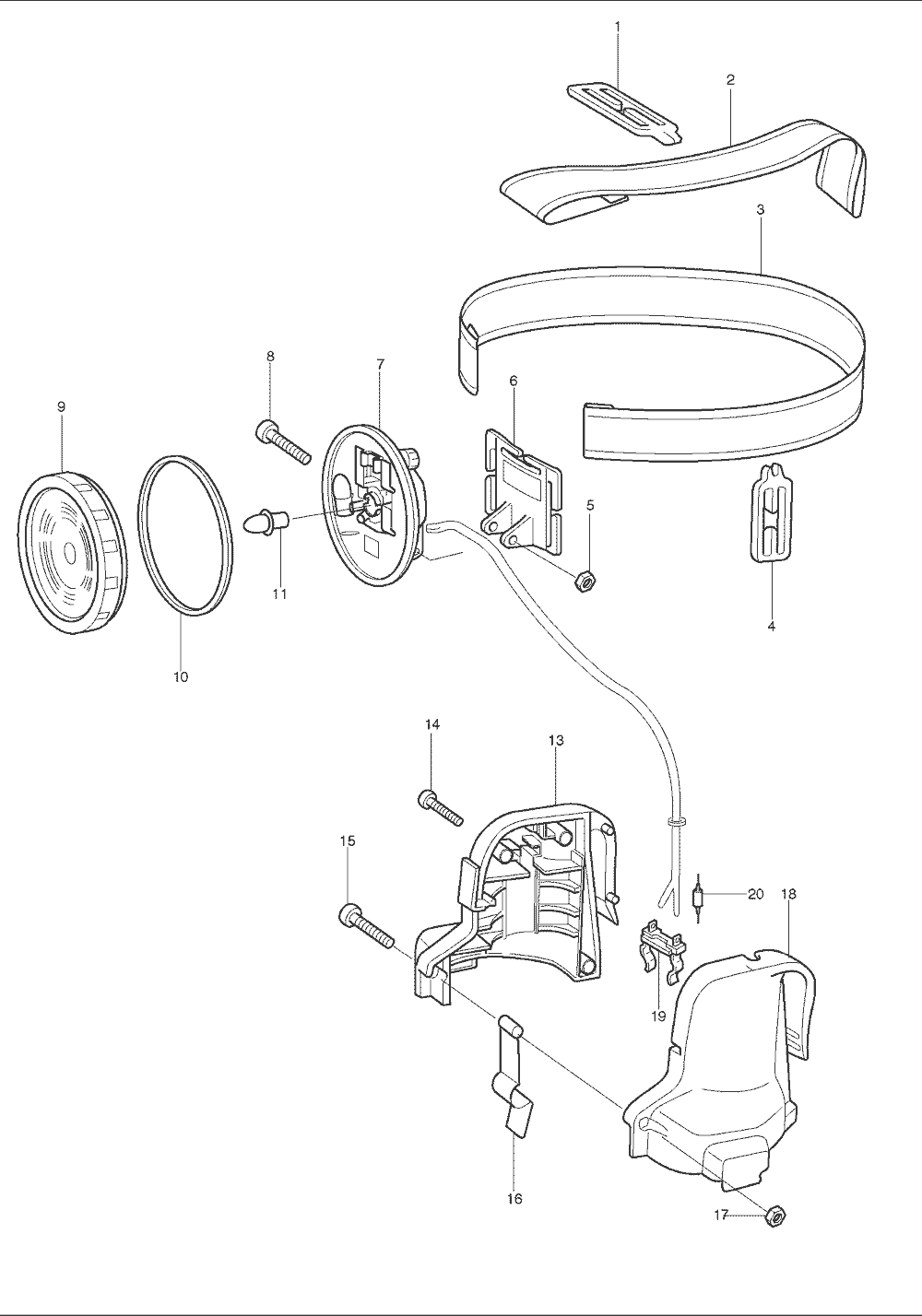

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
1	GM00000240		BELT CLIP, ML121	$1.34
2	GM00000320		BELT SET, ML121	$8.78
3	GM00000320		BELT SET, ML121	$8.78
4	GM00000240		BELT CLIP, ML121	$1.34
5	GM00000270		NUT M4, ML121	$0.79
6	GM00000230		FRONT BELT CLIP, ML121	$4.16
7	GM00000260		BULB HOLDER CASE SET, ML121	$7.46
8	GM00000280		SCREW 4X24,ML121	$0.53
9	GM00000250		FRONT CASE SET (INC. REFLX.), ML121	$6.80
10	GM00000360		PACKING, ML121	$1.26
11	A-90489		BULB SET ML121	$6.20
14	GM00000300		SCREW 3X14, ML121	$0.53
15	GM00000290		SCREW 4X22, ML121	$0.53
16	343579-1		SET PLATE, 6211D	$3.06
16	GM00000330		SET PLATE, ML121	$2.84
17	GM00000270		NUT M4, ML121	$0.79
20	GM00000310		FUSE, ML121	$1.63
