Makita MAC500 Compressor Parts

Makita MAC500 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

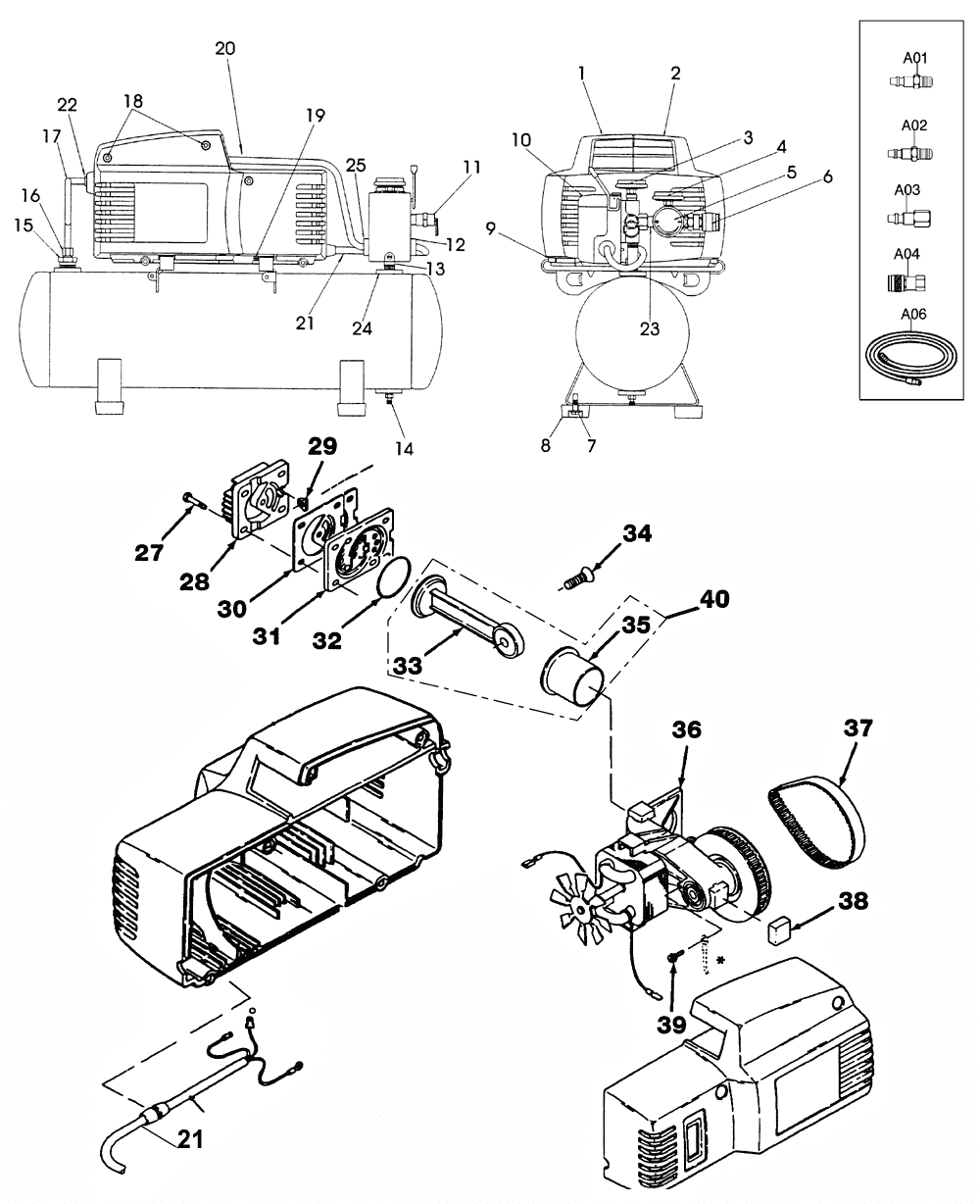

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	AC-0266	GAUGE, MAC1200	$21.10
4	AC-0266	GAUGE, MAC1200	$21.10
5	CAC-4296-1	REGULATOR, MAC500	$31.82
7	91895680	Screw ¼ - 20 x.75	$3.17
8	SST-5314-1	Rubber Bumper	$7.13
11	TIA-4150	SAFETY VALVE	$18.24
12	SSW-7367	Strain Relief Bushing	$3.50
16	SSP-473	Nut/Sleeve Assy	$6.25
17	AC-0161	OUTLET TUBE (COPPER), MAC500	$25.61
18	SSF-3156	SCREW 10-9X.50 (2 USED)	$3.17
20	SUDL-403-1	CORD, MAC500	$16.70
24	SSP-6021	REDUCER BUSHING	$3.50
27	SSF-995	Screw #10-24x7/8 LG Hex Head Thd Forming	$3.17
28	CAC-1196	Cylinder Head	$10.10
29	CAC-1212	TUBE SEAL, MAC500	$3.50
30	CAC-1199	HEAD GASKET, MAC500	$12.19
32	SSG-8169	O RING, MAC500	$5.48
34	SSF-3147	SCREW, MAC500	$3.17
37	CAC-1342	TIMING BELT, MAC500	$32.33
38	CAC-1213	PUMP ISOLATOR, MAC500	$3.50
39	SUDL-9-1	Screw, Ground #8-32x3/8 Inch	$3.17
40	KK-4964	CONNECTING ROD KIT, MAC500	$51.90
