Makita M432 Electric Saw Parts

Makita M432 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

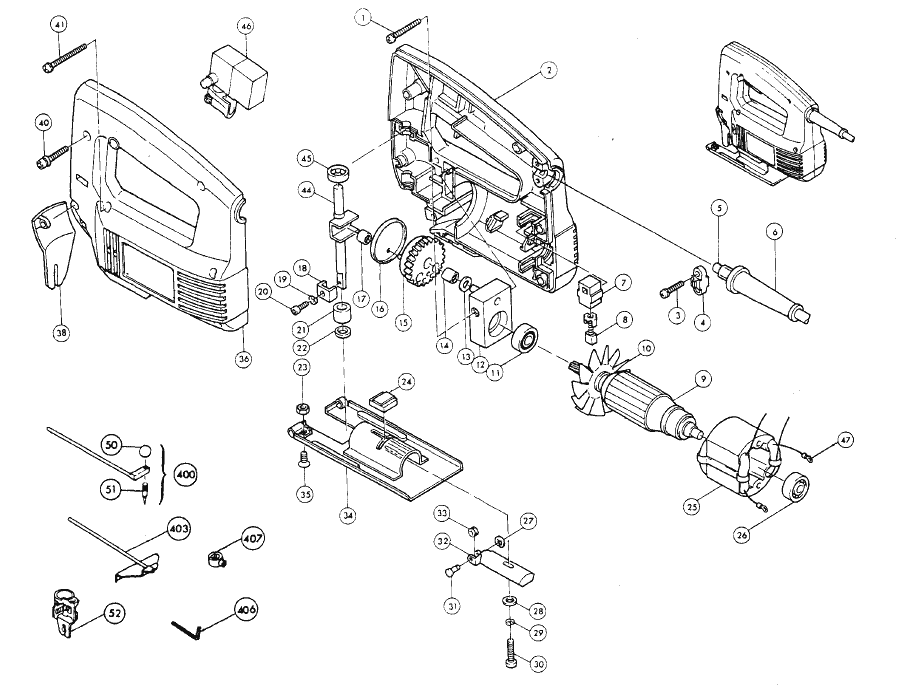

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	911166-0	P.H. SCREW M4X40, 9218PBL	$1.48
2	410583-6	HOUSING (R), M432	$21.76
3	911131-9	P.H. SCREW M4X18, HR3851	$0.53
4	687001-1	STRAIN RELIEF, 6013BR	$0.97
6	682502-4	CORD GUARD 8-85, HP2010N	$2.51
6	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
7	643552-4	BRUSH HOLDER, BO5012K	$1.63
9	611506-9	ARMATURE, M432	$55.80
10	241081-7	FAN 58, DA3000, JG1600	$3.61
11	211033-2	B. BEARING 608LB, 5091D	$8.78
12	152260-1	HOUSING W/O BEARING, HR2511	$12.63
13	267004-7	F. WASHER 6, M432	$1.34
14	212011-5	N.BEARING 609,JS1600	$10.32
15	153151-9	GEAR COMPLETE, M432	$26.27
16	342796-0	GEAR COVER, M432	$2.73
17	212014-9	N.R. BEARING 407, BJV180	$11.97
19	942051-6	SPRING WASHER 4, 4301BV	$0.90
20	922112-8	H.S.H. BOLT M4X10, BO5001	$1.08
21	214015-3	P. BEARING 8, JG1600	$1.63
23	931202-6	HEX NUT M5, HR2410	$0.79
24	164749-7	HOLDER, 4300DW	$3.06
25	621511-8	FIELD, M432	$26.52
26	211028-5	B. BEARING 627LB, 6510LVR	$8.78
27	257903-1	STOP RING E2.3, 3901	$0.49
28	941051-3	F. WASHER 4, 2107F	$0.75
29	942051-6	SPRING WASHER 4, 4301BV	$0.90
30	922132-2	H.S.H. BOLT M4X18, 4300DW	$1.08
31	256644-6	PIN 3, 4320	$1.48
32	342795-2	RETAINER, M432	$8.12
34	164745-5	BASE, M432	$8.12
35	251951-2	H.S.C.H. SCREW M5X10, 4320	$1.48
36	410584-4	HOUSING (L), M432	$21.76
38	410382-6	PROTECTOR, 4300DW	$3.06
40	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
41	911168-6	P.H. SCREW M4X40, 6905B	$0.86
44	168136-2	SLIDER, M432	$22.86
45	211080-3	BALL BEARING 805, JV2000	$25.61
46	651338-2	SWITCH, M432	$16.04
47	654038-3	INSULATED TERMINAL, 3620A	$0.97
50	271601-3	KNOB 20,LS1030	$1.63
51	323223-6	CIRCULAR GUIDE PIN, 4300DW	$1.63
52	410048-8	WRENCH HOLDER, JR3000V	$1.26
406	783201-2	HEX WRENCH 3, AF501	$3.40
