Makita LXWT01 Impact Wrench & Driver Parts

Makita LXWT01 Impact Wrench & Driver Parts Image

Makita LXWT01 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LXWT01
18 Volt LXT Lithium-...
$479.00
Tool Diagram    (Click image to Zoom in) View larger Image

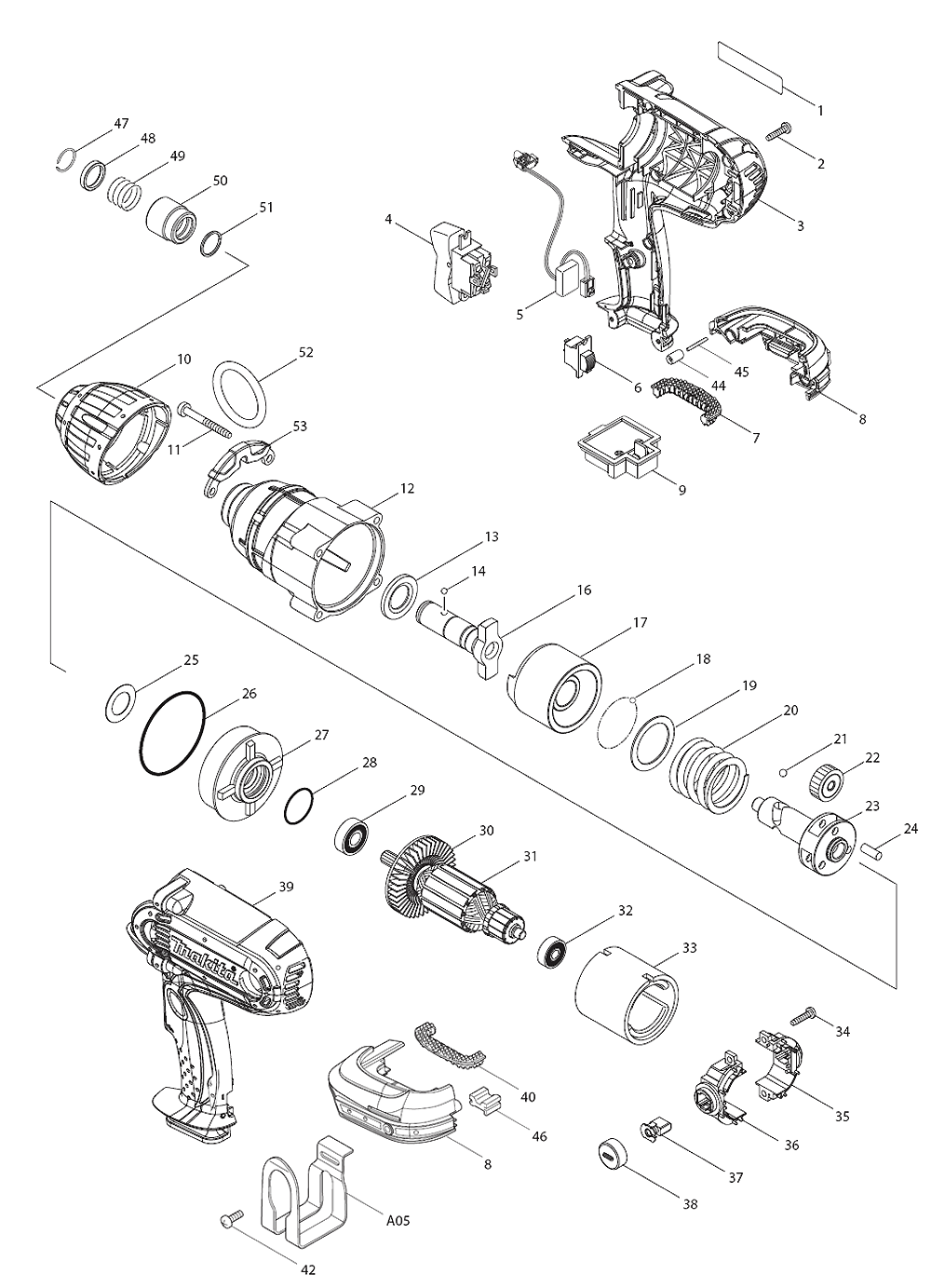

Makita LXWT01 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 896770-5 NAME PLATE, LXWT01 $1.08
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
3 188433-0 HOUSING SET, BTW450 $41.20
3 263025-7 RUBBER PIN 4, BTW450 $0.86
3 810300-8 CAUTION LABEL, BTW450 $0.96
4 651572-4 SWITCH, BTW450 $26.52
5 631738-2 LIGHT CIRCUIT, BTW450 $13.29
6 638503-0 SWITCH UNIT, BTW450 $12.63
7 424042-4 CUSHION RUBBER, BTW450 $2.84
8 188453-4 BATTERY HOUSING SET, BTW450 $18.57
8 263005-3 RUBBER PIN 6, BHP452 $0.86
10 421971-2 BUMPER, BTW450 $4.16
11 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
12 158076-2 HAMMER CASE CPL., BTW450 $23.96
13 267268-3 FLAT WASHER 19, TW0200 $2.18
14 216008-6 STEEL BALL 4.0, 5007NK $0.53
16 326160-3 ANVIL, LXWT01 $50.18
17 324697-4 HAMMER, BTW450 $27.70
18 216008-6 STEEL BALL 4.0, 5007NK $0.53
19 267340-1 FLAT WASHER 32, BTW450 $2.18
20 234241-8 COMPRESSION SPRING 33, LXWT01 $11.20
21 216007-8 STEEL BALL 6.4, 6905B $0.86
22 227171-0 SPUR GEAR 23, BTW450 $2.95
23 310185-7 SPINDLE, BTW450 $43.86
24 256033-5 PIN 6, 6905B $1.48
25 253794-8 F. WASHER 18, 6905B $1.63
26 213722-5 O RING 63, BTW450 $1.74
27 227172-8 INTERNAL GEAR 53, BTW450 $23.41
28 213445-5 O-RING 26,9557NB $0.86
29 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
30 241850-6 FAN 60, BTW450 $4.16
31 519199-5 ARMATURE ASS'Y 18V, BTW450 $45.18
32 210025-8 BALL BEARING 627LLB, 4324 $6.69
33 638107-8 YOKE UNIT, BSS610 $34.98
34 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
35 643818-2 BRUSH HOLDER, BTW450 $8.01
36 643823-9 BRUSH HOLDER, BTW450 $5.48
37 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
38 643941-3 HOLDER CAP, BJR181 $4.49
40 424042-4 CUSHION RUBBER, BTW450 $2.84
42 251314-2 SCREW M4X12, BHP451 $0.86
44 263036-2 RUBBER PIN 5, BTW251 $1.74
45 268184-2 PIN 1.5, BTW251 $0.86
46 424026-2 CUSHION, BTW251 $2.95
47 234239-5 RING SPRING 16, LXWT01 $3.50
48 257329-7 RING 18, LXWT01 $3.50
49 234240-0 COMPRESSION SPRING 18, LXWT01 $2.40
50 326161-1 SLEEVE, LXWT01 $15.60
51 257985-3 RETAINING RING (EXT), LXWT01 $3.50
52 282022-4 RING 40, LXWT01 $11.20
53 162341-3 BRACKET, LXWT01 $7.90
D01 652008-6 P.H. SCREW M3.5X7, PV7001C $0.49
D02 654037-5 INSULATED TERMINAL, RP0900K $0.75
A01 DC18RA DC18RA FAST CHARGER $165.00
A03 450128-8 BATTERY COVER FOR 18V/14.4V LI-ION BATTERY $2.40
A04 163467-4 LATCH, BPB180 $2.84
A05 345736-7 HOOK, BTW450 $2.84
