Makita LXSL01 Cordless Saw Parts

Makita LXSL01 Cordless Saw Parts Image

Makita LXSL01 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LXSL01
18 Volt LXT Lithium-...
$769.00
Page-1
Page-2

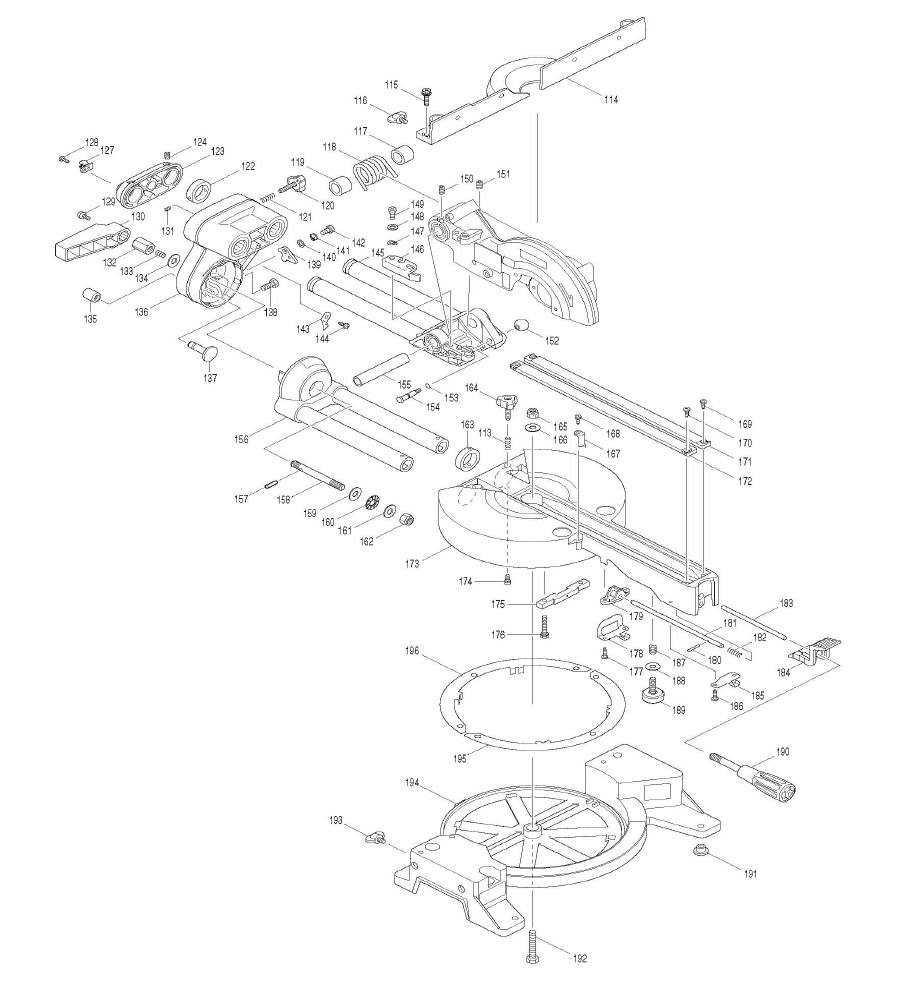

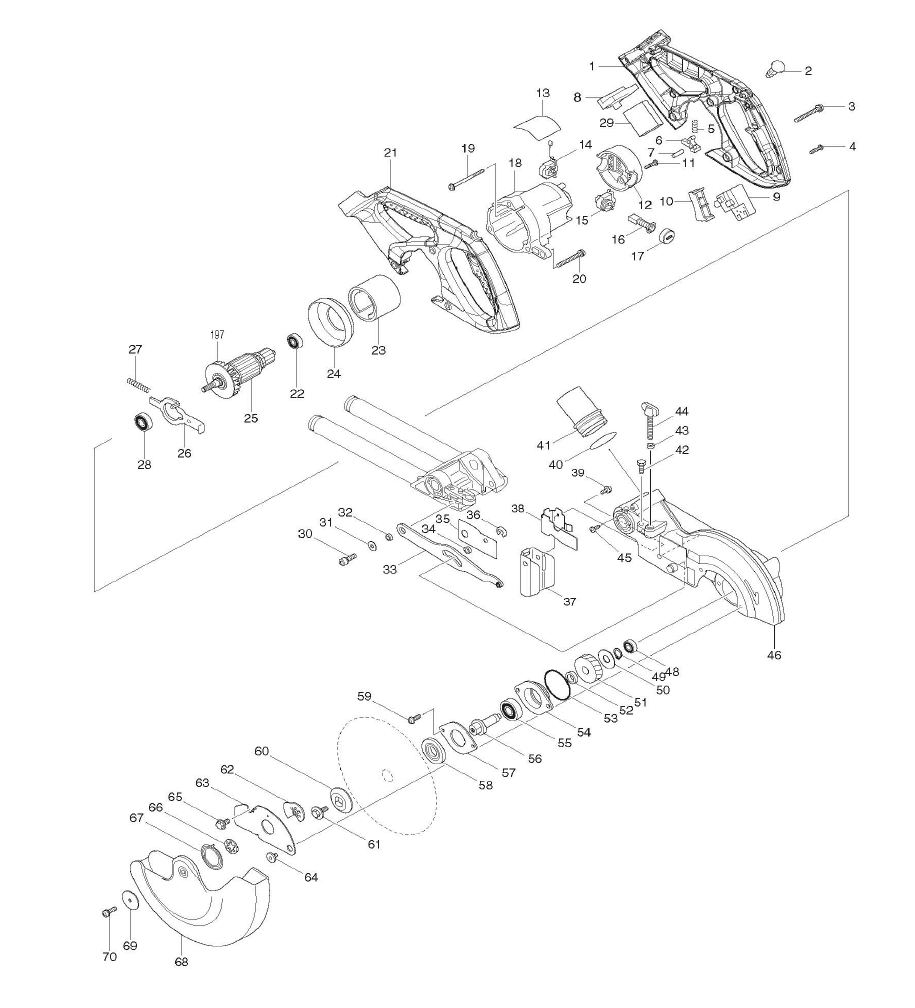

Tool Diagram    (Click image to Zoom in) View larger Image
Makita LXSL01 Cordless Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 188961-5 HANDLE SET, LXSL01 $27.74
2 417113-4 SWITCH BUTTON, 2414NB $1.52
3 911268-2 P.H. SCREW M5X45, 5007NK $1.19
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 231026-3 COMP. SPRING 4, LS1016L $0.79
6 416533-9 LOCK OFF LEVER, LS711DWBEK $3.06
7 256123-4 PIN 5, HR1821 $4.93
8 643859-8 TERMINAL, LXSL01 $3.50
9 651956-6 SWITCH, BSS501 $17.25
10 452130-7 SWITCH LEVER, LXSL01 $3.50
11 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
12 416639-3 REAR COVER, 5620DWA $4.49
13 868775-5 NAME PLATE, LXSL01 $1.30
14 643939-0 BRUSH HOLDER, 5620DWA $8.78
15 643966-7 BRUSH HOLDER, BSS730SH $4.16
16 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
17 643941-3 HOLDER CAP, BJR181 $4.49
18 416909-0 MOTOR HOUSING, LS711DWBEK $10.32
19 266209-6 TAPPING SCREW MT 4X60, 5620DWA $1.96
20 911268-2 P.H. SCREW M5X45, 5007NK $1.19
21 188961-5 HANDLE SET, LXSL01 $27.74
22 210023-2 BALL BEARING 627DDW, 9910 $6.69
23 632828-4 YOKE UNIT, 5620DWA $34.98
24 416907-4 BAFFLE PLATE, LS711DWBEK $3.06
25 519269-0 ARMATURE ASS'Y, LXSL01 $24.40
26 344681-3 SHAFT LOCK, LS711DWBEK $4.49
27 233092-6 COMP. SPRING 5, 5740NB $0.86
28 211088-7 BALL BEARING 6000DDW, 9005B $13.07
29 631999-4 CONTROLLER, LXSL01 $18.90
30 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
31 253804-1 F. WASHER 6, 6012HDW $1.34
32 257163-5 RING 6, LS1011 $1.63
34 257163-5 RING 6, LS1011 $1.63
35 346330-8 LINK COVER, LXSL01 $1.30
36 961018-5 STOP RING E-5, LS1011 $0.53
37 424045-8 GUARD, LXSL01 $2.40
38 345438-5 GUARD PLATE, LS0714 $1.34
39 911113-1 P.H. SCREW M4X10, 4301BV $0.86
40 213460-9 O RING 35, HM1500 $1.19
41 419277-0 DUST NOZZLE, LS1013 $2.84
42 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
43 262001-8 RING 5, 6906 $3.61
44 265717-4 SCREW M6X43, LS1211 $3.61
45 266026-4 TAPPING SCREW 4X12,5477NB $0.86
46 140606-3 BLADE CASE CPL., LXSL01 $101.08
46 263002-9 RUBBER PIN 4, 5007NK $0.86
46 263005-3 RUBBER PIN 6, BHP452 $0.86
46 891786-5 CAUTION LABEL, LXSL01 $1.30
48 211021-9 BALL BEARING 607LLB, LS1013 $8.78
49 961052-5 RETAINING RING S-12, 9218PBL $0.86
50 253813-0 F. WASHER 12, 2708 $1.63
51 226512-7 HELICAL GEAR 60, LS711DWBEK $11.20
52 257011-8 RING 12, LS711DWBEK $1.26
53 213623-7 O RING 46, 5007NK $0.86
54 317193-9 HOUSING W/O BEARING, LS711DWBEK $8.78
55 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
56 323798-5 SPINDLE, LS711DWBEK $14.61
57 285694-4 BEARING RETAINER 58, LS711DWBEK $3.06
58 224151-7 INNER FLANGE, 5007FK $7.46
59 911223-4 P.H. SCREW M5X16, 5007NK $0.86
60 224275-9 OUTER FLANGE, 5620DWA $5.92
61 265461-3 HEX. BOLT M6X18, LS711DWBEK $5.37
63 346232-8 CENTER COVER, LXSL01 $6.80
64 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
65 265473-6 HEX BOLT M6X14, LS0711Z $1.48
67 231934-8 SPIRAL SPRING 26, LS711DWBEK $5.37
68 419123-7 SAFETY COVER, LXSL01 $14.50
69 267136-0 FLAT WASHER 5, 9046 $2.18
70 911228-4 P.H. SCREW M5X18, 5377MG $0.86
113 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
114 318655-0 GUIDE FENCE, LXSL01 $16.70
115 265593-6 HEX. BOLT M6X25, LXSL01 $1.08
116 251887-5 SCREW M6X10, LS1030 $3.61
117 416535-5 SLEEVE 17, LS711DWBEK $3.06
118 231638-2 TORSION SPRING 28, LS711DWBEK $7.02
119 416535-5 SLEEVE 17, LS711DWBEK $3.06
120 265790-4 THUMB SCREW M6X28, LXSL01 $0.44
121 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
122 257214-4 RING 26, LS711DWBEK $7.46
123 318651-8 PIPE HOLDER, LXSL01 $5.70
124 266208-8 HEX SOCKET HEAD BOLT M6X8, LS1016L $1.96
127 416536-3 WRENCH HOLDER, LS711DWBEK $2.84
128 266026-4 TAPPING SCREW 4X12,5477NB $0.86
129 911113-1 P.H. SCREW M4X10, 4301BV $0.86
130 416006-2 LEVER 100, LS1040 $5.92
131 913106-4 SET SCREW M4X8, LS0714 $1.48
132 252144-4 HEX. NUT M10-17, LS1013 $5.92
133 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
134 253024-7 F. WASHER 10, LS0714 $1.34
135 286236-7 CAP 16, LS1211 $1.63
136 140609-7 ARM CPL., LXSL01 $59.20
136 211376-2 LINEAR BALL BEARING, LS0714 $40.18
136 262077-5 FELT RING 25, LS711DWBEK $3.61
136 263005-3 RUBBER PIN 6, BHP452 $0.86
136 344638-4 CAP 35, LS1016 $0.90
137 324295-4 RELEASE PIN, LS0714 $4.16
138 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
139 345299-3 STOPPER PLATE, LS0714 $2.84
140 253726-5 F. WASHER 6, 6000LR $1.34
141 231663-3 TORSION SPRING 8, LS0714 $1.63
142 265113-6 + PAN HEAD SCREW M5, LS0714 $1.48
143 343678-9 INDICATION PLATE, LS1011 $1.63
144 266026-4 TAPPING SCREW 4X12,5477NB $0.86
145 140608-9 FRONT ARM CPL., LXSL01 $50.18
146 344643-1 STOPPER ARM, LS711DWBEK $3.06
147 253948-7 W. WASHER 8, UM140D $0.90
148 253835-0 F. WASHER 8, LS1016L $1.34
149 251267-5 P.H. SCREW M6, LS1013 $1.96
150 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
151 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
152 271601-3 KNOB 20,LS1030 $1.63
153 213021-5 O RING 5, JR3070CT $0.53
154 324183-5 STOPPER PIN, LS0714 $1.52
155 331350-5 PIPE 16-90, LS1030 $5.92
156 140610-2 ARM HOLDER CPL., LXSL01 $47.12
156 816392-5 BEVEL SCALE LABEL, LS0714 $2.74
157 256123-4 PIN 5, HR1821 $4.93
158 266320-4 SCREW M10, BLS712SFK $4.93
159 253024-7 F. WASHER 10, LS0714 $1.34
161 253024-7 F. WASHER 10, LS0714 $1.34
162 252130-5 HEX LOCK NUT M10 LS1211 $4.16
163 257214-4 RING 26, LS711DWBEK $7.46
164 265790-4 THUMB SCREW M6X28, LXSL01 $0.44
165 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
166 253731-2 F. WASHER 8, 2414B $1.63
167 416355-7 INDICATION PLATE, LS1220 $1.26
168 266026-4 TAPPING SCREW 4X12,5477NB $0.86
169 266026-4 TAPPING SCREW 4X12,5477NB $0.86
170 266026-4 TAPPING SCREW 4X12,5477NB $0.86
171 419103-3 KERF BOARD, LXSL01 $2.40
172 419103-3 KERF BOARD, LXSL01 $2.40
173 140613-6 TURN BASE CPL., LXSL01 $94.20
173 211376-2 LINEAR BALL BEARING, LS0714 $40.18
173 262077-5 FELT RING 25, LS711DWBEK $3.61
173 263005-3 RUBBER PIN 6, BHP452 $0.86
173 344638-4 CAP 35, LS1016 $0.90
173 810487-6 CAUTION LABEL, LS1016 $1.08
173 817283-3 CAUTION LABEL, LS1220 $1.21
173 891787-3 CAUTION LABEL, LXSL01 $1.30
173 816787-2 INDICATION LABEL, LS1212 $4.02
174 922111-0 H.S.H. BOLT M4X10, LS1011 $1.34
175 153580-6 SQUARE ROD CPL., LS0714 $12.63
175 263005-3 RUBBER PIN 6, BHP452 $0.86
176 925251-3 HEX. BOLT M5X30, LS711DWBEK $2.40
177 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
178 344601-7 LOCK PLATE, LXSL01 $1.63
179 317616-7 PIN HOLDER, LS0714 $9.33
180 256158-5 PIN 3, BJR181 $1.19
181 324288-1 LOCK PIN, LS0714 $4.16
182 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
183 324289-9 ROD 6, LS0714 $1.52
184 416450-3 LOCK LEVER, LS1045 $3.06
185 345272-3 LOCK LEVER PLATE, LS0714 $2.84
186 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
187 231418-6 COMP. SPRING 9, LC1230 $1.48
188 253731-2 F. WASHER 8, 2414B $1.63
189 266432-3 ADJUST BOLT M8X27, LXSL01 $2.40
190 273658-0 GRIP 32, LXSL01 $9.00
191 286212-1 CAP 20, LS1013FL $0.97
192 921472-5 HEX BOLT M8X50,8401 $1.48
193 251887-5 SCREW M6X10, LS1030 $3.61
194 140611-0 BASE CPL., LXSL01 $49.16
194 816339-9 MITER SCALE PLATE, LS0714, LXSL01 $4.49
194 810483-4 CAUTION LABEL, LS1016 $1.08
195 344646-5 SLIDE PLATE, LS711DWBEK $4.49
196 344646-5 SLIDE PLATE, LS711DWBEK $4.49
197 241873-4 FAN 55, 6922NB $7.02
A01 122571-8 .VICE ASS'Y, LS711DWBEK $72.40
A01 316938-2 VISE ARM, LS1212 $11.97
A01 251887-5 SCREW M6X10, LS1030 $3.61
A01 322313-2 VISE ROD, LS1030 $5.92
A01 265733-6 THUMB SCREW M10X60,LS711DWBEK $6.47
A01 253804-1 F. WASHER 6, 6012HDW $1.34
A01 343651-9 VISE PLATE, LS1030 $3.06
A01 251370-2 PAN HEAD SCREW, 5007NK $1.74
A02 122852-0 'DUST BAG ASS''Y LS1016 ' $20.80
A02 410602-8 FASTENER, 9900B $3.06
A04 322312-4 HOLDER LS1040 $12.60
A05 782223-9 BOX WRENCH, LS0714 $6.40
A06 A-90912 7-1/2 C.T.BLADE, 40T,LS711DW $43.40
A07 DC18RA DC18RA FAST CHARGER $165.00
A08 BL1830 BATTERY BL1830 $172.20
A09 450128-8 BATTERY COVER FOR 18V/14.4V LI-ION BATTERY $2.40
