Makita LXSF01
18V LXT Lithium-Ion ...
$349.00
Tool Diagram    (Click image to Zoom in) View larger Image

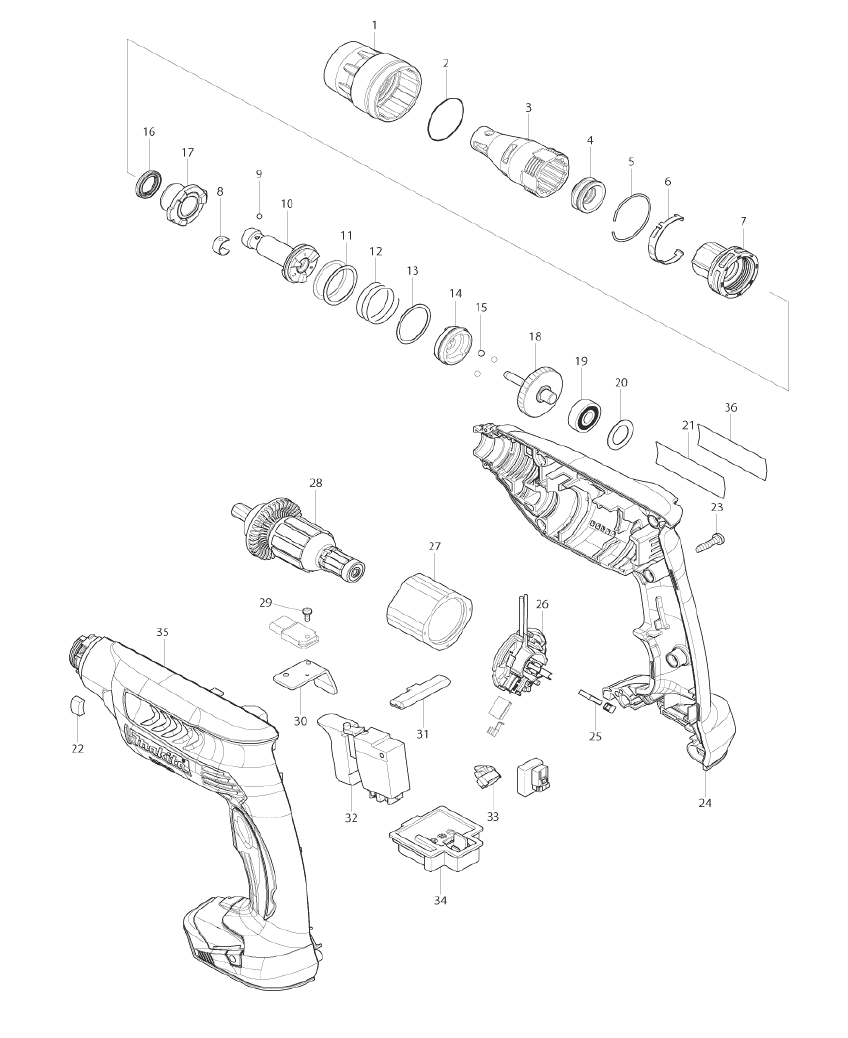

Makita LXSF01 Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 450881-6 LOCK RING, FS4200 $2.51
2 424235-3 SEAL RING 30, FS4200 $0.66
3 158876-0 LOCATOR FS4200 $16.60
4 424163-2 DUST SEAL SLEEVE, FS4200 $0.66
6 232245-4 LEAF SPRING, BFS450Z $4.16
7 141100-8 LOCATOR BASE CPL., LXSF01 $4.60
8 232050-9 LEAF SPRING, 6820V $1.48
9 216001-0 STEEL BALL 3.5, 6800DBV $0.53
10 140771-8 SPINDLE 125S CPL., LXSF01 $18.90
11 267331-2 FLAT WASHER 25, BFS450Z $1.63
12 234017-3 COMPRESSION SPRINGS 25, BFS450Z $4.16
13 267332-0 FLAT WASHER 26, BFS450Z $1.63
14 223170-0 CLUTCH CAM 125S, LXSF01 $7.90
15 216008-6 STEEL BALL 4.0, 5007NK $0.53
16 213184-7 X-RING 14, LXSF01 $1.08
17 140773-4 BEARING CPL., LXSF01 $2.40
18 140772-6 GEAR CPL., LXSF01 $22.20
19 211032-4 B. BEARING 608ZZ, N1900B $8.78
20 253192-6 F. WASHER 14, HR2400 $1.63
21 869443-3 NAME PLATE, LXSF01 $1.08
22 423413-2 RUBBER PLATE, FS4200 $0.66
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 187172-9 HOUSING SET, LXSF01 $26.60
24 263005-3 RUBBER PIN 6, BHP452 $0.86
24 892614-7 CAUTION L LABEL, LXSF01 $1.08
25 195021-6 CARBON BRUSH SET CB-440, BHP451 $4.71
26 638748-0 BRUSH HOLDER CPL., LXSF01 $5.70
27 638426-2 YORK UNIT, BFS450Z $24.95
28 619277-2 ARMATURE, LXSF01 $28.76
29 911006-2 P.H. SCREW M3X8, 6233DWAE $0.53
30 689150-0 HEAT SINK, BDF452HW $1.30
31 452516-5 F/R CHANGE LEVER, LXSF01 $1.08
32 650657-3 SWITCH TG553FSB-9B, LXSF01 $26.60
33 620030-1 LIGHT CIRCUIT, LXSF01 $15.60
34 643852-2 TERMINAL, LXFD01CW $3.61
35 187172-9 HOUSING SET, LXSF01 $26.60
35 263005-3 RUBBER PIN 6, BHP452 $0.86
35 892614-7 CAUTION L LABEL, LXSF01 $1.08
36 892812-3 CLEAR LABEL, LXSF01 $0.64
A01 266622-8 + TRUSS HEAD SCREW M4X12, LXDT01 $0.64
A04 784801-1 MAGNETIC BIT HOLDER, 6801DBV $9.20
A05 DC18RA DC18RA FAST CHARGER $165.00
A06 BL1830 BATTERY BL1830 $172.20
