Makita LXPK01 Cordless Planer Parts

Makita LXPK01 Cordless Planer Parts Image

Makita LXPK01 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LXPK01
18V LXT 3-1/4 Inch L...
$389.00
Tool Diagram    (Click image to Zoom in) View larger Image

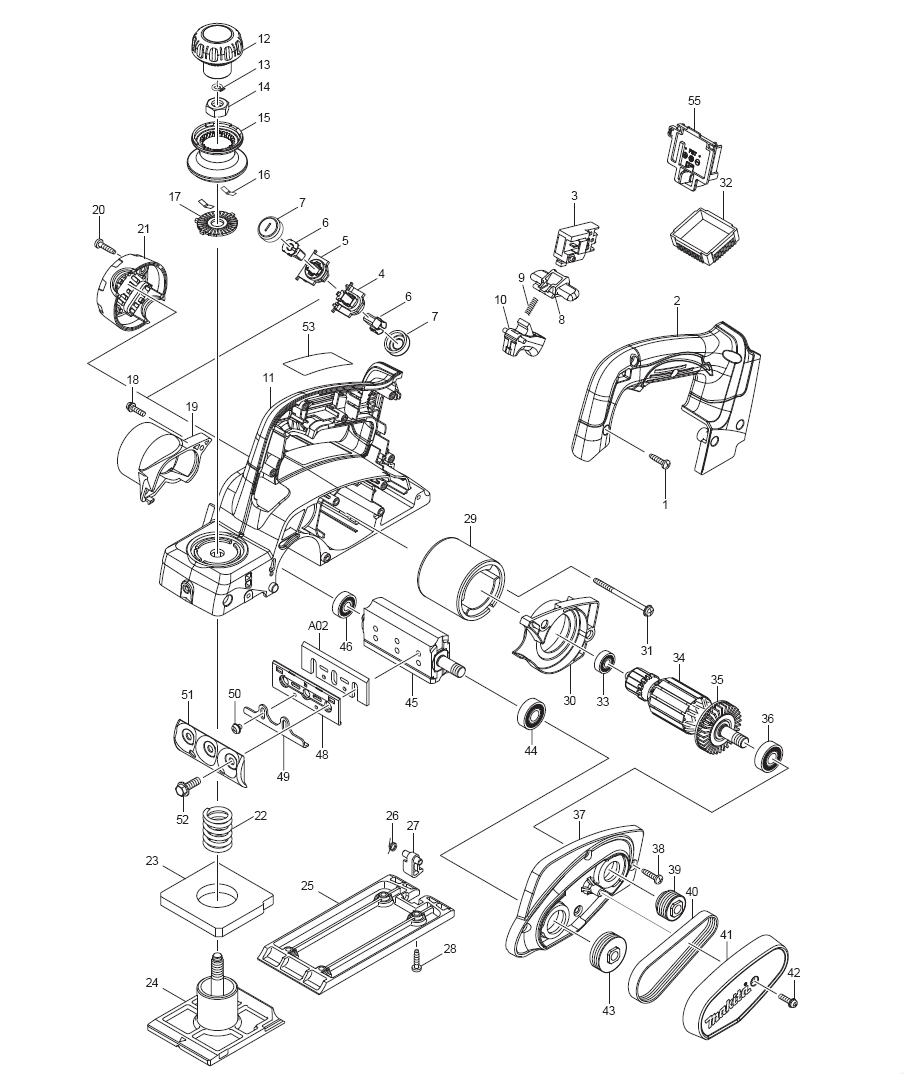

Makita LXPK01 Cordless Planer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
2 140905-3 HANDLE COVER CPL., LXPK01 $9.00
2 263005-3 RUBBER PIN 6, BHP452 $0.86
3 650631-1 SWITCH, LXPK01 $13.40

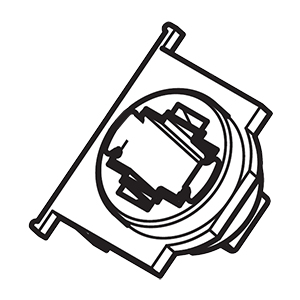

4 643872-6 BRASH HOLDER, LXPK01 $2.40
6 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
7 643829-7 HOLDER CAP, BJR182Z $0.97
8 419664-3 LOCK OFF LEVER, BCS550/Z $1.63
9 231469-9 COMP. SPRING 4, SH01W $0.86
10 419665-1 SWITCH LEVER, BCS550/Z $1.63
11 263005-3 RUBBER PIN 6, BHP452 $0.86
11 892709-6 CAUTION LABEL, LXPK01 $0.64
12 451328-3 KNOB COVER, KP0800K $2.51
13 961004-6 RETAINING RING S-8, DA391D $0.53
14 264028-4 HEX. NUT M10, KP0800K $1.12
15 452793-9 KNOB, LXPK01 $4.60
16 232185-6 LEAF SPRING, 1050DWA $4.16
17 346110-2 CAM PLATE, KP0800K $1.12
18 911128-8 P.H. SCREW M4X16, 1902 $1.48
19 451393-2 CHIP COVER, KP0800K $1.34
20 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
21 419281-9 REAR COVER, BSS610 $4.16
22 231004-3 COMP. SPRING 18, 1912B $4.16
23 421007-7 RUBBER PACKING, N1900B $3.06
24 318491-4 FRONT BASE, KP0800K $5.92
25 318499-8 BASE, KP0800K $5.92
26 231698-4 TORSION SPRING 7, KP0810 $1.48
27 451392-4 FOOT, KP0800K $0.90
28 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
29 638571-3 YOKE UNIT, BJR182Z $8.01
30 452479-5 BAFFLE PLATE, LXPK01 $1.30
31 266292-3 TAPPING SCREW 4X65, 5402NA $1.74
32 620031-9 CONTROLLER, LXPK01 $20.00
33 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
34 519272-1 ARMATURE ASS'Y DC18V, LXPK01 $20.00
35 240052-1 FAN 46, LXPK01 $4.16
36 211088-7 BALL BEARING 6000DDW, 9005B $13.07
37 140753-0 BRACKET CPL., LXPK01 $7.90
37 263002-9 RUBBER PIN 4, 5007NK $0.86
38 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
39 222172-3 V-PULLEY 4-24L, LXPK01 $2.40
40 225007-7 POLY V-BELT, KP0800K $16.04
41 452478-7 BELT COVER, LXPK01 $3.50
42 911128-8 P.H. SCREW M4X16, 1902 $1.48
43 222173-1 V-PULLEY 4-33.5, LXPK01 $2.40
44 211088-7 BALL BEARING 6000DDW, 9005B $13.07
45 161061-6 DRUM, N1900B $27.59
46 211032-4 B. BEARING 608ZZ, N1900B $8.78
48 343433-9 SET PLATE (MINI BLADE), N1900B $4.49
49 345644-2 ADJUST PLATE, KP0810 $1.26
50 265132-2 + PAN HEAD SCREW M4X5, KP0800K $0.44
51 345007-2 DRUM PLATE SET, KP0800 $7.46
52 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
53 869631-2 NAME PLATE, LXPK01 $1.08
55 643859-8 TERMINAL, LXSL01 $3.50
60 265785-7 THUMB SCREW M5X10, KP0800K $1.12
D01 654208-4 RECEPTACLE, BTW120SA $0.97
A01 165581-2 GUIDE RULE KP0800K $16.60
A02 D-46246 3-1/4 Inch Double Edge Planer Blades Set $13.19
A02 D-46230 "3-1/4"" HSS PLANER BLADE (2PCS/SET)" REPLACES D... $21.62
A03 911228-4 P.H. SCREW M5X18, 5377MG $0.86
A03 411086-3 GAUGE PLATE, HM0860C $1.52
A04 782209-3 SOCKET WRENCH, 4200H $6.40
A05 DC18RA DC18RA FAST CHARGER $165.00
A07 450128-8 BATTERY COVER FOR 18V/14.4V LI-ION BATTERY $2.40
A09 162271-8 LATCH, HM1214C $2.51
A09 450990-1 HANDLE, BHR261 $2.51
A12 410602-8 FASTENER, 9900B $3.06
A13 251920-3 C.S.N. BOLT M6X30, 5007NB $1.34
A13 934301-3 WING NUT M6, N1900B $1.96
A14 923211-9 C.S.N. BOLT M5X12, 1900B $1.08
A14 911221-8 P.H. SCREW M5X16, JR3000V $0.86
A14 934201-7 WING NUT M5, 1900B $1.96
A15 911201-4 P.H. SCREW M5X8, 2711 $1.19
A15 252045-6 SQUARE NUT M5, BO5021K $1.96
A17 416368-8 ELBOW LS1013 $4.40
