Makita LS800D Electric Saw Parts

Makita LS800D Electric Saw Parts Image

Makita LS800D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

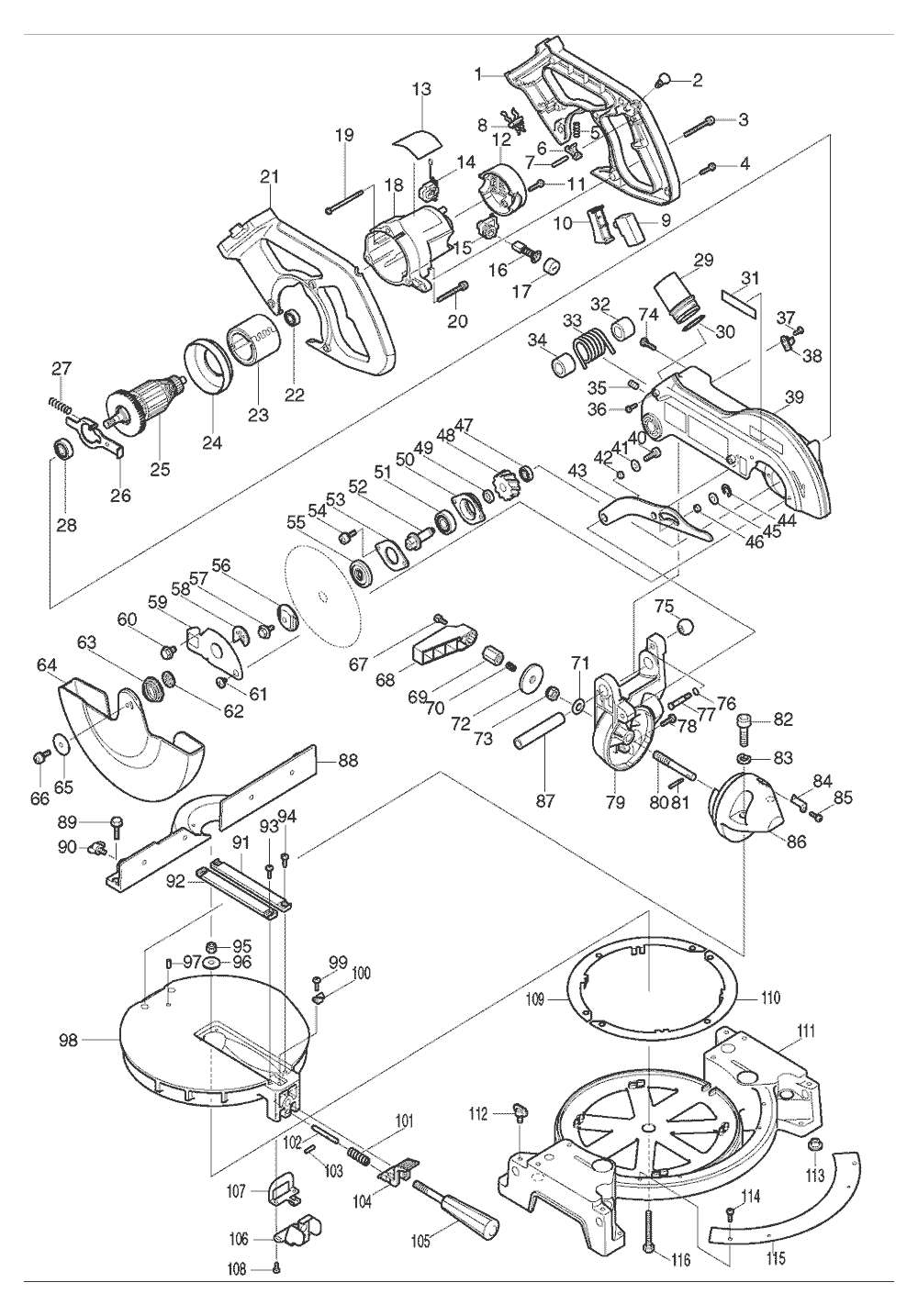

Makita LS800D Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 183166-2 HANDLE SET, LS711DWBEK $16.04
2 411478-6 SWITCH BUTTON, LS1011 $1.63
3 911268-2 P.H. SCREW M5X45, 5007NK $1.19
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 231026-3 COMP. SPRING 4, LS1016L $0.79
6 416533-9 LOCK OFF LEVER, LS711DWBEK $3.06
7 256098-7 PIN 5, LC1230 $1.96
8 643918-8 BATTERY HOLDER, 6391DWPLE $8.01
9 651956-6 SWITCH, BSS501 $17.25
10 416534-7 SWITCH LEVER, LS711DWBEK $3.06
11 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
12 416639-3 REAR COVER, 5620DWA $4.49
13 851615-4 NAME PLATE, LS800D $2.51
14 643946-3 BRUSH HOLDER, LS711DWBEK $4.49
15 643945-5 BRUSH HOLDER, LS711DWBEK $4.49
16 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
17 643941-3 HOLDER CAP, BJR181 $4.49
18 416909-0 MOTOR HOUSING, LS711DWBEK $10.32
19 266209-6 TAPPING SCREW MT 4X60, 5620DWA $1.96
20 911268-2 P.H. SCREW M5X45, 5007NK $1.19
21 183166-2 HANDLE SET, LS711DWBEK $16.04
22 210023-2 BALL BEARING 627DDW, 9910 $6.69
22 211026-9 B. BEARING 627LLB, N9514B $8.78
23 632828-4 YOKE UNIT, 5620DWA $34.98
24 416907-4 BAFFLE PLATE, LS711DWBEK $3.06
25 519050-9 ARMATURE ASS'Y, LS711DWBEK $65.90
26 344681-3 SHAFT LOCK, LS711DWBEK $4.49
27 233092-6 COMP. SPRING 5, 5740NB $0.86
28 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
28 211088-7 BALL BEARING 6000DDW, 9005B $13.07
29 419277-0 DUST NOZZLE, LS1013 $2.84
30 213460-9 O RING 35, HM1500 $1.19
31 819003-1 MAKITA LABEL, 5057KB $1.48
32 416905-8 SLEEVE 17-23, LS800DWB $2.84
33 231644-7 TORSION SPRING 28, LS800DWB $7.02
34 416905-8 SLEEVE 17-23, LS800DWB $2.84
35 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
36 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
37 266026-4 TAPPING SCREW 4X12,5477NB $0.86
38 416536-3 WRENCH HOLDER, LS711DWBEK $2.84
39 151904-0 BLADE CASE COMPLETE, LS800DWB $93.00
40 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
41 253804-1 F. WASHER 6, 6012HDW $1.34
42 257163-5 RING 6, LS1011 $1.63
43 344776-2 LINK PLATE, LS800DWB $5.48
44 961018-5 STOP RING E-5, LS1011 $0.53
45 253804-1 F. WASHER 6, 6012HDW $1.34
46 257163-5 RING 6, LS1011 $1.63
47 211021-9 BALL BEARING 607LLB, LS1013 $8.78
48 226512-7 HELICAL GEAR 60, LS711DWBEK $11.20
49 257011-8 RING 12, LS711DWBEK $1.26
50 317193-9 HOUSING W/O BEARING, LS711DWBEK $8.78
51 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
52 323798-5 SPINDLE, LS711DWBEK $14.61
53 285694-4 BEARING RETAINER 58, LS711DWBEK $3.06
54 911223-4 P.H. SCREW M5X16, 5007NK $0.86
55 224151-7 INNER FLANGE, 5007FK $7.46
56 224275-9 OUTER FLANGE, 5620DWA $5.92
57 265461-3 HEX. BOLT M6X18, LS711DWBEK $5.37
59 344641-5 .CENTER COVER, LS711DWBEK $4.49
60 265473-6 HEX BOLT M6X14, LS0711Z $1.48
61 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
62 344639-2 CENTER WASHER, LS711DWBEK $2.18
63 231934-8 SPIRAL SPRING 26, LS711DWBEK $5.37
64 416908-2 SAFETY COVER, LS800DWB $13.84
65 267136-0 FLAT WASHER 5, 9046 $2.18
66 911233-1 P.H. SCREW M5X20, TW1000 $0.86
67 911118-1 P.H. SCREW M4X12, 6221D $0.86
68 416006-2 LEVER 100, LS1040 $5.92
69 252144-4 HEX. NUT M10-17, LS1013 $5.92
70 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
71 253024-7 F. WASHER 10, LS0714 $1.34
72 267196-2 FLAT WASHER 10, LS800DWB $5.26
73 252130-5 HEX LOCK NUT M10 LS1211 $4.16
74 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
75 271601-3 KNOB 20,LS1030 $1.63
76 213021-5 O RING 5, JR3070CT $0.53
77 322338-6 STOPPER PIN, LS1030 $3.06
78 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
79 151655-5 ARM COMPLETE, LS800DWB $39.06
80 266221-6 SCREW M10, LS800DWB $4.93
81 256761-2 PIN 5, LS800DWB $1.48
82 922557-0 H.S.H. BOLT M10X35, HM1303B $1.74
83 942251-8 SPRING WASHER 10, 2711 $1.34
84 416355-7 INDICATION PLATE, LS1220 $1.26
85 911118-1 P.H. SCREW M4X12, 6221D $0.86
86 317251-1 SUB ARM, LS800DWB $35.90
87 323888-4 ROD 16-100, LS800DWB $4.16
88 317250-3 GUIDE FENCE, LS800DWB $49.98
89 921341-0 HEX BOLT M6X25, LS711DWBEK $1.34
91 416906-6 KERF BOARD, LS800DWB $2.84
92 416906-6 KERF BOARD, LS800DWB $2.84
93 266026-4 TAPPING SCREW 4X12,5477NB $0.86
94 266026-4 TAPPING SCREW 4X12,5477NB $0.86
95 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
96 253731-2 F. WASHER 8, 2414B $1.63
97 256040-8 PIN 5, LS1030 $1.19
98 317197-1 TURN BASE, LS800DWB $84.60
99 266026-4 TAPPING SCREW 4X12,5477NB $0.86
100 416904-0 INDICATION PLATE, LS800DWB $1.52
101 231402-1 COMP. SPRING 7, LS1045 $1.48
102 323741-4 LOCK PIN, LS1220 $3.06
103 256158-5 PIN 3, BJR181 $1.19
104 416450-3 LOCK LEVER, LS1045 $3.06
105 273495-2 GRIP 32, LS1040 $5.92
106 344602-5 SUPPORT PLATE, LS1045 $4.16
107 344601-7 LOCK PLATE, LXSL01 $1.63
108 266026-4 TAPPING SCREW 4X12,5477NB $0.86
109 344646-5 SLIDE PLATE, LS711DWBEK $4.49
110 344646-5 SLIDE PLATE, LS711DWBEK $4.49
111 151906-6 BASE COMPLETE, LS800DWB $98.27
113 286212-1 CAP 20, LS1013FL $0.97
114 266026-4 TAPPING SCREW 4X12,5477NB $0.86
115 816347-0 MITER SCALE PLATE, LS800DWB $8.01
116 921477-5 HEX BOLT M8X55, LS800DWB $1.48
1001 782223-9 BOX WRENCH, LS0714 $6.40
1002 414938-7 BATTERY COVER, 6222DWE $2.20
1004 411478-6 SWITCH BUTTON, LS1011 $1.63
1011 192932-6 SUB PLATE SET, LS800DWB $12.20
