Makita LS1221 Electric Saw Parts

Makita LS1221 Parts

12 Inch Compound Miter Saw Kit

Download Schematic

Time to buy a new tool?

Makita LS1221

12 Inch Compound Mit...

$348.99

Page-1

Page-2

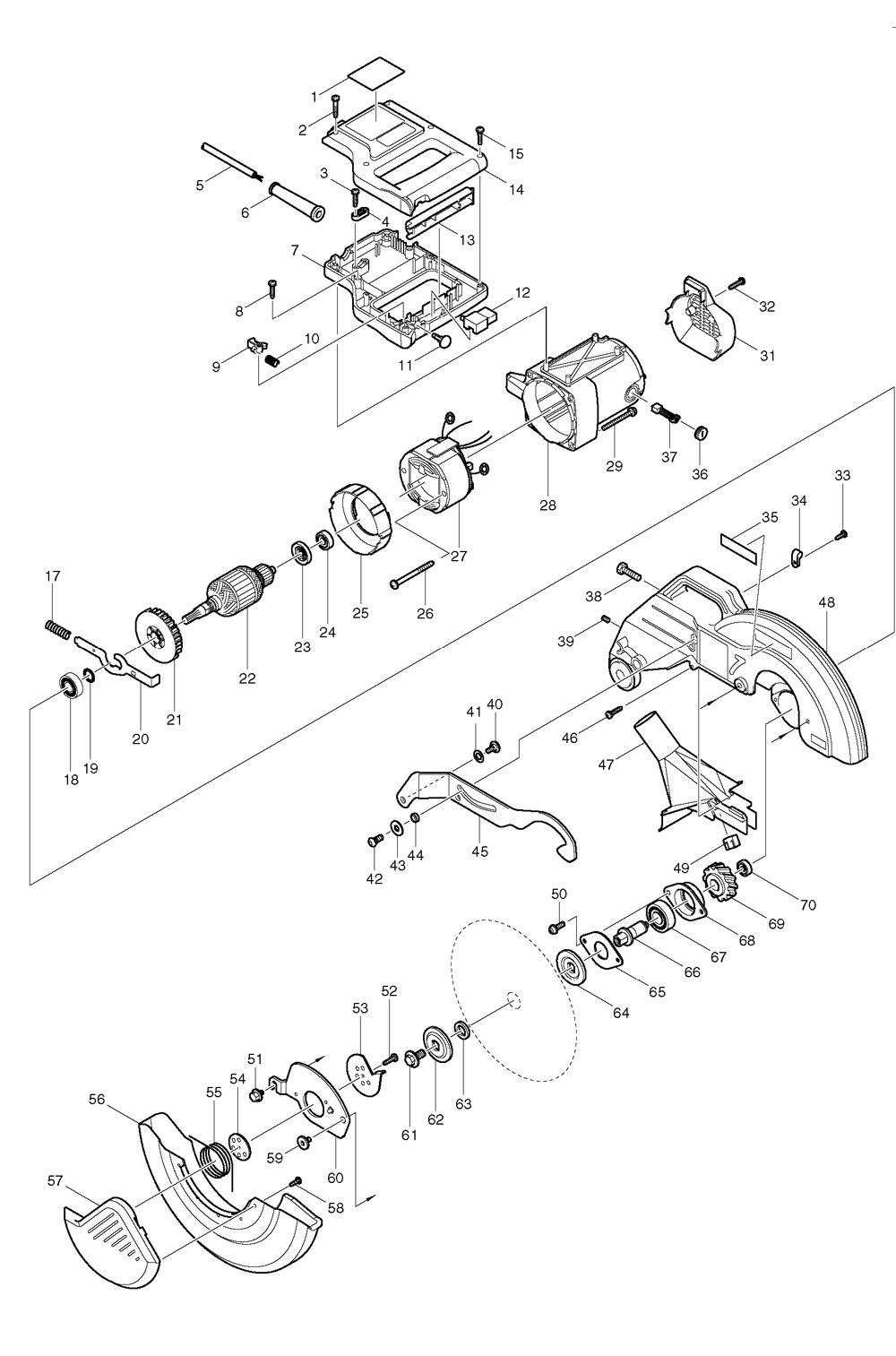

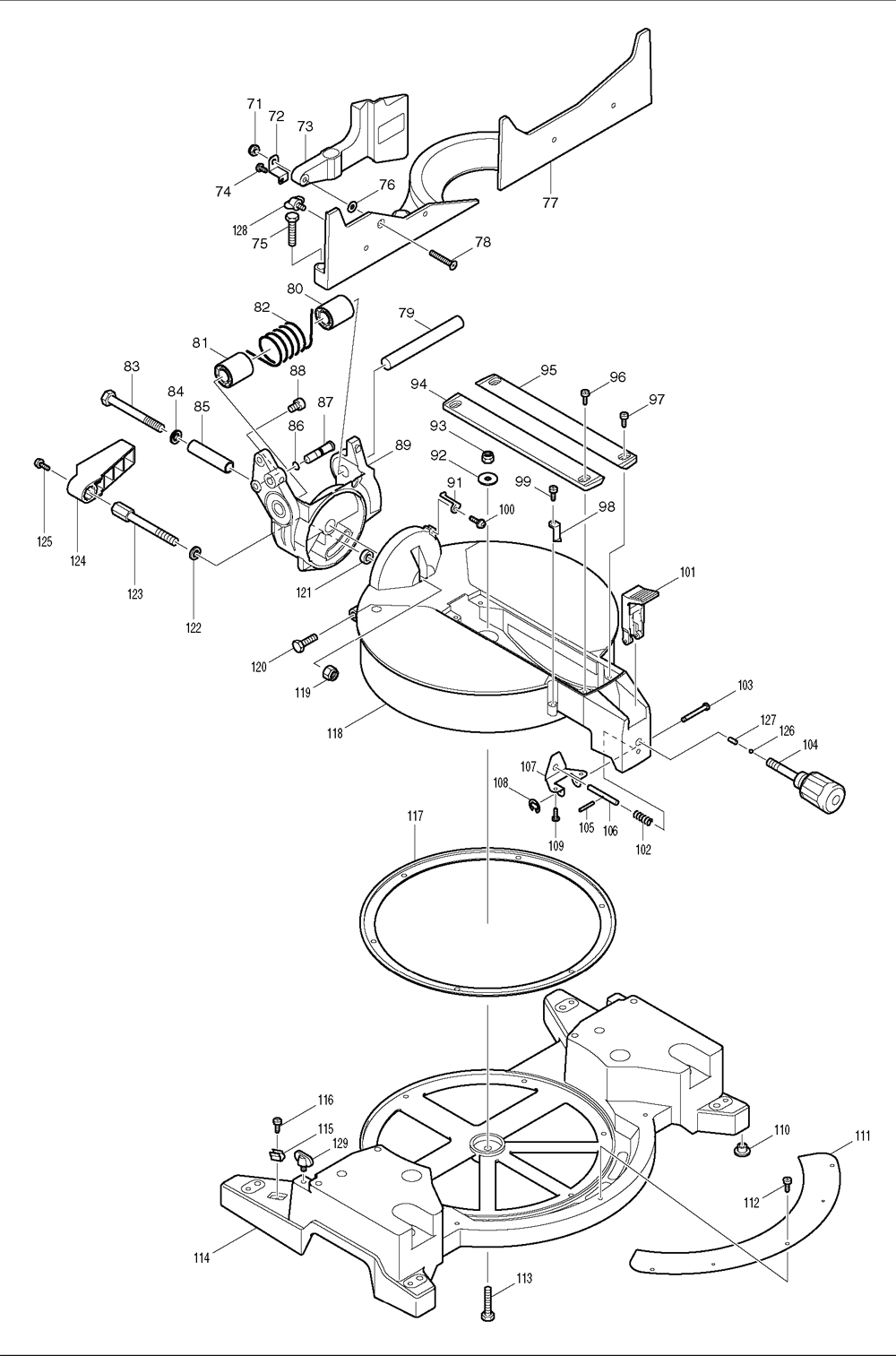

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	853489-9	NAME PLATE, LS1221	$0.86
00	816772-5	BEVEL SCALE LABEL, LS1221	$1.21
103	256626-8	PIN 4, LS1221	$1.96
3	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
4	687052-4	STRAIN RELIEF, HM1500B	$1.26
5	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
5	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
6	682505-8	CORD GUARD, 2711	$2.51
6	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
7	182954-4	HANDLE SET, LS1220	$13.18
8	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
9	416356-5	LOCK-OFF LEVER, LS1016L	$1.63
10	231026-3	COMP. SPRING 4, LS1016L	$0.79
11	416404-0	SWITCH BUTTON, LS1220	$1.63
12	651923-1	SWITCH, LS1040	$20.55
13	416357-3	SWITCH LEVER, LS1220	$3.06
14	182954-4	HANDLE SET, LS1220	$13.18
15	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
17	231297-2	COMP. SPRING 9, 5007NK	$1.63
18	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
19	253147-1	F. WASHER 15, 5037NB	$1.63
20	343641-2	SHAFT LOCK, LS1030	$3.06
21	240003-4	FAN 80, 5007NK	$4.16
22	510048-9	ARMATURE ASSY 115V, LS1221	$101.18
23	681640-9	INSULATION WASHER, LS1040	$2.18
24	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
25	416361-2	BAFFLE PLATE, LS1220	$1.63
26	266044-2	T. SCREW FLANGE 5X60, 5037NB	$1.96
27	596236-2	FIELD ASSY, LS1221	$50.59
28	150787-5	MOTOR HOUSING COMPLETE, LS1220	$18.35
29	911383-2	P.H. SCREW M6X60, LS1030	$1.96
31	417833-0	REAR COVER, LS1221	$4.16
32	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
33	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
34	687095-6	STRAIN RELIEF, LS1220	$0.75
35	819064-1	MAKITA MARK, 5402NA	$1.26
36	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
37	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
38	265371-4	HEX BOLT M8X30, LS1011	$2.40
39	251961-9	H.S.H. SCREW M6X10, LS1040	$0.86
40	266179-9	BINDING HEAD SCREW M6, LS1220	$1.96
41	253758-2	F. WASHER 10, 9901	$1.01
42	265984-1	H.S.B. HEAD BOLT M6, LS1040	$2.40
43	253823-7	F. WASHER 7, LS1011	$1.34
44	257162-7	RING 7, LS1030	$3.06
45	344542-7	LINK PLATE, LS1220	$10.32
46	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
47	416367-0	DUST NOZZLE, LS1220	$4.49
48	150789-1	BLADE CASE COMPLETE, LS1220	$76.10
49	421612-0	CUSHION, LS1220	$1.26
50	911223-4	P.H. SCREW M5X16, 5007NK	$0.86
51	265324-3	H.F.H. BOLT M8X12, LS1030	$2.40
52	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
53	344540-1	CENTER PLATE, LS1220	$3.61
54	344539-6	CENTER WASHER, LS1220	$3.72
55	231634-0	TORSION SPRING 45, LS1220	$1.63
56	417836-4	SAFETY COVER B, LS1221	$14.94
57	316940-5	SAFETY COVER A, LS1220	$21.43
58	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
59	265985-9	HEX.SOCKET HEAD BOLT M6, LS1211	$2.40
60	344541-9	CENTER COVER, LS1220	$3.06
61	265405-3	H.F.H. BOLT M10X20, LS1211	$3.61
62	224333-1	FLANGE 53, LS1040	$4.49
63	257060-5	RING 15.88,LS1013	$3.06
64	224333-1	FLANGE 53, LS1040	$4.49
65	285828-9	BEARING RETAINER 66, LS1211	$3.06
66	322625-3	SPINDLE, LS1211	$14.61
67	211256-2	B. BEARING 6203LLB, GA7001L	$10.98
68	316473-0	HOUSING W/O BEARING, LS1211	$14.61
69	226482-0	HELICAL GEAR 49, LS1220	$26.93
70	211031-6	BALL BEARING 608LLB, 9227C	$10.98
71	252014-7	HEX LOCK NUT M6-10, LS1040	$4.16
72	344463-3	SUB FENCE PLATE, LS1013	$1.63
73	150732-0	SUB FENCE CPLT., LS1212	$23.74
74	266061-2	T. SCREW BIND CT4X8, JN1601	$0.53
74	911108-4	P.H. SCREW M4X8, LS1013	$0.86
75	921461-0	HEX BOLT M8X40, LS1220	$1.96
76	253804-1	F. WASHER 6, 6012HDW	$1.34
77	316945-5	GUIDE FENCE, LS1220	$63.60
77	317980-6	GUIDE FENCE, LS1221	$51.20
78	912357-6	C.S.H. SCREW M6X35, LS1013	$1.19
79	323740-6	ROD 16, LS1016L	$4.49
80	416358-1	SLEEVE 17, LS1220	$1.63
81	416358-1	SLEEVE 17, LS1220	$1.63
82	231635-8	TORSION SPRING 34, LS1220	$7.13
83	265456-6	HEX BOLT M10X90, LS1220	$2.40
84	941251-5	F. WASHER 10, LS1030	$1.01
85	331524-8	PIPE 16-65, LS1220	$3.06
86	213011-8	O RING 7, HR2511,LS1214FL	$0.86
87	322988-7	STOPPER PIN, LS1220	$1.63
88	922412-6	H.S.H. BOLT M8X12, 3705	$1.96
89	150791-4	ARM COMPLETE, LS1220	$32.23
91	416355-7	INDICATION PLATE, LS1220	$1.26
92	253852-0	F. WASHER 8, LS1211	$4.16
93	252105-4	HEX LOCK NUT M8-13, HM1800	$1.96
94	416360-4	KERF BOARD, LS1220	$3.06
95	416360-4	KERF BOARD, LS1220	$3.06
96	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
97	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
98	416355-7	INDICATION PLATE, LS1220	$1.26
99	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
100	911118-1	P.H. SCREW M4X12, 6221D	$0.86
101	416359-9	LOCK LEVER, LS1220	$1.63
102	231325-3	COMPRESSION SPRING 6, LS1220	$1.48
103	256626-8	PIN 4, LS1221	$1.96
104	271308-1	KNOB 40, LS1220	$5.92
105	256158-5	PIN 3, BJR181	$1.19
106	323741-4	LOCK PIN, LS1220	$3.06
107	344538-8	LOCK PLATE, LS1220	$3.06
108	961017-7	STOP RING E-3, 4304, SH01	$0.53
109	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
110	286212-1	CAP 20, LS1013FL	$0.97
111	816773-3	MITER SCALE PLATE, LS1220	$14.61
112	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
113	921462-8	HEX BOLT M8X40, 9031	$1.96
114	150790-6	BASE COMPLETE, LS1220	$100.50
115	232075-3	LEAF SPRING, LS1011	$2.07
116	266026-4	TAPPING SCREW 4X12,5477NB	$0.86
117	416403-2	SLIDE PLATE, LS1220	$4.49
118	316943-9	TURN BASE, LS1220	$94.40
119	252130-5	HEX LOCK NUT M10 LS1211	$4.16
120	265371-4	HEX BOLT M8X30, LS1011	$2.40
121	262051-3	RUBBER RING, HR3851	$1.48
121	262158-5	RUBBER RING 9, LS1216L	$0.66
122	941251-5	F. WASHER 10, LS1030	$1.01
123	265457-4	HEX BOLT M10, LS1220	$7.13
124	416006-2	LEVER 100, LS1040	$5.92
125	911118-1	P.H. SCREW M4X12, 6221D	$0.86
126	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
127	256226-4	PIN 4, 6922NB	$1.19
128	251887-5	SCREW M6X10, LS1030	$3.61
129	251887-5	SCREW M6X10, LS1030	$3.61
1004	416404-0	SWITCH BUTTON, LS1220	$1.63
1005	323726-0	HOLDER 160 LS1221	$12.60
1006	122540-9	'VISE ASS''Y LS1212 '	$51.80
1007	251887-5	SCREW M6X10, LS1030	$3.61
1008	322983-7	VICE ROD, LS1013	$4.16
1009	271303-1	KNOB, LS1030-T2	$14.61
1010	253804-1	F. WASHER 6, 6012HDW	$1.34
1011	343651-9	VISE PLATE, LS1030	$3.06
1012	251370-2	PAN HEAD SCREW, 5007NK	$1.74
