Makita LS1220 Electric Saw Parts

Makita LS1220  Electric Saw Parts Image

Makita LS1220 Parts
Time to buy a new tool?

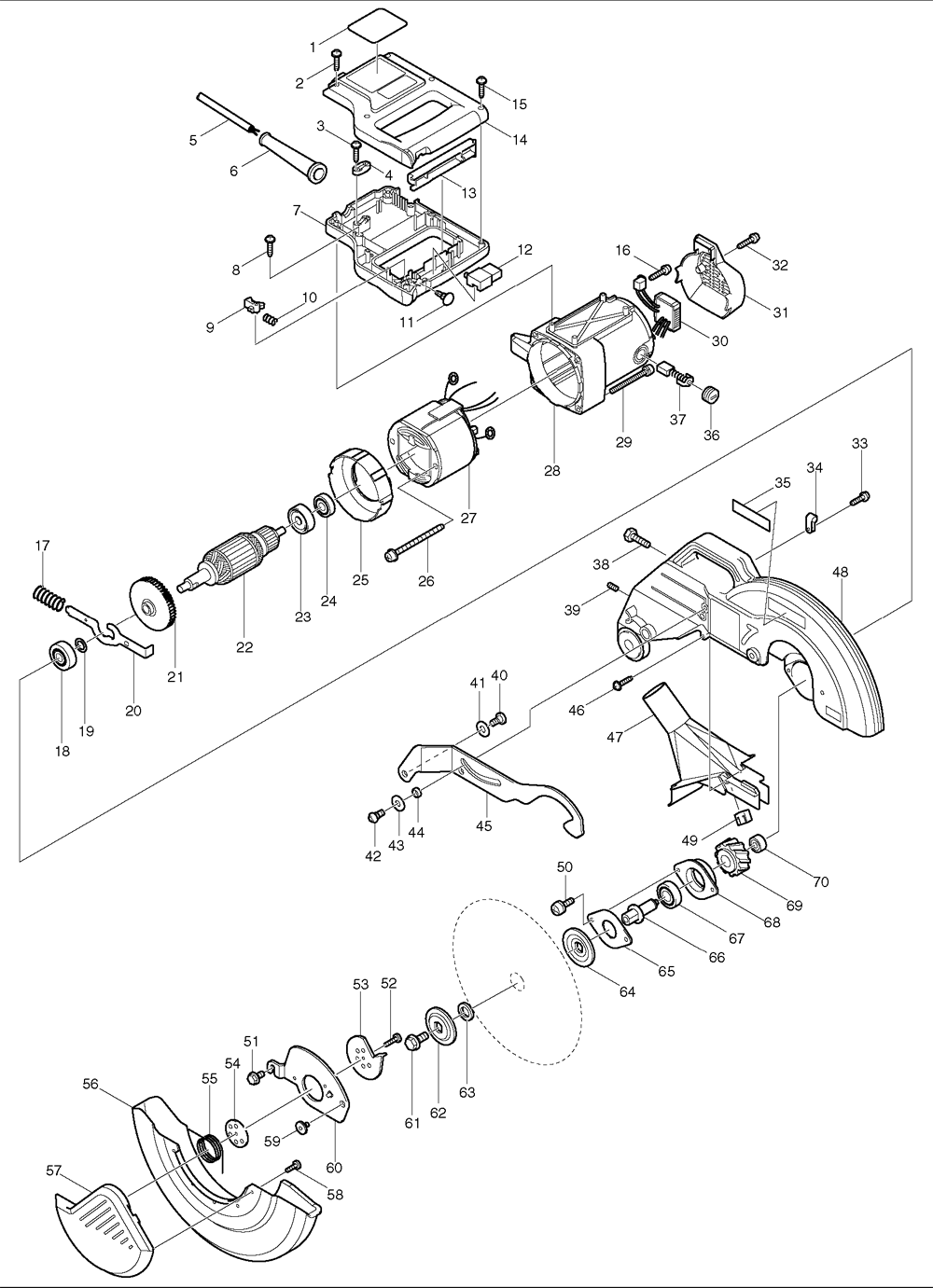

http://www.toolpartspro.com/image/LS1220/Makita-LS1220-PB Breakdown Diagram
Page-1

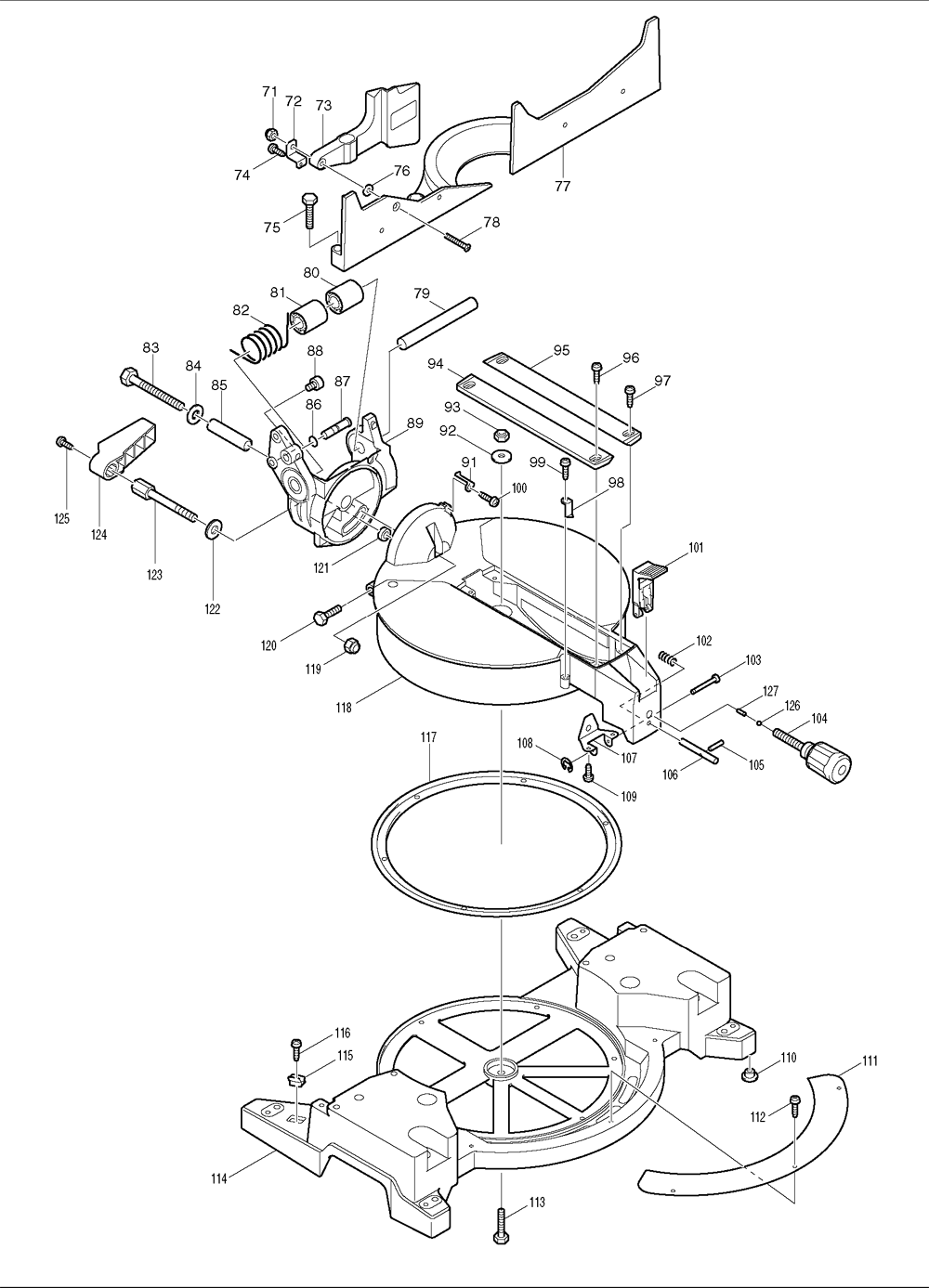

Makita-LS1220-36-PB Breakdown Diagram
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 859543-7 NAME PLATE, LS1220 $2.40
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
4 687052-4 STRAIN RELIEF, HM1500B $1.26
5 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
5 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
6 682505-8 CORD GUARD, 2711 $2.51
6 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
7 182954-4 HANDLE SET, LS1220 $13.18
8 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
9 416356-5 LOCK-OFF LEVER, LS1016L $1.63
10 231026-3 COMP. SPRING 4, LS1016L $0.79
11 416404-0 SWITCH BUTTON, LS1220 $1.63
12 651923-1 SWITCH, LS1040 $20.55
13 416357-3 SWITCH LEVER, LS1220 $3.06
14 182954-4 HANDLE SET, LS1220 $13.18
15 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 231297-2 COMP. SPRING 9, 5007NK $1.63
18 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
18 SE 6202-2RS This item will be shipped Free Superior Electric SE 6202-2RS Replacement Ball B... $7.99
18 SE 6202ZZ This item will be shipped Free Superior Electric SE 6202ZZ Replacement Ball Bea... $7.99
19 253147-1 F. WASHER 15, 5037NB $1.63
20 343641-2 SHAFT LOCK, LS1030 $3.06
21 240003-4 FAN 80, 5007NK $4.16
22 516746-3 ARMATURE ASS'Y 115V, LS1220 $120.09
23 681642-5 INSULATION WASHER, LS1016L $10.32
24 211061-7 B. BEARING 6000-2RS, 6222DWE $10.98
24 SE 6000-2RS This item will be shipped Free Superior Electric SE 6000-2RS Replacement Ball B... $7.99
25 416361-2 BAFFLE PLATE, LS1220 $1.63
26 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
27 596176-4 FIELD ASS'Y 115V, LS1220 $58.40
28 150787-5 MOTOR HOUSING COMPLETE, LS1220 $18.35
29 911383-2 P.H. SCREW M6X60, LS1030 $1.96
30 631252-8 CONTROLLER, LS1220 $56.50
31 416362-0 REAR COVER, LS1220 $4.49
32 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
33 266026-4 TAPPING SCREW 4X12,5477NB $0.86
34 687042-7 STRAIN RELIEF, 2711 $1.26
34 687095-6 STRAIN RELIEF, LS1220 $0.75
35 819064-1 MAKITA MARK, 5402NA $1.26
36 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
37 194986-9 CARBON BRUSH SET CB-154, UC3530A $7.68Disc
37 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
37 K21 This item will be shipped Free Carbon Brush Set of 2 Piece Replaces Makita (CB-... $8.50
38 687095-6 STRAIN RELIEF, LS1220 $0.75
39 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
40 266179-9 BINDING HEAD SCREW M6, LS1220 $1.96
41 253758-2 F. WASHER 10, 9901 $1.01
42 265984-1 H.S.B. HEAD BOLT M6, LS1040 $2.40
43 253823-7 F. WASHER 7, LS1011 $1.34
44 257162-7 RING 7, LS1030 $3.06
45 344542-7 LINK PLATE, LS1220 $10.32
46 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
47 416367-0 DUST NOZZLE, LS1220 $4.49
48 150789-1 BLADE CASE COMPLETE, LS1220 $76.10
49 421612-0 CUSHION, LS1220 $1.26
50 911223-4 P.H. SCREW M5X16, 5007NK $0.86
51 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
52 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
53 344540-1 CENTER PLATE, LS1220 $3.61
54 344539-6 CENTER WASHER, LS1220 $3.72
55 231634-0 TORSION SPRING 45, LS1220 $1.63
56 417836-4 SAFETY COVER B, LS1221 $14.94
57 316940-5 SAFETY COVER A, LS1220 $21.43
58 266026-4 TAPPING SCREW 4X12,5477NB $0.86
59 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
60 344541-9 CENTER COVER, LS1220 $3.06
61 265405-3 H.F.H. BOLT M10X20, LS1211 $3.61
62 224333-1 FLANGE 53, LS1040 $4.49
63 257060-5 RING 15.88,LS1013 $3.06
64 224333-1 FLANGE 53, LS1040 $4.49
65 285828-9 BEARING RETAINER 66, LS1211 $3.06
66 322625-3 SPINDLE, LS1211 $14.61
67 211256-2 B. BEARING 6203-2RS, GA7001L $10.98
67 SE 6203-2RS This item will be shipped Free Superior Electric SE 6203-2RS Replacement Ball B... $7.99
68 316473-0 HOUSING W/O BEARING, LS1211 $14.61
69 226482-0 HELICAL GEAR 49, LS1220 $26.93
70 211031-6 BALL BEARING 608LLB, 9227C $10.98
70 SE 608ZZ This item will be shipped Free Superior Electric SE 608ZZ Replacement Ball Bear... $7.99
71 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
72 344463-3 SUB FENCE PLATE, LS1013 $1.63
73 150732-0 SUB FENCE CPLT., LS1212 $23.74
74 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
74 911108-4 P.H. SCREW M4X8, LS1013 $0.86
75 921461-0 HEX BOLT M8X40, LS1220 $1.96
76 253804-1 F. WASHER 6, 6012HDW $1.34
77 316945-5 GUIDE FENCE, LS1220 $63.60
77 317980-6 GUIDE FENCE, LS1221 $51.20
78 912357-6 C.S.H. SCREW M6X35, LS1013 $1.19
79 323740-6 ROD 16, LS1016L $4.49
80 416358-1 SLEEVE 17, LS1220 $1.63
81 416358-1 SLEEVE 17, LS1220 $1.63
82 231635-8 TORSION SPRING 34, LS1220 $7.13
83 265456-6 HEX BOLT M10X90, LS1220 $2.40
84 941251-5 F. WASHER 10, LS1030 $1.01
85 331524-8 PIPE 16-65, LS1220 $3.06
86 213011-8 O RING 7, HR2511,LS1214FL $0.86
87 322988-7 STOPPER PIN, LS1220 $1.63
88 922412-6 H.S.H. BOLT M8X12, 3705 $1.96
89 150791-4 ARM COMPLETE, LS1220 $32.23
91 416355-7 INDICATION PLATE, LS1220 $1.26
92 253852-0 F. WASHER 8, LS1211 $4.16
93 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
94 416360-4 KERF BOARD, LS1220 $3.06
95 416360-4 KERF BOARD, LS1220 $3.06
96 266026-4 TAPPING SCREW 4X12,5477NB $0.86
97 266026-4 TAPPING SCREW 4X12,5477NB $0.86
98 416355-7 INDICATION PLATE, LS1220 $1.26
99 266026-4 TAPPING SCREW 4X12,5477NB $0.86
100 911118-1 P.H. SCREW M4X12, 6221D $0.86
101 416359-9 LOCK LEVER, LS1220 $1.63
102 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
103 256626-8 PIN 4, LS1221 $1.96
104 271308-1 KNOB 40, LS1220 $5.92
105 256158-5 PIN 3, BJR181 $1.19
106 323741-4 LOCK PIN, LS1220 $3.06
107 344538-8 LOCK PLATE, LS1220 $3.06
108 961017-7 STOP RING E-3, 4304, SH01 $0.53
109 266026-4 TAPPING SCREW 4X12,5477NB $0.86
110 286212-1 CAP 20, LS1013FL $0.97
111 816773-3 MITER SCALE PLATE, LS1220 $14.61
112 266026-4 TAPPING SCREW 4X12,5477NB $0.86
113 921462-8 HEX BOLT M8X40, 9031 $1.96
114 150790-6 BASE COMPLETE, LS1220 $100.50
115 232075-3 LEAF SPRING, LS1011 $2.07
116 266026-4 TAPPING SCREW 4X12,5477NB $0.86
117 416403-2 SLIDE PLATE, LS1220 $4.49
118 316943-9 TURN BASE, LS1220 $94.40
119 252130-5 HEX LOCK NUT M10 LS1211 $4.16
120 265371-4 HEX BOLT M8X30, LS1011 $2.40
121 262051-3 RUBBER RING, HR3851 $1.48
121 262158-5 RUBBER RING 9, LS1216L $0.66
122 941251-5 F. WASHER 10, LS1030 $1.01
123 265457-4 HEX BOLT M10, LS1220 $7.13
124 416006-2 LEVER 100, LS1040 $5.92
125 911118-1 P.H. SCREW M4X12, 6221D $0.86
126 216001-0 STEEL BALL 3.5, 6800DBV $0.53
127 256226-4 PIN 4, 6922NB $1.19
1001 762001-3 TRIANGLE RULE, LS1011 $4.00Disc
1002 782212-4 SOCKET WRENCH 13, LS1011 $0.99Disc
1003 122523-9 REPLACED BY 122852-0 - DUST BAG, LS1040 $0.99Disc
1004 416368-8 ELBOW LS1013 $4.40
1005 416404-0 SWITCH BUTTON, LS1220 $1.63
1006 122540-9 'VISE ASS''Y LS1212 ' $51.80
1007 A-93619 12 SAW BLADE 32T LS1221 $1.90Disc
5001 251887-5 SCREW M6X10, LS1030 $3.61
