Makita LS1214FL Electric Saw Parts

Makita LS1214FL Electric Saw Parts Image

Makita LS1214FL Parts
12 inch Dual Slide Compound Miter Saw with Laser and Fluorescent Light

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LS1214FL
12 inch Dual Slide C...
$607.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

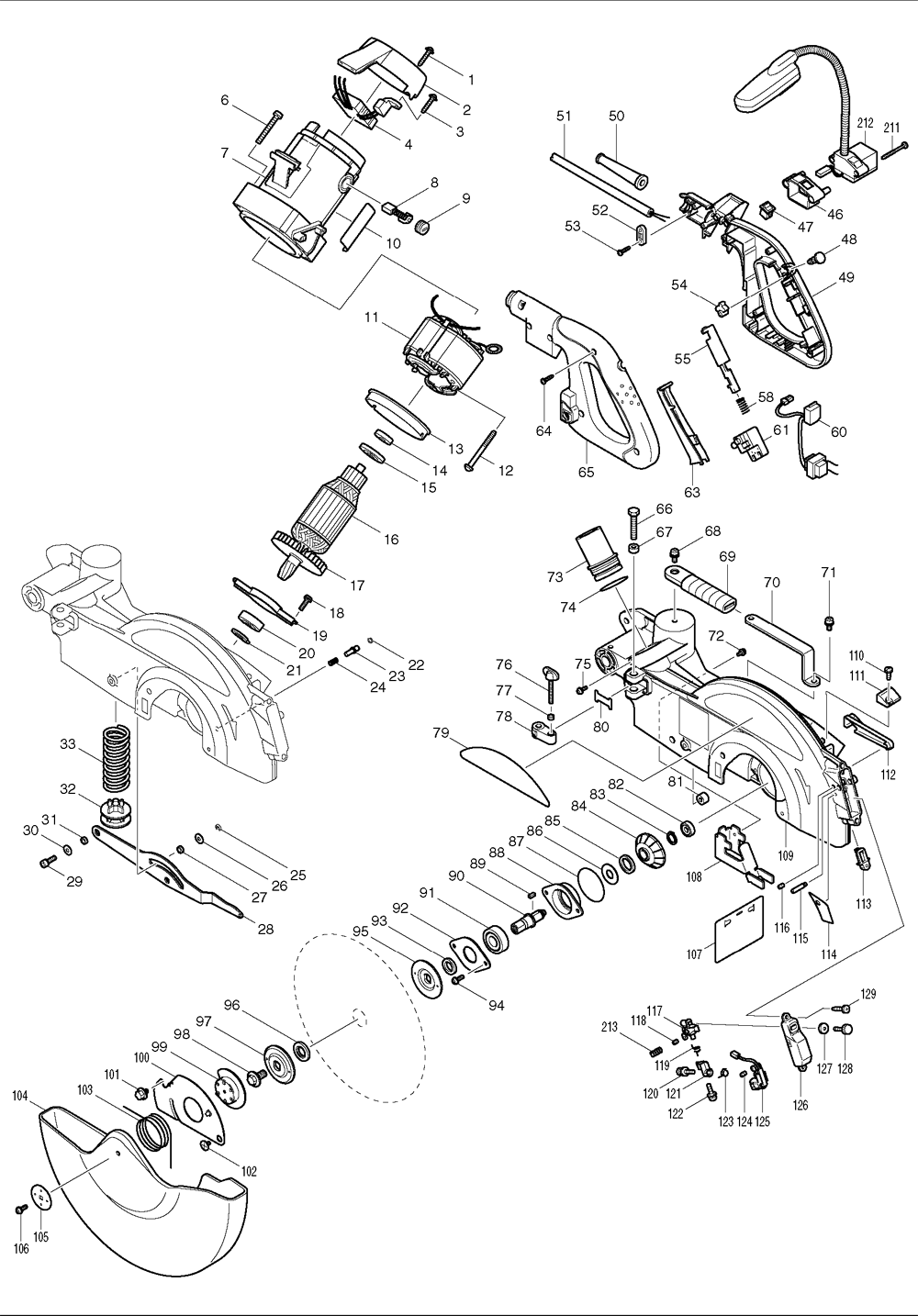

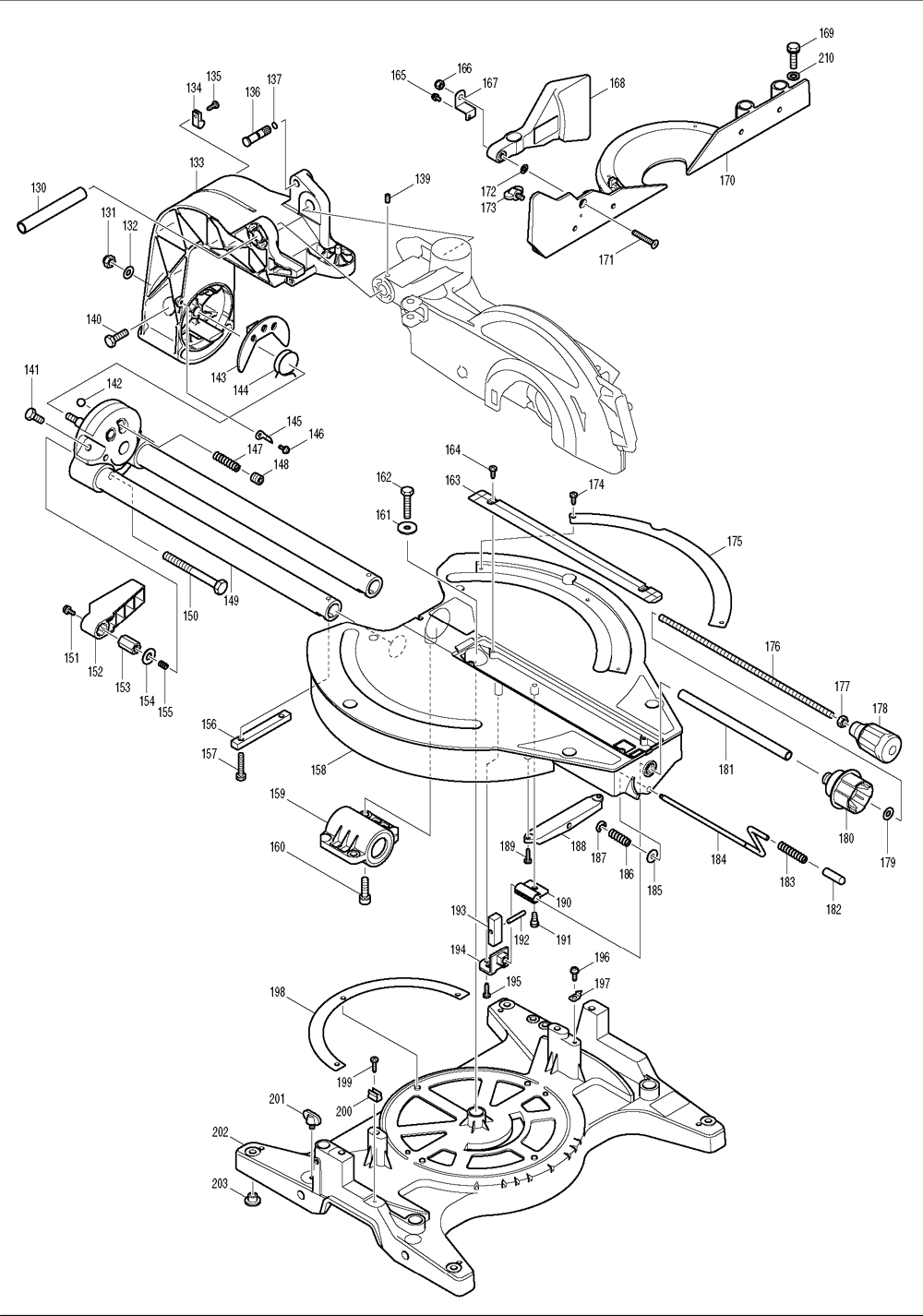

Makita LS1214FL Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 416075-3 REAR COVER, LS1013 $5.92
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
4 631237-4 CONTROLLER, LS1212 $56.50
6 911373-5 P.H. SCREW M6X50, LS1013 $1.48
7 154719-4 MOTOR HOUSING CPL., LS1013L $23.96
8 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
9 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
10 863031-8 NAME PLATE, LS1214FL $1.12
11 596156-0 FIELD ASS'Y 115V, LS1212 $62.10
12 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
13 416264-0 BAFFLE PLATE, LS1212 $3.06
14 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
15 681642-5 INSULATION WASHER, LS1016L $10.32
16 516931-8 ARMATURE ASS'Y, LS1214L $130.08
17 240001-8 FAN 80, LS1016L $4.16
18 911223-4 P.H. SCREW M5X16, 5007NK $0.86
19 285686-3 BEARING RETAINER 94, LS1214FL $4.49
20 211275-8 BALL BEARING 6003DDW, 5007NK $19.56
21 961057-5 RETAINING RING S-17, LS1016L $0.86
22 231928-3 RING SPRING 8, LS1013 $0.86
23 256633-1 PIN 6, LS1016L $1.48
24 231240-1 COMP. SPRING 7, 2414B $0.79
25 961018-5 STOP RING E-5, LS1011 $0.53
26 253804-1 F. WASHER 6, 6012HDW $1.34
27 257163-5 RING 6, LS1011 $1.63
28 345605-2 LINK PLATE, LS1214L $9.33
29 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
30 253804-1 F. WASHER 6, 6012HDW $1.34
31 257163-5 RING 6, LS1011 $1.63
32 316470-6 SPRING HOLDER, LS1211 $7.46
33 233454-8 COMPRESSION SPRING 34, LS1214L $9.88
46 153523-8 SWITCH BOX CPL.,LS1013FL $4.16
47 651522-9 SWITCH SLE6A, LS1013L $9.22
48 411478-6 SWITCH BUTTON, LS1011 $1.63
49 183980-6 HANDLE SET, LS1013L $23.74
50 682505-8 CORD GUARD, 2711 $2.51
50 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
51 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
51 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
52 687052-4 STRAIN RELIEF, HM1500B $1.26
53 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
54 414546-4 CAM, LS1011 $1.63
55 416000-4 LOCK OFF LEVER, LS1040 $3.06
58 231457-6 COMP. SPRING 3, HR2400 $2.07
60 631576-2 POWER SUPPLY CIRCUIT, LS1013L $17.25
61 651923-1 SWITCH, LS1040 $20.55
63 415999-0 SWITCH LEVER, LS1040 $4.49
64 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
65 183980-6 HANDLE SET, LS1013L $23.74
66 921467-8 HEX BOLT M8X45, LS1013 $1.96
67 262003-4 RUBBER RING 6, LS1013 $1.48
68 911323-0 P.H. SCREW M6X16, LS1211 $1.19
69 421562-9 GRIP, LS1013 $4.49
70 344420-1 GRIP HOLDER, LS1013 $4.49
71 911323-0 P.H. SCREW M6X16, LS1211 $1.19
72 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
73 419277-0 DUST NOZZLE, LS1013 $2.84
74 213460-9 O RING 35, HM1500 $1.19
75 911113-1 P.H. SCREW M4X10, 4301BV $0.86
76 265717-4 SCREW M6X43, LS1211 $3.61
77 262001-8 RING 5, 6906 $3.61
78 317176-9 STOPPER ARM, LS1212 $8.78
79 819215-6 MAKITA LOGO LABEL, LS1214L $4.02
80 344045-1 STOPPER ARM PLATE, LS1211 $1.26
81 421952-6 CUSION, LS1013L $1.26
82 211031-6 BALL BEARING 608LLB, 9227C $10.98
83 961054-1 RETAINING RING S-14, 6302 $0.86
84 226750-1 SPIRAL BEVEL GEAR 35, LS1214FL $28.15
85 262074-1 RUBBER RING 20, LS1013 $1.19
86 267035-6 F. WASHER 14, LS1214F $2.18
87 213675-8 O RING 54, LS1214 $1.74
88 316473-0 HOUSING W/O BEARING, LS1211 $14.61
89 254202-2 KEY 4, 9924DB $1.26
90 322989-5 SPINDLE, LS1212 $14.61
91 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
92 285828-9 BEARING RETAINER 66, LS1211 $3.06
93 257022-3 RING 16, LS1013 $3.06
94 911223-4 P.H. SCREW M5X16, 5007NK $0.86
95 224333-1 FLANGE 53, LS1040 $4.49
96 257060-5 RING 15.88,LS1013 $3.06
97 224333-1 FLANGE 53, LS1040 $4.49
98 265405-3 H.F.H. BOLT M10X20, LS1211 $3.61
99 344473-0 CENTER PLATE, LS1212 $4.49
100 345603-6 CENTER COVER, LS1013L $4.16
101 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
102 265008-3 .SCREW M5, LS1011 $3.61
103 231691-8 TORSION SPRING 45, LS1214L $1.96
104 419074-4 SAFETY COVER, LS1214L $26.92
105 253977-0 F. WASHER 6, LS1011 $2.18
106 911218-7 P.H. SCREW M5X14, DA6300 $0.86
107 421916-0 GUARD, LS1013L $1.52
108 345611-7 GUARD PLATE, LS1214L $2.84
109 188028-9 BLADE CASE SET, LS1214L $122.03
110 266026-4 TAPPING SCREW 4X12,5477NB $0.86
111 419078-6 LEAD COVER HOLDER, LS1013L $1.52
112 419077-8 LEAD COVER, LS1214L $4.16
113 418104-8 LENS, LS1013L $4.16
114 804293-9 LASER LABEL, LS1013FL $1.53
115 266306-8 SHOULDER SCREW M5, LA1013L $3.28
116 266229-0 HEX.SCREW M5X8, 4200N $1.19
117 419379-2 BLOCK C, LS1013FL $4.71
118 266318-1 HEX. SOCKET SET SCREW M4X6, LS1016L $1.19
119 231664-1 TORSION SPRING 9, LA1013L $12.74
120 911003-8 P.H. SCREW M3X6, 6261DWPLE $0.86
121 419378-4 BLOCK B, LS1013FL $4.27
122 911003-8 P.H. SCREW M3X6, 6261DWPLE $0.86
123 231664-1 TORSION SPRING 9, LA1013L $12.74
124 266318-1 HEX. SOCKET SET SCREW M4X6, LS1016L $1.19
125 638442-4 LASER CIRCUIT CPL.,LS1013FL $85.90
126 419380-7 TOP COVER, LS1013FL $2.84
127 253807-5 F. WASHER 5, 6012HDW $1.01
128 265753-0 THUMB SCREW M5X24, LS1013L $3.28
129 266042-6 TAPPING SCREW BIND CT 4X20, 9046 $0.86
130 331428-4 PIPE, 2414NB $7.46
131 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
132 941201-0 F. WASHER 8, 5007NK $0.75
133 154780-1 ARM CPL., LS1214L $54.90
134 687095-6 STRAIN RELIEF, LS1220 $0.75
135 266026-4 TAPPING SCREW 4X12,5477NB $0.86
136 322988-7 STOPPER PIN, LS1220 $1.63
137 213011-8 O RING 7, HR2511,LS1214FL $0.86
139 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
140 265371-4 HEX BOLT M8X30, LS1011 $2.40
141 265412-6 HEX. BOLT M8X20, LS1013 $2.40
142 216003-6 STEEL BALL 10, 2401B, LS1013 $1.48
143 345418-1 GUIDE PLATE, LS1013 $8.01
144 231626-9 TORSION SPRING 28, LS1013 $5.37
145 413067-3 INDICATION PLATE, LS1013 $1.63
146 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
147 233168-9 COMPRESSION SPRING 5, LS1013 $1.63
148 266131-7 HEX SOCKET HEAD BOLT M12X12, LS1013 $1.96
149 151459-5 ARM HOLDER COMPLETE, LS1013 $136.00
150 251662-9 H. BOLT M10X100, 2030N $2.40
151 911113-1 P.H. SCREW M4X10, 4301BV $0.86
152 416006-2 LEVER 100, LS1040 $5.92
153 252144-4 HEX. NUT M10-17, LS1013 $5.92
154 253024-7 F. WASHER 10, LS0714 $1.34
155 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
156 152542-1 SQUARE ROD COMPLETE, LS1013 $7.46
157 921356-7 HEX BOLT M6X35, LS1013 $1.34
158 153832-5 TURN BASE CPLT., LS1013 $94.70
159 152540-5 BEARING BOX B COMPLETE, LS1013FL $60.40
160 922451-6 H.S.H. BOLT M8X30, LS1013FL $2.40
161 253852-0 F. WASHER 8, LS1211 $4.16
162 265442-7 HEX BOLT M8X40, LS1013 $2.40
163 419222-5 KERF BOARD, LS1013L $2.84
164 266026-4 TAPPING SCREW 4X12,5477NB $0.86
165 911108-4 P.H. SCREW M4X8, LS1013 $0.86
166 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
167 344463-3 SUB FENCE PLATE, LS1013 $1.63
168 153892-7 SUB-FENCE CPL., LS1214 $10.65
169 921451-3 HEX BOLT M8X30, LS1011 $2.40
170 317757-9 GUIDE FENCE, LS1214 $23.08
171 912357-6 C.S.H. SCREW M6X35, LS1013 $1.19
172 253715-0 F. WASHER 6, NHP1310 $1.34
173 251887-5 SCREW M6X10, LS1030 $3.61
174 266026-4 TAPPING SCREW 4X12,5477NB $0.86
175 816326-8 MITER SCALE PLATE, LS1013 $7.46
176 266132-5 SCREW M8X320, LS1013FL $7.13
177 931402-8 HEX NUT M8, 5037NB $1.34
178 271314-6 KNOB 40, LS1212 $6.80
179 941201-0 F. WASHER 8, 5007NK $0.75
180 152541-3 KNOB 48 COMPLETE, LS1013 $8.78
181 331491-7 PIPE 9-200, LS1013FL $4.49
182 421563-7 CAP 10, LS1013 $1.26
183 322924-3 COIL SPRING, LS1013FL $1.48
184 322909-9 LOCK PIN, LS1013 $8.78
185 253804-1 F. WASHER 6, 6012HDW $1.34
186 231307-5 COMP. SPRING 6, LS1013 $1.48
187 961018-5 STOP RING E-5, LS1011 $0.53
188 316899-6 PIN HOLDER, LS1013 $11.75
189 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
190 344411-2 SLIDE STOPPER, LS1013 $3.06
191 251267-5 P.H. SCREW M6, LS1013 $1.96
192 256196-7 PIN 5, LS1013 $1.48
193 331493-3 TURN STOPPER, LS1013FL $4.49
194 344412-0 STOPPER HOLDER, LS1013 $3.06
195 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
196 266026-4 TAPPING SCREW 4X12,5477NB $0.86
197 816128-2 POINTER, LS1013 $1.63
198 344477-2 SLIDE PLATE, LS1013 $4.49
199 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
200 232075-3 LEAF SPRING, LS1011 $2.07
201 251887-5 SCREW M6X10, LS1030 $3.61
202 153833-3 BASE CPL., LS1013 $48.75
203 286212-1 CAP 20, LS1013FL $0.97
210 941202-8 F. WASHER 8, 5037NB $0.75
211 266048-4 T. SCREW 4X40, BO4556 $1.19
212 125337-5 LIGHT ASS'Y, LS1013FL $28.15
213 233471-8 COMP. SPRING 6, LS1013FL $0.86
1002 122540-9 'VISE ASS''Y LS1212 ' $51.80
1003 153898-5 SUB-FENCE R CPL. LS1214 $37.20
1004 411478-6 SWITCH BUTTON, LS1011 $1.63
1006 783208-8 HEX WRENCH 2.5, LS1016L $3.40
1007 251887-5 SCREW M6X10, LS1030 $3.61
1008 322932-4 HOLDER 255 LS1013FL LS1214FL $16.60
