Makita LS1212 Electric Saw Parts

Makita LS1212 Electric Saw Parts Image

Makita LS1212 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

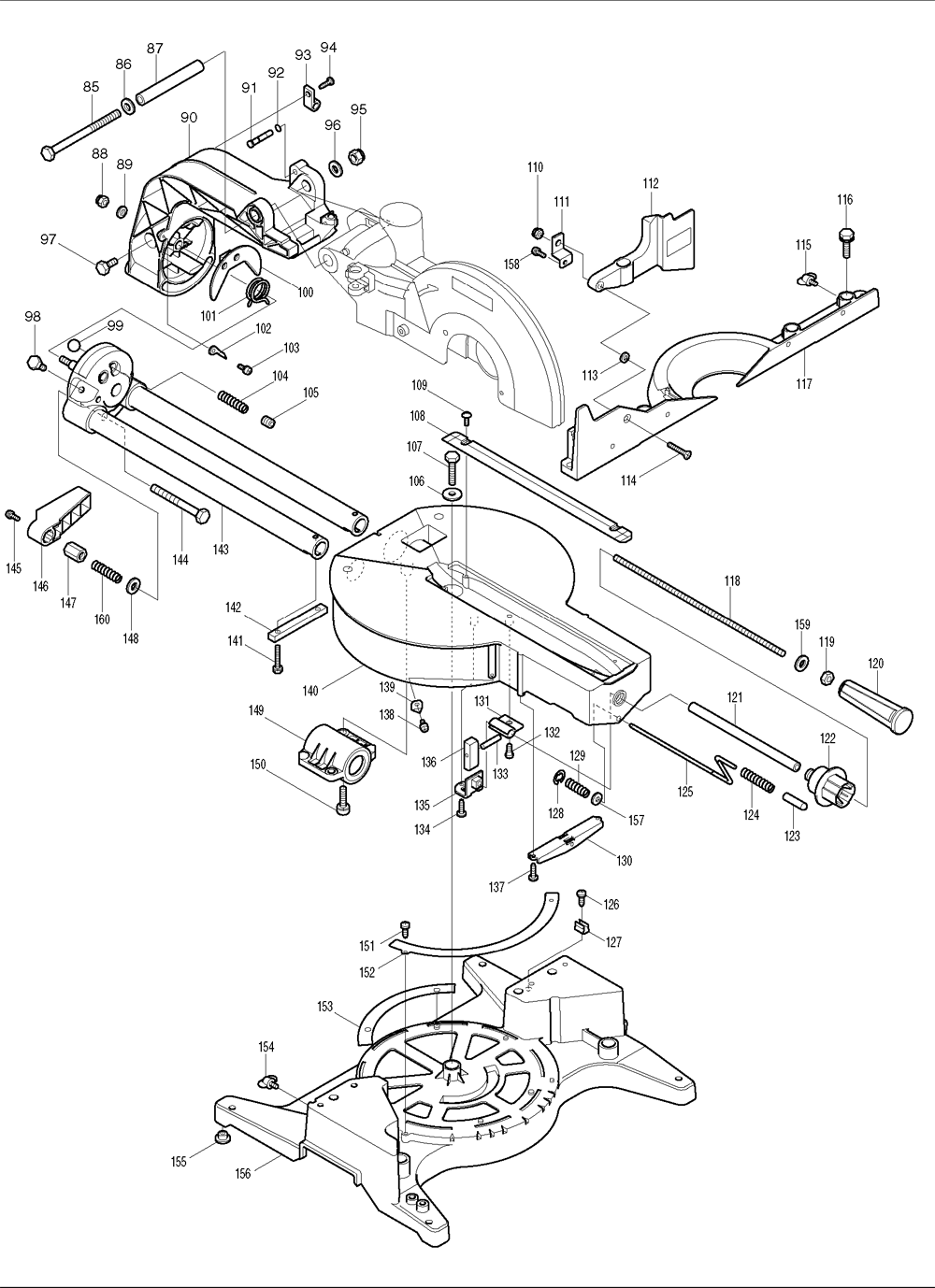

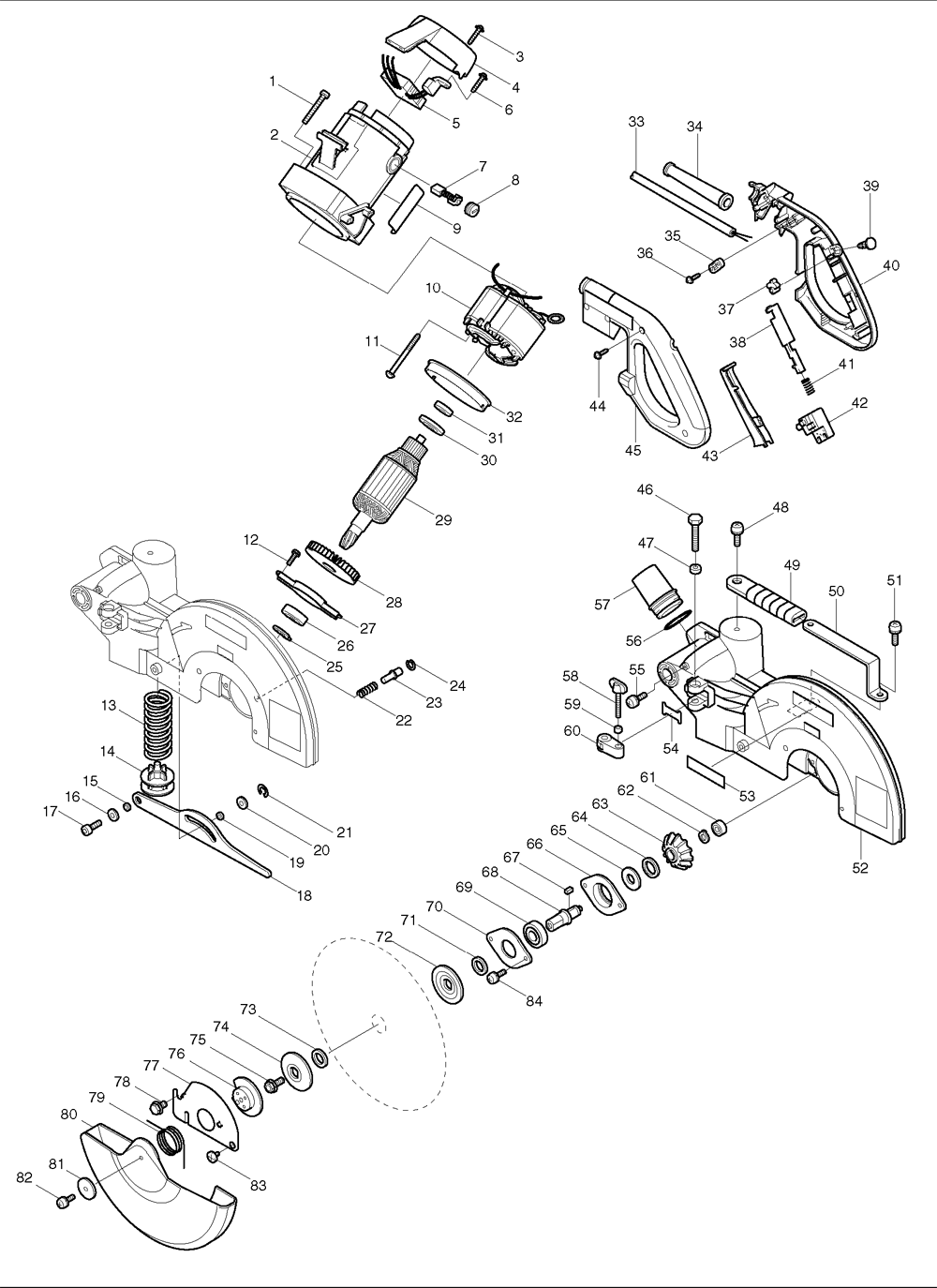

Makita LS1212 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911373-5 P.H. SCREW M6X50, LS1013 $1.48
00 816787-2 INDICATION LABEL, LS1212 $4.02
2 159962-0 MOTOR HOUSING COMPLETE, LS1013 $26.92
00 211439-4 LINEAR BALL BEARING 3050, LS1212 $41.20
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
00 316938-2 VISE ARM, LS1212 $11.97
4 416075-3 REAR COVER, LS1013 $5.92
00 262076-7 FELT RING 30, LS1212 $3.61
5 631237-4 CONTROLLER, LS1212 $56.50
6 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
7 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
8 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
10 596156-0 FIELD ASS'Y 115V, LS1212 $62.10
11 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
12 911223-4 P.H. SCREW M5X16, 5007NK $0.86
13 233187-5 COMPRESSION SPRING 34, LS1212 $8.01
14 316470-6 SPRING HOLDER, LS1211 $7.46
15 257163-5 RING 6, LS1011 $1.63
16 253804-1 F. WASHER 6, 6012HDW $1.34
17 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
18 344472-2 LINK PLATE, LS1212 $5.48
19 257163-5 RING 6, LS1011 $1.63
20 253804-1 F. WASHER 6, 6012HDW $1.34
21 961018-5 STOP RING E-5, LS1011 $0.53
22 231240-1 COMP. SPRING 7, 2414B $0.79
23 256633-1 PIN 6, LS1016L $1.48
24 231928-3 RING SPRING 8, LS1013 $0.86
25 961057-5 RETAINING RING S-17, LS1016L $0.86
26 211251-2 B.BEARING 6003LLB, 5277B $15.27
27 285686-3 BEARING RETAINER 94, LS1214FL $4.49
28 240001-8 FAN 80, LS1016L $4.16
29 516736-6 ARMATURE ASS'Y 115V, LS1212 $130.08
30 681642-5 INSULATION WASHER, LS1016L $10.32
31 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
32 416264-0 BAFFLE PLATE, LS1212 $3.06
33 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
33 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
34 682505-8 CORD GUARD, 2711 $2.51
34 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
35 687052-4 STRAIN RELIEF, HM1500B $1.26
36 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
37 414546-4 CAM, LS1011 $1.63
38 416000-4 LOCK OFF LEVER, LS1040 $3.06
39 411478-6 SWITCH BUTTON, LS1011 $1.63
40 182910-4 HANDLE SET, LS1013 $16.04
41 231457-6 COMP. SPRING 3, HR2400 $2.07
42 651923-1 SWITCH, LS1040 $20.55
43 415999-0 SWITCH LEVER, LS1040 $4.49
44 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
45 182910-4 HANDLE SET, LS1013 $16.04
46 921467-8 HEX BOLT M8X45, LS1013 $1.96
47 262003-4 RUBBER RING 6, LS1013 $1.48
48 911323-0 P.H. SCREW M6X16, LS1211 $1.19
49 421562-9 GRIP, LS1013 $4.49
50 344420-1 GRIP HOLDER, LS1013 $4.49
51 911323-0 P.H. SCREW M6X16, LS1211 $1.19
52 183896-5 BLADE CASE, LS1214 $61.00
52 188379-0 BLADE CASE SET, LS1214F $85.20
52 153633-1 BLADE CASE CPLT., LS1212 $105.74
53 819064-1 MAKITA MARK, 5402NA $1.26
53 819215-6 MAKITA LOGO LABEL, LS1214L $4.02
54 344045-1 STOPPER ARM PLATE, LS1211 $1.26
55 911113-1 P.H. SCREW M4X10, 4301BV $0.86
56 213460-9 O RING 35, HM1500 $1.19
57 419277-0 DUST NOZZLE, LS1013 $2.84
58 265717-4 SCREW M6X43, LS1211 $3.61
59 262001-8 RING 5, 6906 $3.61
60 317176-9 STOPPER ARM, LS1212 $8.78
61 211031-6 BALL BEARING 608LLB, 9227C $10.98
62 961054-1 RETAINING RING S-14, 6302 $0.86
63 226750-1 SPIRAL BEVEL GEAR 35, LS1214FL $28.15
64 262074-1 RUBBER RING 20, LS1013 $1.19
65 267035-6 F. WASHER 14, LS1214F $2.18
66 316473-0 HOUSING W/O BEARING, LS1211 $14.61
67 254202-2 KEY 4, 9924DB $1.26
68 322989-5 SPINDLE, LS1212 $14.61
69 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
70 285828-9 BEARING RETAINER 66, LS1211 $3.06
71 257022-3 RING 16, LS1013 $3.06
72 224333-1 FLANGE 53, LS1040 $4.49
73 257060-5 RING 15.88,LS1013 $3.06
74 224333-1 FLANGE 53, LS1040 $4.49
75 265405-3 H.F.H. BOLT M10X20, LS1211 $3.61
76 344473-0 CENTER PLATE, LS1212 $4.49
77 344038-8 CENTER COVER, LS1211 $5.92
78 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
79 231613-8 T. SPRING 45, LS1211 $2.07
80 450130-1 SAFETY COVER, LS1212 $16.04
81 253977-0 F. WASHER 6, LS1011 $2.18
82 911213-7 P.H. SCREW M5X12, LS1040 $0.86
83 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
83 265008-3 .SCREW M5, LS1011 $3.61
84 911223-4 P.H. SCREW M5X16, 5007NK $0.86
85 265406-1 H.BOLT M10X130, LS1211 $7.13
86 253024-7 F. WASHER 10, LS0714 $1.34
87 331428-4 PIPE, 2414NB $7.46
88 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
89 941201-0 F. WASHER 8, 5007NK $0.75
90 151813-3 ARM COMPLETE, LS1212 $109.33
91 322988-7 STOPPER PIN, LS1220 $1.63
92 213011-8 O RING 7, HR2511,LS1214FL $0.86
93 687095-6 STRAIN RELIEF, LS1220 $0.75
94 266026-4 TAPPING SCREW 4X12,5477NB $0.86
95 252130-5 HEX LOCK NUT M10 LS1211 $4.16
96 253024-7 F. WASHER 10, LS0714 $1.34
97 265455-8 HEX BOLT M8X28, LS1212 $2.40
98 265455-8 HEX BOLT M8X28, LS1212 $2.40
99 216003-6 STEEL BALL 10, 2401B, LS1013 $1.48
100 344475-6 GUIDE PLATE, LS1212 $7.46
101 231631-6 TORSION SPRING 30, LS1212 $5.92
102 413067-3 INDICATION PLATE, LS1013 $1.63
103 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
104 233168-9 COMPRESSION SPRING 5, LS1013 $1.63
105 266131-7 HEX SOCKET HEAD BOLT M12X12, LS1013 $1.96
106 253852-0 F. WASHER 8, LS1211 $4.16
107 265442-7 HEX BOLT M8X40, LS1013 $2.40
108 416886-6 KERF BOARD, LS1211,LS1212 $5.15
109 251314-2 SCREW M4X12, BHP451 $0.86
109 266026-4 TAPPING SCREW 4X12,5477NB $0.86
110 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
111 344463-3 SUB FENCE PLATE, LS1013 $1.63
112 150732-0 SUB FENCE CPLT., LS1212 $23.74
113 253804-1 F. WASHER 6, 6012HDW $1.34
114 912357-6 C.S.H. SCREW M6X35, LS1013 $1.19
115 251887-5 SCREW M6X10, LS1030 $3.61
116 921451-3 HEX BOLT M8X30, LS1011 $2.40
117 316905-7 GUIDE FENCE, LS1212 $61.00
118 266132-5 SCREW M8X320, LS1013FL $7.13
119 931402-8 HEX NUT M8, 5037NB $1.34
120 273444-9 GRIP 37, LS1013 $10.32
120 271314-6 KNOB 40, LS1212 $6.80
121 331491-7 PIPE 9-200, LS1013FL $4.49
122 152541-3 KNOB 48 COMPLETE, LS1013 $8.78
123 421563-7 CAP 10, LS1013 $1.26
124 322924-3 COIL SPRING, LS1013FL $1.48
125 322938-2 LOCK PIN, LS1212 $7.46
126 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
127 232075-3 LEAF SPRING, LS1011 $2.07
128 961018-5 STOP RING E-5, LS1011 $0.53
129 231307-5 COMP. SPRING 6, LS1013 $1.48
130 316882-3 PIN HOLDER, LS1212 $10.43
131 344411-2 SLIDE STOPPER, LS1013 $3.06
132 251267-5 P.H. SCREW M6, LS1013 $1.96
133 256196-7 PIN 5, LS1013 $1.48
134 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
135 344412-0 STOPPER HOLDER, LS1013 $3.06
136 331493-3 TURN STOPPER, LS1013FL $4.49
137 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
138 911113-1 P.H. SCREW M4X10, 4301BV $0.86
139 343678-9 INDICATION PLATE, LS1011 $1.63
140 151480-4 TURN BASE COMPLETE, LS1212 $187.31
141 921356-7 HEX BOLT M6X35, LS1013 $1.34
142 152542-1 SQUARE ROD COMPLETE, LS1013 $7.46
143 151477-3 ARM HODER CPLT., LS1212 $114.47
144 251662-9 H. BOLT M10X100, 2030N $2.40
145 911113-1 P.H. SCREW M4X10, 4301BV $0.86
146 416006-2 LEVER 100, LS1040 $5.92
147 252144-4 HEX. NUT M10-17, LS1013 $5.92
148 253024-7 F. WASHER 10, LS0714 $1.34
149 152540-5 BEARING BOX B COMPLETE, LS1013FL $60.40
150 922451-6 H.S.H. BOLT M8X30, LS1013FL $2.40
151 266026-4 TAPPING SCREW 4X12,5477NB $0.86
152 816325-0 MITER SCALE PLATE, LS1212 $6.80
153 344474-8 SLIDE PLATE, LS1212 $4.49
155 286212-1 CAP 20, LS1013FL $0.97
156 150733-8 BASE CPLT., LS1212 $169.85
157 253804-1 F. WASHER 6, 6012HDW $1.34
158 911113-1 P.H. SCREW M4X10, 4301BV $0.86
159 941201-0 F. WASHER 8, 5007NK $0.75
160 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
1004 411478-6 SWITCH BUTTON, LS1011 $1.63
1007 251887-5 SCREW M6X10, LS1030 $3.61
1008 322983-7 VICE ROD, LS1013 $4.16
1009 271303-1 KNOB, LS1030-T2 $14.61
1010 122540-9 'VISE ASS''Y LS1212 ' $51.80
1011 253804-1 F. WASHER 6, 6012HDW $1.34
1012 343651-9 VISE PLATE, LS1030 $3.06
1013 251370-2 PAN HEAD SCREW, 5007NK $1.74
5001 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
