Makita LS1045 Electric Saw Parts

Makita LS1045 Electric Saw Parts Image

Makita LS1045 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

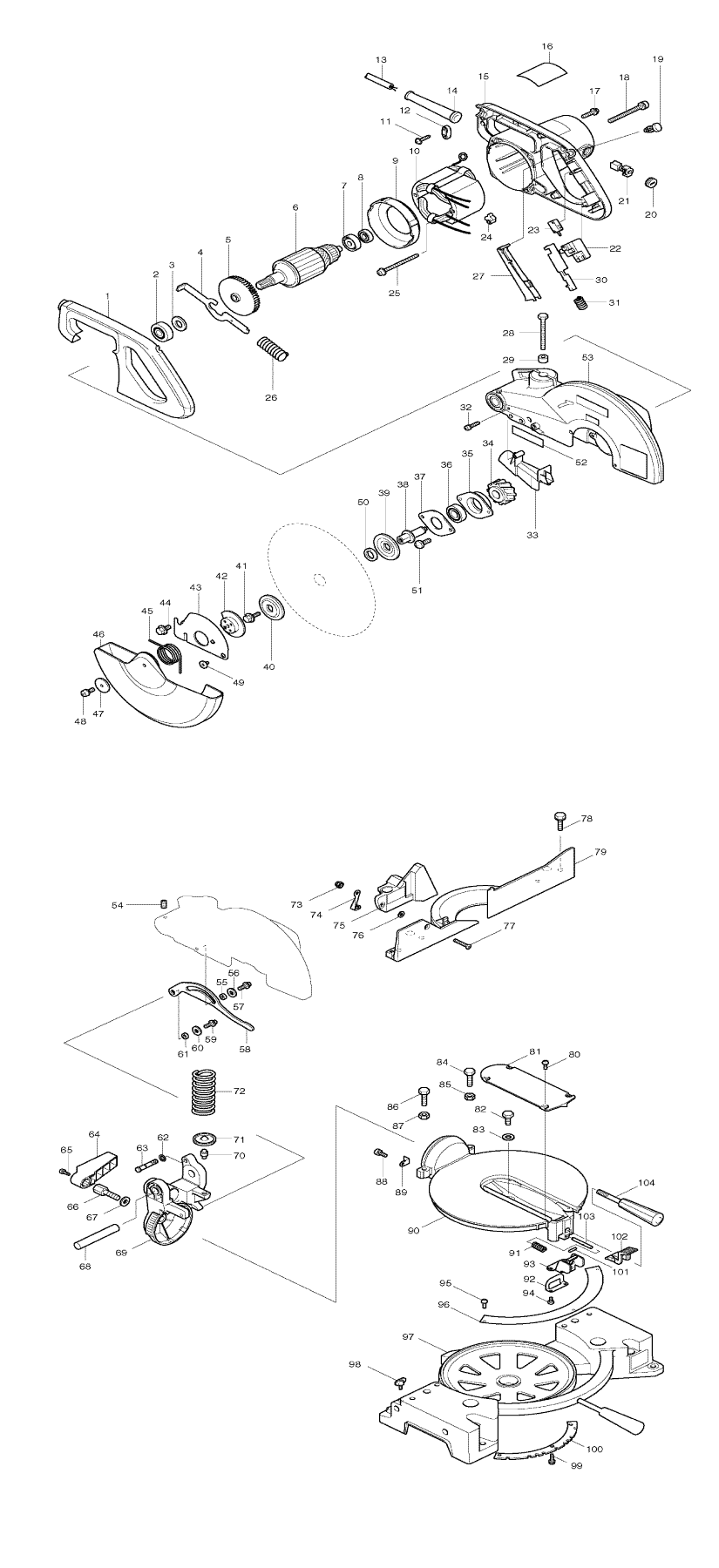

Makita LS1045 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
83 253762-1 F. WASHER 8, LS1040 $2.18
1 416004-6 HANDLE COVER, LS1040 $14.61
2 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
3 267280-3 FLAT WASHER 15, 5007NK $1.01
3 253853-8 F. WASHER 15, LS1211 $1.63
4 343641-2 SHAFT LOCK, LS1030 $3.06
5 241909-9 FAN 80, LS1030N $2.84
6 516716-2 ARMATURE 115V, LS1040 $127.56
7 681640-9 INSULATION WASHER, LS1040 $2.18
8 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
9 416442-2 BAFFLE PLATE, LS1045 $1.26
10 526066-7 FIELD ASS'Y 115V, LS1045 $56.50
11 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
12 687052-4 STRAIN RELIEF, HM1500B $1.26
13 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
13 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
14 682505-8 CORD GUARD, 2711 $2.51
14 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19

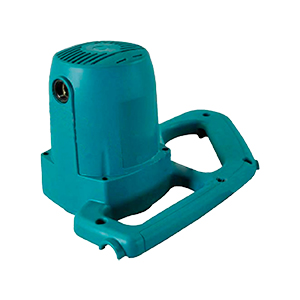

15 153792-1 MOTOR HOUSING CPL., LS1030N $17.25
16 859544-5 NAME PLATE, LS1045 $4.82
17 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
18 911383-2 P.H. SCREW M6X60, LS1030 $1.96
19 411478-6 SWITCH BUTTON, LS1011 $1.63
20 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
21 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
22 651923-1 SWITCH, LS1040 $20.55
24 414546-4 CAM, LS1011 $1.63
25 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
26 231297-2 COMP. SPRING 9, 5007NK $1.63
27 415999-0 SWITCH LEVER, LS1040 $4.49
28 251667-9 H. BOLT M8X75, LS1030 $2.40
29 262511-5 RUBBER SLEEVE 6, LS1030 $0.97
30 416000-4 LOCK OFF LEVER, LS1040 $3.06
31 231457-6 COMP. SPRING 3, HR2400 $2.07
32 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
33 453695-2 GUIDE COVER LS1040 $4.49
34 226465-0 HELICAL GEAR 42, LS1040 $22.20
35 316821-3 HOUSING W/O BEARING, LS1040 $13.18
36 211256-2 B. BEARING 6203LLB, GA7001L $10.98
37 285685-5 BEARING RETAINER 64, LS1040 $3.06
38 322865-3 SPINDLE, LS1040 $16.04
39 224333-1 FLANGE 53, LS1040 $4.49
40 224333-1 FLANGE 53, LS1040 $4.49
41 265355-2 H. F. H. BOLT, LS1030 $2.40
42 343639-9 CENTER PLATE, LS1030 $5.92
43 344380-7 CENTER COVER, LS1040 $4.49
44 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
45 231593-8 TORSION SPRING 36, LS1030 $1.63
46 416003-8 SAFETY COVER, LS1040 $17.47
47 267136-0 FLAT WASHER 5, 9046 $2.18
48 911213-7 P.H. SCREW M5X12, LS1040 $0.86
49 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
51 911223-4 P.H. SCREW M5X16, 5007NK $0.86
53 140648-7 BLADE CASE CPL., LS1040 $29.78
54 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
55 257162-7 RING 7, LS1030 $3.06
56 253823-7 F. WASHER 7, LS1011 $1.34
57 265984-1 H.S.B. HEAD BOLT M6, LS1040 $2.40
58 344377-6 LINK PLATE, LS1040 $4.49
59 265984-1 H.S.B. HEAD BOLT M6, LS1040 $2.40
60 253823-7 F. WASHER 7, LS1011 $1.34
61 257162-7 RING 7, LS1030 $3.06
62 213021-5 O RING 5, JR3070CT $0.53
63 322317-4 STOPPER PIN, LS1040 $4.49
64 416006-2 LEVER 100, LS1040 $5.92
65 911113-1 P.H. SCREW M4X10, 4301BV $0.86
66 265437-0 HEX BOLT M10, LS1040 $5.37
67 253024-7 F. WASHER 10, LS0714 $1.34
68 256836-7 ROD 16, LS1040 $4.49
69 154463-3 ARM COMPLETE, LS1040F-T2 $14.94
70 256280-8 PIN 8, LS1030N $3.61
71 344464-1 SPRING HOLDER, LS1013 $1.96
72 233152-4 COMP. SPRING 28, LS1040 $7.13
73 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
74 344476-4 SUB FENCE PLATE, LS1040 $1.63
75 150662-5 SUB FENCE CP., LS1040 $17.47
76 253715-0 F. WASHER 6, NHP1310 $1.34
77 912342-9 C.S.H. SCREW M6X25,LS1040 $0.86
78 921451-3 HEX BOLT M8X30, LS1011 $2.40
78 265488-3 HEX. BOLT M8 X30, LS1040 $1.48
79 318847-1 GUIDE RULE LS1040 $51.20
80 251314-2 SCREW M4X12, BHP451 $0.86
81 416451-1 KERF BOARD, LS1045 $2.84
82 265412-6 HEX. BOLT M8X20, LS1013 $2.40
83 253762-1 F. WASHER 8, LS1040 $2.18
84 921452-1 HEX BOLT M8X30,LS1040 $1.34
85 931402-8 HEX NUT M8, 5037NB $1.34
86 921452-1 HEX BOLT M8X30,LS1040 $1.34
87 931402-8 HEX NUT M8, 5037NB $1.34
88 911113-1 P.H. SCREW M4X10, 4301BV $0.86
89 344385-7 POINTER, LS1040 $3.06
90 310058-4 TURN BASE, LS1045 $115.73
91 231402-1 COMP. SPRING 7, LS1045 $1.48
92 344602-5 SUPPORT PLATE, LS1045 $4.16
92 344601-7 LOCK PLATE, LXSL01 $1.63
93 344602-5 SUPPORT PLATE, LS1045 $4.16
93 344601-7 LOCK PLATE, LXSL01 $1.63
94 911113-1 P.H. SCREW M4X10, 4301BV $0.86
95 251314-2 SCREW M4X12, BHP451 $0.86
96 816775-9 MITER SCALE PLATE, LS1045 $6.80
97 150894-4 BASE CPL., LS1045 $116.99
99 911213-7 P.H. SCREW M5X12, LS1040 $0.86
100 344603-3 STOPPER PLATE, LS1045 $3.06
101 256158-5 PIN 3, BJR181 $1.19
102 416450-3 LOCK LEVER, LS1045 $3.06
103 323741-4 LOCK PIN, LS1220 $3.06
104 273495-2 GRIP 32, LS1040 $5.92
1004 322602-5 HOLDER LS1211 $20.80
1005 341912-1 NUT HOLDER, LS1020 $3.06
1006 911216-1 P.H. SCREW M5X14, N9501B $0.86
1007 342967-9 SET PLATE, LS1020 $3.06
1008 341911-3 PROTECTOR, LS1020 $1.63
1009 321490-7 RELEASE NUT (R), LS1020 $8.12
1010 321491-5 RELEASE NUT (L), LS1020 $8.12
1012 271275-0 VISE KNOB, LS1430, LS1440 $28.25
1013 911317-5 P.H. SCREW M6X14, LS1000, LS1440 $0.86
1014 253047-5 F. WASHER 6, 2708 $1.01
1015 315891-9 VISE PLATE, LS1020, LS1440 $14.61
1016 253744-3 F. WASHER 12, HR2410 $1.34
1017 411478-6 SWITCH BUTTON, LS1011 $1.63
1018 257022-3 RING 16, LS1013 $3.06
5005 819064-1 MAKITA MARK, 5402NA $1.26
5005 819214-8 MAKITA LOGO LABEL, LS1013L $2.74
