Makita LS1030N Electric Saw Parts

Makita LS1030N Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

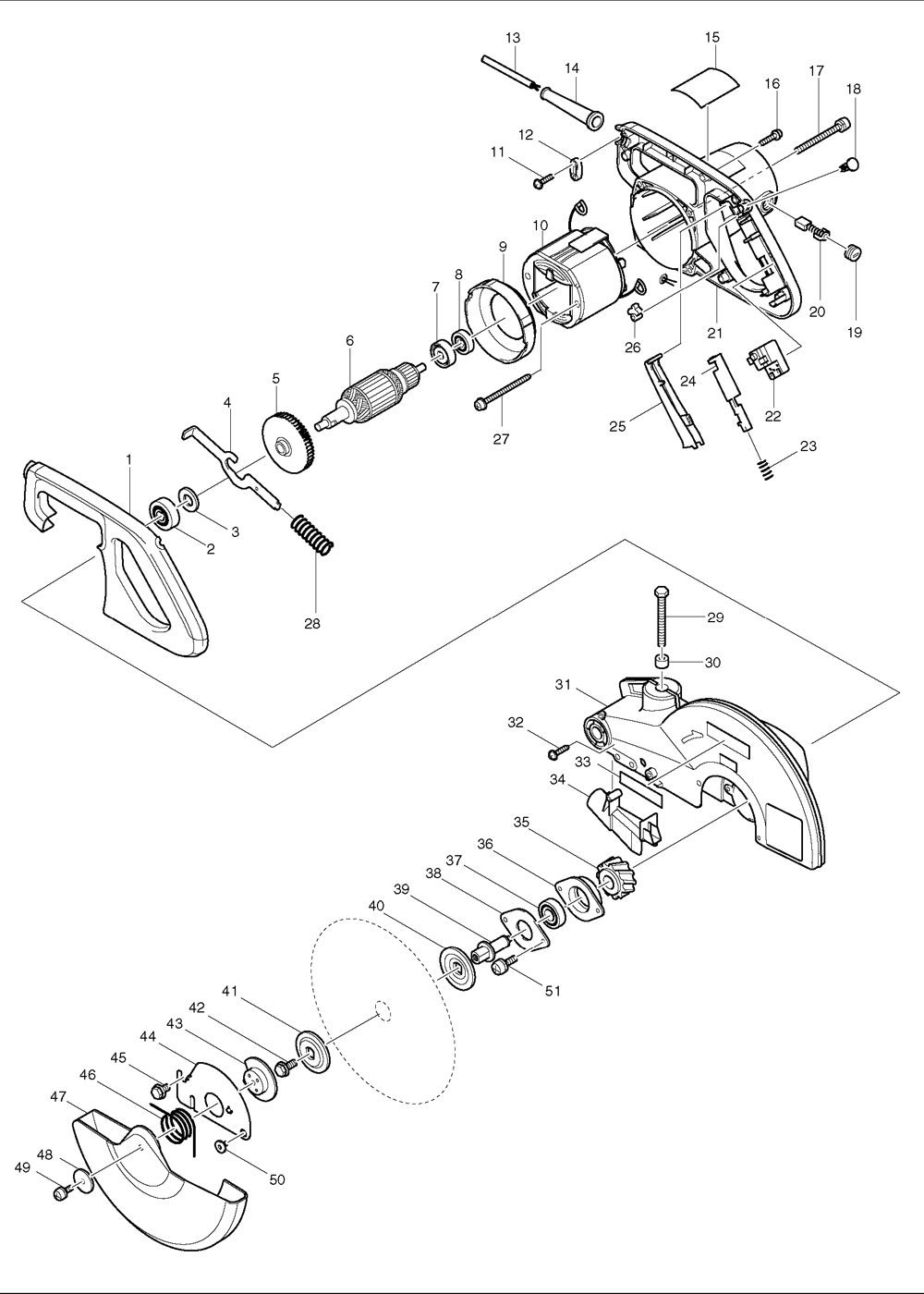

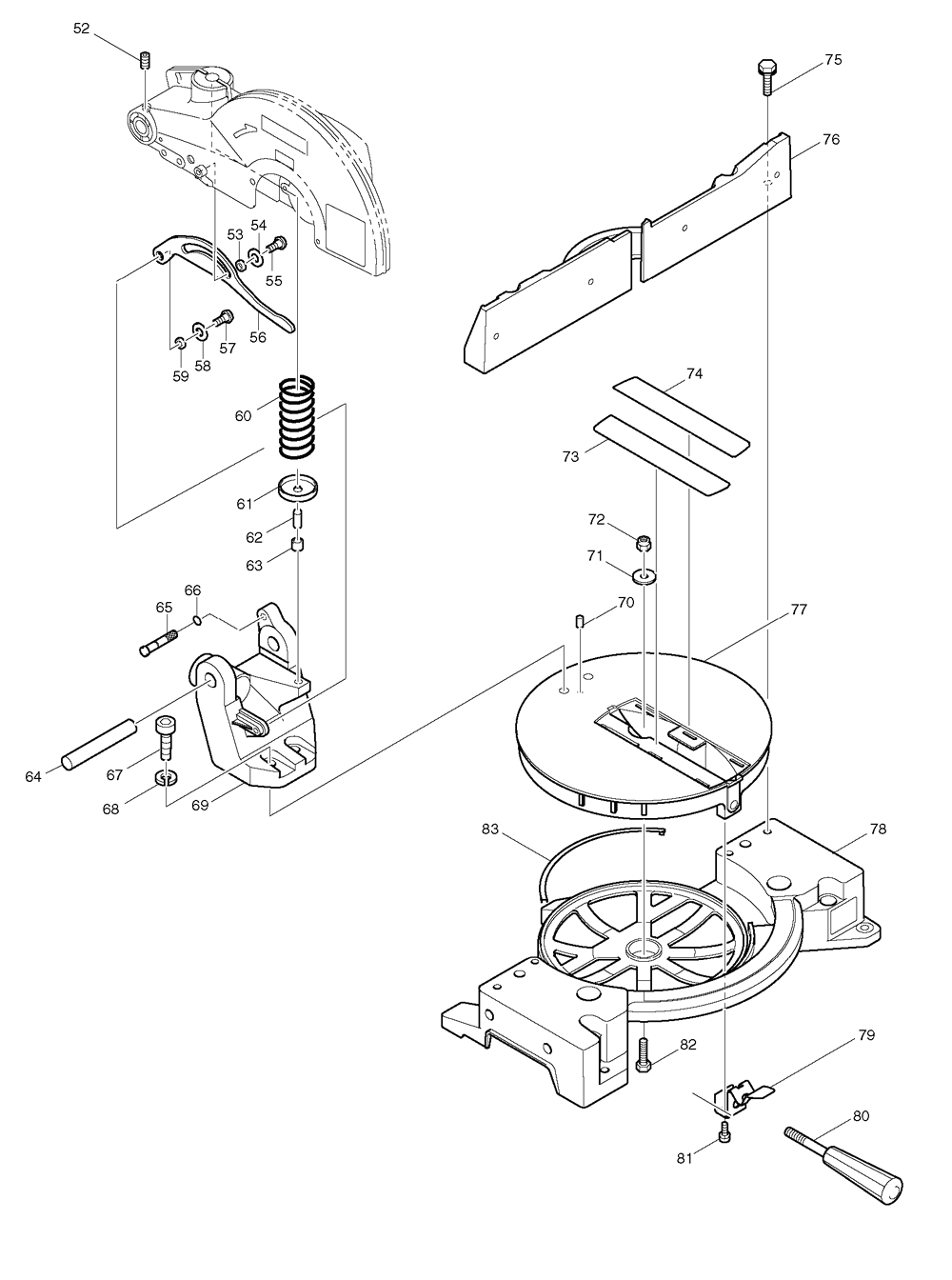

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	416004-6	HANDLE COVER, LS1040	$14.61
15	853791-0	NAME PLATE LS1030N	$1.36
2	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
3	267280-3	FLAT WASHER 15, 5007NK	$1.01
3	253853-8	F. WASHER 15, LS1211	$1.63
4	343641-2	SHAFT LOCK, LS1030	$3.06
5	241909-9	FAN 80, LS1030N	$2.84
6	516716-2	ARMATURE 115V, LS1040	$127.56
7	681640-9	INSULATION WASHER, LS1040	$2.18
8	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
9	416002-0	BAFFLE PLATE, LS1011N	$3.06
10	596136-6	FIELD 115V, LS1011N	$64.00
11	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
12	687052-4	STRAIN RELIEF, HM1500B	$1.26
13	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
13	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
14	682505-8	CORD GUARD, 2711	$2.51
14	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
15	853791-0	NAME PLATE LS1030N	$1.36
16	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
17	911383-2	P.H. SCREW M6X60, LS1030	$1.96
18	411478-6	SWITCH BUTTON, LS1011	$1.63
19	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
20	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
21	159890-9	MOTOR HOUSING CP.,LS1011N	$28.25
22	651923-1	SWITCH, LS1040	$20.55
23	231457-6	COMP. SPRING 3, HR2400	$2.07
24	416000-4	LOCK OFF LEVER, LS1040	$3.06
25	415999-0	SWITCH LEVER, LS1040	$4.49
26	414546-4	CAM, LS1011	$1.63
27	266029-8	T. SCREW FLANGE PT 5X65,JR3020	$1.96
28	231297-2	COMP. SPRING 9, 5007NK	$1.63
29	251667-9	H. BOLT M8X75, LS1030	$2.40
30	262511-5	RUBBER SLEEVE 6, LS1030	$0.97
31	140648-7	BLADE CASE CPL., LS1040	$29.78
32	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
33	819064-1	MAKITA MARK, 5402NA	$1.26
33	819214-8	MAKITA LOGO LABEL, LS1013L	$2.74
34	453695-2	GUIDE COVER LS1040	$4.49
35	226465-0	HELICAL GEAR 42, LS1040	$22.20
36	316821-3	HOUSING W/O BEARING, LS1040	$13.18
37	211256-2	B. BEARING 6203LLB, GA7001L	$10.98
38	285685-5	BEARING RETAINER 64, LS1040	$3.06
39	322865-3	SPINDLE, LS1040	$16.04
40	224333-1	FLANGE 53, LS1040	$4.49
41	224333-1	FLANGE 53, LS1040	$4.49
42	265355-2	H. F. H. BOLT, LS1030	$2.40
43	343639-9	CENTER PLATE, LS1030	$5.92
44	344380-7	CENTER COVER, LS1040	$4.49
45	265324-3	H.F.H. BOLT M8X12, LS1030	$2.40
46	231593-8	TORSION SPRING 36, LS1030	$1.63
47	416003-8	SAFETY COVER, LS1040	$17.47
48	267136-0	FLAT WASHER 5, 9046	$2.18
49	911213-7	P.H. SCREW M5X12, LS1040	$0.86
50	265985-9	HEX.SOCKET HEAD BOLT M6, LS1211	$2.40
51	911223-4	P.H. SCREW M5X16, 5007NK	$0.86
52	251961-9	H.S.H. SCREW M6X10, LS1040	$0.86
53	257162-7	RING 7, LS1030	$3.06
54	253823-7	F. WASHER 7, LS1011	$1.34
55	265984-1	H.S.B. HEAD BOLT M6, LS1040	$2.40
56	344377-6	LINK PLATE, LS1040	$4.49
57	265984-1	H.S.B. HEAD BOLT M6, LS1040	$2.40
58	253823-7	F. WASHER 7, LS1011	$1.34
59	257162-7	RING 7, LS1030	$3.06
60	233152-4	COMP. SPRING 28, LS1040	$7.13
61	344464-1	SPRING HOLDER, LS1013	$1.96
62	256280-8	PIN 8, LS1030N	$3.61
63	257681-3	SLEEVE 8, LS1040	$2.73
64	256836-7	ROD 16, LS1040	$4.49
65	322317-4	STOPPER PIN, LS1040	$4.49
66	213021-5	O RING 5, JR3070CT	$0.53
67	922557-0	H.S.H. BOLT M10X35, HM1303B	$1.74
68	942251-8	SPRING WASHER 10, 2711	$1.34
69	317027-6	ARM, LS1030N	$26.92
70	256040-8	PIN 5, LS1030	$1.19
71	253762-1	F. WASHER 8, LS1040	$2.18
71	253852-0	F. WASHER 8, LS1211	$4.16
72	252105-4	HEX LOCK NUT M8-13, HM1800	$1.96
73	416001-2	KERF BOARD, LS1040	$4.49
74	416001-2	KERF BOARD, LS1040	$4.49
75	921461-0	HEX BOLT M8X40, LS1220	$1.96
76	317029-2	GUIDE FENCE, LS1030N	$30.90
77	317028-4	TURN BASE, LS1030N	$40.29
78	150585-7	BASE CP., LS1040	$81.30
79	344381-5	KNOCK SPRING, LS1040	$7.46
80	273495-2	GRIP 32, LS1040	$5.92
81	911213-7	P.H. SCREW M5X12, LS1040	$0.86
82	921452-1	HEX BOLT M8X30,LS1040	$1.34
83	343799-7	SLIDE PLATE, LS1040	$3.06
1004	411478-6	SWITCH BUTTON, LS1011	$1.63
1005	122540-9	'VISE ASS''Y LS1212 '	$51.80
5001	251887-5	SCREW M6X10, LS1030	$3.61
