Makita LS1030 Electric Saw Parts

Makita LS1030 Electric Saw Parts Image

Makita LS1030 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2

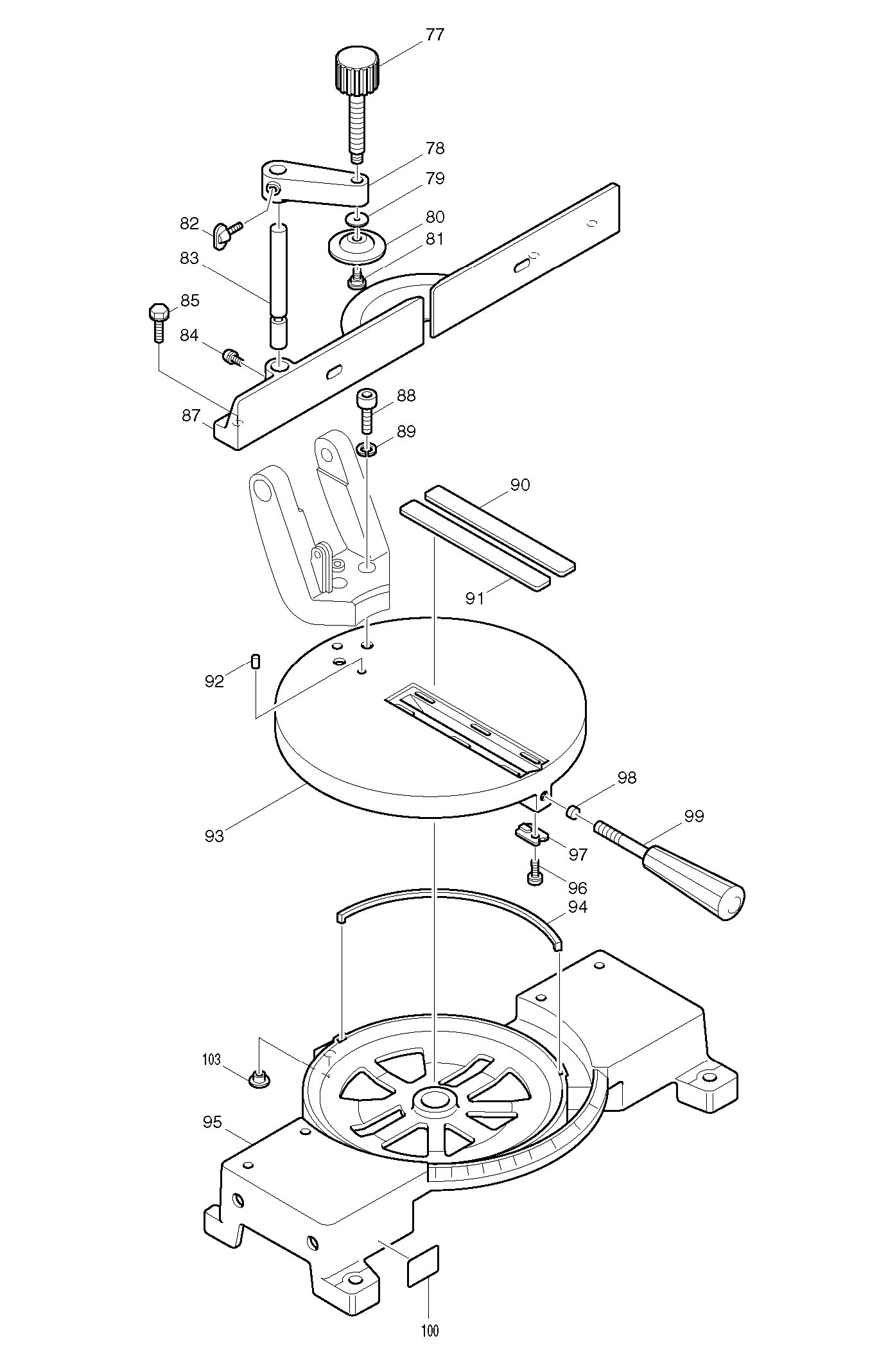

Tool Diagram    (Click image to Zoom in) View larger Image

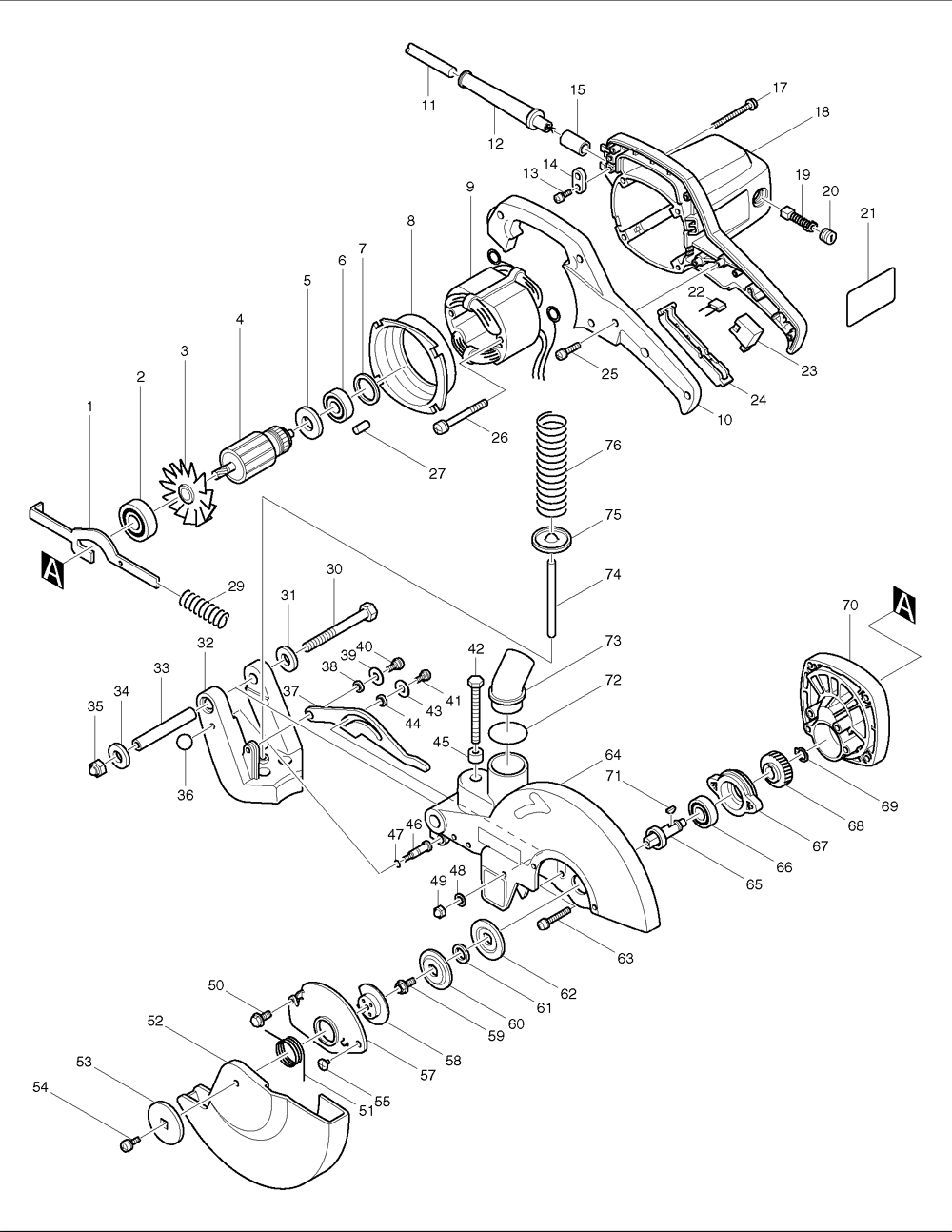

Makita LS1030 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 343641-2 SHAFT LOCK, LS1030 $3.06
19 181047-4 CARBON BRUSH SET 154,5402A $8.99
19 K21 This item will be shipped Free Carbon Brush Set $8.50
2 211106-1 B. BEARING 6201LLB, 9227C $13.07
52 414531-7 SAFETY COVER, LS1030 $13.29
3 241514-2 FAN 92, LS1440 $4.49
87 316762-3 GUIDE FENCE, LS1030-T2 $46.92
4 514816-2 ARMATURE ASS'Y 115V, LS1030 $100.11
5 681623-9 INS. WASHER, 2012NB $1.63
6 211068-3 B. BEARING 6200LB, 6820V $10.98
7 261081-1 URETHANE WASHER 25, 5402NA $4.16
8 414532-5 FAN GUIDE, LS1030 $4.49
10 415111-2 HANDLE COVER, LS1030 $10.32
12 682505-8 CORD GUARD, 2711 $2.51
12 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
13 911133-5 P.H. SCREW M4X18, N9501B $0.86
14 687001-1 STRAIN RELIEF, 6013BR $0.97
17 911383-2 P.H. SCREW M6X60, LS1030 $1.96
18 159140-2 MOTOR HOUSING, LS1030-T1 $50.59
19 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
20 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
23 651895-0 SWITCH, LS1030 $14.94
24 414157-5 SWITCH LEVER, LS1030 $4.49
25 911148-2 P.H. SCREW M4X25, 5057KB $0.86
26 911290-9 P.H. SCREW M5X65, GA7911 $1.96
27 263002-9 RUBBER PIN 4, 5007NK $0.86
28 263005-3 RUBBER PIN 6, BHP452 $0.86
29 231297-2 COMP. SPRING 9, 5007NK $1.63
30 265356-0 HEX BOLT M10X105, LS1030 $3.61
31 941251-5 F. WASHER 10, LS1030 $1.01
33 331350-5 PIPE 16-90, LS1030 $5.92
34 941251-5 F. WASHER 10, LS1030 $1.01
35 252111-9 HEX LOCK NUT M10, LS1030 $4.16
36 271601-3 KNOB 20,LS1030 $1.63
37 343640-4 LINK PLATE, LS1030 $7.46
38 257162-7 RING 7, LS1030 $3.06
39 253823-7 F. WASHER 7, LS1011 $1.34
40 251369-7 BINDING HEAD SCREW M6 LS1030 $1.96
41 251362-1 BINDING HEAD SCREW M6, LS1030 $1.96
42 251667-9 H. BOLT M8X75, LS1030 $2.40
43 253823-7 F. WASHER 7, LS1011 $1.34
44 257162-7 RING 7, LS1030 $3.06
45 262511-5 RUBBER SLEEVE 6, LS1030 $0.97
46 322338-6 STOPPER PIN, LS1030 $3.06
47 213021-5 O RING 5, JR3070CT $0.53
48 941152-7 F. WASHER 6, HM1500 $0.75
49 252112-7 HEX CAP NUT M6, LS1030 $1.34
50 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
51 231593-8 TORSION SPRING 36, LS1030 $1.63
52 414531-7 SAFETY COVER, LS1030 $13.29
53 253977-0 F. WASHER 6, LS1011 $2.18
54 911211-1 P.H. SCREW M5X12, HM1500B $0.86
55 265008-3 .SCREW M5, LS1011 $3.61
56 322311-6 RING, LS1030(T1) $2.51
57 343637-3 CENTER COVER, LS1030 $4.49
58 343639-9 CENTER PLATE, LS1030 $5.92
59 265355-2 H. F. H. BOLT, LS1030 $2.40
60 224333-1 FLANGE 53, LS1040 $4.49
61 257022-3 RING 16, LS1013 $3.06
62 224333-1 FLANGE 53, LS1040 $4.49
63 911366-2 P.H. SCREW M6X45, LS1030 $1.48
64 150216-8 BLADE CASE COMPLETE, LS1030, T1 $82.60
65 322309-3 SPINDLE, LS1011 $19.45
65 323722-8 SPINDLE, LS1011 $8.89
66 211256-2 B. BEARING 6203LLB, GA7001L $10.98
67 415107-3 BEARING BOX, LS1030 $5.92
68 221712-4 HELICAL GEAR 41, LS1020 $22.20
68 226480-4 HELICAL GEAR 41, LS1030 $16.37
69 961057-5 RETAINING RING S-17, LS1016L $0.86
70 159252-1 GEAR HOUSING CPL.,LS1011 $21.76
71 254038-9 WOODRUFF KEY 4, HM1500 $1.26
72 213460-9 O RING 35, HM1500 $1.19
73 414568-4 ELBOW, LS1030 $4.49
74 256198-3 PIN 8, LS1030 $3.61
75 343638-1 SPRING HOLDER, LS1030 $2.40
76 231480-1 COMPRESSION SPRING 26, LS1030 $4.71
77 271286-5 KNOB 40, LS1011 $7.46
78 122536-0 'VISE ASS''Y LS1040F ' $41.40
79 253804-1 F. WASHER 6, 6012HDW $1.34
80 343651-9 VISE PLATE, LS1030 $3.06
81 251370-2 PAN HEAD SCREW, 5007NK $1.74
82 251887-5 SCREW M6X10, LS1030 $3.61
83 322313-2 VISE ROD, LS1030 $5.92
84 911306-0 P.H. SCREW M6X10, LS1030 $1.19
85 921492-9 HEX BOLT M8X70,LS0820 $1.74
86 941201-0 F. WASHER 8, 5007NK $0.75
87 316762-3 GUIDE FENCE, LS1030-T2 $46.92
88 922552-0 H.S.H. BOLT M10X30, LS1030 $1.96
89 942251-8 SPRING WASHER 10, 2711 $1.34
90 414536-7 KERF BOARD, LS1030 $3.06
91 414536-7 KERF BOARD, LS1030 $3.06
92 256040-8 PIN 5, LS1030 $1.19
93 316160-1 TURN BASE, LS1030 $70.90
94 344035-4 SLIDE PLATE, LS1030-T2 $3.06
95 316161-9 BASE, LS1030 $91.80
96 911203-0 P.H. SCREW M5X8, 4101RH $1.19
97 232110-7 LEAF SPRING, LS1030 $1.63
98 263019-2 NYLON PIN 8, LS1030 $1.96
99 273495-2 GRIP 32, LS1040 $5.92
100 817837-6 CAUTION LABEL, LS1430 $2.74
101 263002-9 RUBBER PIN 4, 5007NK $0.86
102 819064-1 MAKITA MARK, 5402NA $1.26
103 286212-1 CAP 20, LS1013FL $0.97
104 817283-3 CAUTION LABEL, LS1220 $1.21
1001 257022-3 RING 16, LS1013 $3.06
1002 343652-7 SET PLATE, LS1030 $7.46
1003 251887-5 SCREW M6X10, LS1030 $3.61
1004 251896-4 SCREW M5X20, BSS611Z $3.61
1005 322312-4 HOLDER LS1040 $12.60
1007 122351-2 DUST BAG LS1030 $13.84
1008 410602-8 FASTENER, 9900B $3.06
5001 231481-9 COMP. SPRING 9, LS1030 $0.86
5002 411447-7 LOCK-OFF BUTTON, 2708 $1.63
5003 414535-9 SWITCH LOCK, LS1030 $3.06
5004 942201-3 SPRING WASHER 8, 2414NB $0.90
