Makita LS1016 Electric Saw Parts

Makita LS1016 Electric Saw Parts Image

Makita LS1016 Parts
10 Inch Dual Slide Compound Miter Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LS1016
10 Inch Dual Slide C...
$472.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

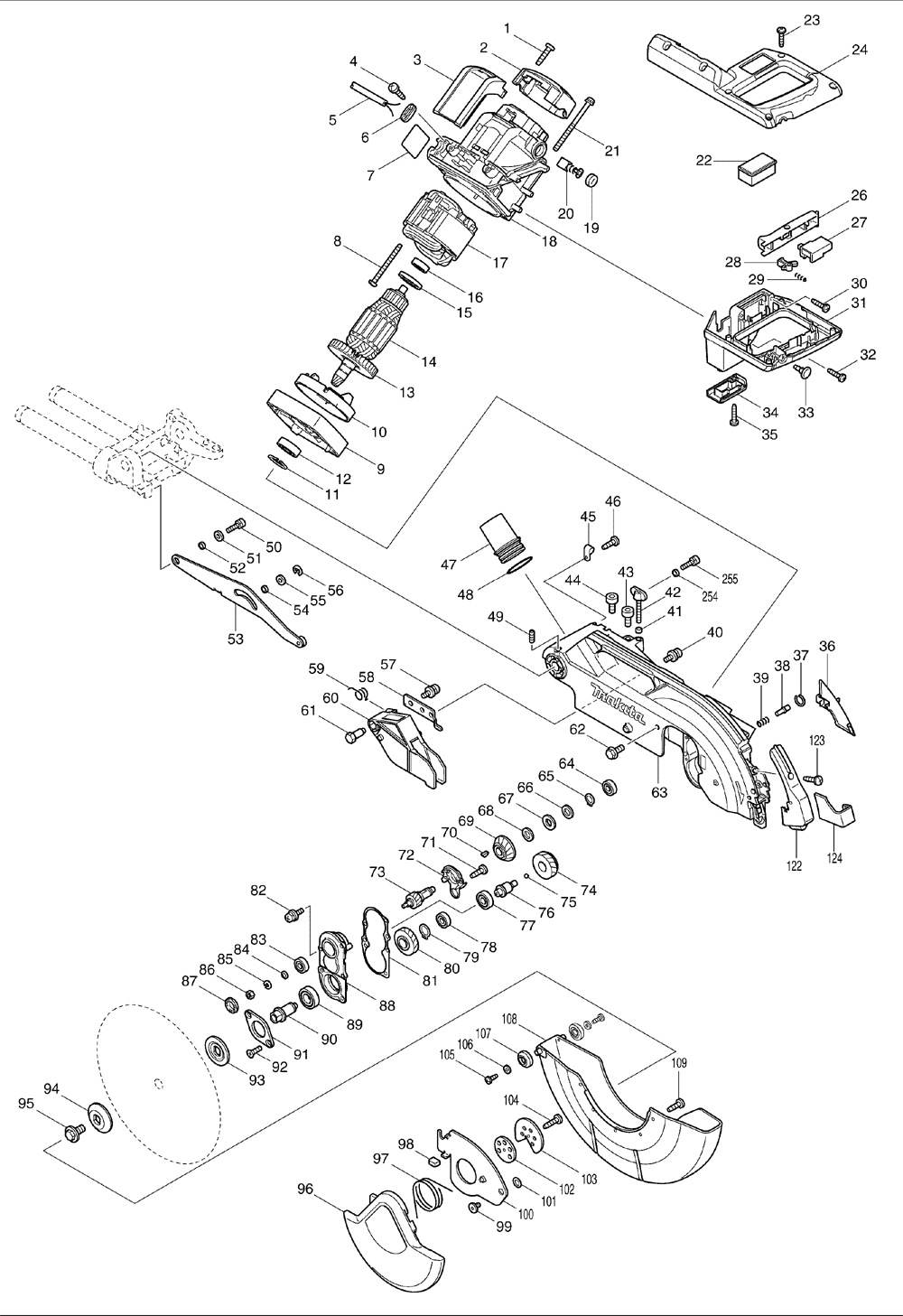

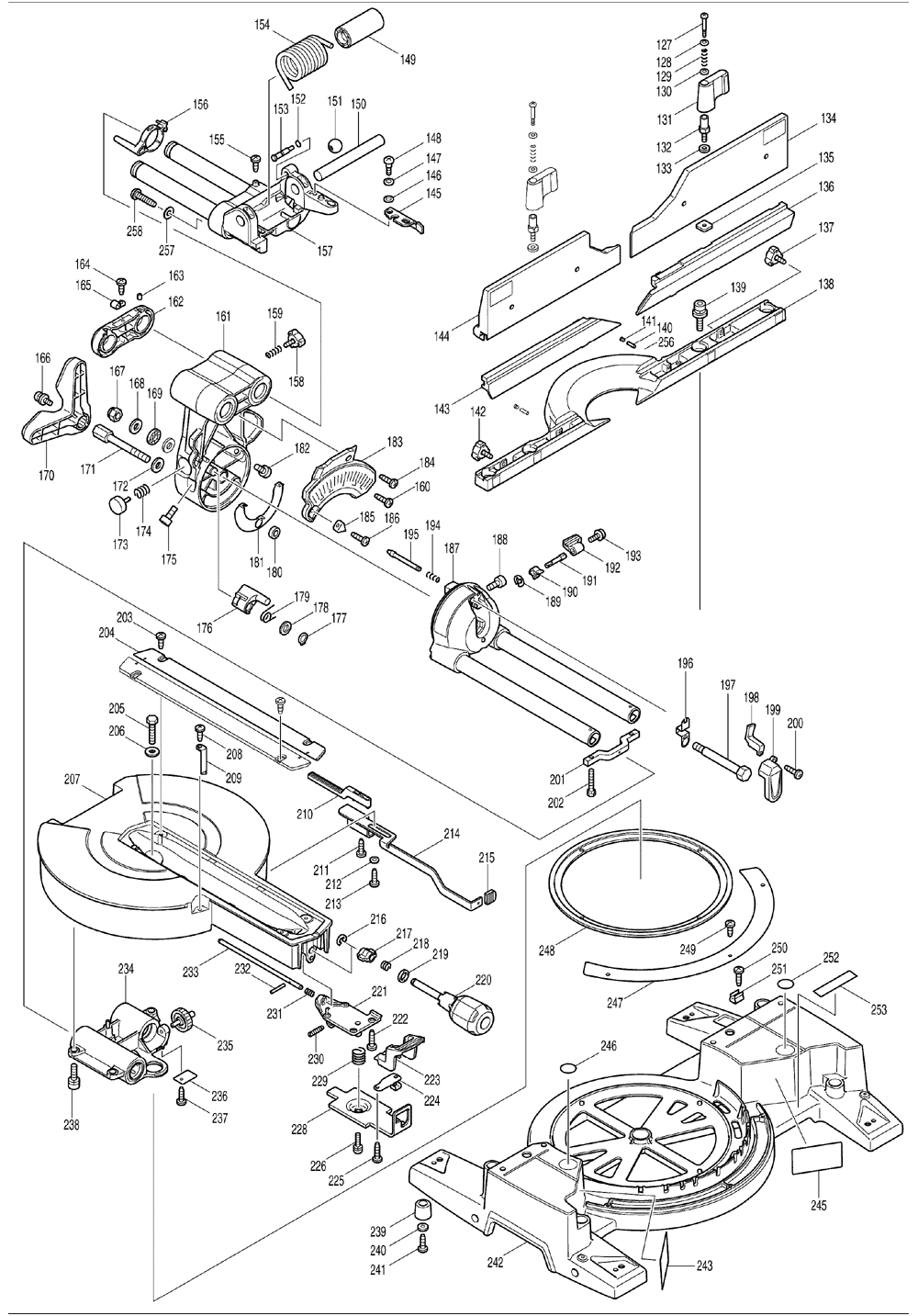

Makita LS1016 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
243 810483-4 CAUTION LABEL, LS1016 $1.08
00 82LS1016INS INSERT SET A84425-2&A84426-0, LS1016/L $21.10
2 450999-3 REAR COVER, LS1016 $2.51
00 816927-2 BEVEL SCALE LABEL, LS1016 $0.64
3 631863-9 CONTROLLER, LS1016 $25.17
209 816930-3 INDICATION LABEL, LS1016 $0.86
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
00 344638-4 CAP 35, LS1016 $0.90
5 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
00 346053-8 NUT HOLDER, LS1016 $1.12
5 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
6 687052-4 STRAIN RELIEF, HM1500B $1.26
124 346054-6 PROTECTOR, LS1016 $0.66
7 866468-8 NAME PLATE, LS1016 $1.30
00 168448-3 WHEEL 30, MITER SAW STAND, LS1016 $21.76
8 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
00 168522-7 SET PLATE., LS1016 $2.51
9 318399-2 MOTOR BRACKET, LS1016 $5.92
1002 140037-6 VISE ARM A CPL., LS1016 $7.02
10 451001-5 BAFFLE PLATE, LS1016 $1.34
00 140038-4 VISE ARM B CPL., LS1016 $5.92
11 961057-5 RETAINING RING S-17, LS1016L $0.86
00 125541-6 BASE ASSEMBLY CPL., LS1016 $250.95
12 211275-8 BALL BEARING 6003DDW, 5007NK $19.56
00 313163-6 RELEASE NOT R., LS1016 $1.12
13 240001-8 FAN 80, LS1016L $4.16
00 313164-4 RELEASE NUT L, LS1016 $1.12
14 517821-8 ARMATURE ASS'Y 115V, LS1016 $44.37
00 271328-5 KNOB 40., LS1016 $3.61
15 681642-5 INSULATION WASHER, LS1016L $10.32
16 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
17 596346-5 FIELD ASS'Y 115V, LS1016 $30.70
18 158958-8 MOTOR HOUSING CPL., LS1016 $17.25
19 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
20 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
21 911948-0 PAN HEAD SCREW M6X80 LS1016 $0.90
22 451015-4 COVER, LS1016 $1.34
23 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
24 450998-5 HANDLE COVER, LS1016 $4.71
26 451003-1 SWITCH LEVER, LS1016 $1.34
27 650618-3 SWITCH TG72B-1, LS1016 $7.02
28 416356-5 LOCK-OFF LEVER, LS1016L $1.63
29 231026-3 COMP. SPRING 4, LS1016L $0.79
30 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
31 140036-8 HANDLE CPL., LS1016 $8.12
32 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
33 451037-4 SWITCH BUTTON, LS1016 $1.12
34 451017-0 COVER HOLDER, LS1016 $1.12
35 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
36 451004-9 LEAD COVER, LS1016 $1.12
37 231928-3 RING SPRING 8, LS1013 $0.86
38 256633-1 PIN 6, LS1016L $1.48
39 231240-1 COMP. SPRING 7, 2414B $0.79
40 911113-1 P.H. SCREW M4X10, 4301BV $0.86
41 262001-8 RING 5, 6906 $3.61
42 265717-4 SCREW M6X43, LS1211 $3.61
43 266488-6 HEX SOCKET HEAD BOLT M8X20, LS1016 $0.90
44 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
44 922332-4 HEX. SOCKET HEAD BOLT M6X20, LS1016L $0.90
45 687095-6 STRAIN RELIEF, LS1220 $0.75
46 266026-4 TAPPING SCREW 4X12,5477NB $0.86
47 419277-0 DUST NOZZLE, LS1013 $2.84
48 213460-9 O RING 35, HM1500 $1.19
49 266321-2 HSS SCREW(FLAT POINT) M6X16, LS1016 $0.66
50 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
51 253804-1 F. WASHER 6, 6012HDW $1.34
52 257163-5 RING 6, LS1011 $1.63
53 158960-1 LINK PLATE CPL., LS1016 $4.71
54 257163-5 RING 6, LS1011 $1.63
55 253804-1 F. WASHER 6, 6012HDW $1.34
56 961018-5 STOP RING E-5, LS1011 $0.53
57 911113-1 P.H. SCREW M4X10, 4301BV $0.86
58 346050-4 GUARD HOLDER, LS1016L $1.12
59 231675-6 TORSION SPRING 11, LS1016 $0.66
60 453634-2 GUARD, LS1016L $2.51
61 325645-6 GUARD SHAFT, LS1016 $1.34
62 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
63 140055-4 BLADE CASE CPL., LS1016 $91.90
64 210005-4 BALL BEARING 608DDW, 9031 $13.07
65 961052-5 RETAINING RING S-12, 9218PBL $0.86
66 253744-3 F. WASHER 12, HR2410 $1.34
67 261104-5 RUBBER WASHER12, LS1016 $0.90
68 253744-3 F. WASHER 12, HR2410 $1.34
69 227550-2 SPIRAL BEVEL GEAR 32, LS1016L $4.71
70 254001-2 WOODRUFF KEY 4, HM1810 $1.26
71 266026-4 TAPPING SCREW 4X12,5477NB $0.86
72 451002-3 GREASE HOLDER, LS1016 $0.90
73 227701-7 HELICAL GEAR 14, LS1016 $4.71
74 227702-5 HELICAL GEAR 27, LS1016 $4.71
75 216024-8 STEEL BALL 4, LS1016L $0.53
76 325643-0 GEAR SHAFT, LS1016 $3.61
77 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
78 210005-4 BALL BEARING 608DDW, 9031 $13.07
79 961055-9 RETAINING RING S-15, 5007F $1.19
80 227703-3 HELICAL GEAR 28, LS1016 $4.71
81 442147-8 GASKET, LS1016L $1.34
82 911223-4 P.H. SCREW M5X16, 5007NK $0.86
83 210005-4 BALL BEARING 608DDW, 9031 $13.07
84 267010-2 F. WASHER 5, AN451 $1.63
85 942101-7 SPRING WASHER 5, 9005B $0.90
86 931202-6 HEX NUT M5, HR2410 $0.79
87 285847-5 BEARING RETAINER 14-23,BCS550/Z $4.16
88 158957-0 BEARING BOX CPL., LS1016L $5.92
89 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
90 325644-8 SPINDLE, LS1016 $3.61
91 285732-2 BEARING RETAINER 51, LS1016L $1.12
92 265034-2 C.S.H. SCREW, BCS550 $1.19
93 224428-0 INNER FLANGE 46, LS1016 $3.61
94 224429-8 OUTER FLANGE 46, LS1016 $3.61
95 265405-3 H.F.H. BOLT M10X20, LS1211 $3.61
96 158959-6 SAFETY COVER A CPL., LS1016 $8.12
97 231634-0 TORSION SPRING 45, LS1220 $1.63
98 424190-9 CUSION, LS1016 $0.66
99 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
100 346048-1 CENTER COVER, LS1016 $3.61
101 253932-2 W. WASHER 10, 2012 $1.01
102 344539-6 CENTER WASHER, LS1220 $3.72
103 346047-3 CENTER PLATE, LS1016 $1.34
104 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
105 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
106 941051-3 F. WASHER 4, 2107F $0.75
107 424193-3 ROLER, LS1016L $0.90
108 451754-6 SAFETY COVER B, LS1016L $9.22
109 266026-4 TAPPING SCREW 4X12,5477NB $0.86
122 451016-2 BLADE CASE COVER, LS1016 $2.51
123 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
124 451038-2 PROTECTOR, LS1016 $1.12
127 265026-1 P.H. SCREW M4, 3901 $4.93
128 941102-2 F. WASHER 5, HM1100C $0.75
129 233267-7 COMPRESSION SPRING 7, AN621 $1.96
130 941102-2 F. WASHER 5, HM1100C $0.75
131 272261-4 LEVER 45, LS1016L $1.12
132 325651-1 JOINT, LS1016L $2.51
133 253804-1 F. WASHER 6, 6012HDW $1.34
134 158970-8 UPPER FENCE R CPL., LS1016 $28.56
135 346058-8 GUIDE PLATE, LS1016 $0.90
136 318415-0 LOWER FENCE R, LS1016 $11.53
136 318596-0 LOWER FENCE R, LS1016 $13.84
137 265783-1 THUMB SCREW M6X18, LS1016L $1.12
138 318411-8 GUIDE FENCE, LS1016 $27.37
139 922443-5 HSH BOLT M8X25 WITH WR, LS1016 $0.90
140 256226-4 PIN 4, 6922NB $1.19
141 266264-8 H.S.H.SCREW M5X8, BSS730SH $1.19
142 265783-1 THUMB SCREW M6X18, LS1016L $1.12
143 318595-2 LOWER FENCE L, LS1016 $14.94
144 158969-3 UPPER FENCE L CPL., LS1016 $23.96
145 346049-9 STOPPER ARM, LS1016 $2.51
146 253948-7 W. WASHER 8, UM140D $0.90
147 253835-0 F. WASHER 8, LS1016L $1.34
148 251267-5 P.H. SCREW M6, LS1013 $1.96
149 451036-6 SLEEVE 17, LS1016 $1.34
150 323740-6 ROD 16, LS1016L $4.49
151 271601-3 KNOB 20,LS1030 $1.63
152 213021-5 O RING 5, JR3070CT $0.53
153 324183-5 STOPPER PIN, LS0714 $1.52
154 233537-4 TORSION SPRING, LS1016 $4.71
155 266026-4 TAPPING SCREW 4X12,5477NB $0.86
156 158962-7 STOPPER LEVER CPL., LS1016 $1.12
157 158961-9 FRONT ARM CPL., LS1016L $28.56
158 265783-1 THUMB SCREW M6X18, LS1016L $1.12
159 231240-1 COMP. SPRING 7, 2414B $0.79
160 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
161 158963-5 ARM CPL., LS1016L $59.90
162 318403-7 PIPE HOLDER, LS1016 $7.02
163 266208-8 HEX SOCKET HEAD BOLT M6X8, LS1016L $1.96
164 266026-4 TAPPING SCREW 4X12,5477NB $0.86
165 687095-6 STRAIN RELIEF, LS1220 $0.75
166 911113-1 P.H. SCREW M4X10, 4301BV $0.86
167 252130-5 HEX LOCK NUT M10 LS1211 $4.16
168 253024-7 F. WASHER 10, LS0714 $1.34
170 451019-6 LEVER 105, LS1016 $2.51
171 265589-7 HEX BOLT M10, LS1016 $3.61
172 253024-7 F. WASHER 10, LS0714 $1.34
173 415208-7 RELEASE BUTTON, LS1211 $3.06
174 233031-6 COMPRESSION SPRING 12, 9040L $0.86
175 266488-6 HEX SOCKET HEAD BOLT M8X20, LS1016 $0.90
176 318405-3 STOPPER, LS1016 $3.61
177 961052-5 RETAINING RING S-12, 9218PBL $0.86
178 253744-3 F. WASHER 12, HR2410 $1.34
179 231646-3 TORSION SPRING14, LS1016 $0.66
180 262051-3 RUBBER RING, HR3851 $1.48
180 262158-5 RUBBER RING 9, LS1216L $0.66
181 346071-6 PLATE, LS1016 $1.34
182 266488-6 HEX SOCKET HEAD BOLT M8X20, LS1016 $0.90
183 451008-1 ARM COVER, LS1016 $3.61
184 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
185 343678-9 INDICATION PLATE, LS1011 $1.63
186 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
187 158964-3 ARM HOLDER CPL., LS1016 $28.56
188 266488-6 HEX SOCKET HEAD BOLT M8X20, LS1016 $0.90
189 961011-9 STOP RING E-4, 4301BV $1.48
190 451044-7 CAM, LS1016 $0.66
191 325656-1 ROD 6, LS1016 $1.12
192 272262-2 LEVER 22, LS1016 $1.12
193 911113-1 P.H. SCREW M4X10, 4301BV $0.86
194 234122-6 COMPRESSION SPRING 6, LS1016 $0.44
196 232250-1 LEAF SPRING, LS1016 $0.90
197 325646-4 CENTER SHAFT, LS1016 $2.51
198 451039-0 POSITION PLATE, LS1016 $1.34
199 451070-6 ARM HOLDER COVER, LS1016 $0.90
200 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
201 158967-7 SQUARE ROD CPL., LS1016 $3.61
202 925251-3 HEX. BOLT M5X30, LS711DWBEK $2.40
203 266026-4 TAPPING SCREW 4X12,5477NB $0.86
204 451013-8 KERF BOARD, LS1016L $2.51
205 265585-5 HEX BOLT M8X45, LS1016 $1.12
206 253762-1 F. WASHER 8, LS1040 $2.18
207 158966-9 TURN BASE CPL., LS1016 $250.95
208 266026-4 TAPPING SCREW 4X12,5477NB $0.86
209 451009-9 INDICATION PLATE, LS1016 $0.90
210 451011-2 RACK BLOCK, LS1016 $1.12
211 266385-6 TAPPING SCREW 4X14, GA7021 $0.53
212 941051-3 F. WASHER 4, 2107F $0.75
213 266026-4 TAPPING SCREW 4X12,5477NB $0.86
214 346052-0 SLIDE LOCK PLATE, LS1016 $4.71
215 286275-7 CAP, 5007MG $0.86
216 961013-5 STOP RING E-7, JN3200 $0.53
217 313165-2 CAM, LS1016 $3.61
218 231131-6 COMP. SPRING 11, LS1016 $0.66
219 267047-9 F. WASHER 10, 3620 $1.34
220 273666-1 GRIP 50, LS1016 $3.61
221 318410-0 PIN HOLDER, LS1016 $3.61
222 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
223 451010-4 LOCK LEVER, LS1016L $1.34
224 345272-3 LOCK LEVER PLATE, LS0714 $2.84
225 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
226 266505-2 HS BINDING HEAD SCREW M6X14, LS1016 $0.90
228 346051-2 MITER LOCK PLATE, LS1016 $4.71
229 234104-8 COMPRESSION SPRING 13, LS1016 $0.90
230 266306-8 SHOULDER SCREW M5, LA1013L $3.28
231 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
232 256158-5 PIN 3, BJR181 $1.19
233 325649-8 LOCK PIN 6, LS1016 $2.51
234 158968-5 LINEAR BEARING BOX CPL., LS1016 $45.39
235 451018-8 SPUR GEAR 43, LS1016 $2.51
236 232249-6 LEAF SPRING, LS1016 $0.66
237 266026-4 TAPPING SCREW 4X12,5477NB $0.86
238 922441-9 H.S.H. BOLT M8X25, SC190DWDE $1.96
239 421845-7 FOOT, LS1016 $0.90
240 267195-4 FLAT WASHER 4, LS1016 $0.66
241 266026-4 TAPPING SCREW 4X12,5477NB $0.86
242 158965-1 BASE CPL., LS1016 $250.95
243 810492-3 CAUTION LABEL, LS1016 $1.08
245 810491-5 CAUTION LABEL, LS1016 $1.08
246 817283-3 CAUTION LABEL, LS1220 $1.21
247 816920-6 MITER SCALE PLATE, LS1016L $3.61
248 451012-0 SLIDE PLATE, LS1016 $2.51
249 266026-4 TAPPING SCREW 4X12,5477NB $0.86
250 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
251 232075-3 LEAF SPRING, LS1011 $2.07
252 817283-3 CAUTION LABEL, LS1220 $1.21
253 810487-6 CAUTION LABEL, LS1016 $1.08
254 257785-1 SLEEVE 6, LS1016 $1.12
255 922226-3 H. S. H. BOLT M5X18, HM0810B $1.96
256 216024-8 STEEL BALL 4, LS1016L $0.53
257 253874-0 F. WASHER 4, LS1016L $1.34
258 266042-6 TAPPING SCREW BIND CT 4X20, 9046 $0.86
271 942151-2 SPRING WASHER 6, 5007NB $0.90
272 253313-0 THIN WASHER, 4340FCT $1.34
1001 122852-0 'DUST BAG ASS''Y LS1016 ' $20.80
1002 122854-6 'VISE ASS''Y LS1016L ' $53.80
1004 251889-1 KNOB M5X16, 2012 $1.96
1005 325673-1 HOLDER 200 LS1016L/LS1216L $16.60
1006 782232-8 BOX WRENCH 13 LS1016 $8.40
1007 A-93675 10X5/8 60T MITER SAW BLADE LS1040 $49.60
