Makita LS1011N Electric Saw Parts

Makita LS1011N Electric Saw Parts Image

Makita LS1011N Parts
10-Inch Slide Compound Miter Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LS1011N
10-Inch Slide Compou...
$459.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

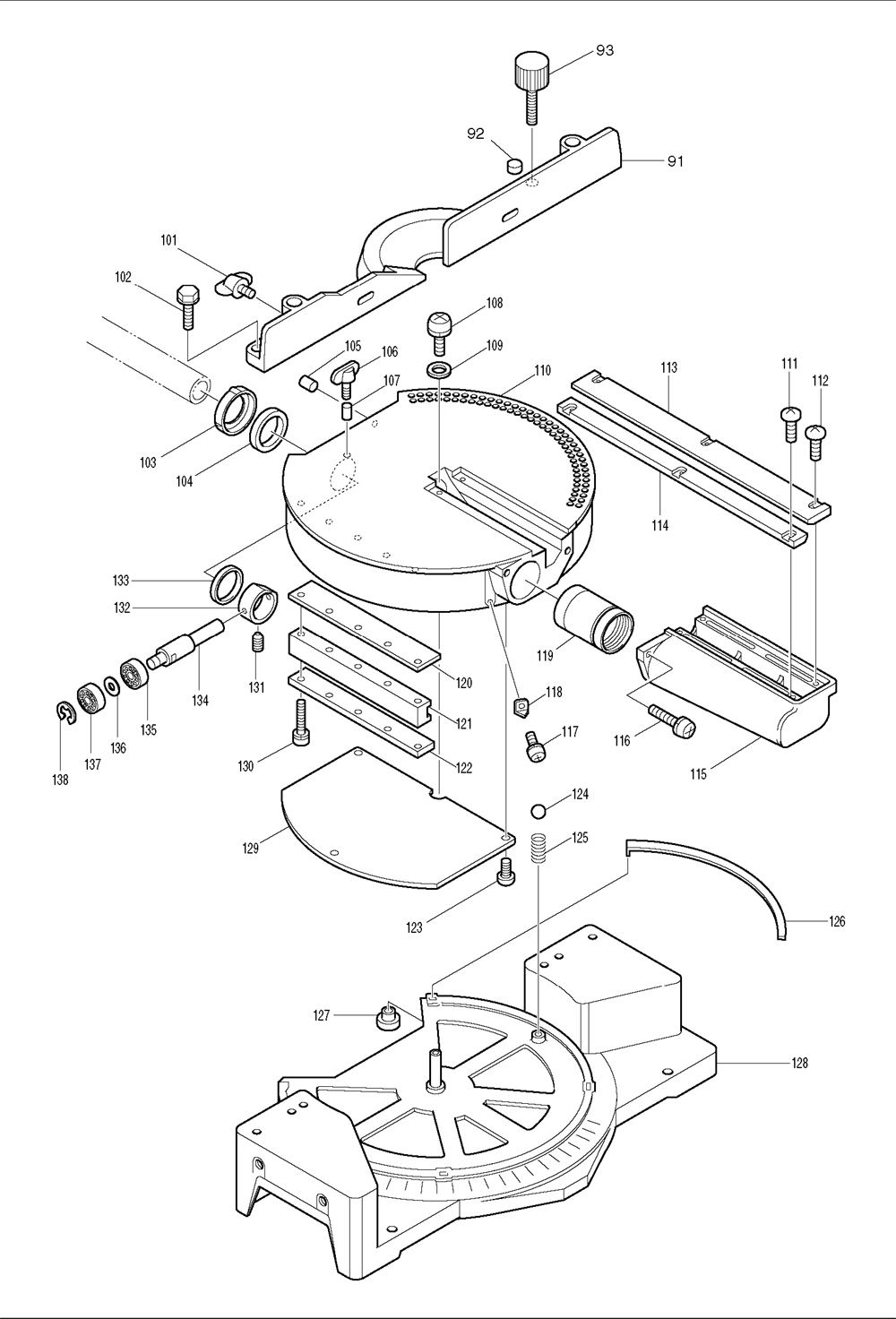

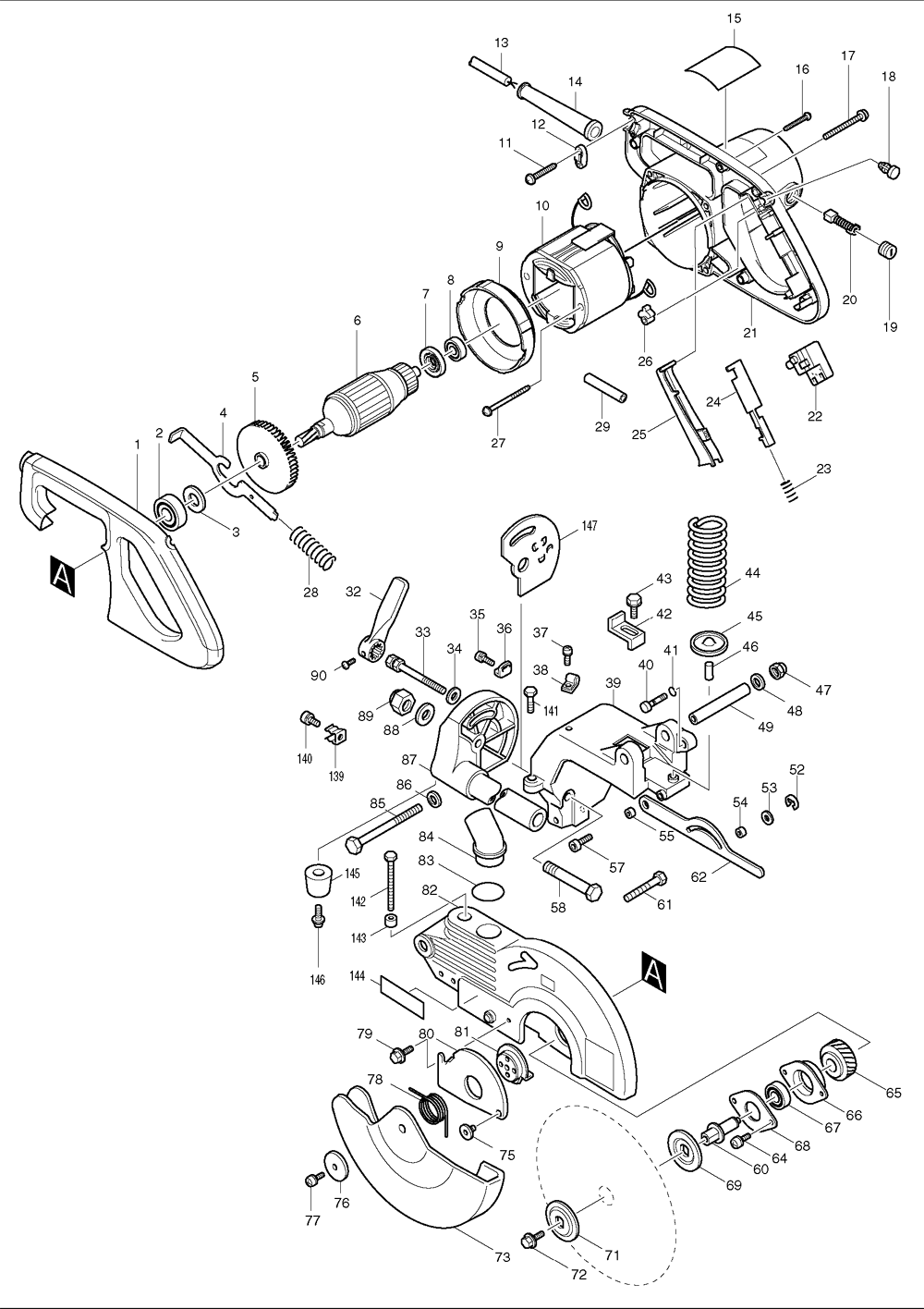

Makita LS1011N Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 416004-6 HANDLE COVER, LS1040 $14.61
2 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
3 267280-3 FLAT WASHER 15, 5007NK $1.01
3 253853-8 F. WASHER 15, LS1211 $1.63
4 343641-2 SHAFT LOCK, LS1030 $3.06
5 241909-9 FAN 80, LS1030N $2.84
6 516716-2 ARMATURE 115V, LS1040 $127.56
7 681640-9 INSULATION WASHER, LS1040 $2.18
8 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
9 416002-0 BAFFLE PLATE, LS1011N $3.06
10 596136-6 FIELD 115V, LS1011N $64.00
11 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
12 687052-4 STRAIN RELIEF, HM1500B $1.26
13 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
13 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
14 682505-8 CORD GUARD, 2711 $2.51
14 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 911383-2 P.H. SCREW M6X60, LS1030 $1.96
18 411478-6 SWITCH BUTTON, LS1011 $1.63
19 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
20 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
21 159890-9 MOTOR HOUSING CP.,LS1011N $28.25
22 651923-1 SWITCH, LS1040 $20.55
23 231457-6 COMP. SPRING 3, HR2400 $2.07
24 416000-4 LOCK OFF LEVER, LS1040 $3.06
25 415999-0 SWITCH LEVER, LS1040 $4.49
26 414546-4 CAM, LS1011 $1.63
27 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
28 231297-2 COMP. SPRING 9, 5007NK $1.63
29 683050-6 VINYL TUBE $0.66
32 272216-9 LEVER 125, LS1011 $19.45
33 265937-0 LOCK BOLT M10, LS1011 $7.13
34 253024-7 F. WASHER 10, LS0714 $1.34
35 911113-1 P.H. SCREW M4X10, 4301BV $0.86
36 343678-9 INDICATION PLATE, LS1011 $1.63
37 911113-1 P.H. SCREW M4X10, 4301BV $0.86
38 687042-7 STRAIN RELIEF, 2711 $1.26
38 687095-6 STRAIN RELIEF, LS1220 $0.75
39 151608-4 ARM COMPLETE, LS1011N $63.60
40 322317-4 STOPPER PIN, LS1040 $4.49
41 213021-5 O RING 5, JR3070CT $0.53
42 343677-1 STOPPER PLATE, LS1011 $4.49
43 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
44 233297-8 COMPRESSION SPRING 28, LS1011N $6.47
45 343638-1 SPRING HOLDER, LS1030 $2.40
46 256199-1 PIN 8, LS1011 $1.96
47 252111-9 HEX LOCK NUT M10, LS1030 $4.16
48 941251-5 F. WASHER 10, LS1030 $1.01
49 331350-5 PIPE 16-90, LS1030 $5.92
52 961018-5 STOP RING E-5, LS1011 $0.53
53 253804-1 F. WASHER 6, 6012HDW $1.34
54 257163-5 RING 6, LS1011 $1.63
55 257163-5 RING 6, LS1011 $1.63
57 922334-0 H.S.H.BOLT M6X20, LS1211 $2.40
58 265359-4 HEX BOLT M16X78, LS1011 $8.01
60 322865-3 SPINDLE, LS1040 $16.04
61 265357-8 HEX BOLT M8X50, LS1011 $3.61
62 343672-1 LINK PLATE, LS1011 $7.46
64 911223-4 P.H. SCREW M5X16, 5007NK $0.86
65 226465-0 HELICAL GEAR 42, LS1040 $22.20
66 316821-3 HOUSING W/O BEARING, LS1040 $13.18
67 211256-2 B. BEARING 6203LLB, GA7001L $10.98
68 285685-5 BEARING RETAINER 64, LS1040 $3.06
69 224333-1 FLANGE 53, LS1040 $4.49
71 224333-1 FLANGE 53, LS1040 $4.49
72 265355-2 H. F. H. BOLT, LS1030 $2.40
73 415387-1 SAFETY COVER, LS1011N $19.45
75 265985-9 HEX.SOCKET HEAD BOLT M6, LS1211 $2.40
76 267136-0 FLAT WASHER 5, 9046 $2.18
77 911213-7 P.H. SCREW M5X12, LS1040 $0.86
78 231593-8 TORSION SPRING 36, LS1030 $1.63
79 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
80 344380-7 CENTER COVER, LS1040 $4.49
80 343673-9 CENTER COVER, LS1011 $4.49
81 343639-9 CENTER PLATE, LS1030 $5.92
82 183289-6 BLADE CASE, LS1011N $65.10
83 213460-9 O RING 35, HM1500 $1.19
84 414568-4 ELBOW, LS1030 $4.49
85 265356-0 HEX BOLT M10X105, LS1030 $3.61
86 941251-5 F. WASHER 10, LS1030 $1.01
87 151607-6 ARM HOLDER COMPLETE, LS1011N $80.50
87 152922-1 ARM HOLDER COMPLETE, LS1011 $92.20
88 253771-0 F. WASHER 16, LS1011 $1.63
89 252044-8 HEX LOCK NUT M16-24, LS1020 $5.92
90 911213-7 P.H. SCREW M5X12, LS1040 $0.86
92 263019-2 NYLON PIN 8, LS1030 $1.96
93 271302-3 KNOB 40, LS1011N $5.48
101 251887-5 SCREW M6X10, LS1030 $3.61
102 921451-3 HEX BOLT M8X30, LS1011 $2.40
103 343676-3 CAP, LS1011 $3.06
104 262048-2 FELT RING 30, LS1011 $3.61
105 263005-3 RUBBER PIN 6, BHP452 $0.86
106 265708-5 SCREW M6X20, LS1011 $3.61
107 256203-6 PIN 4.5, LS1011 $1.19
108 911213-7 P.H. SCREW M5X12, LS1040 $0.86
109 253807-5 F. WASHER 5, 6012HDW $1.01
110 151610-7 TURN BASE COMPLETE, LS1011N $110.97
111 251314-2 SCREW M4X12, BHP451 $0.86
112 251314-2 SCREW M4X12, BHP451 $0.86
113 416885-8 KERF BOARD L, LS1011N $4.16
114 416884-0 KERF BOARD R., LS1011N $2.84
115 415388-9 FRONT COVER, LS1011N $15.93
116 911228-4 P.H. SCREW M5X18, 5377MG $0.86
117 911113-1 P.H. SCREW M4X10, 4301BV $0.86
118 343678-9 INDICATION PLATE, LS1011 $1.63
119 211444-1 LINEAR B. BEARING 3064, LS1011,LS1013FL $87.80
120 343671-3 SLIDE GUIDE PLATE, LS1011 $4.49
121 331353-9 SLIDE GUIDE SUPPORT, LS1011 $23.74
122 331352-1 SLIDE GUIDE, LS1011 $20.33
123 922114-4 HEX.S.H.BOLT M5X40, LS1011N $1.96
124 216004-4 STEEL BALL 7.9, HR3851 $1.19
125 231038-6 COMP. SPRING 5.5, LS1011 $1.63
126 344036-2 SLIDE PLATE, LS1011-T2 $4.49
127 286212-1 CAP 20, LS1013FL $0.97
128 151611-5 BASE COMPLETE, LS1011N $94.20
129 150210-0 UNDER COVER, LS1011 $8.78
130 922264-5 HEX.S.H.BOLT, M5X40, LS1011N $1.48
131 265940-1 H.S.H. BOLT M5X6, LS1011 $1.08
132 322417-0 LOCK RING 30, LS1011 $21.76
133 261087-9 RUBBER WASHER 30, LS1011 $1.63
134 322416-2 ROD, LS1011 $25.06
135 212036-9 N. BEARING 808, LS1011 $16.04
136 253823-7 F. WASHER 7, LS1011 $1.34
137 212035-1 N. BEARING 708, LS1011 $16.04
138 961012-7 STOP RING E-6, 2030S $0.53
139 232075-3 LEAF SPRING, LS1011 $2.07
140 911113-1 P.H. SCREW M4X10, 4301BV $0.86
140 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
141 265371-4 HEX BOLT M8X30, LS1011 $2.40
142 251667-9 H. BOLT M8X75, LS1030 $2.40
143 262511-5 RUBBER SLEEVE 6, LS1030 $0.97
144 819064-1 MAKITA MARK, 5402NA $1.26
145 421391-0 RUBBER CUSHION, LS1011 $3.06
146 911333-7 SCREW M6X20, 2414B $1.19
147 343854-5 ARM HOLDER PLATE, LS1011 $5.92
1001 122536-0 'VISE ASS''Y LS1040F ' $41.40
1002 122351-2 DUST BAG LS1030 $13.84
1003 411478-6 SWITCH BUTTON, LS1011 $1.63
