Makita KP0810 Electric planer parts

Makita KP0810 Electric planer parts Image

Makita KP0810 Parts
3-1/4 Inch Planer, 7.5 AMP

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita KP0810
3-1/4 Inch Planer, 7...
$213.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

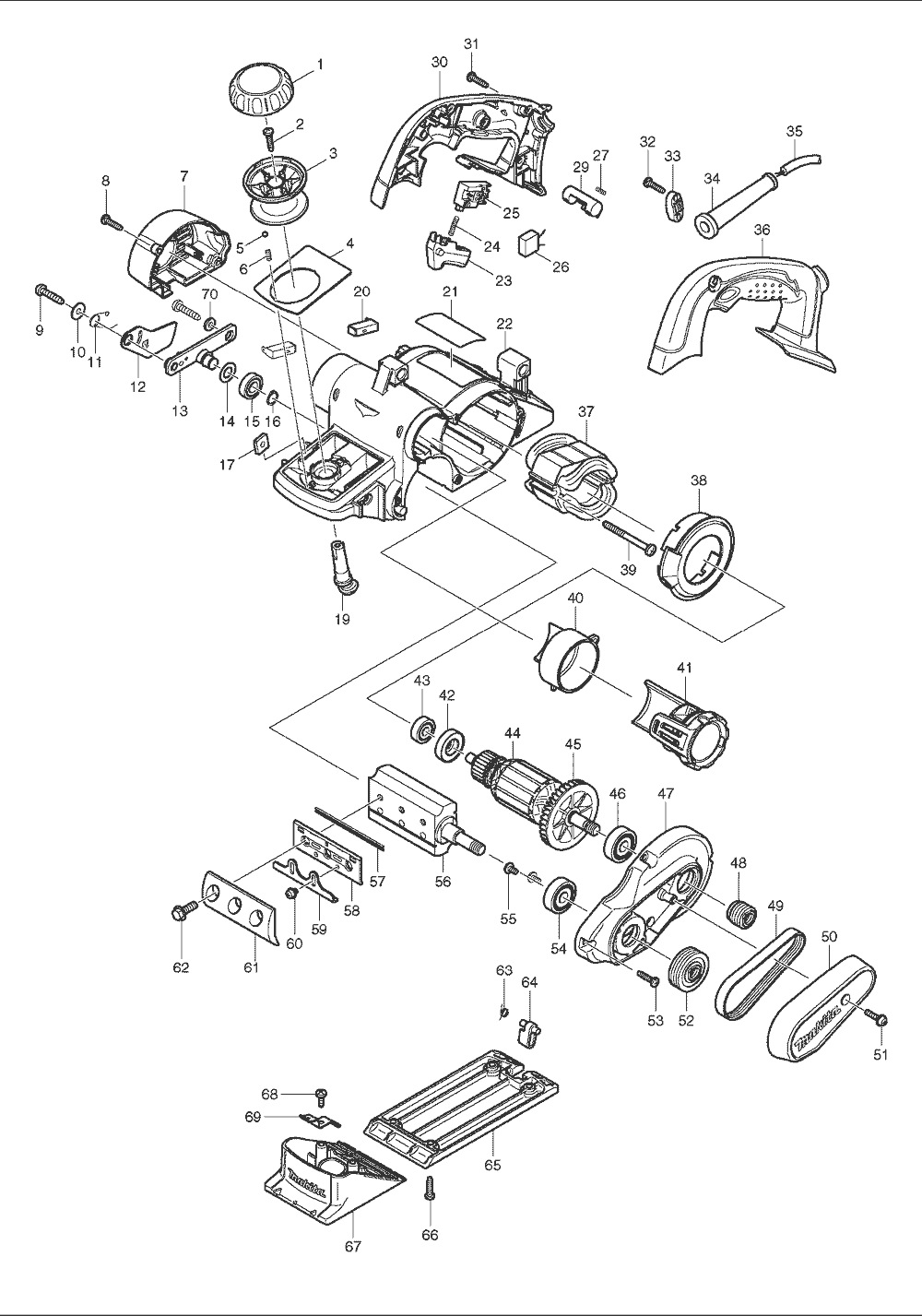

Makita KP0810 Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 419700-5 KNOB COVER, KP0810 $5.48
1001 345768-4 GUIDE HOLDER, KP0810 $1.52
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
3 419699-4 KNOB, KP0810 $2.84
4 345800-4 FRONT PANEL, KP0810 $5.48
5 216008-6 STEEL BALL 4.0, 5007NK $0.53
6 233325-9 COMP. SPRING 3, KP0810 $1.96
7 158322-3 REAR COVER, KP0810 $5.48
8 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
9 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
10 253194-2 F. WASHER 5, HM1303B $1.63
11 233521-9 TORSION SPRING 10, KP0810 $1.96
12 345765-0 DRUM COVER, KP0810 $2.84
13 158184-9 DRUM HOLDER, KP0810 $22.86
14 253758-2 F. WASHER 10, 9901 $1.01
15 210057-5 BALL BEARING 6900LLB, BFL080F $11.97
16 961006-2 RETAINING RING S-10, N9501B $0.86
17 264002-2 SQUARE NUT M5, BJR181 $1.34
19 419702-1 CAM, KP0810 $2.84
20 194984-3 CARBON BRUSH CB-132 SET KP0810 $4.71
21 863213-2 NAME PLATE, KP0810 $1.21
22 419694-4 HOUSING, KP0810 $23.74
23 419703-9 SWITCH LEVER, KP0810 $2.84
24 233408-5 COMP. SPRING 3, KP0810 $1.63
25 651922-3 SWITCH, HM1303B $19.45
27 231433-0 COMP. SPRING 4, 6233D $0.86
29 419705-5 LOCK ON BUTTON, KP0810 $6.80
30 188215-0 HANDLE SET, KP0810 $17.25
31 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
32 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
33 687063-9 STRAIN RELIEF, 4323K $1.26
34 682502-4 CORD GUARD 8-85, HP2010N $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
35 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
36 188215-0 HANDLE SET, KP0810 $17.25
37 525746-2 FIELD ASS'Y 115V, KP0810 $29.17
38 419701-3 BAFFLE PLATE, KP0810 $2.84
39 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
40 419710-2 NOZZLE, KP0810 $2.84
41 125353-7 DUCT ASS'Y, KP0810 $5.48
42 681659-8 INSULATION WASHER, KP0810 $2.18
43 211031-6 BALL BEARING 608LLB, 9227C $10.98
44 513681-6 ARMATURE ASS'Y 115V, KP0810 $43.65
45 240079-1 FAN 62, KP0810 $2.84
47 158149-1 BRACKET CPL.,KP0810 $11.64
48 222125-2 V-PULLEY 4-20L, 1900B-T2 $7.46
49 225007-7 POLY V-BELT, KP0800K $16.04
50 419698-6 BELT COVER, KP0810 $5.48
51 911133-5 P.H. SCREW M4X18, N9501B $0.86
52 222126-0 V-PULLEY 4-37, 1900B-T2 $8.78
53 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
55 251291-8 SCREW M4X8, BO6030 $0.86
56 158156-4 DRUM CPL., KP0810 $32.74
58 343433-9 SET PLATE (MINI BLADE), N1900B $4.49
59 345644-2 ADJUST PLATE, KP0810 $1.26
60 251246-3 P.H. SCREW M4X5, 1902 $0.86
61 345001-4 DRUM PLATE SET, 1100 $10.32
62 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
63 231698-4 TORSION SPRING 7, KP0810 $1.48
64 419706-3 FOOT, KP0810 $1.52
65 318098-6 BASE, KP0810 $17.25
66 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
67 158360-5 FRONT BASE, KP0810 $18.57
68 266026-4 TAPPING SCREW 4X12,5477NB $0.86
69 232232-3 LEAF SPRING, KP0810 $1.96
70 267012-8 FLAT WASHER 5, 1912B $1.63
1001 122785-9 'GUIDE RULE ASS''Y KP0810 ' $12.60
1002 123062-2 BLADE GAUGE, 1902 $6.40
1003 782209-3 SOCKET WRENCH, 4200H $6.40
1004 251878-6 SCREW M5X20, UM140D $3.50
1005 253807-5 F. WASHER 5, 6012HDW $1.01
1006 342390-8 DEPTH GUIDE, 1923B $2.51
