Makita KP0800 Electric planer parts

Makita KP0800 Electric planer parts Image

Makita KP0800 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

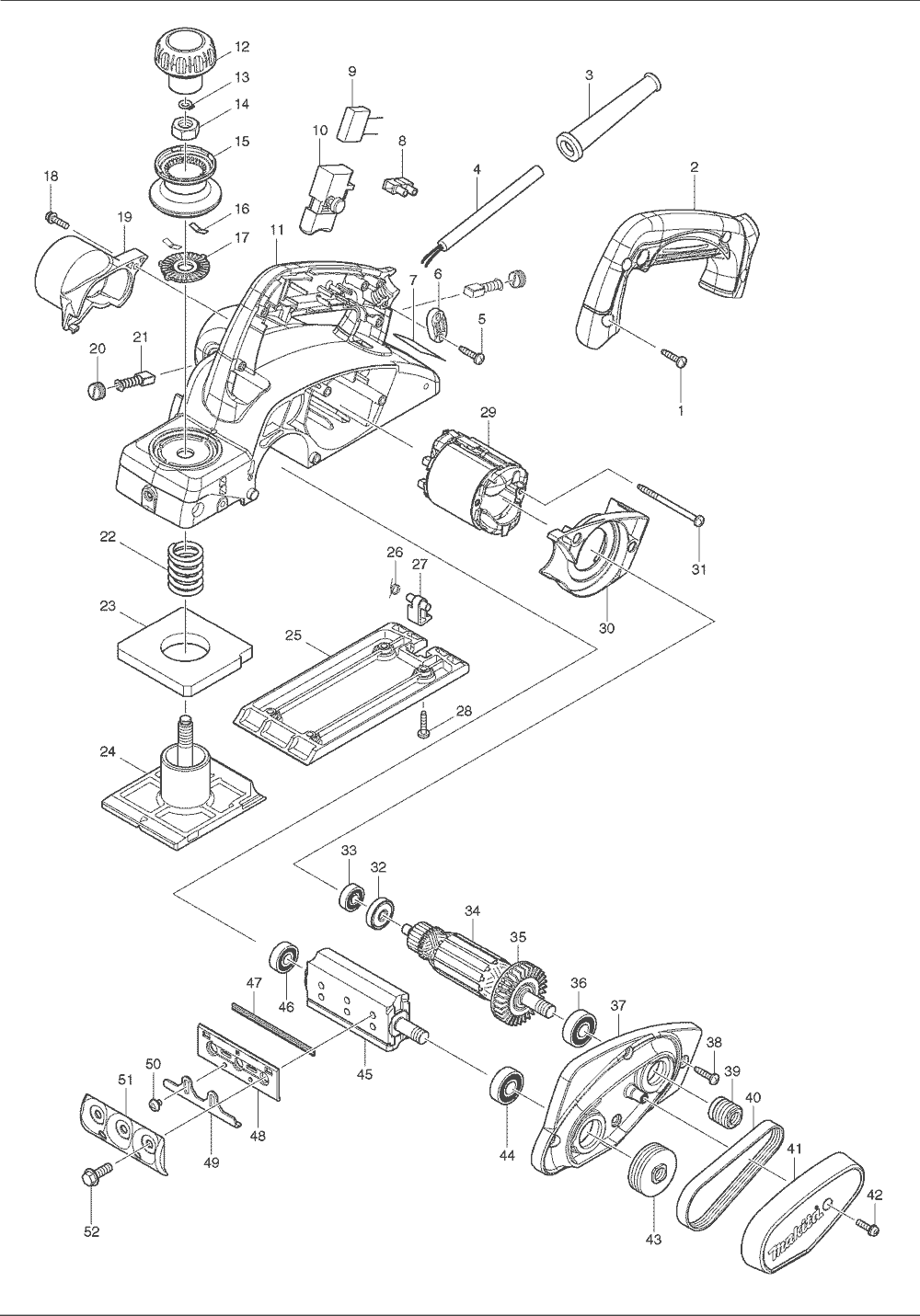

Makita KP0800 Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
2 451314-4 HANDLE COVER, KP0800K $4.71
3 682502-4 CORD GUARD 8-85, HP2010N $2.51
3 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
4 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
4 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
5 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
6 687063-9 STRAIN RELIEF, 4323K $1.26
7 867138-2 NAME PLATE, KP0800K $1.08
10 650236-7 SWITCH SGEL 115CDY-13, KP0800K $5.92
11 140198-2 MAIN FRAME CPL., KP0800K $26.27
12 451328-3 KNOB COVER, KP0800K $2.51
13 961004-6 RETAINING RING S-8, DA391D $0.53
14 264028-4 HEX. NUT M10, KP0800K $1.12
15 451325-9 KNOB, KP0800K $4.71
16 232185-6 LEAF SPRING, 1050DWA $4.16
17 346110-2 CAM PLATE, KP0800K $1.12
18 911128-8 P.H. SCREW M4X16, 1902 $1.48
19 451393-2 CHIP COVER, KP0800K $1.34
20 643550-8 BRUSH CAP , 9031 $1.63
21 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
22 231004-3 COMP. SPRING 18, 1912B $4.16
23 421007-7 RUBBER PACKING, N1900B $3.06
24 318491-4 FRONT BASE, KP0800K $5.92
25 318499-8 BASE, KP0800K $5.92
26 231698-4 TORSION SPRING 7, KP0810 $1.48
27 451392-4 FOOT, KP0800K $0.90
28 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
29 590025-7 FIELD ASS'Y, KP0800K $13.84
30 451327-5 BAFFLE PLATE, KP0800K $1.12
32 681652-2 INSULATION WASHER, BO4556 $1.34
33 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
34 515791-5 ARMATURE ASS'Y, KP0800K $18.35
35 240052-1 FAN 46, LXPK01 $4.16
36 211088-7 BALL BEARING 6000DDW, 9005B $13.07
37 140201-9 BRACKET CPL., KP0800K $7.90
38 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
39 222125-2 V-PULLEY 4-20L, 1900B-T2 $7.46
39 222163-4 V PULLEY 4-20L, KP0800K $1.34
40 225007-7 POLY V-BELT, KP0800K $16.04
41 451326-7 BELT COVER, KP0800K $2.51
42 911128-8 P.H. SCREW M4X16, 1902 $1.48
43 222126-0 V-PULLEY 4-37, 1900B-T2 $8.78
43 222164-2 V PULLEY 4-37, KP0800K $3.61
44 211088-7 BALL BEARING 6000DDW, 9005B $13.07
45 161061-6 DRUM, N1900B $27.59
46 211032-4 B. BEARING 608ZZ, N1900B $8.78
47 D-46246 3-1/4 Inch Double Edge Planer Blades Set $13.19
48 343433-9 SET PLATE (MINI BLADE), N1900B $4.49
49 345644-2 ADJUST PLATE, KP0810 $1.26
50 265132-2 + PAN HEAD SCREW M4X5, KP0800K $0.44
51 345007-2 DRUM PLATE SET, KP0800 $7.46
52 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
1001 123062-2 BLADE GAUGE, 1902 $6.40
1002 782209-3 SOCKET WRENCH, 4200H $6.40
1003 165581-2 GUIDE RULE KP0800K $16.60
1004 265785-7 THUMB SCREW M5X10, KP0800K $1.12
