Makita JS8000 Shear Parts

Makita JS8000 Parts

Variable Speed Fiber Cement Shear Kit

Download Schematic

Time to buy a new tool?

Makita JS8000

Variable Speed Fiber...

$239.99

Free Shipping

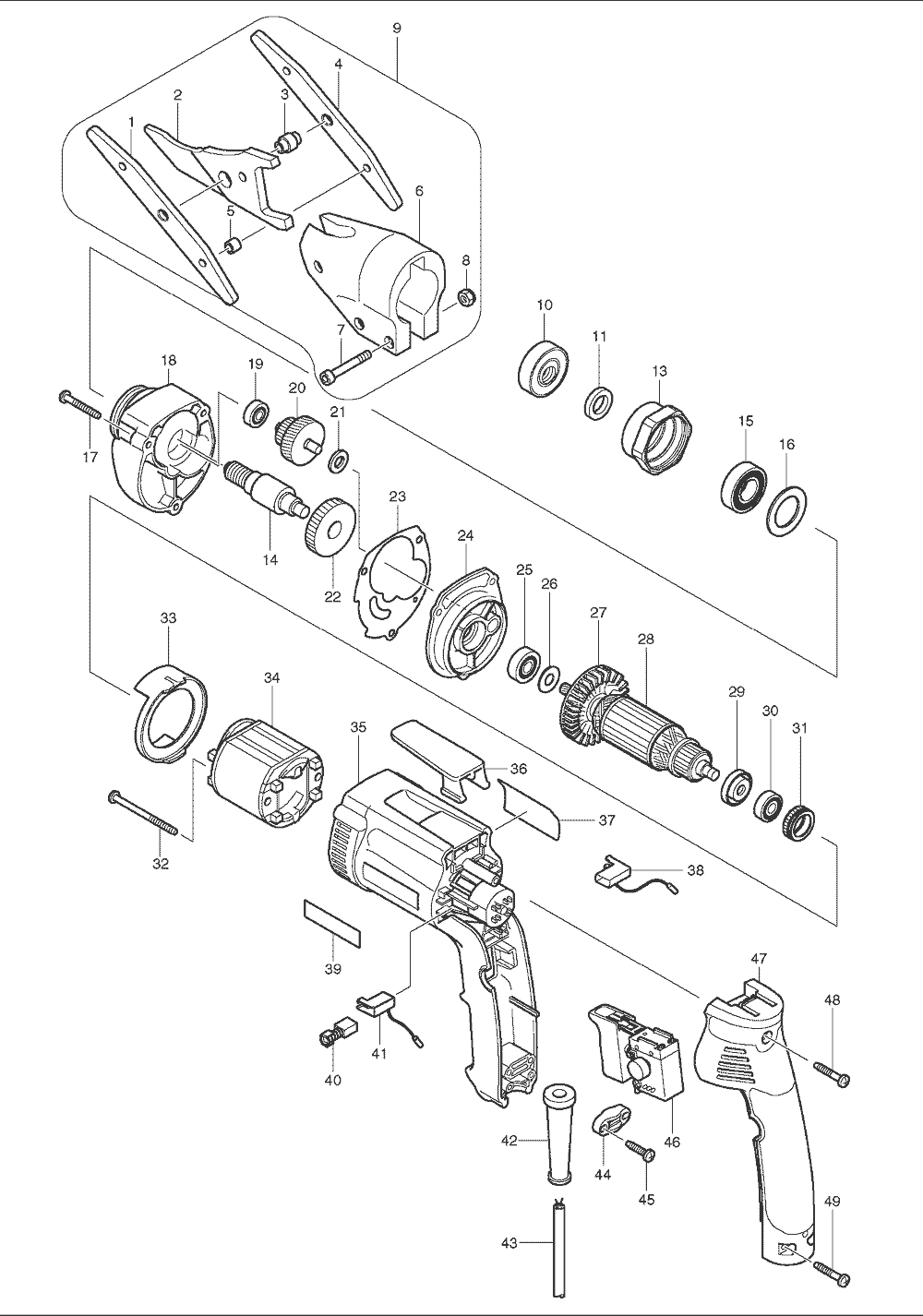

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	725130-3	SIDE BLADE JS8000	$74.40
2	725129-8	CENTER BLADE JS8000	$74.40
3	331738-9	PIVOT BUSH, JS8000	$15.93
4	725130-3	SIDE BLADE JS8000	$74.40
5	331737-1	SPACER BUSH, JS8000	$8.01

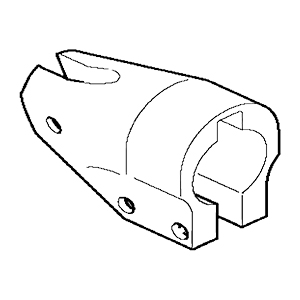

6	331736-3	SHEAR HEAD, JS8000	$134.06
7	266407-2	H.S.BOLT M5X35, JS8000	$3.28
8	264007-2	HEX. LOCK NUT M5, JS8000	$3.61
9	125354-5	'SHEAR HEAD ASS''Y JS8000 '	$268.00
10	125355-3	ECC. BEARING ASS'Y, JS8000	$87.00
11	267341-9	FLAT WASHER 13, JS8000	$3.72

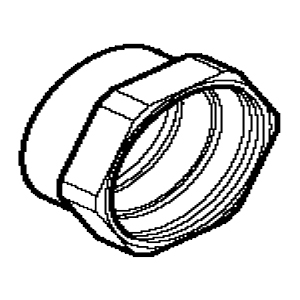

13	331695-1	JOINT, JS8000	$6.47

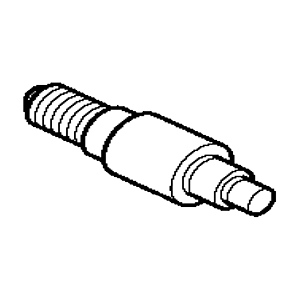

14	324394-2	SPINDLE, JS8000	$3.94
15	211236-8	BALL BEARING 6002DDW, 5007NK	$13.07
16	253793-0	F. WASHER 22, 6905B	$2.18
17	266050-7	P.T. SCREW 4X30, 4304	$1.19

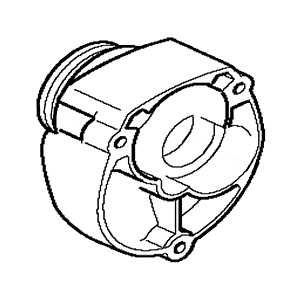

18	317727-8	GEAR HOUSING, JS8000	$5.92
19	211014-6	B. BEARING 606, 6826	$13.07
19	211012-0	BALL BEARING 606ZZ, HR2410	$15.27
20	226133-5	GEAR CPL.17-35, 6823/23TP	$22.75
21	267017-8	F. WASHER, JS8000	$2.18
22	227010-4	SPUR GEAR 36, JS1300	$18.02
23	442136-3	GASKET , 6827	$2.84
24	152910-8	GEAR HOUSING COVER, 6823	$11.09
25	210007-0	BALL BEARING 608VV, 6825	$13.07
26	253139-0	F. WASHER 8, 6510LVR	$1.34
27	240022-0	FAN 52, JS1300	$2.84
28	517321-8	ARMATURE ASS'Y , 6824,JS8000	$62.10
29	681636-0	INSULATION WASHER, GA4030	$3.72
30	211021-9	BALL BEARING 607LLB, LS1013	$8.78
31	421479-6	RUBBER RING 19, JN1601	$4.49
32	266147-2	TAPPING SCREW 4X55, 6824	$1.96
33	416993-5	BAFFLE PLATE, 6823	$1.63
34	633441-1	FIELD, JS8000	$12.63
35	183285-4	MOTOR HOUSING SET, 6827	$16.04
35	450718-7	MOTOR HOUSING, 6827	$16.04
36	417625-7	HOOK, 6827	$2.84
37	862959-7	NAME PLATE, JS8000	$1.12
38	643973-0	BRUSH HOLDER, JS1300	$2.84
39	819063-3	MAKITA LABEL, DA3010F	$0.96
40	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
41	643971-4	BRUSH HOLDER, JS1300	$2.84
42	682559-5	CORD GUARD 8, 6824	$2.51
42	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
43	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
43	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
44	687063-9	STRAIN RELIEF, 4323K	$1.26
45	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
46	651296-2	SWITCH, JS8000	$36.21
47	151961-8	HANDLE COVER COMPLETE, 6825	$17.25
47	158710-4	HANDLE COVER CPL., JS8000	$17.25
50	135168-4	SHEAR BLADE KIT JS8000	$144.40
1001	783221-6	HEX. WRENCH 5/32 JS8000	$3.20
1003	804914-3	MODEL NO. LABEL, JS8000	$0.73
