Makita JS1670 Shear Parts

Makita JS1670 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

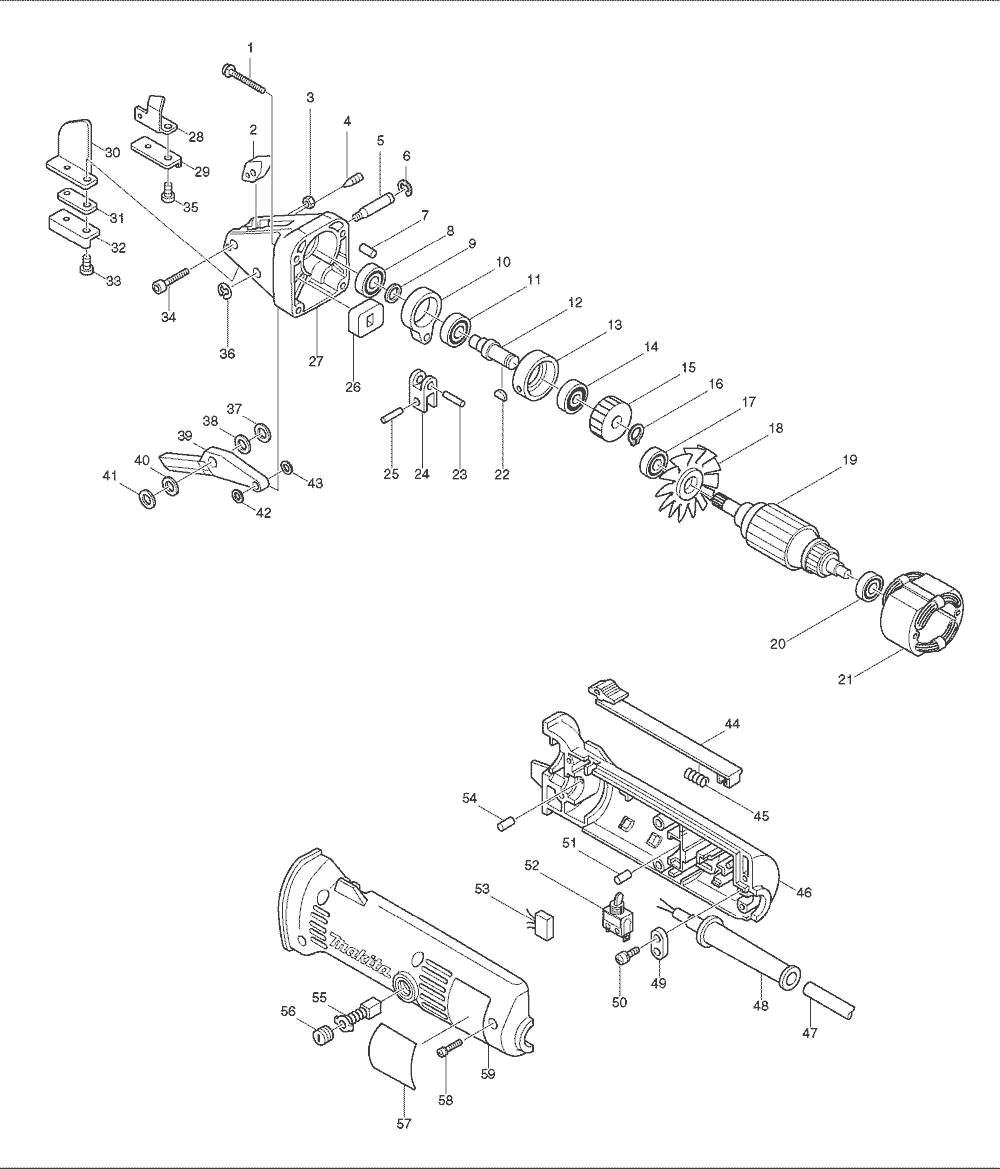

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	911161-0	P.H. SCREW M4X35, 9218SB	$0.86
00	256180-2	PIN 3, DS4011	$0.86
2	331317-3	BLOCK, JS1670	$10.32
3	252083-8	HEX LOCK NUT M4-7, UH3000D	$1.96
4	265901-1	SCREW M5X12, JS1670	$1.96
5	256733-7	PIN 7, JS1650	$5.37
6	961012-7	STOP RING E-6, 2030S	$0.53
7	263002-9	RUBBER PIN 4, 5007NK	$0.86
8	211026-9	B. BEARING 627LLB, N9514B	$8.78
9	253133-2	F. WASHER 7, DP4000	$1.34
10	331273-7	ROD, JS1650	$12.63
11	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
12	321850-3	CRANKSHAFT, JS1650	$9.22
13	315819-7	BUSH, JS1650	$5.92
14	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
14	211063-3	B. BEARING 6000LB, 906H	$10.98
15	221743-3	H. GEAR 44, JS1650	$16.81
16	961006-2	RETAINING RING S-10, N9501B	$0.86
17	211033-2	B. BEARING 608LB, 5091D	$8.78
18	241100-9	FAN 52, GE0600	$4.49
19	511526-2	ARMATURE, JS1670	$73.50
20	211026-9	B. BEARING 627LLB, N9514B	$8.78
21	521526-4	FIELD, JS1670	$29.17
22	254031-3	WOODRUFF KEY 3, 6801DBV	$1.26
23	256155-1	PIN 5, JS1650	$1.12
25	256155-1	PIN 5, JS1650	$1.12
26	423118-4	DUST COVER, JS1650	$0.90
27	157817-3	CRANK HOUSING, JS1670	$56.50
28	343479-5	SLIP PLATE (R), JS1670	$3.06
29	792536-0	SIDE BLADE SET JS1670	$80.60
30	343480-0	SLIP PLATE (L), JS1670	$3.06
31	343481-8	SPACER, JS1670	$1.26
32	792536-0	SIDE BLADE SET JS1670	$80.60
33	251951-2	H.S.C.H. SCREW M5X10, 4320	$1.48
34	922147-9	H.S.H. BOLT M4X25, JV2000	$1.34
35	251951-2	H.S.C.H. SCREW M5X10, 4320	$1.48
36	961011-9	STOP RING E-4, 4301BV	$1.48
37	261065-9	TEFLON WASHER 7, JS1650	$2.18
38	253338-4	T. WASHER 7, JS1650	$1.63
39	792537-8	CENTER BLADE JS1670	$134.20
40	253338-4	T. WASHER 7, JS1650	$1.63
41	261065-9	TEFLON WASHER 7, JS1650	$2.18
42	267010-2	F. WASHER 5, AN451	$1.63
43	267010-2	F. WASHER 5, AN451	$1.63
44	410529-2	SWITCH ROD, JS1650	$2.51
45	231223-1	COMP. SPRING 6, N9514B	$2.07
47	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
47	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
48	682502-4	CORD GUARD 8-85, HP2010N	$2.51
48	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
49	687002-9	STRAIN RELIEF, 9217SPC	$0.97
50	911133-5	P.H. SCREW M4X18, N9501B	$0.86
51	263002-9	RUBBER PIN 4, 5007NK	$0.86
52	651433-8	SWITCH, 9523NB	$11.31
54	263002-9	RUBBER PIN 4, 5007NK	$0.86
55	194972-0	CARBON BRUSH 76, 6905B	$8.12
56	643550-8	BRUSH CAP , 9031	$1.63
57	855980-3	NAME PLATE, JS1670	$1.12
58	911158-9	P.H. SCREW M4X30, 9045B	$0.86
400	783201-2	HEX WRENCH 3, AF501	$3.40
401	410048-8	WRENCH HOLDER, JR3000V	$1.26
900	810146-2	CAUTION LABEL, 6906	$1.17
