Makita JS1300 Shear Parts

Makita JS1300 Parts

18 Ga. 6.5 AMP, 0-2,500 RPM, var. spd. Straight Shear

Download Schematic

Time to buy a new tool?

Makita JS1300

18 Ga. 6.5 AMP, 0-2,...

$241.99

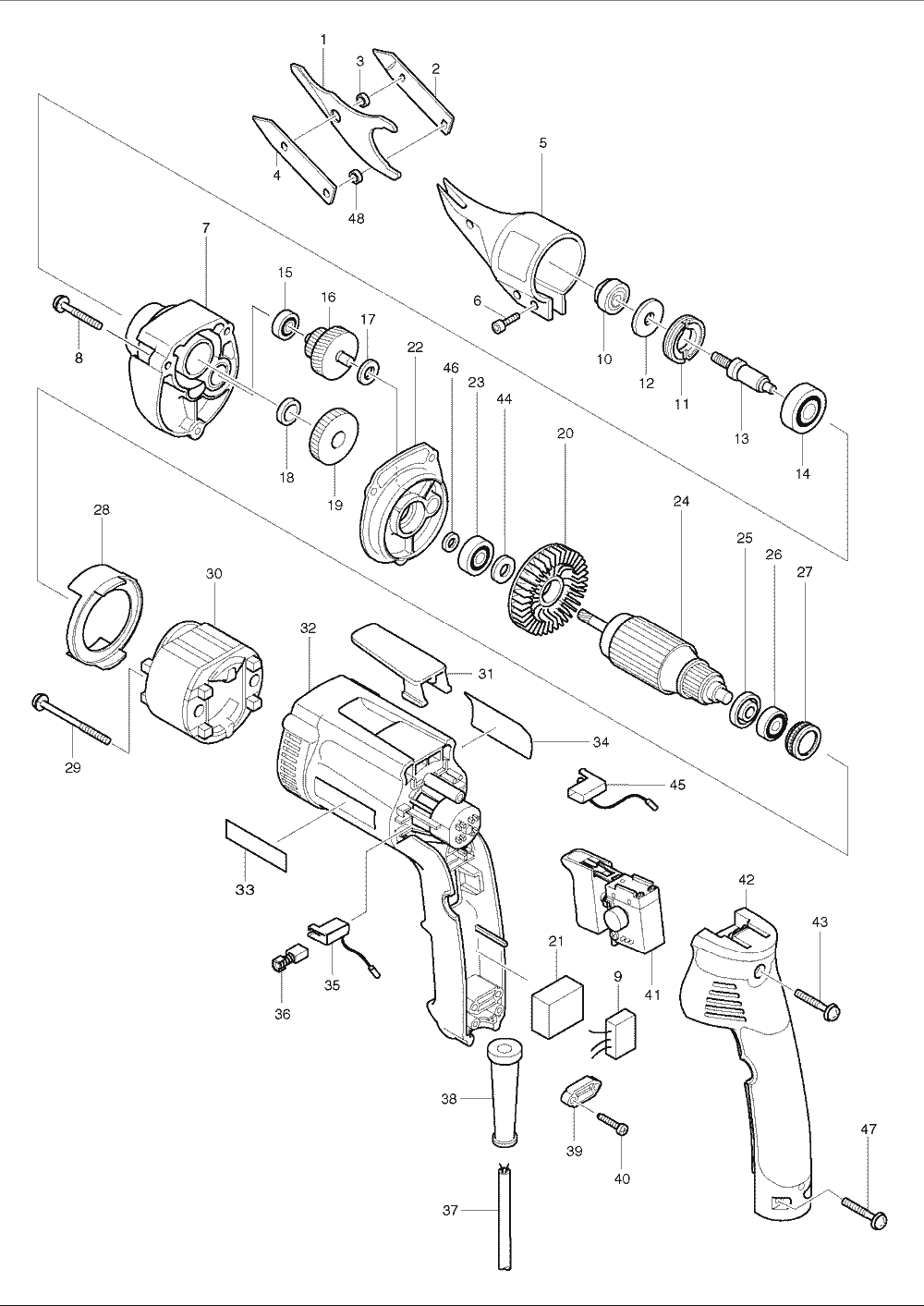

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
32	183285-4	MOTOR HOUSING SET, 6827	$16.04
3	257705-5	SLEEVE 5, JS1300	$4.16
5	152663-9	CUTTING HEAD CPL., JS1300	$104.09
6	266268-0	HEX.SOCKET.HEAD BOLT, JS1300	$4.93
7	317419-9	GEAR HOUSING, JS1300	$28.15
8	266050-7	P.T. SCREW 4X30, 4304	$1.19
10	125111-1	BEARING ASS'Y, JS1300	$39.06
11	285802-7	BEARING RETAINER 19-33, 5740NB	$3.06
12	267223-5	FLAT WASHER 10, JS1300	$3.72
13	324066-9	SPINDLE, JS1300	$9.33
14	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
15	211014-6	B. BEARING 606, 6826	$13.07
16	226133-5	GEAR CPL.17-35, 6823/23TP	$22.75
17	267017-8	F. WASHER, JS8000	$2.18
18	257010-0	RING 12, 5600B, 5620DWA	$2.84
19	227010-4	SPUR GEAR 36, JS1300	$18.02
20	240022-0	FAN 52, JS1300	$2.84
22	152910-8	GEAR HOUSING COVER, 6823	$11.09
23	210007-0	BALL BEARING 608VV, 6825	$13.07
24	517321-8	ARMATURE ASS'Y , 6824,JS8000	$62.10
25	681636-0	INSULATION WASHER, GA4030	$3.72
26	211021-9	BALL BEARING 607LLB, LS1013	$8.78
27	421479-6	RUBBER RING 19, JN1601	$4.49
28	416993-5	BAFFLE PLATE, 6823	$1.63
29	266147-2	TAPPING SCREW 4X55, 6824	$1.96
30	633441-1	FIELD, JS8000	$12.63
31	417625-7	HOOK, 6827	$2.84
32	183285-4	MOTOR HOUSING SET, 6827	$16.04
32	450718-7	MOTOR HOUSING, 6827	$16.04
33	819063-3	MAKITA LABEL, DA3010F	$0.96
34	852518-5	NAME PLATE, JS1300	$1.12
35	643971-4	BRUSH HOLDER, JS1300	$2.84
36	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.99
36	K38	Carbon Brush Set Replaces Makita (CB407), CB-419...	$8.50
37	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
37	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
38	682559-5	CORD GUARD 8, 6824	$2.51
38	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
39	687063-9	STRAIN RELIEF, 4323K	$1.26
40	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
41	651296-2	SWITCH, JS8000	$36.21
42	151961-8	HANDLE COVER COMPLETE, 6825	$17.25
42	158710-4	HANDLE COVER CPL., JS8000	$17.25
44	253139-0	F. WASHER 8, 6510LVR	$1.34
45	643973-0	BRUSH HOLDER, JS1300	$2.84
46	262087-2	RING 8, HP2050F	$5.37
48	257705-5	SLEEVE 5, JS1300	$4.16
49	442136-3	GASKET , 6827	$2.84
1001	783215-1	HEX. WRENCH 5/32 JS1300	$3.20
2001	125112-9	SHEAR HEAD ASS'Y, JS1300	$196.00
5001	810134-9	CAUTION LABEL, 3709	$0.93
