Makita JR3060T Electric Saw Parts

Makita JR3060T Electric Saw Parts Image

Makita JR3060T Parts
Reciprocating Saw Variable Speed

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita JR3060T
Reciprocating Saw Va...
$162.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

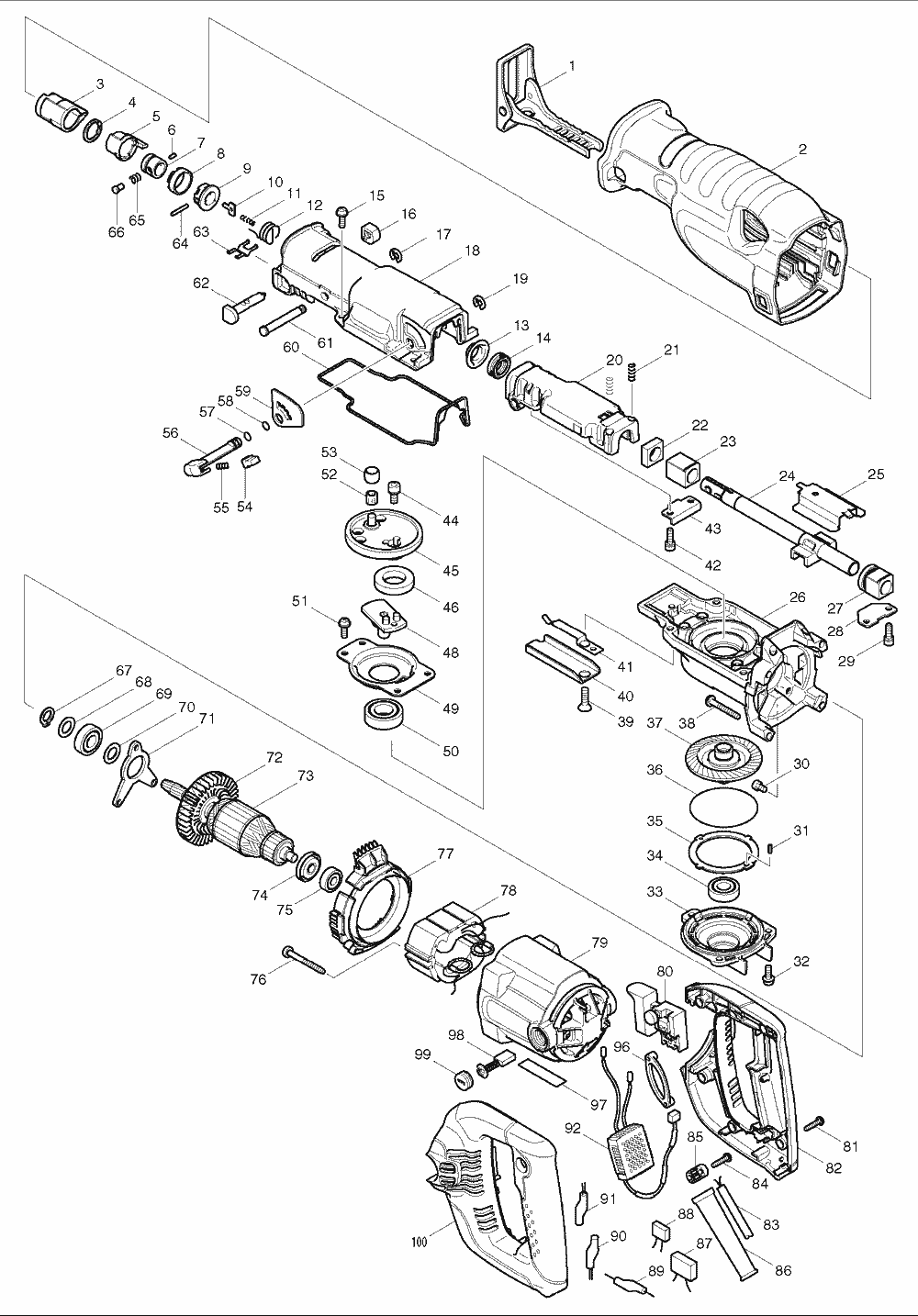

Makita JR3060T Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 163451-9 SHOE, JR3050T $5.48
00 125524-6 GEAR HOUSING COVER ASS'Y, JR3060T $54.80
2 421898-6 INSULATION COVER, JR3060T $8.01
3 424147-0 PROTECTOR, JR3050T $0.97
4 961078-7 RETAINING RING S-18,BHR200SH $1.19
4 257952-8 RETAINING RING (EXT) 18, JR3060T $1.26
5 310160-3 DRIVING SLEEVE, JR3050T $4.93
5 310285-3 DRIVING SLEEVE, JR3050T $5.48
6 268094-3 PIN 3, JR3050T $3.28
7 331639-1 GUIDE SLEEVE, JR180D $6.80
7 331720-8 GUIDE SLEEVE, JR3060T $1.52
8 417791-0 DRIVING SLEEVE GUIDE, JR3050T $2.84
9 418311-3 SLEEVE, JR3050T $1.52
10 345214-7 PUSH PLATE, BJR240SH $1.52
11 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
12 231687-9 TORSION SPRING 17, JR3050T $0.86
13 257742-9 SHOULDER SLEEVE 14, JR3060T $0.75
14 213174-0 X RING 14, JR3030 $5.37
15 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
16 418806-6 CAP, JR3050T $0.97
17 961012-7 STOP RING E-6, 2030S $0.53
18 154551-6 GEAR HSG. COVER CPL., JR3060T $19.45
19 961012-7 STOP RING E-6, 2030S $0.53
20 154502-9 SLIDE SUPPORT , JR3070CT $12.63
21 233038-2 COMPRESSION SPRING 5, AN451 $2.07
22 423343-7 SEAL PLATE 14, JR3060T $1.26
23 214170-1 PLANE BEARING, JR3060T $2.84
25 345487-2 SLIDE PLATE, JR3060T $1.52
26 317842-8 GEAR HOUSING, JR3070CT $16.04
27 154547-7 BEARING CPL., JR3070CT $13.29
28 345486-4 PLATE B, JR3060T $0.75
29 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
29 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
30 265530-0 H.S.H. BOLT M5X8, JR3060T $1.08
31 951051-5 SPRING PIN 3-8, JR3060T $0.86
32 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
33 317844-4 BEARING BOX W/O BEARING, JR3060T $6.80
34 211101-1 BALL BEARING 6001LLB,9218PB $13.07
35 345488-0 GEAR PLATE, JR3060T $1.41
36 213726-7 O-RING 62, JR3060T $1.19
37 154549-3 TORQUE LIMITER CPL., JR3060T $30.70
38 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
38 266373-3 TAPPING SCREW 5X35, 5477NB $0.53
39 265165-7 TORX C.S.H.SCREW M6X16,JR3050T $0.86
40 345479-1 SHOE GUIDE, JR3050T $1.26
41 232222-6 LEAF SPRING (B), JR3050T $1.48
42 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
42 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
43 345485-6 PLATE A, JR3060T $0.75
44 265531-8 H.S.H. BOLT M6X14, JR3060T $1.34
45 154545-1 CRANK CAM CPL., JR3070CT $13.84
46 257261-5 RING 21B, JR3060T $1.52
48 154546-9 CRANK BASE CPL., JR3060T $4.71
49 285720-9 BEARING RETAINER B, JR3060T $1.52
50 211251-2 B.BEARING 6003LLB, 5277B $15.27
51 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
52 212957-5 NEEDLE BEARING, JR3070CT $11.97
54 418991-5 STOPPER, JR3060T $1.52
55 231309-1 .COMP. SPRING 5, AF502 $2.07
56 272247-8 LEVER 20, JR3060T $4.16
57 213021-5 O RING 5, JR3070CT $0.53
58 213021-5 O RING 5, JR3070CT $0.53
59 413095-8 PLATE C, JR3060T $1.26
60 421899-4 SEAL RING, JR3060T $1.26
61 268012-1 PIN 7, JR3020 $5.37
62 162236-0 SHIFT BUTTON, JR3050T $4.16
63 232221-8 LEAF SPRING (A), JR3050T $0.86
64 256158-5 PIN 3, BJR181 $1.19
65 233345-3 COMPRESSION SPRING 6, JR3050T $1.63
66 256492-3 SHOULDER PIN 5, JR3050T $1.48
67 961052-5 RETAINING RING S-12, 9218PBL $0.86
68 253744-3 F. WASHER 12, HR2410 $1.34
69 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
70 253744-3 F. WASHER 12, HR2410 $1.34
71 285719-4 BEARING RETAINER A, JR3070CT $1.52
72 241863-7 FAN 70, JR3050T $11.75
73 513606-0 ARMATURE ASS'Y, JR3060T $33.25
74 681644-1 INSULATED WASHER, 9227C $1.63
75 210029-0 BALL BEARING 608ZZ, 5007NK $4.16
76 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
77 418817-1 BAFFLE PLATE, JR3060T $2.84
78 525721-8 FIELD ASS'Y, JR3060T $17.03
79 154498-4 MOTOR HOUSING CPLT., JR3050T $10.65
80 650222-8 SWITCH, JR3070CT $14.61
81 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
82 183932-7 HANDLE SET, JR3060T $12.63
84 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
85 687063-9 STRAIN RELIEF, 4323K $1.26
86 682573-1 CORD GUARD,JR3070CT $2.51
86 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
92 631652-2 CONTROLLER, JR3060T $18.57
97 861223-3 NAME PLATE, JR3060T $0.71
98 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
99 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
100 183932-7 HANDLE SET, JR3060T $12.63
1002 194068-7 RECIPRO SAW BLADE SET, BJR182Z $7.00
5001 810134-9 CAUTION LABEL, 3709 $0.93
